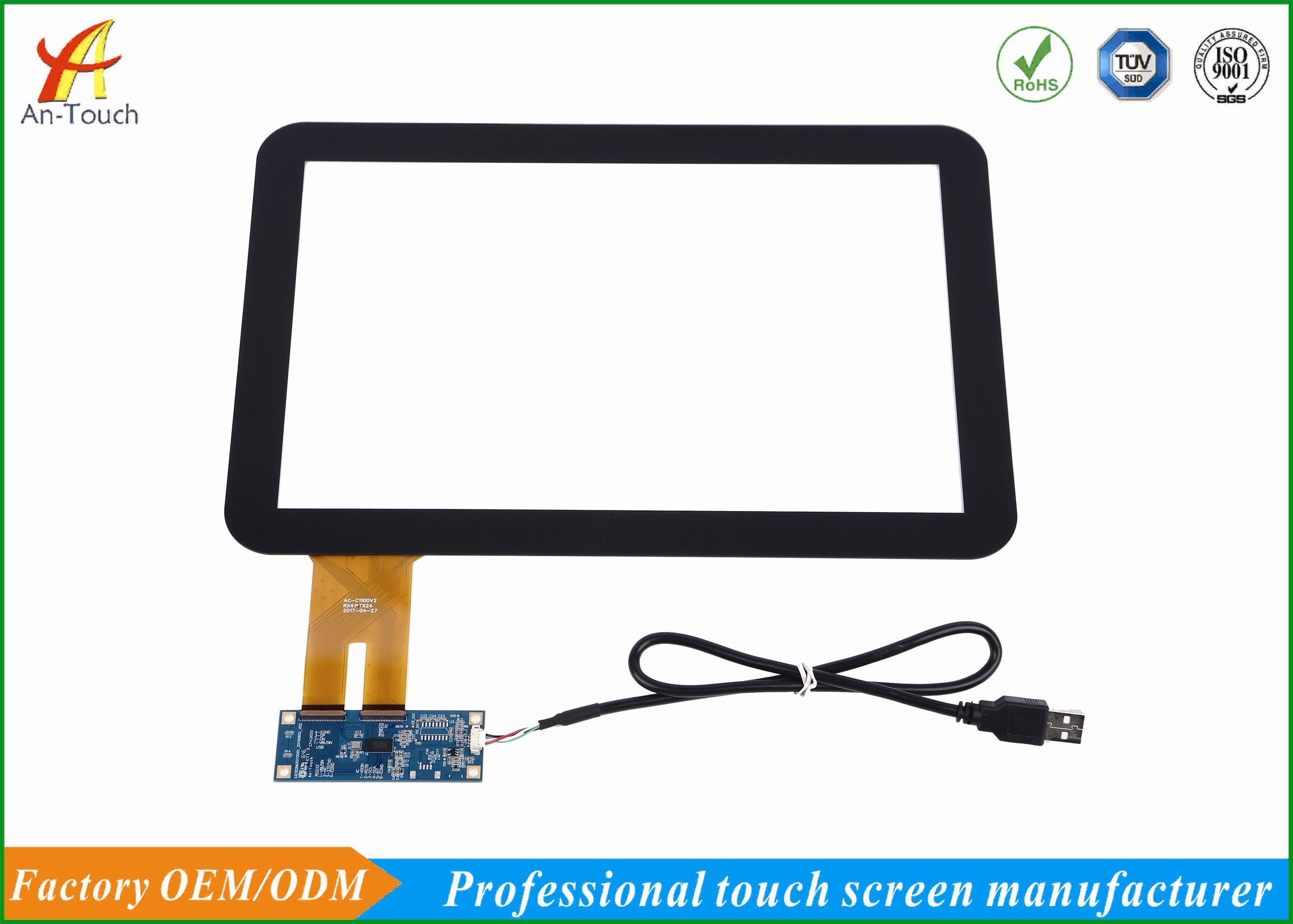

Multifunctional Capacitive Touch Panel / 15.6 Inch Waterproof Touch Screen PCAP screen
Contact Person : Devin Jiang
Phone Number : +86 13528582261
| Minimum Order Quantity : | 1/PCS | Price : | 10-100$/pcs / Negotiable |
|---|---|---|---|
| Packaging Details : | Standard packing with carton | Delivery Time : | 5-8 Work Day |
| Payment Terms : | T/T, Western Union, D/P, Paypal | Supply Ability : | 50000/PCS/Month |
| Place of Origin: | China | Brand Name: | an-touch |
|---|---|---|---|
| Certification: | ROHS SGS ISO9001 | Model Number: | AC-C1101-12.1 |
|
Detail Information |
|||

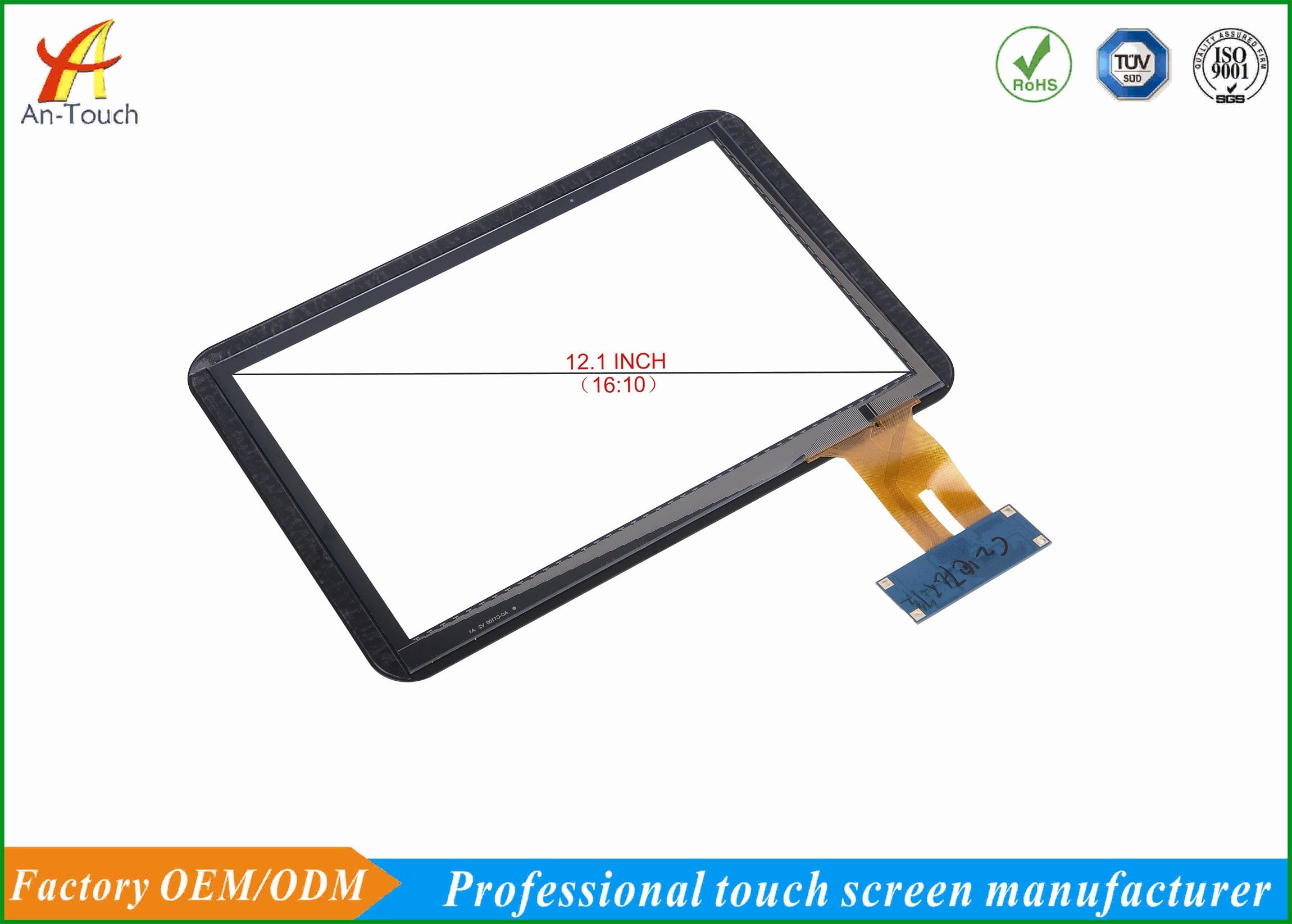

| Screen Diagonal: | 12.1 Inch | Ratio: | 16:10 |
|---|---|---|---|
| Resolution: | 1280 X 1024 | Outline Dimensio: | 301.9*203.9 Mm |
| Warranty: | 12 Months | Cover Lens: | 1.1mm |
| High Light: | water resistant touch screen,waterproof touchscreen display |
||
Product Description
| Item | Specification |
| Screen size | 12.1 inch |
| Structures | Cover Glass+ITO Glass |
| Surface Hardness | >6H |
| Surface Treatment | AG/AF/AR |
| IC Controller | ILITEK 2302 |
| Operating temperature | -20℃~70℃ |
| Storage temperature | -30℃~80℃ |
| Supply Voltage | 3.3V~5V |
| Transmittance | 86% Min |
| Interface Mode | USB/IIC/RS232 |
| Operating System | XP win7,8 Android Linux |
| System Driver | No need(USB plug and play) |
| Touch Points |
1-10 |
Competitive Advantage:
Capacitive Touch Panel is to use the working current of induction of human body.The operational principle of the projected capacitive touch panel: There are two layers of the ITO layer under the surface of glass. This ITO layer respectively forms the electric field of X axis and Y axis, which can keep balance by crossing the surface of the class. Once the fingers approach the glass surface, the fingers and the electrode X axis or Y axis will form a new electric field, which can make the local capacitance change. Then the controller will determine the location based on capacitance changes.
Projected Capacitive touch screen Features:
►Response speed fast, smooth touch
► Flat panel, more high-end atmosphere, eliminating infrared touch screen surface with a groove edges are not allowed to shortcomings
►Any point can withstand more than 50 million times touch
► Operating systems strong compatibility
► Intelligent automatic calibration, use forinternal / external variety of environments
► Long life, low maintenance costs
Application:
►Touch Screen All in one Computers.
►Touch Screen laptop.
►POS Machine.
►Industrial Control industry.
►Touch Monitor.
►Information Kiosks.
►Gaming, Lottery ect.
►Multimedia marketing.
►Banking / Fanancial System.
►Touch Table.
Why choose us?
►Our factory is a legal,responsible,capable,experienced factory.
►We have the largest laminting mechine which can up to 65inch.
►In stock for fast delivery provide the best after-sales service.
►We can provide the best design solutions according customer requirements.
►All of our products have been inspected strictly before delivery.
Customer question
► How about Sample lead time ?
-------Custom samples 12-18work-days,standard samples 5~10work-days
► How about mass production lead time ?
------ 15 days after sample confirmed
► Shipping?
------Usually we deliver our goods by DHL,UPS, FedEx etc.
► Payment term?
------ T/T or Western Union 30% deposit, 70% balance should be paid before shipment.
► How about the warranty?
------ Warranty 1year
