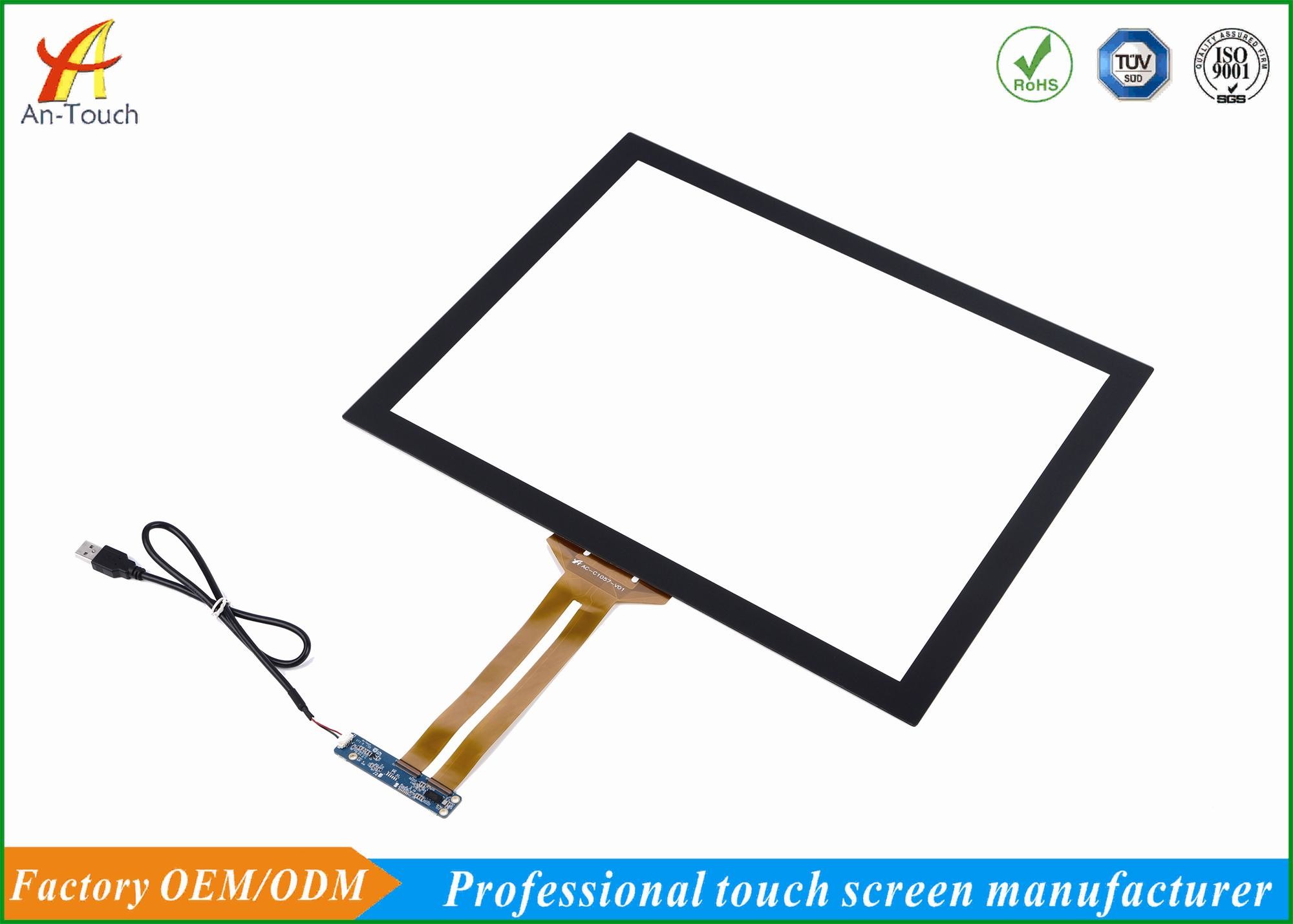

Multifunctional Capacitive Touch Panel / 15.6 Inch Waterproof Touch Screen PCAP screen
Contact Person : Devin Jiang
Phone Number : +86 13528582261
| Minimum Order Quantity : | 1/PCS | Price : | 10-100$/pcs / Negotiable |
|---|---|---|---|
| Packaging Details : | Standard packing with carton | Delivery Time : | 5-10 Work Day |
| Payment Terms : | T/T, Western Union, D/P, Paypal | Supply Ability : | 50000/PCS/Month |
| Place of Origin: | China | Brand Name: | antouch |
|---|---|---|---|
| Certification: | ROHS SGS ISO9001 | Model Number: | AC-C1057-19.0 |
|
Detail Information |
|||
| Screen Diagonal: | 19.0 Inch | Resolution: | 4096*4096 |
|---|---|---|---|
| Transmittance: | 86% Min | Outline Dimensio: | 421.6*346.6mm |
| Interface Mode: | USB/IIC/RS232 | Operating System: | XP Win7 8 Android Linux |
| High Light: | water resistant touch screen,tablet touch screen digitizer replacement |
||
Product Description
| Item | Specification |
| Screen size | 19.0 inch |
| Structures | Cover Glass+ITO Glass |
| Cover Lens | 1.8mm |
| Surface Treatment | AG/AF/AR |
| IC Controller | ILITEK 2302 |
| Operating temperature | -20℃~70℃ |
| Storage temperature | -30℃~80℃ |
| Supply Voltage | 3.3V~5V |
| Input Method | Finger Or Capacitive Pen |
| Interface Mode | USB/IIC/RS232 |
| Operating System | XP win7,8 Android Linux |
| System Driver | No need(USB plug and play) |
| Touch Points | 1-10 |
Capacitive Touch Screen:
Capacitive touch screen are built with two parallel layers of ITO but, but unlike the old and cheap resistive touch panels, the ITO layers in a projected capacitive touch panel are sealed between two sheets of glass by an optically clear adhesive.
Features:
1.Completely dead 10-point touch really, any point can withstand more than 50 million times touch.
2.No ghost after the first calibration, drift-free.
3.Strong compatibility, support WindowsXP / 7/8 / 8.1 / 10 / CE, Mac, Android / Linux and other operating systems.
4.Anti-interference ability, without the interference of light and radiation, surface water / oil / dust can touch any place accurate and correct.
5.Free drive, plug and play.
6.Intelligent automatic calibration, simple and easy to adapt to internal / external use a variety of environments.
Development process:
1.Receive customer's technical files, including PCAP drawing, LCD specification.
2.Recommend standard products or customize products based on customer's requirements.
3.Offer engineering drawing for confirmation and fill in project kick-off form.
4.Make samples according to the confirmed drawing.
5.Debug the samples based on the information on kick-off form, keep the FW.
6.Send the samples to customers for confirmation. Offer all the technical supports with which customer will let the touch panels work well.
7.Pilot production.
8.Mass production.
Application:
Touch Screen All in one Computers
Touch Screen laptop
POS Machine
Industrial Control industry
Touch Monitor
Information Kiosks
Gaming, Lottery ect
Multimedia marketing
Banking / Fanancial System
Touch Table
Delivery Time:
1.Samples in stock: 1~3 working days.
2.Customized project: 10~15days for samples.
3.Mass production: 10~18days.
Customer question:
1.How about Sample lead time ?
-------Custom samples 12-18work-days,standard samples 5~10work-days
2. How about mass production lead time ?
------ 15 days after sample confirmed
3.Shipping?
------Usually we deliver our goods by DHL,UPS, FedEx etc.
4. Payment term?
------ T/T or Western Union 30% deposit, 70% balance should be paid before shipment.
5.How about the warranty?
------ Warranty 1year
