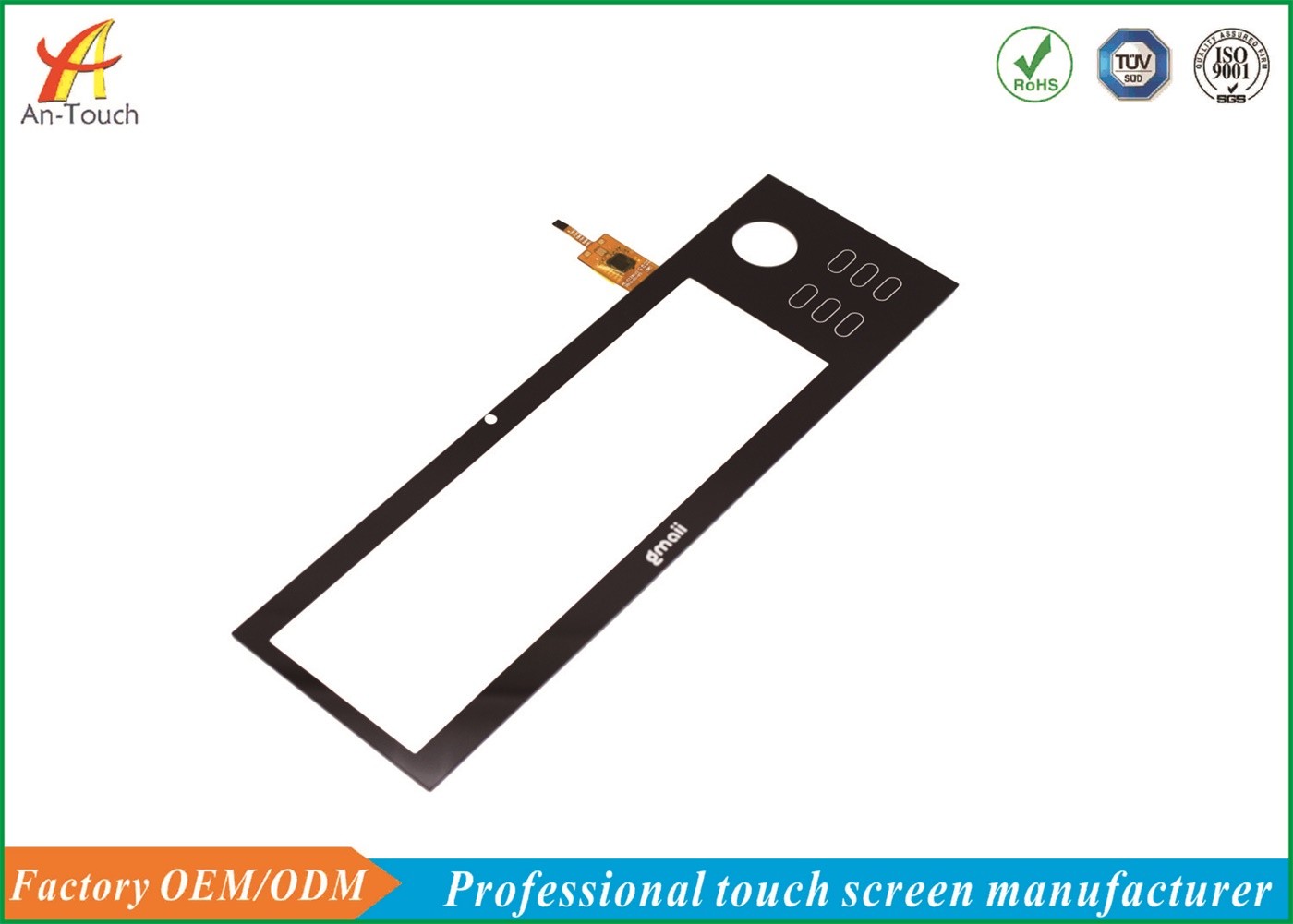

OEM LCD Capacitive Car Touch Panel Multi Touch 10 Point External Use
Contact Person : Devin Jiang
Phone Number : +86 13528582261
| Minimum Order Quantity : | 1/PCS | Price : | 10-100$/pcs / Negotiable |
|---|---|---|---|
| Packaging Details : | Standard Packing With Carton | Delivery Time : | 5-10 Work Day |
| Payment Terms : | T/T, Western Union, Paypal | Supply Ability : | 50000/PCS/Month |
| Place of Origin: | China | Brand Name: | Antouch |
|---|---|---|---|
| Certification: | ROHS SGS ISO9001 | Model Number: | AC-C1281-8.0 |
|
Detail Information |
|||
| Screen Diagonal: | 8.0 Inch | Resolution: | 1280*400 |
|---|---|---|---|

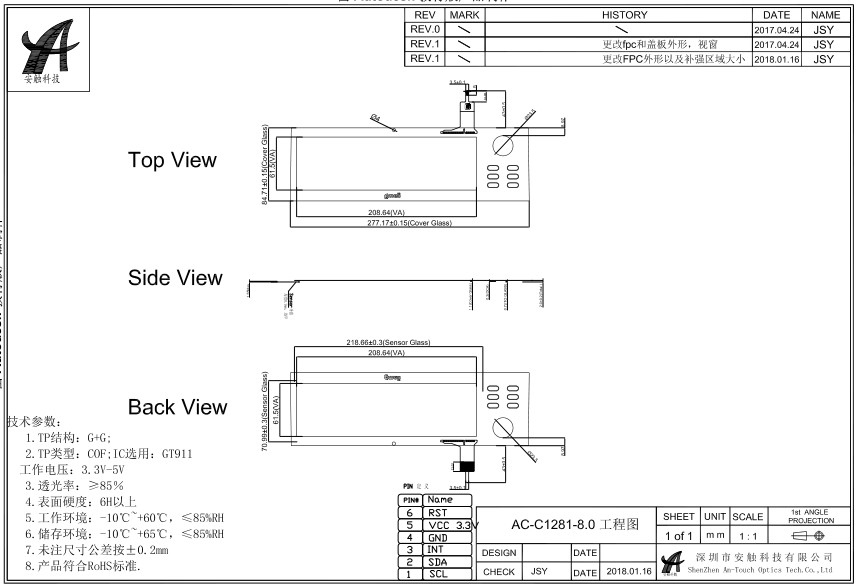

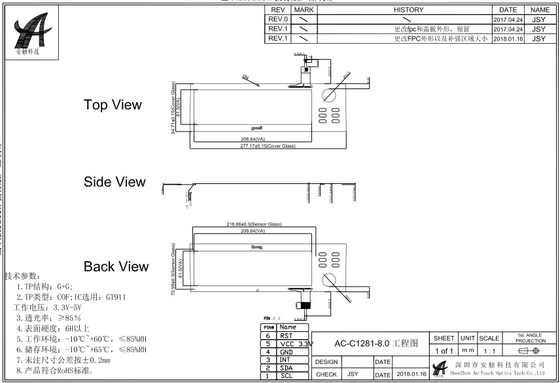

| Cover Lens: | 2 Mm | Outline Dimensio: | 277.17*84.71 Mm |
| Warranty: | 12 Months | Input Method: | Finger Or Capacitive Pen |
| High Light: | car touch screen,touch screen panel for car |
||
Product Description
| Item | Specification |
| Screen size | 8.0inch |
| Structures | Cover Glass+ITO Glass |
| Surface Hardness | >6H |
| Surface Treatment | AG/AF/AR |
| IC Controller | Goodix GT911 |
| Operating temperature | -20℃~70℃ |
| Storage temperature | -30℃~80℃ |
| Supply Voltage | 3.3V~5V |
| Transmittance | 86% Min |
| Interface Mode | IIC Interface |
| Operating System | XP win7,8 Android Linux |
| System Driver | Provide Goodix Driver for Android |
| Touch Points | 1-5 |
| CTP Type | COF |
Operation Principle:
Capacitive touch panel works through body's current induction .When finger is on or close to touch panel surface,due to body electric field, the user and touch panel surface forms one coupling capacitance. For high frequency current, capacitance is direct conductor, then fingers suck a small current from the contact point, through amplifying and accurately calculating this current signal, the controller works out the touch point position
Projected Capacitive touch screen Features:
►Response speed fast, smooth touch
► Flat panel, more high-end atmosphere, eliminating infrared touch screen surface with a groove edges are not allowed to shortcomings
►Any point can withstand more than 50 million times touch
► Operating systems strong compatibility
► Intelligent automatic calibration, use forinternal / external variety of environments
► Long life, low maintenance costs
Advantages of G+G structure:
1.High transmittance,>86%.
2.Hard and anti-wear surface.The hardness is 6H.
3.Excellent corrosion resistance.
4.Sensitive touch and stable performance.
Application:
►Point-of-information kiosks.
►Vending and ticket sales.
►Electronic catalogs.
►Gaming, lottery, and amusement.
►Public pay phones.
►Multimedia marketing.
►Banking/financial transactions.
►Industrial control rooms.
►Computer-based training.
Why choose us?
1.Our factory is a legal,responsible,capable,experienced factory.
2.We have the largest laminting mechine which can up to 65inch.
3.In stock for fast delivery provide the best after-sales service.
4.We can provide the best design solutions according customer requirements.
5.All of our products have been inspected strictly before delivery.
Customer question
1. How about Sample lead time ?
-------Custom samples 12-18work-days,standard samples 5~10work-days.
2. How about mass production lead time ?
------ 15 days after sample confirmed.
3.Shipping?
------Usually we deliver our goods by DHL,UPS, FedEx etc.
4: Payment term?
------ T/T or Western Union 30% deposit, 70% balance should be paid before shipment.
5: How about the warranty?
------ Warranty 1year.
