Multipoint USB Smart Home Touch Panel 23.6 Inch High Sensitivity Dust Free
Contact Person : Devin Jiang
Phone Number : +86 13528582261
| Minimum Order Quantity : | 1pcs | Price : | 10-100$/pcs / Negotiable |
|---|---|---|---|
| Packaging Details : | Standard export package | Delivery Time : | 8-10 Work Days |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 10000/pcs/Month |
| Place of Origin: | China | Brand Name: | antouch |
|---|---|---|---|
| Model Number: | AC-C1188-13.3 |
|
Detail Information |
|||
| TP Type:: | Smart Home Touch Screen | Interface:: | IIC |
|---|---|---|---|
| Touch Points:: | 10 Points | Colour:: | Black (customizable) |
| IC Controller:: | ILITEK | Transmittance:: | ≥85% |
| Surface Hardness:: | ≧6H | Warrently:: | 1 Year |
| High Light: | home automation touch screen panel,smart home touch screen |
||
Product Description
Waterproof 13.3 inch with IIC connector Smart Home Touch Screen for Furniture Appliance
Basic Specification
|
Screen size |
13.3inch |
| Structures | Cover Glass+ITO Glass |
| Surface Hardness | >6H |
| Surface Treatment | AG/AF/AR |
| Outline Dimensio | 361.2*270.mm |
| Module View Area | 293.76*165.24mm |
| Active Area | 307.41*181.08 |
| Operating temperature | -20℃~70℃ |
| Cover Lens | 2.0mm |
| Storage temperature | -30℃~80℃ |
| Supply Voltage | 3.3V~5V |
| Transmittance | 86% Min |
| Interface Mode | USB/IIC/RS232 |
| Operating System | XP win7,8 Android Linux |
| System Driver | No need(USB plug and play) |
| Touch Points | 1-10 |
Features
1.Completely dead 10-point touch really, any point can withstand more than 50 million times touch.
2.Strong compatibility, support WindowsXP / 7/8 / 8.1 / 10 / Mac, Android / Linux and other operating
systems.
3.Anti-interference ability, without the interference of light and radiation, surface water / oil / dust can touch any place accurate and correct.
4.Free drive, plug and play.
5.Intelligent automatic calibration, simple and easy to adapt to internal / external use a variety of environments.
6.Wear resistance, long life, low maintenance costs.
Projected Capacitive Touch Screen Features:
1.Glass to glass structure.
2.1.1mm to 6mm temperted glass. Support cover/size customized.
3.4096×4096 Resolution with linearity error ≤2mm.
4.Size available from 7inch to 65inch.
5.Multi-touch 1 to 10 touch points.
Projected Capacitive touch screen Features:
► Response speed fast, smooth touch
► Flat panel, more high-end atmosphere, eliminating infrared touch screen surface with a groove edges are not allowed to shortcomings
► Can support real 10points touch, Compatible with multiple system
► Operating systems strong compatibility
► Intelligent automatic calibration, use forinternal / external variety of environments
► Controllor with USB interface type
Delivery Time
1.Samples in stock: 1~3 working days
2.Customized project: 10~15days for samples
3.Mass production: 10~18days
Customer question
1. How about Sample lead time ?
-------Custom samples 12-18work-days,standard samples 5~10work-days
2. How about mass production lead time ?
------ 15 days after sample confirmed
3. Shipping?
------Usually we deliver our goods by DHL,UPS, FedEx etc.
4. Payment term?
------ T/T or Western Union 30% deposit, 70% balance should be paid before shipment.
5. How about the warranty?
------ Warranty 1year

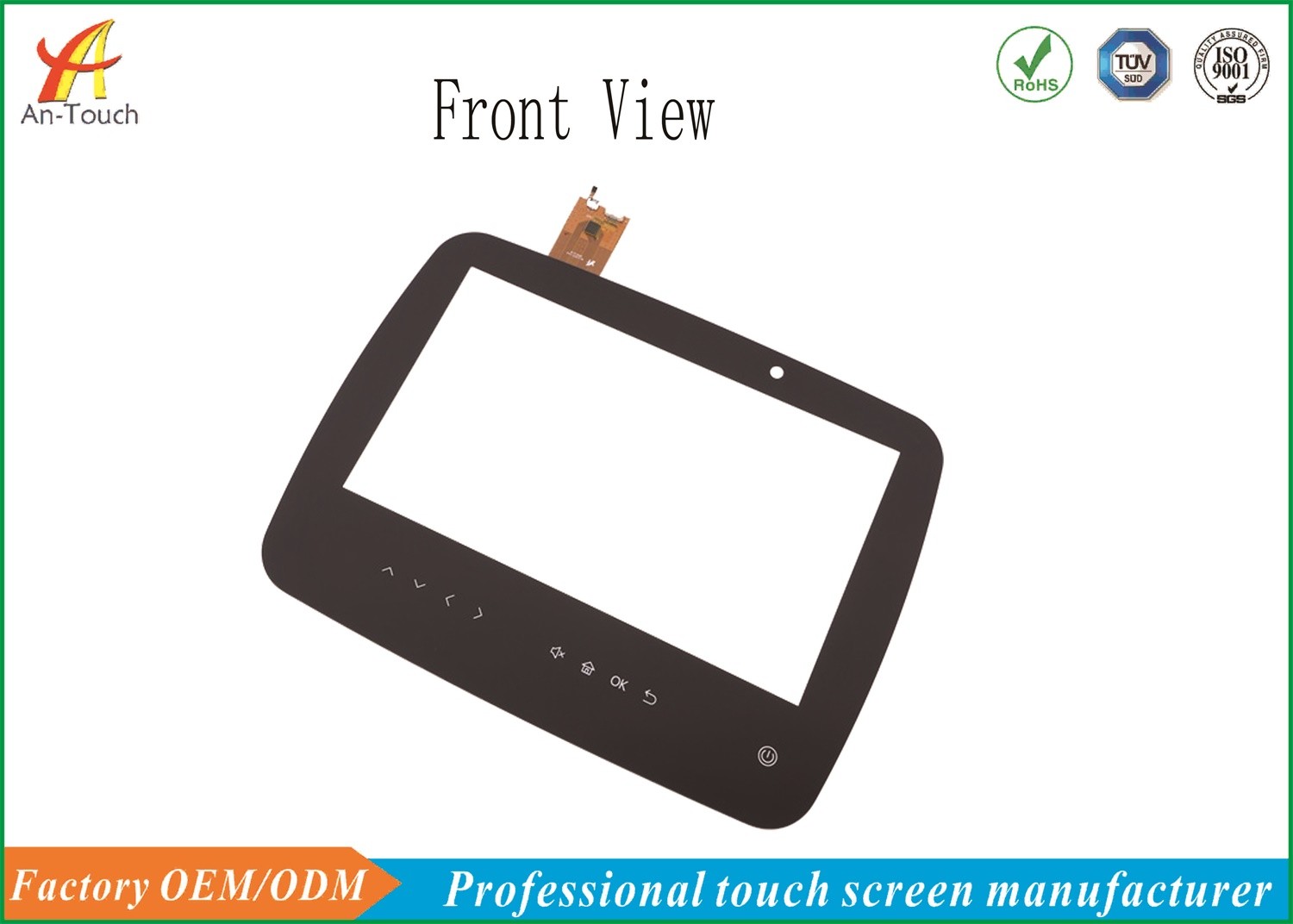

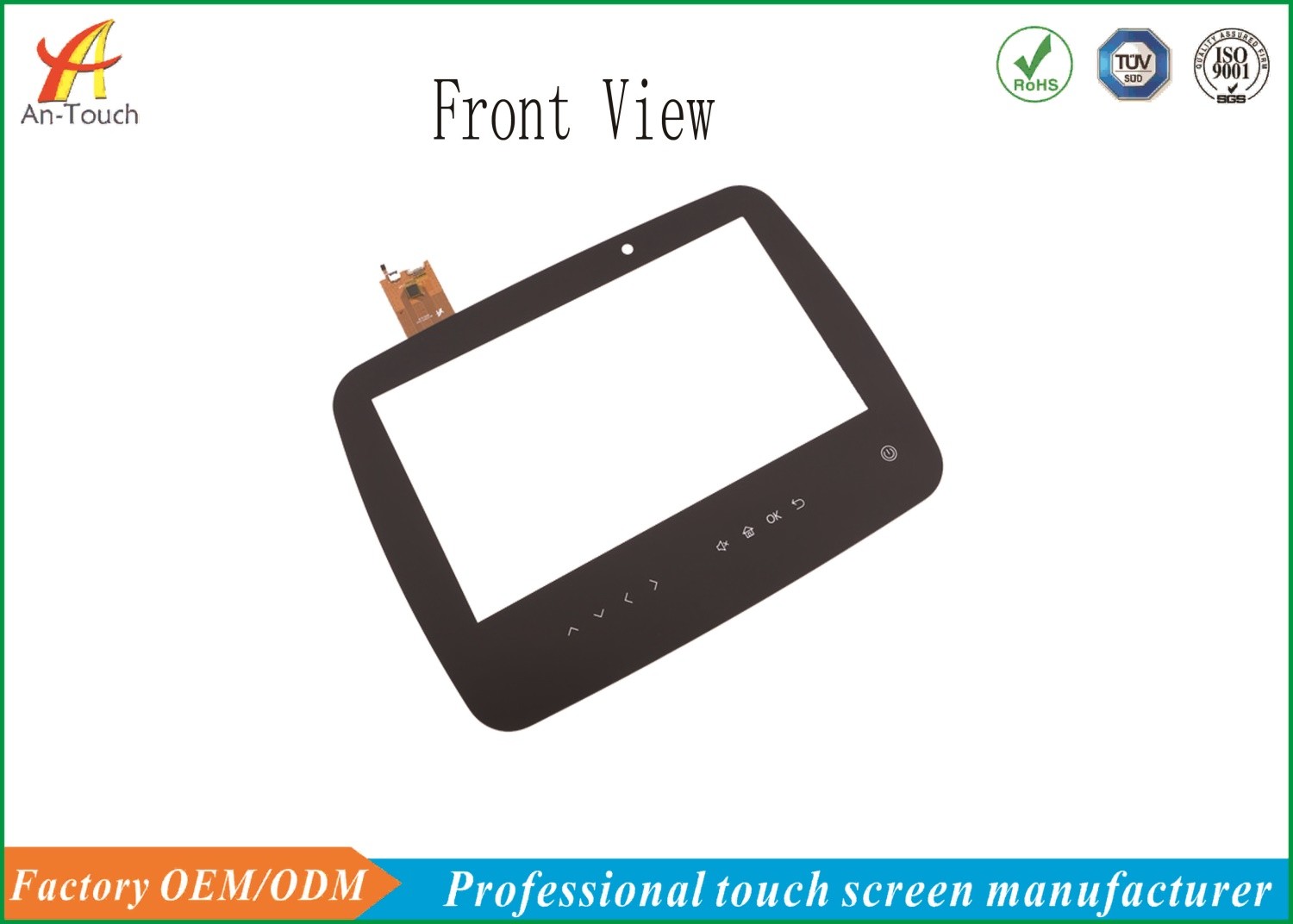

High Dedinition Product Map
