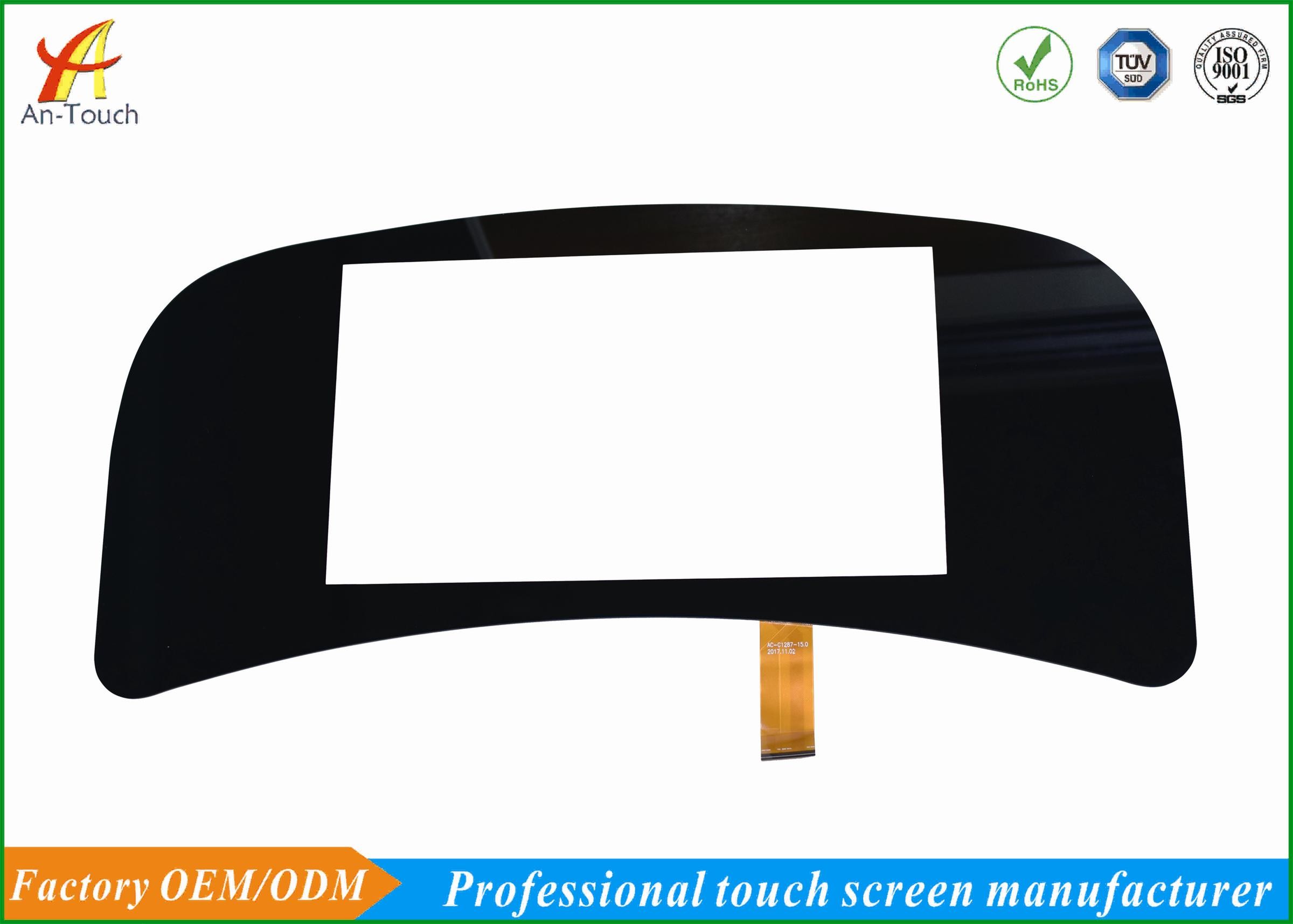

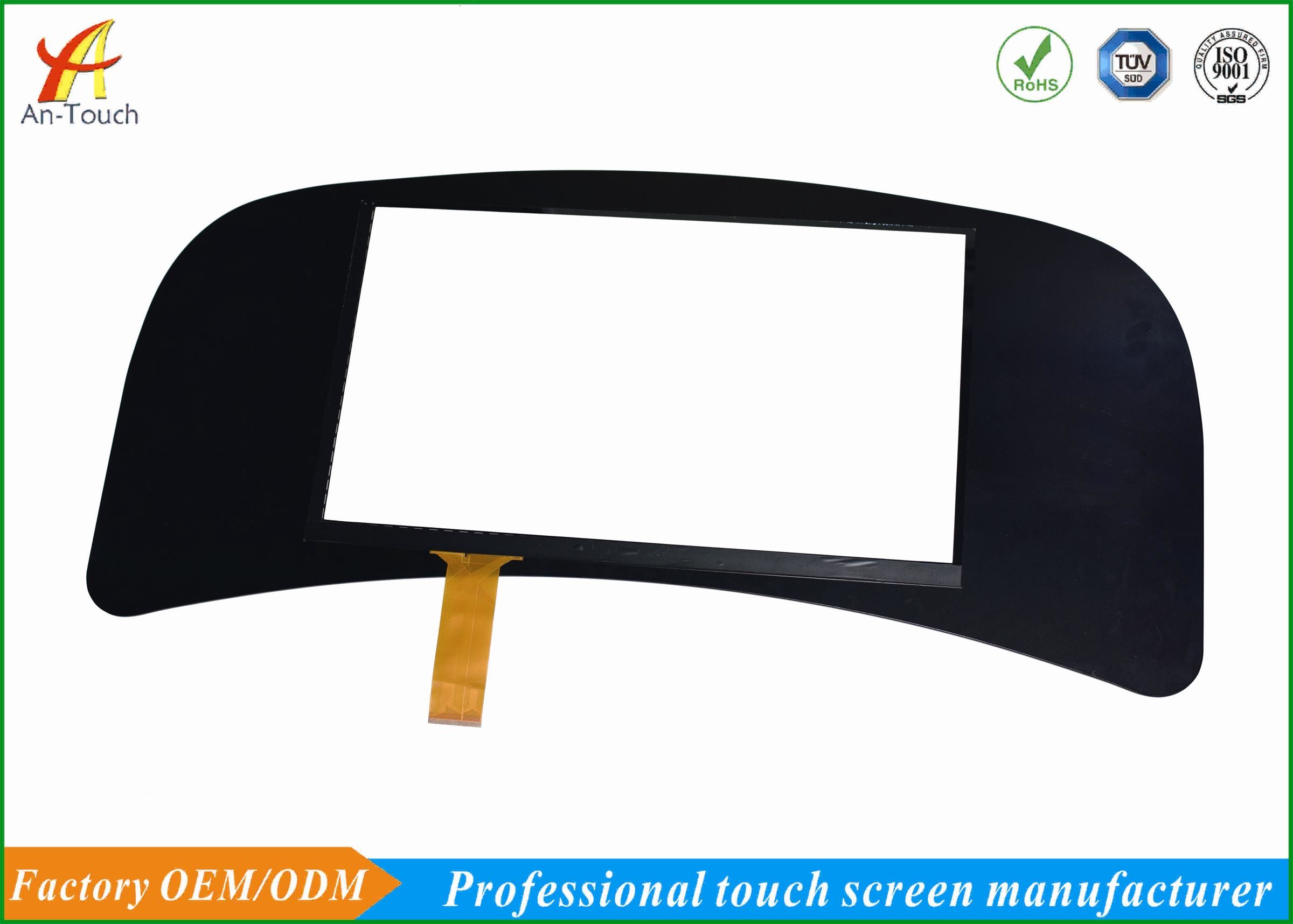

Multifunctional Capacitive Touch Panel / 15.6 Inch Waterproof Touch Screen PCAP screen
Contact Person : Devin Jiang
Phone Number : +86 13528582261
| Minimum Order Quantity : | 1/PCS | Price : | 10-100$/pcs / Negotiable |
|---|---|---|---|
| Packaging Details : | Standard Packing With Carton | Delivery Time : | 5-8 Work Day |
| Payment Terms : | T/T, Western Union, Paypal | Supply Ability : | 50000/PCS/Month |
| Place of Origin: | China | Brand Name: | antouch |
|---|---|---|---|
| Certification: | ROHS SGS ISO9001 | Model Number: | AC-C1888-18.5 |
|
Detail Information |
|||
| Screen Diagonal: | 18.5 | Structures: | Cover Glass+ITO Glass |
|---|---|---|---|
| Outline Dimensio: | 730.2*325.4mm | System Driver: | No Need(USB Plug And Play) |
| Input Method: | Finger Or Capacitive Pen | Warranty: | 12 Months |
| High Light: | tablet touch screen digitizer replacement,waterproof touchscreen display |
||
Product Description
| Item | Specification |
| Screen size | 18.5 inch |
| Interface Type | USB |
| Surface Hardness | >6H |
| Surface Treatment | AG/AF/AR |
| IC Controller | ILITEK 2511 |
| Operating temperature | -20℃~70℃ |
| Storage temperature | -30℃~80℃ |
| Supply Voltage | 3.3V~5V |
| Transmittance | 86% Min |
| Interface Mode | USB/IIC/RS232 |
| Operating System | XP win7,8 Android Linux |
| Cover Lens | 3.0mm |
| Touch Points | 1-10 |
Capacitive Touch Screen:
Capacitive touch panel works through body's current induction .Unlike resistive touch screens, you don't need an external force to achieve touching. When finger is on or close to touch panel surface,due to body electric field, the user and touch panel surface forms one coupling capacitance. If there is no broken,it will be used infinitely.
Projected Capacitive Touch Screen Features:
1.Glass to glass structure
2.1.1mm to 6mm temperted glass
3.Support cover/size customized
4.4096×4096 Resolution with linearity error ≤2mm
5.Size available from 7inch to 65inch.
6.Multi-touch 1 to 10 touch points.
7.Tempered scratch proof cover glass with high impact resistance
Pitech Multitouch Capacitive Large Touch Screen Panel products are mainly applied to commercial and industrial computers,all-in-one machines,POS kiosk,vending kiosk,automatic self-service terminals,multimedia system,adverstising tablet PC and game machine,smart home,intelligent medical devices,smart education devices,bank devices etc.,welcome to customize the high quality interactive glass on glass multitouch projected capacitive touch screen panel kits for various touch control integrated solutions.
Advantages of G+G structure:
(1)High transmittance,>83%.
(2)Hard and anti-wear surface.The hardness is 6H.
(3)Excellent corrosion resistance.
(4)Sensitive touch and stable performance.
Development process:
1.Receive customer's technical files, including PCAP drawing, LCD specification.
2.Recommend standard products or customize products based on customer's requirements.
3.Offer engineering drawing for confirmation and fill in project kick-off form.
4.Make samples according to the confirmed drawing.
5.Debug the samples based on the information on kick-off form, keep the FW.
6.Send the samples to customers for confirmation. Offer all the technical supports with which customer will let the touch panels work well.
7.Pilot production.
8.Mass production.
Why choose us?
1.Our factory is a legal,responsible,capable,experienced factory.
2.We have the largest laminting mechine which can up to 65inch.
3.In stock for fast delivery provide the best after-sales service.
4.We can provide the best design solutions according customer requirements.
5.All of our products have been inspected strictly before delivery.
Customer question
1. How about Sample lead time ?
-------Custom samples 12-18work-days,standard samples 5~10work-days.
2. How about mass production lead time ?
------ 15 days after sample confirmed.
3.Shipping?
------Usually we deliver our goods by DHL,UPS, FedEx etc.
4. Payment term?
------ T/T or Western Union 30% deposit, 70% balance should be paid before shipment.
5. How about the warranty?
------ Warranty 1year.
