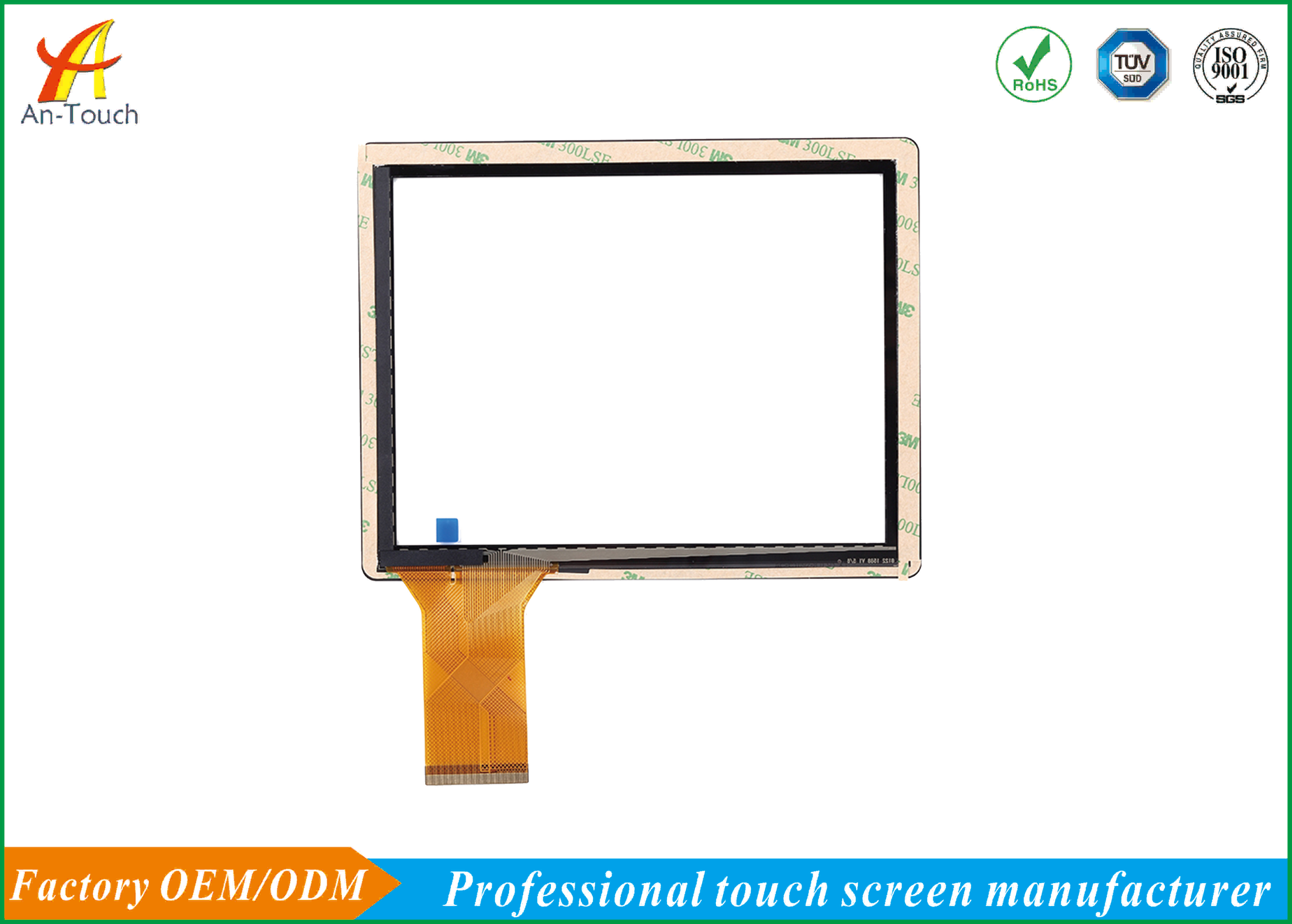

Flexible 8 Inch POS Touch Panel With USB Port Cover Glass + ITO Glass

Minimum Order Quantity : negotiation Price : Negotiation
Packaging Details : Standard packing with carton Delivery Time : 5-8 Work Day
Payment Terms : T/T, Western Union, D/P, Paypal Supply Ability : 50000/PCS/Month
Place of Origin: China Brand Name: an-touch
Certification: ROHS SGS ISO9001 Model Number: AC-C1092-8.0

Detail Information

Name: POS Touch Panel Screen Diagonal: 8 Inch
Structures: Cover Glass+ITO Glass Port: USB Port
Outline Size: 187.05*146.54mm View Area: 163.05*122.54mm
IC Controller/IC: ILITEK 2511 Feature: Flexible
High Light:

pos machine touch screen

,

multi touch screen

Product Description

Flexible 8 Inch POS Touch Panel With USB Port Cover Glass + ITO Glass



POS Touch Panel Main Features

1) The
POS Touch Panel is protected from dust, moisture and oil and can be used in lower or higher temperature environments.

2) Stable, touch-free drift, support for gloved hands and stylus touch.

3) High accuracy, maximum resolution up to 4096x4096, fast response.

4) Resistive touch screens are cheaper due to proven technology and lower barriers.



POS Touch Panel Application:

  1. kiosks.
  2. Gaming, lottery, and amusement.
  3. Public pay phones.
  4. Multimedia marketing.
  5. Banking/financial transactions.
  6. Industrial control rooms.

POS Touch Panel Parameters



Item Specification
Part Number AC-C1092-8.0 POS Touch Panel
Structures Cover Glass+ITO Glass
Surface Hardness >6H
Outline size 187.05*146.54mm
View Area 163.05*122.54mm
IC Controller/IC ILITEK 2511
Operating temperature -20℃~70℃
Storage temperature -30℃~80℃
Total Thickness 2.0±0.15mm
Transmittance 86% Min
Interface Mode USB/IIC/RS232
Operating System XP win7,8 Android Linux
Touch Points 1-10



Flexible 8 Inch POS Touch Panel With USB Port Cover Glass + ITO Glass 0



Our service



1.We have the largest laminting mechine which can up to 65 inch.



2.In stock for fast delivery provide the best after-sales service.



3.We can provide the best design solutions according customer requirements.



4.All of our products have been inspected strictly before delivery.



5.You can send the drawing to us directly,including the dimension of cover glass and sensor,if you want your own logo on it,just send us the design.
