Ultra Thin Glass Touch Panel / Narrow Bezel Advertising Touch Screen
Contact Person : Devin Jiang
Phone Number : +86 13528582261
| Minimum Order Quantity : | negotiation | Price : | negotiation |
|---|---|---|---|
| Packaging Details : | Standard Packing With Carton | Delivery Time : | 5-8 Work Day |
| Payment Terms : | T/T, Western Union, Paypal | Supply Ability : | 50000/PCS/Month |
| Place of Origin: | China | Brand Name: | antouch |
|---|---|---|---|
| Certification: | ROHS SGS ISO9001 | Model Number: | AC-C156090 |
|
Detail Information |
|||
| Name: | KTV Touch Screen | Structures: | Cover Glass+ITO Glass |
|---|---|---|---|
| Screen Diagonal: | 15.6 | Outline Size: | 386.8*236.07mm |
| View Area: | 344.23*193.54mm | IC Controller: | ILITEK 2511 |
| Transmittance: | 86% Min | Warranty: | 12 Months |
| High Light: | karaoke touch screen,usb touch panel |
||
Product Description

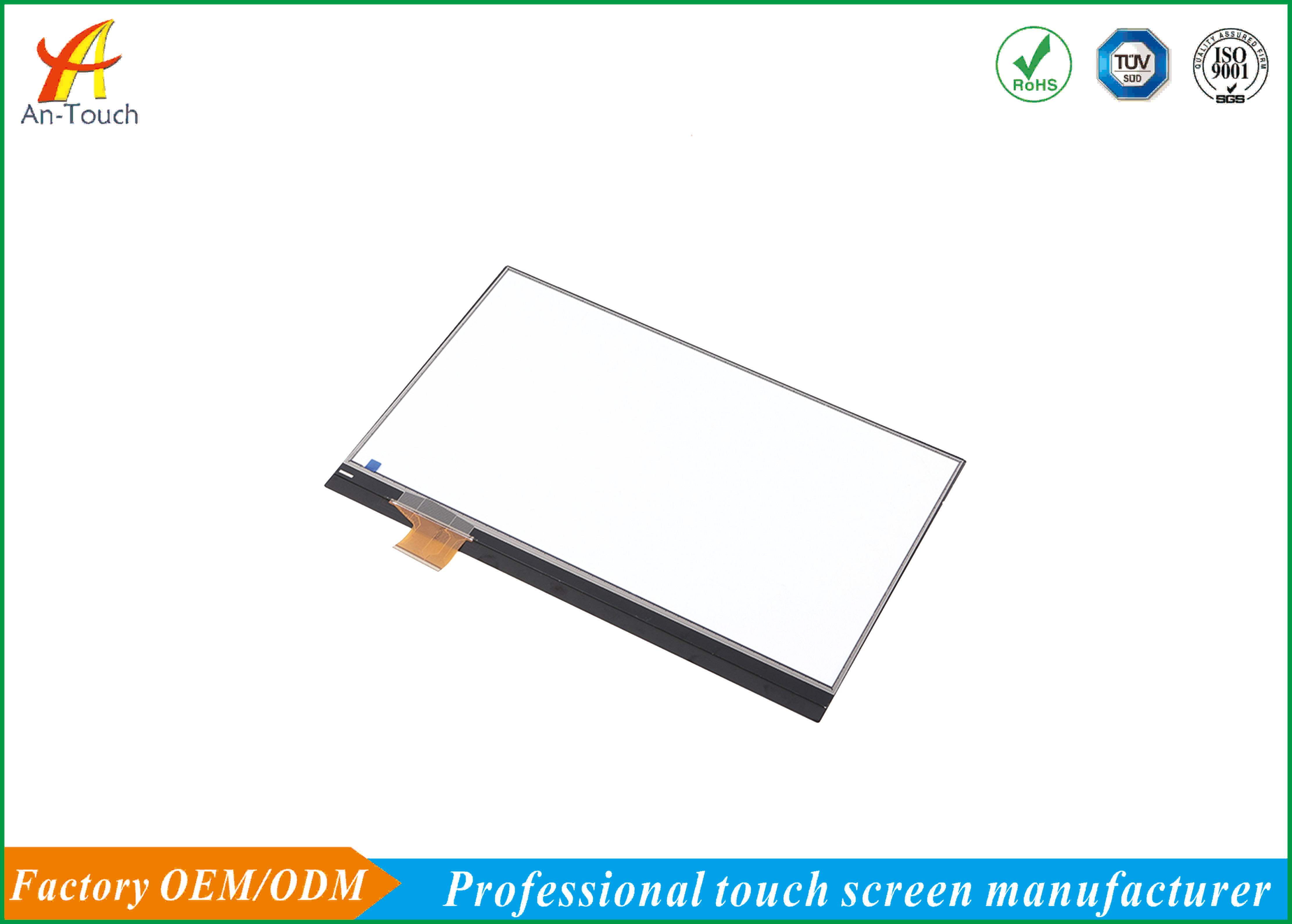

High Brightness KTV Touch Screen With Cover Glass+ITO Glass Structure
Introduction :
Capacitive touch screen are built with two parallel layers of ITO but, but unlike the old and cheap resistive touch panels, the ITO layers in a projected capacitive touch panel are sealed between two sheets of glass by an optically clear adhesive.
Features:
1.Completely dead 10-point touch really, any point can withstand more than 50 million times touch.
Explosion-proof and durable, complete physical steel explosion-proof glass, scratch-resistant, anti-collision, anti-radiation within the core capacitive touch ensure stable, durable.
2.Strong compatibility, support WindowsXP / 7/8 / 8.1 / 10 / CE, Mac, Android / Linux and other operating systems.
3.Anti-interference ability, without the interference of light and radiation, surface water / oil / dust can touch any place accurate and correct.
4.Free drive, plug and play.
5.Intelligent automatic calibration, simple and easy to adapt to internal / external use a variety of environments.
6.Wear resistance, long life, low maintenance costs.
Details
| Name | |
| Part Number | AC-C156051 |
| Structures | Cover Glass+ITO Glass |
| Surface Hardness | >6H |
| Outline size | 386.8*236.07mm |
| View Area | 344.23*193.54mm |
| IC Controller/IC | ILITEK 2511 |
| Operating temperature | -20℃~70℃ |
| Storage temperature | -30℃~80℃ |
| Total Thickness | 1.85±0.15mm |
| Transmittance | 86% Min |
| Interface Mode | USB/IIC/RS232 |
| Operating System | XP win7,8 Android Linux |
| Touch Points | 1-10 |
Details
Development process:
1. Receive customer's technical files, including PCAP drawing, LCD specification.
2. Recommend standard products or customize products based on customer's requirements.
3. Offer engineering drawing for confirmation and fill in project kick-off form.
4. Make samples according to the confirmed drawing.
5. Debug the samples based on the information on kick-off form, keep the FW.
6. Send the samples to customers for confirmation. Offer all the technical supports with which customer will let the touch panels work well.
7. Pilot production.
8. Mass production.
Why choose us?
1. Our factory is a legal,responsible,capable,experienced factory.
2. We have the largest laminting mechine which can up to 65inch.
3. In stock for fast delivery provide the best after-sales service.
4. We can provide the best design solutions according customer requirements.
5. All of our products have been inspected strictly before delivery.
Customer question
1. How about Sample lead time ?
-------Custom samples 12-18work-days,standard samples 5~10work-days.
2. How about mass production lead time ?
------ 15 days after sample confirmed.
3.Shipping?
------Usually we deliver our goods by DHL,UPS, FedEx etc.
4. Payment term?
------ T/T or Western Union 30% deposit, 70% balance should be paid before shipment.
5. How about the warranty?
------ Warranty 1year.
