11.6 Inch POS Touch Panel Screen Display 283.59*192.19mm Outline Dimension

Product Description

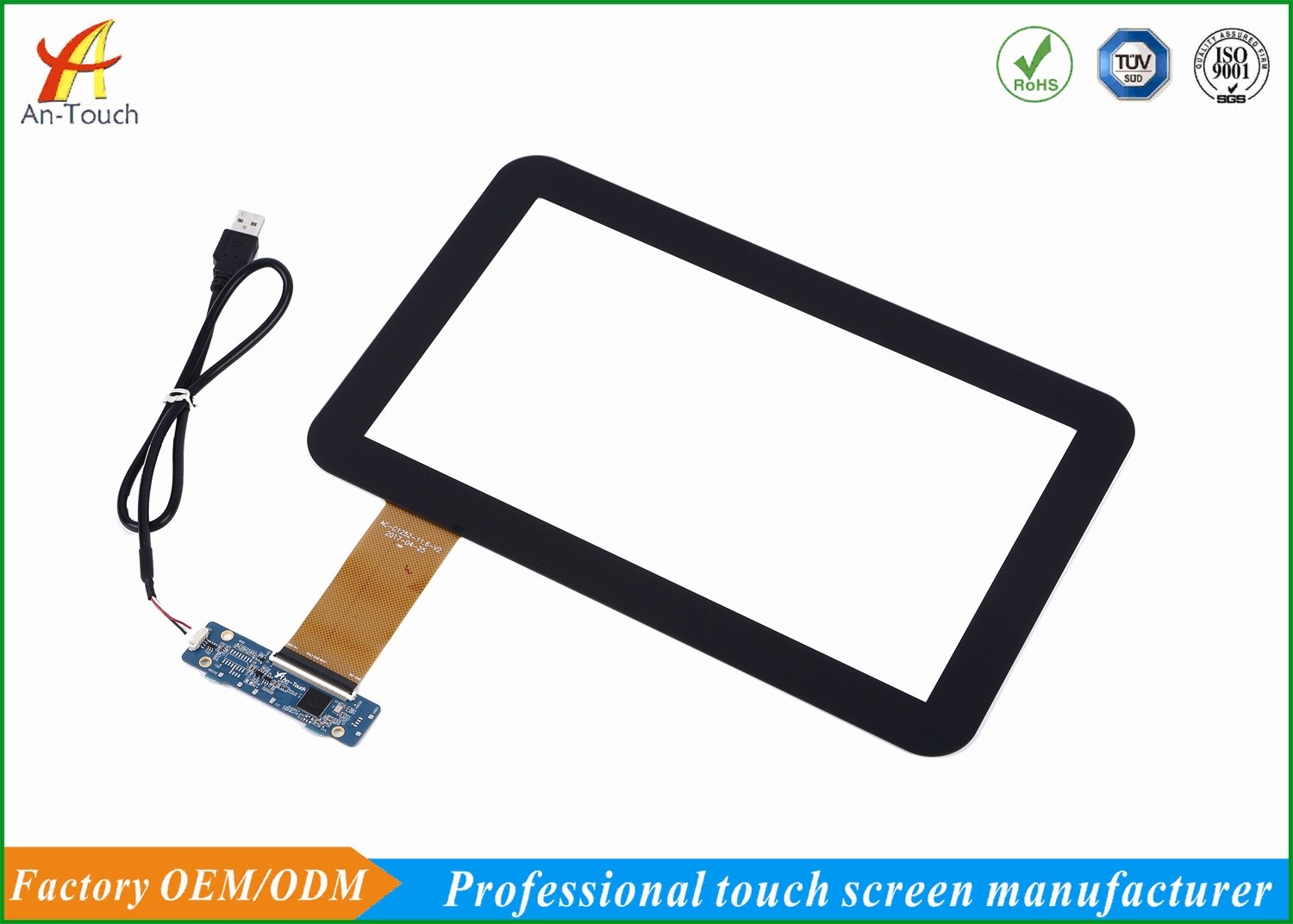

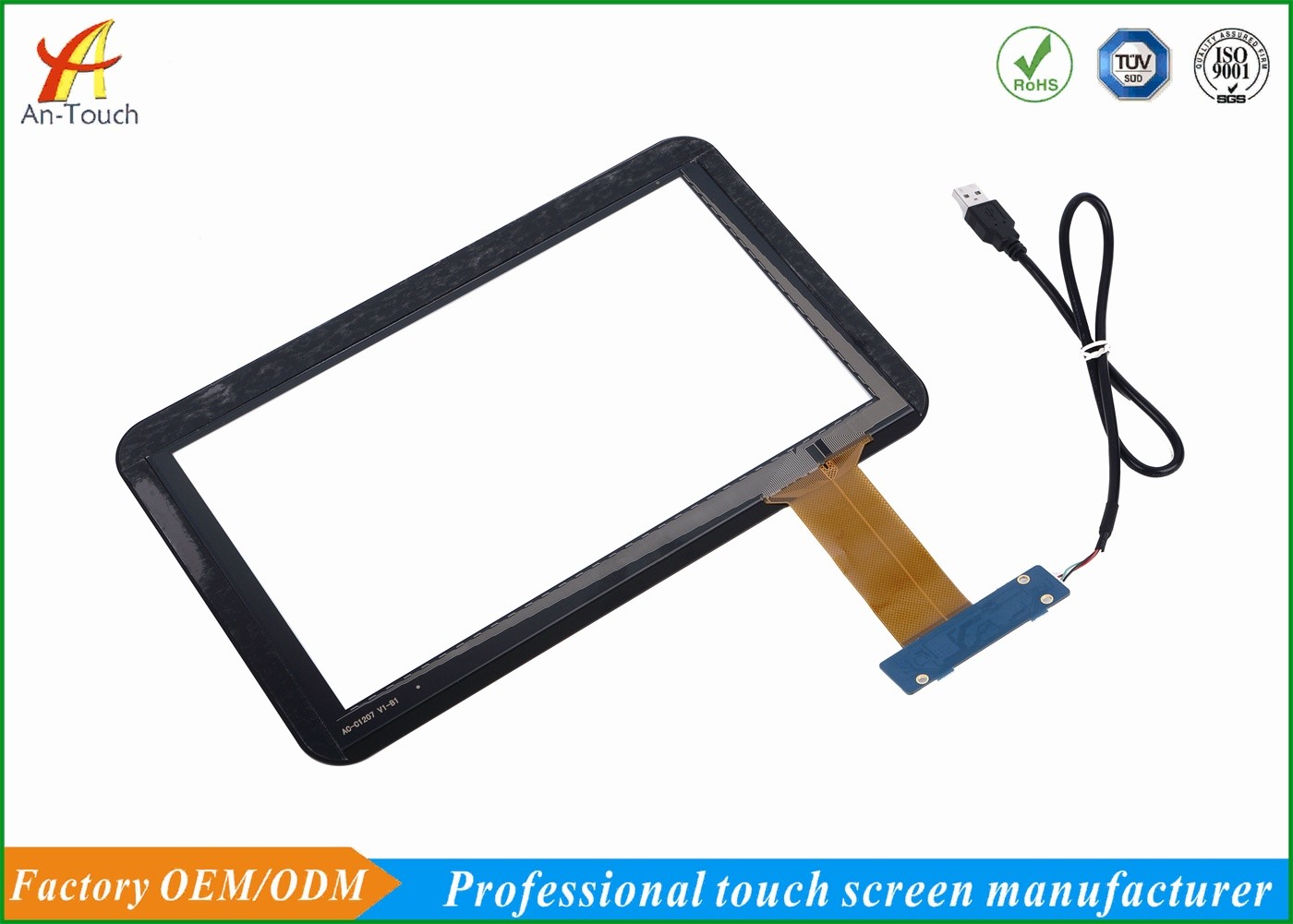

11.6 inch POS Touch Panel with Capacitive Touch Screen For POS Machine



Product details





Structure & Operating Principle:



Capacitive touch screen is a piece of 2 layer of compound glass with double side transparent conductive coating that conducts a continuous electrical current across the sensor.



There is electrode pattern printed along the edges distributes a low voltage filed over the conductive layer.



The human body is also an electrical device which has stored electrons and therefore also exhibits capacitance.



When a finger touches the screen and draws a minute amount of current to the point of contact ,creating a voltage drop.



The current flow from each corner is proportional to the distance to the touch point. During a touch ,capacitance forms between the finger and the sensor grid. The touch location is calculated from the changing electrical characteristics of the sensor grid.





Projected Capacitive Touch Screen Features:



-Glass to glass structure



-1.1mm to 6mm temperted glass



-Support cover/size customized



-4096×4096 Resolution with linearity error ≤2mm



-Size available from 7inch to 65inch.



-Multi-touch 1 to 10 touch points.









Features:

-Completely dead 10-point touch really, any point can withstand more than 50 million times touch.

-Anti-interference ability, without the interference of light and radiation, surface water / oil / dust can touch any place accurate and correct.

-Free drive, plug and play.

-Intelligent automatic calibration, simple and easy to adapt to internal / external use a variety of environments.

-Wear resistance, long life, low maintenance costs.





Application:



-Point-of-information kiosks



-Vending and ticket sales



-Electronic catalogs



-Gaming, lottery, and amusement



-Public pay phones



-Multimedia marketing



-Banking/financial transactions



-Industrial control rooms



-Computer-based training





Customer question

1. How about Sample lead time ?



-------Custom samples 12-18work-days,standard samples 5~10work-days

2. How about mass production lead time ?



------ 15 days after sample confirmed

3. Shipping?



------Usually we deliver our goods by DHL,UPS, FedEx etc.

4. Payment term?



------ T/T or Western Union 30% deposit, 70% balance should be paid before shipment.

5How about the warranty?



------ Warranty 1year
