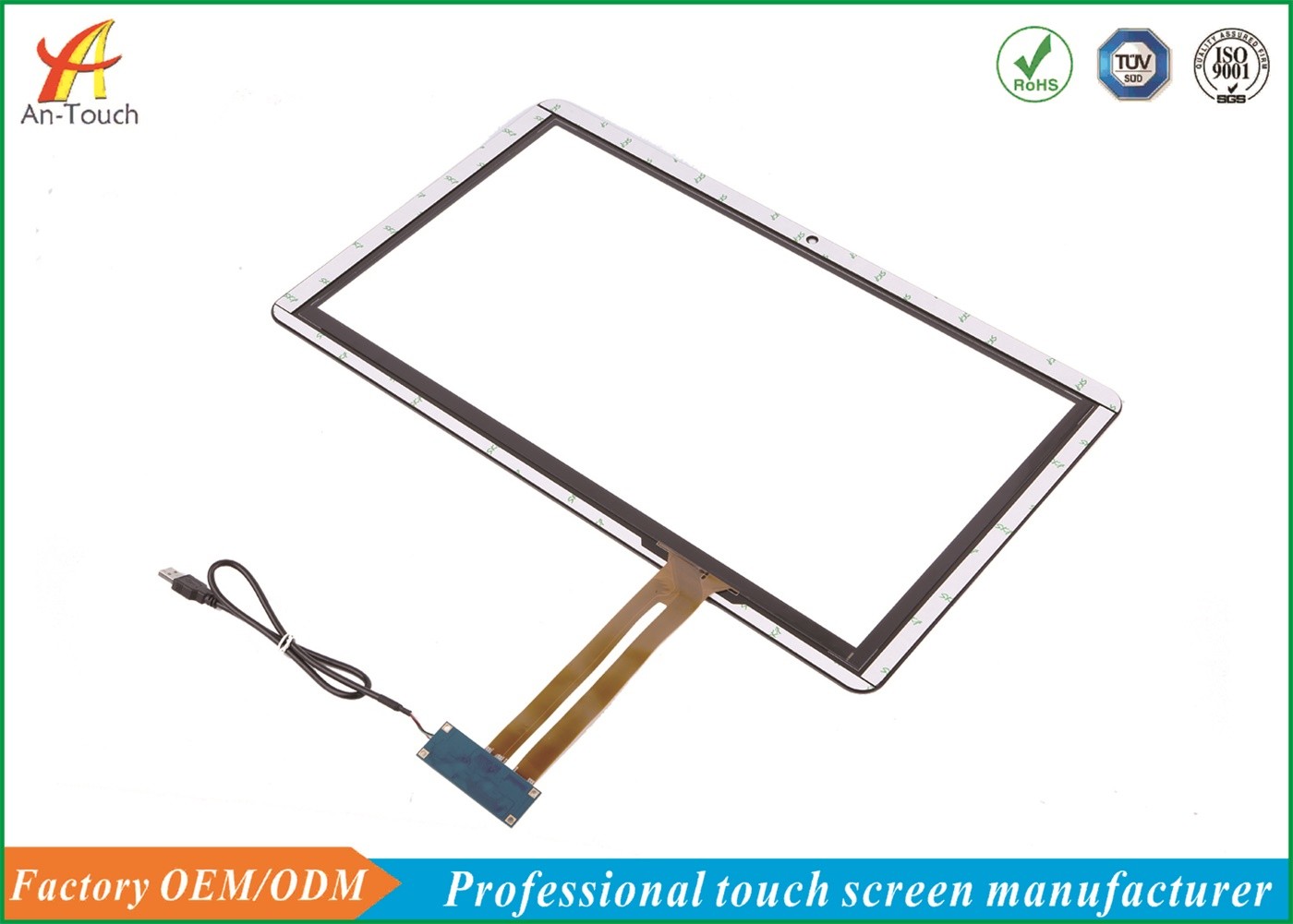

Ultra Thin Glass Touch Panel / Narrow Bezel Advertising Touch Screen
Contact Person : Devin Jiang
Phone Number : +86 13528582261
| Minimum Order Quantity : | 1/PCS | Price : | 10-100$/pcs / Negotiable |
|---|---|---|---|
| Packaging Details : | Standard packing with carton | Delivery Time : | 5-8 Work Day |
| Payment Terms : | T/T, Western Union, Paypal | Supply Ability : | 50000/PCS/Month |
| Place of Origin: | China | Brand Name: | Antouch |
|---|---|---|---|
| Certification: | ROHS,SGS,ISO9001 | Model Number: | AC-C1078-21.5 |
|
Detail Information |
|||
| Resolution: | 4096*4096 | Outline Size: | 533.4*324.86mm |
|---|---|---|---|
| Module View Area: | 476.64*268.11mm | ESD Air: | 8KV |
| ESD Contact: | 4KV | Power Consumption: | 60mA |
| High Light: | karaoke touch screen,usb touch panel |
||
Product Description
| Item | Specification |

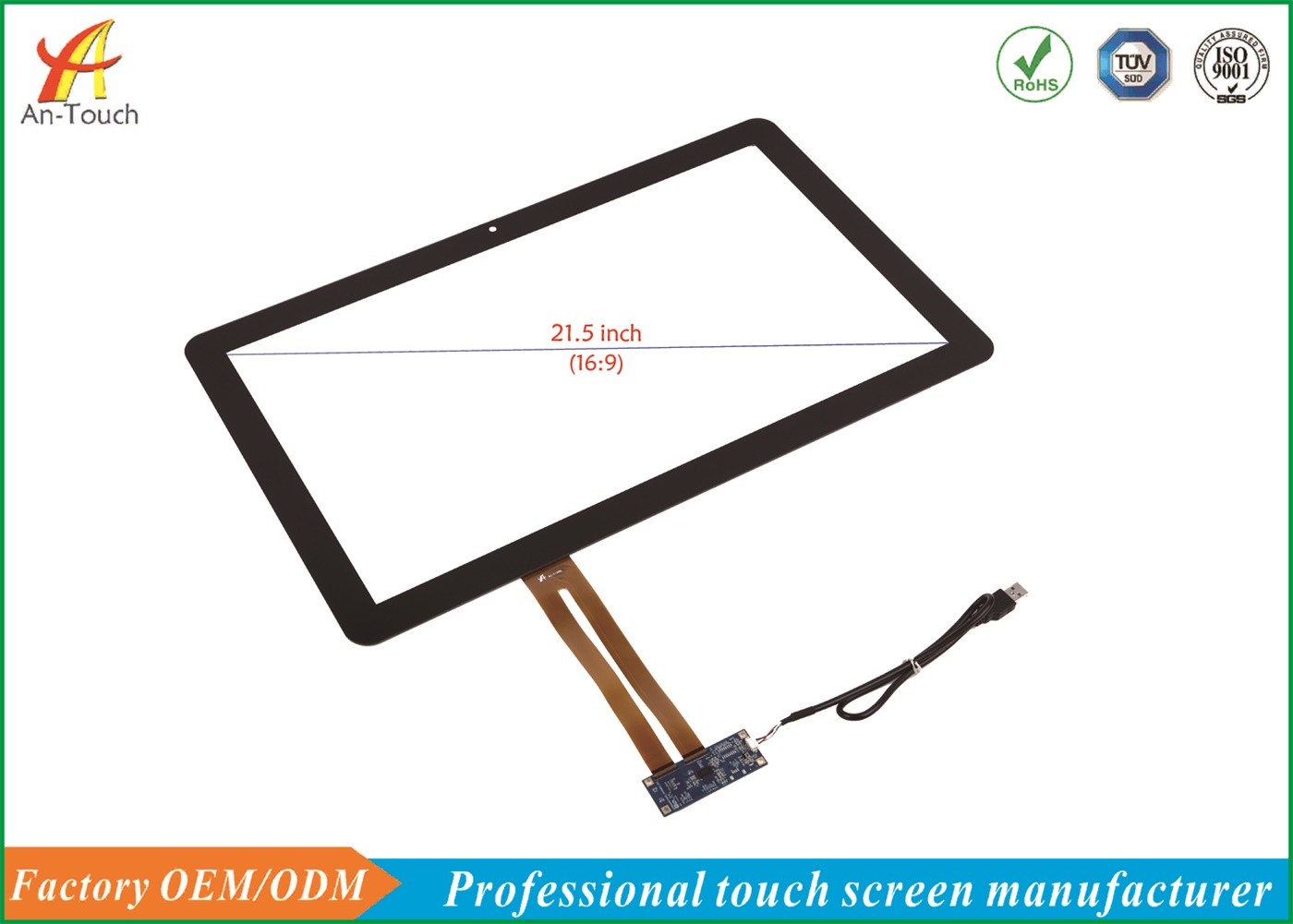

| Screen size | 21.5 inch |
| Structures | Cover Glass+ITO Glass |
| Surface Hardness | >6H |
| Surface Treatment | AG/AF/AR |
| IC Controller | ILITEK 2302 |
| Operating temperature | -20℃~70℃ |
| Storage temperature | -30℃~80℃ |
| Supply Voltage | 3.3V~5V |
| Transmittance | 86% Min |
| Interface Mode | USB2.0 interface |
| Operating System | XP win7,8 Android Linux |
| System Driver | No need(USB plug and play) |
| Application | KTV Touch Screen Monitor |
| CTP Type | COB |
Structure & Operating Principle:
Capacitive touch screen is a piece of 2 layer of compound glass with double side transparent conductive coating that conducts a continuous electrical current across the sensor.
There is electrode pattern printed along the edges distributes a low voltage filed over the conductive layer.
The human body is also an electrical device which has stored electrons and therefore also exhibits capacitance.
When a finger touches the screen and draws a minute amount of current to the point of contact ,creating a voltage drop.
The current flow from each corner is proportional to the distance to the touch point. During a touch ,capacitance forms between the finger and the sensor grid. The touch location is calculated from the changing electrical characteristics of the sensor grid.
Projected Capacitive touch screen Features:
► Response speed fast, smooth touch
► Flat panel, more high-end atmosphere, eliminating infrared touch screen surface with a groove edges are not allowed to shortcomings
► Can support real 10points touch, Compatible with multiple system
► Operating systems strong compatibility
► Intelligent automatic calibration, use forinternal / external variety of environments
► Controller with USB interface type
Why choose us?
►Our factory is a legal,responsible,capable,experienced factory
►We have the largest laminting mechine which can up to 65inch
►In stock for fast delivery provide the best after-sales service
►We can provide the best design solutions according customer requirements
►All of our products have been inspected strictly before delivery
Application:
► Mirror Touch Screen
► Touch Panel Vending Machine
► Touch Screen laptop
► POS Machine
► Touch Shopping Terminal
► Gaming, Lottery ect
► Industrial Control industry
► Touch Monitor
► Information Kiosks
► Multimedia marketing
► Banking / Fanancial System
Customer question
►How about Sample lead time ?
-------Custom samples 12-18 work-days,standard samples 5~10 work-days
► How about mass production lead time ?
------ 15 days after sample confirmed
► shipping?
------,Usually we deliver our goods by DHL,UPS, FedEx etc.
► Payment term?
------ T/T or Western Union 30% deposit, 70% balance should be paid before shipment.
► How about the warranty?
------ Warranty 1year
Engineering drawing:
