USB POS Touch Panel , 12.5 Inch ATM Machine Touch Screen For Touch Monitor

Product Description

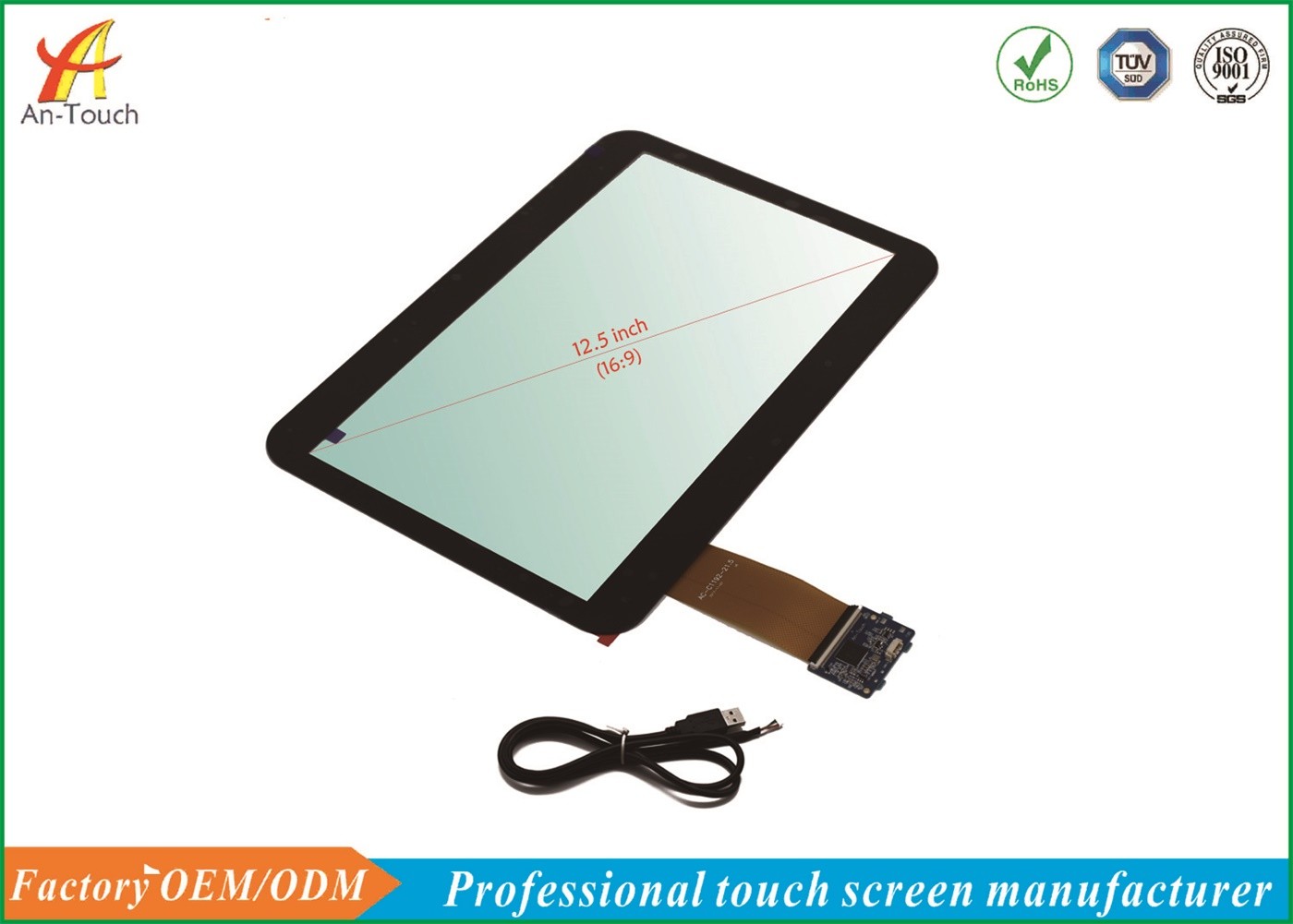

USB Multi-touch point 12.5 inch capacitive POS Touch Panel for touch monitor

Basic Specification

Features

1.Completely dead 10-point touch really, any point can withstand more than 50 million times touch.

2.Strong compatibility, support WindowsXP / 7/8 / 8.1 / 10 / Mac, Android / Linux and other operating

systems.

3.Anti-interference ability, without the interference of light and radiation, surface water / oil / dust can touch any place accurate and correct.

4.Free drive, plug and play.

5.Intelligent automatic calibration, simple and easy to adapt to internal / external use a variety of environments.

6.Wear resistance, long life, low maintenance costs.

USB Controller

Ø   23 high voltage driving channels (TX) and 41 sensing channels (RX)

Ø   Support Windows XP/7/8/8.1/10, Android, Linux and Mac operating systems

Ø   Support USB 2.0 interfaces

Ø   Support G/G, OGS, G1F, G/F/F, GF2, On-Cell Touch panels

Ø   Support mutual capacitance range: 1pF to 4pF

Ø   Meet latest Restriction of Hazardous Substances (RoHS) directives

Ø   Meet latest Electromagnetic Compatibility (EMC) directives

Development process

1.Receive customer's technical files, including PCAP drawing, LCD specification.

2.Recommend standard products or customize products based on customer's requirements.

3.Offer engineering drawing for confirmation and fill in project kick-off form.

4.Make samples according to the confirmed drawing.

5.Debug the samples based on the information on kick-off form, keep the FW.

6.Send the samples to customers for confirmation. Offer all the technical supports with which customer will let the touch panels work well.

7.Pilot production.

8.Mass production

Application:

Delivery Time

1.Samples in stock: 1~3 working days

2.Customized project: 10~15days for samples

3.Mass production: 10~18days

Customer question

1. How about Sample lead time ?

-------Custom samples 12-18work-days,standard samples 5~10work-days.

2. How about mass production lead time ?

------ 15 days after sample confirmed.

3.Shipping?

------Usually we deliver our goods by DHL,UPS, FedEx etc.

4: Payment term?

------ T/T or Western Union 30% deposit, 70% balance should be paid before shipment.

5: How about the warranty?

------ Warranty 1year.

6: Are you a factory or trading company ?

------ Yes, we have our own factory

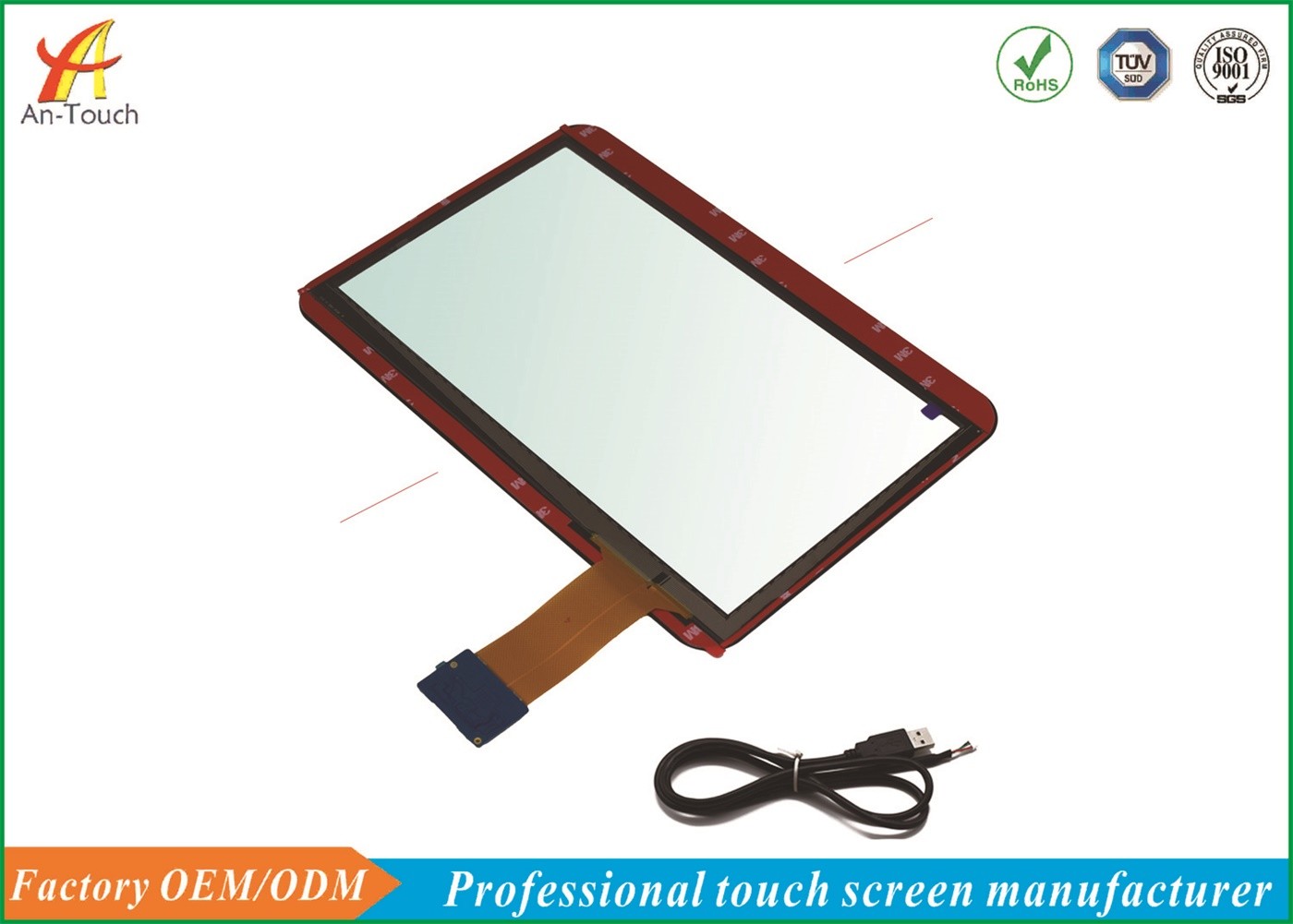

High Dedinition Product Map
