Single Line Capacitive Touch Panel , POS 11.6 Inch Touch Screen 10 Point

Product Description

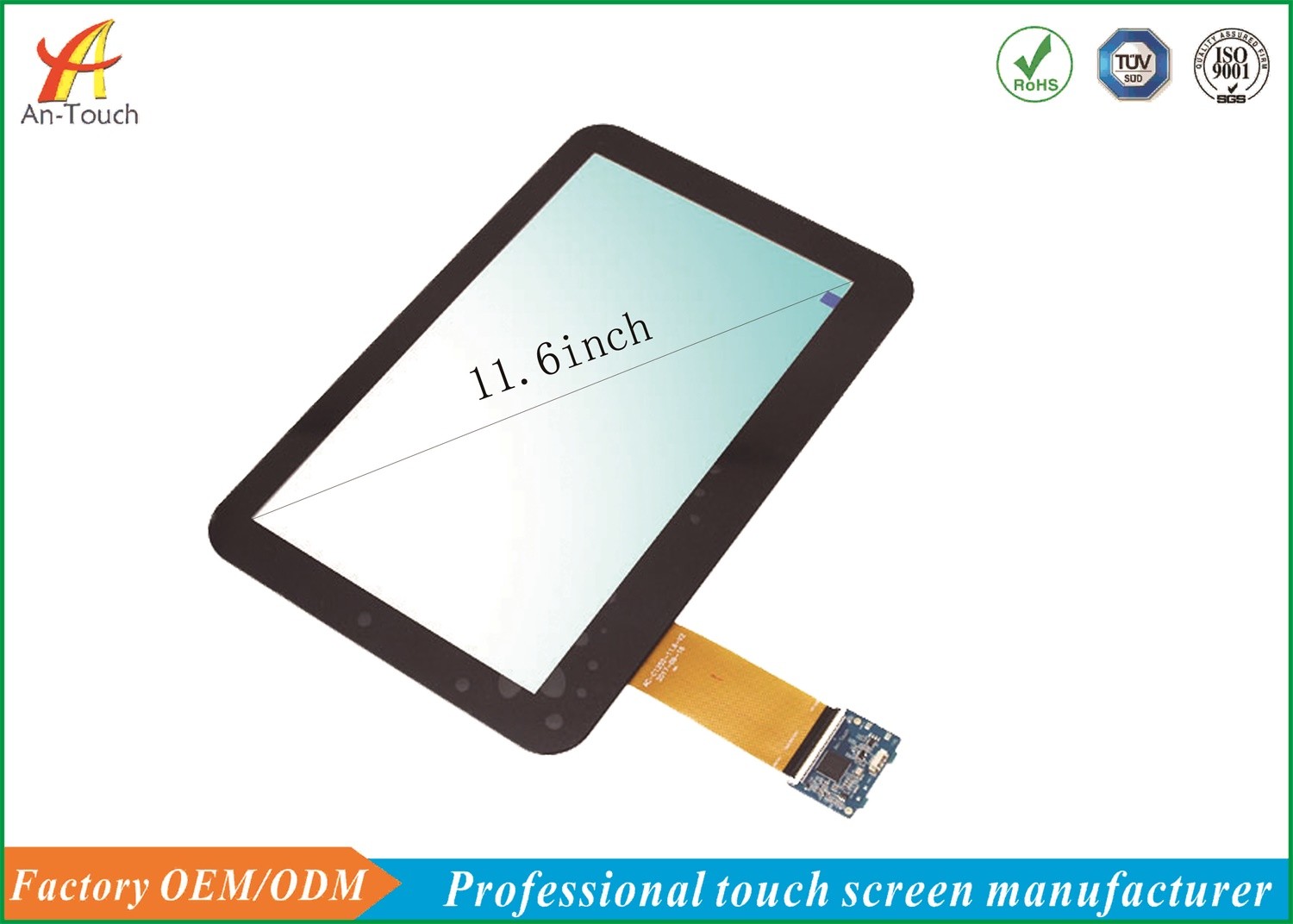

Single Line 11.6 Inch Capacitive POS Touch Panel For Single or Double Screen POS Mechine



Basic Specification:



Screen size	11.6 inch
Structures	Cover Glass+ITO Glass
Ratio	16:10
Surface Hardness	>6H
Outline Dimension	301.6*189.6mm
Module View Area	257.8*146.0mm
Active Area	277.03*163.9mm
Cover Lens	1.1mm
Surface Treatment	AG/AF/AR
Operating temperature	-20℃~70℃
Storage temperature	-30℃~80℃
Supply Voltage	3.3V~5V
Transmittance	86% Min
Interface Mode	USB/IIC/RS232
Operating System	XP win7,8 Android Linux
System Driver	No need(USB plug and play)
Touch Points	1-10



Structure & Operating Principle:



    Capacitive touch screen is a piece of 2 layer of compound glass with double side transparent conductive

   coating that conducts a continuous electrical current across the sensor.



   There is electrode pattern printed along the edges distributes a low voltage filed over the conductive layer.



  The human body is also an electrical device which has stored electrons and therefore also exhibits



   capacitance.



  When a finger touches the screen and draws a minute amount of current to the point of contact ,creating a



  voltage drop.



 The current flow from each corner is proportional to the distance to the touch point. During a touch



 ,capacitance forms between the finger and the sensor grid. The touch location is calculated from the



 changing electrical characteristics of the sensor grid.





Development process:



1. Receive customer's technical files, including PCAP drawing, LCD specification.

2. Recommend standard products or customize products based on customer's requirements.

3. Offer engineering drawing for confirmation and fill in project kick-off form.

4. Make samples according to the confirmed drawing.

5. Debug the samples based on the information on kick-off form, keep the FW.

6. Send the samples to customers for confirmation. Offer all the technical supports with which customer will  let the touch panels work well.

7. Pilot production.

8. Mass production





Why choose us?





► Our factory is a legal,responsible,capable,experienced factory.



► We have the largest laminting mechine which can up to 65inch.



► In stock for fast delivery provide the best after-sales service.



► We can provide the best design solutions according customer requirements.



► All of our products have been inspected strictly before delivery.





FAQ:

• How about Sample lead time ?



-------Custom samples 12-18work-days,standard samples 5~10work-days



•  How about mass production lead time ?



------ 15 days after sample confirmed



• Shipping?



------Usually we deliver our goods by DHL,UPS, FedEx etc.

• Payment term?



------ T/T or Western Union 30% deposit, 70% balance should be paid before shipment.

• How about the warranty?



------ Warranty 1year





Shipment service:



FedEx, DHL, UPS, TNT, Aramex etc.





Delivery Time:



 1.Samples in stock: 1~3 working days



 2.Customized project: 10~15days for samples



 3.Mass production: 10~18days





High Dedinition Product Map









Technical Drawings:
