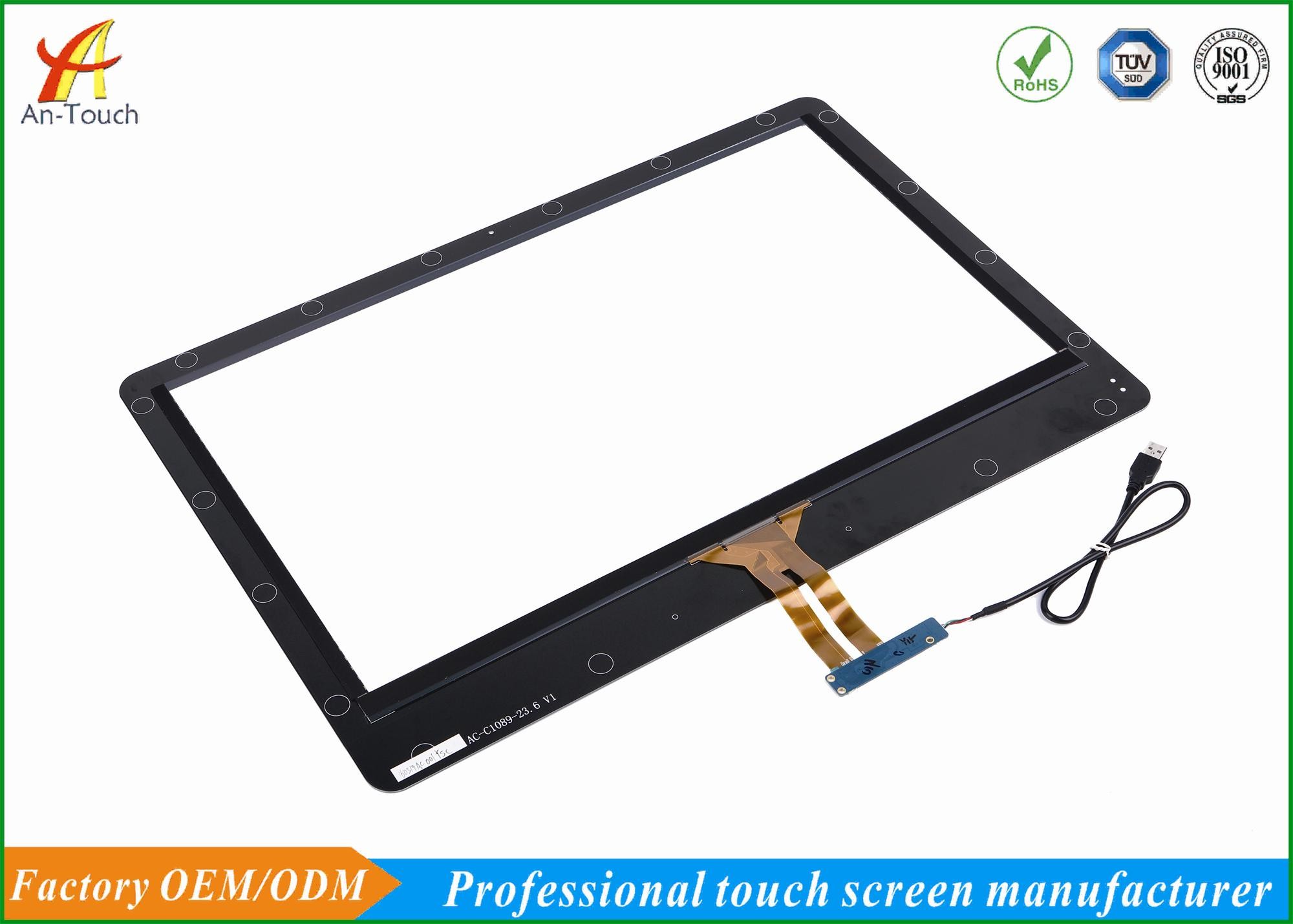

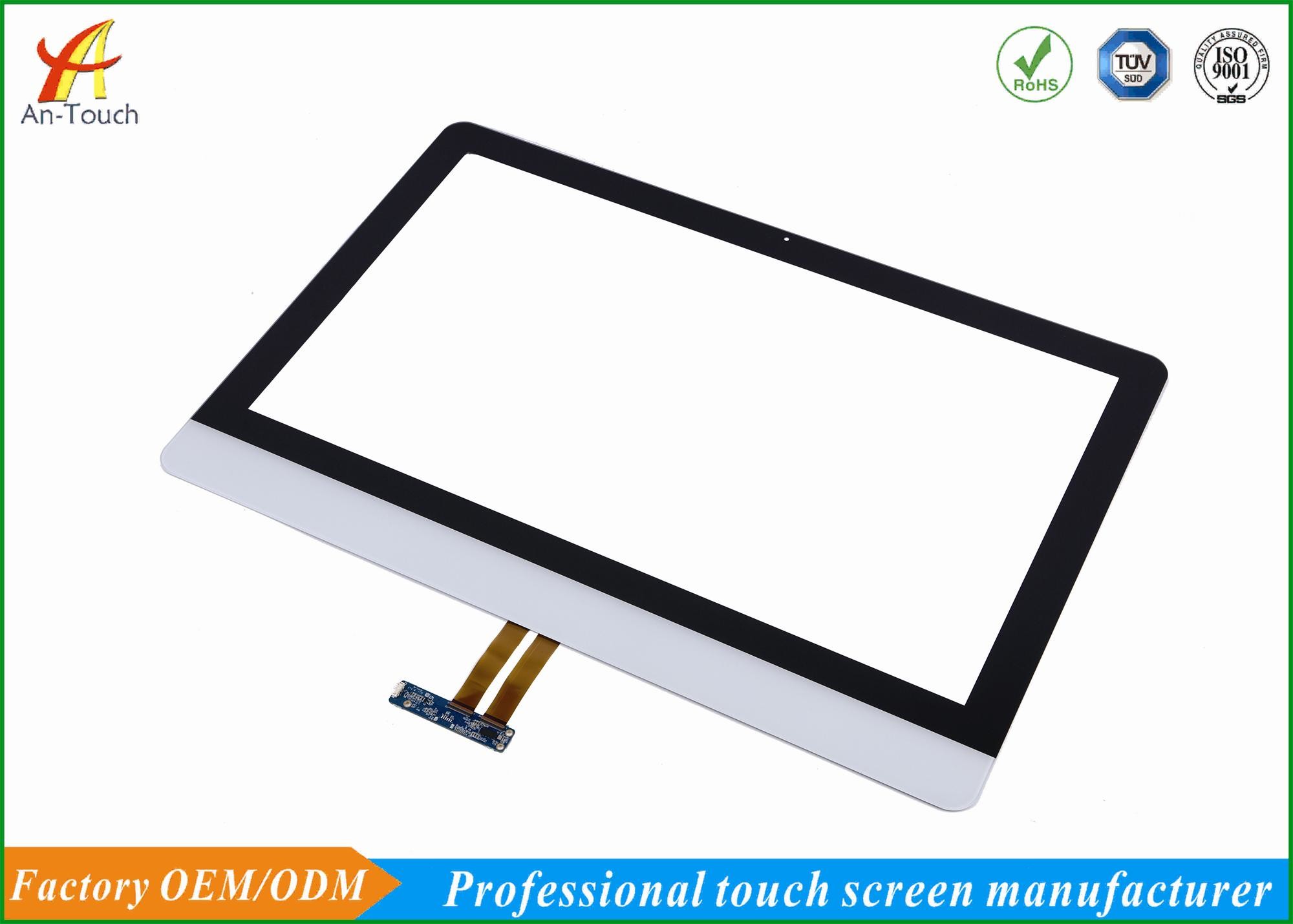

High Accuracy Windows Touch Panel , 23.6 Inch Industrie Touch Panel White Color

Product Description



High Accuracy 23.6" Capacitive Large Touch Screen With All In One Projected Capacitive Screen For Android



Product details

Screen Diagonal	23.6
Ratio	16:9
Structures	G+G
Outline Dimensio	581.72*394.72mm
Module View Area	522.72*294.72mm
Active Area	524.72*298.72mm
Cover Lens	2.0mm
Interface Mode	USB/IIC/RS232
Operating System	XP win7 8 Android Linux
Touch Points	1-10
Product Keywords	23.6 inch touchscreen



Capacitive Touch Panel is to use the working current of induction of human body.The operational principle of the projected capacitive touch panel: There are two layers of the ITO layer under the surface of glass. This ITO layer respectively forms the electric field of X axis and Y axis, which can keep balance by crossing the surface of the class. Once the fingers approach the glass surface, the fingers and the electrode X axis or Y axis will form a new electric field, which can make the local capacitance change. Then the controller will determine the location based on capacitance changes.



Projected Capacitive touch screen Features:



1. Flat panel, more high-end atmosphere, eliminating infrared touch screen surface with a groove edges are not allowed to shortcomings.



2. Explosion-proof and durable, scratch-resistant, anti-collision, anti-radiation within the core capacitive touch ensure stable, anti-interference ability.



3. Precision-touch capacitive screen is using the body's current-sensing.



4. Operating systems strong compatibility.



5. Intelligent automatic calibration, use forinternal / external variety of environments.



6. Response speed fast, smooth touch.





Development process:

1.Receive customer's technical files, including PCAP drawing, LCD specification.

2.Recommend standard products or customize products based on customer's requirements.

3.Offer engineering drawing for confirmation and fill in project kick-off form.

4.Make samples according to the confirmed drawing.

5.Debug the samples based on the information on kick-off form, keep the FW.

6.Send the samples to customers for confirmation. Offer all the technical supports with which customer will let the touch panels work well.

7.Pilot production.

8.Mass production.



Application:



Point-of-information kiosks.



Vending and ticket sales.



Electronic catalogs.



Gaming, lottery, and amusement.



Public pay phones.



Multimedia marketing.



Banking/financial transactions.



Industrial control rooms.



Computer-based training.



Why choose us?



1.Our factory is a legal,responsible,capable,experienced factory.



2.We have the largest laminting mechine which can up to 65inch.



3.In stock for fast delivery provide the best after-sales service.



4.We can provide the best design solutions according customer requirements.



5.All of our products have been inspected strictly before delivery.



Customer question:

1. How about Sample lead time ?



-------Custom samples 12-18work-days,standard samples 5~10work-days

2. How about mass production lead time ?



------ 15 days after sample confirmed

3.Shipping?



------Usually we deliver our goods by DHL,UPS, FedEx etc.

4. Payment term?



------ T/T or Western Union 30% deposit, 70% balance should be paid before shipment.

5.How about the warranty?



------ Warranty 1year
