Anti Scratch Windows Touch Panel Plug - And - Play High Transmittance
Contact Person : Devin Jiang
Phone Number : +86 13528582261
| Minimum Order Quantity : | Negotiation | Price : | Negotiable |
|---|---|---|---|
| Packaging Details : | Standard Packing With Carton | Delivery Time : | 5-8 Work Day |
| Payment Terms : | T/T, Western Union, Paypal | Supply Ability : | 50000/PCS/Month |
| Place of Origin: | China | Brand Name: | antouch |
|---|---|---|---|
| Certification: | ROHS SGS ISO9001 | Model Number: | AC-C173001 |
|
Detail Information |
|||
| Name: | Windows Touch Panel | Type: | Projected Capacitive |
|---|---|---|---|
| Structure: | Cover Glass+ITO Glass | Outline Size: | 413.88*246.8mm |
| Operating System: | Win7 8 Android Linux | Feature: | Quick Response |
| Transmittance: | 86% Min | Touch Points: | 1-10 |
| High Light: | windows touch screen,multi touch screen overlay kit |
||
Product Description

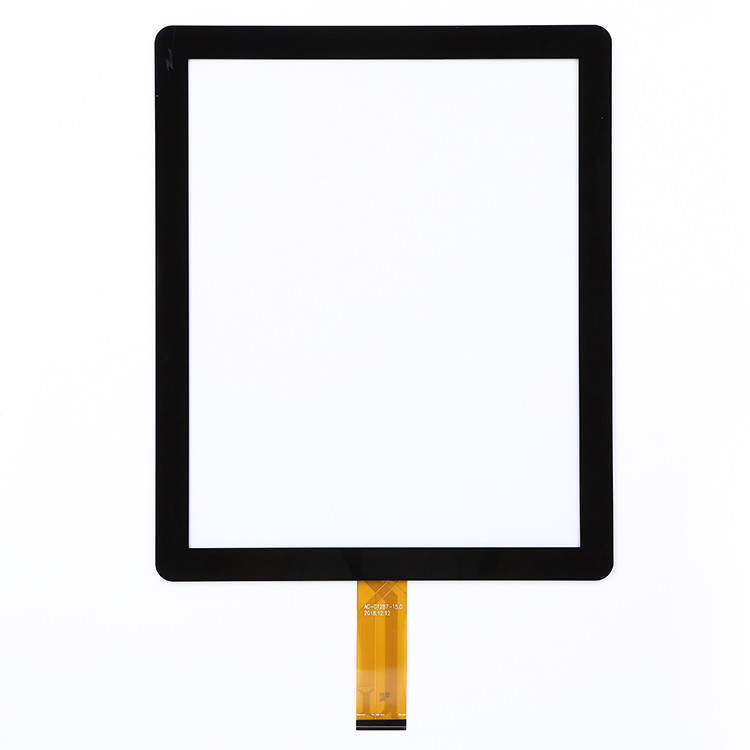

Projected Capacitive Windows Touch Panel Cover Glass + ITO Glass Quick Response
Capacitive Windows Touch Panel Introduction
Capacitive Windows Touch Panel supports normal operation with gloves, water and 10mm thick tempered glass; industrial application, G+G structure, very good anti-interference performance; mainly used in industries, intellegent home appliance,outdoor portable terminals, medical electronics and other fields. Deep customization acceptable.
Capacitive Windows Touch Panel details
| Item | Specification |
| Part Number | AC-C173001 Capacitive Windows Touch Panel |
| Structures | Cover Glass+ITO Glass |
| Surface Hardness | >6H |
| Outline size | 413.88*246.8mm |
| View Area | 381.89*214.81mm |
| IC Controller | ILITEK 2510/WD8752 |
| Operating temperature | -20℃~70℃ |
| Storage temperature | -30℃~80℃ |
| Total Thickness | 3.9±0.15mm |
| Transmittance | 86% Min |
| Interface Mode | USB/IIC/RS232 |
| Operating System | XP win7,8 Android Linux |
| Touch Points | 1-10 |
Operation Principle:
Capacitive touch panel works through body's current induction .When finger is on or close to touch panel surface,due to body electric field, the user and touch panel surface forms one coupling capacitance. For high frequency current, capacitance is direct conductor, then fingers suck a small current from the contact point, through amplifying and accurately calculating this current signal, the controller works out the touch point position
Advantages of G+G structure:
Capacitive Windows Touch Panel Details
Delivery Time:
Samples in stock: 1~3 working days.
Customized project: 10~15days for samples.
Mass production: 10~18days.
Customer question
1. How about Sample lead time ?
-------Custom samples 12-18work-days,standard samples 5~10work-days.
2. How about mass production lead time ?
------ 15 days after sample confirmed.
3.Shipping?
------Usually we deliver our goods by DHL,UPS, FedEx etc.
4: Payment term?
------ T/T or Western Union 30% deposit, 70% balance should be paid before shipment.
5: How about the warranty?
------ Warranty 1year.
