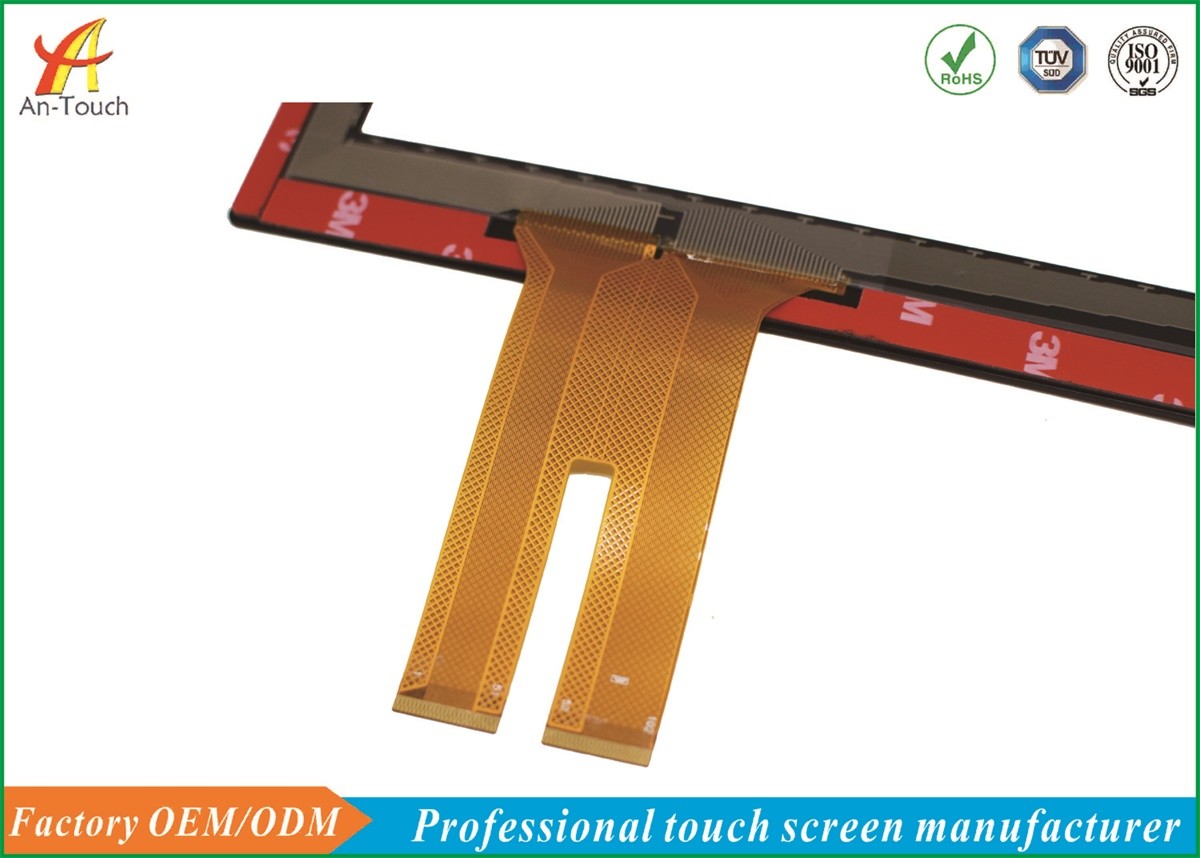

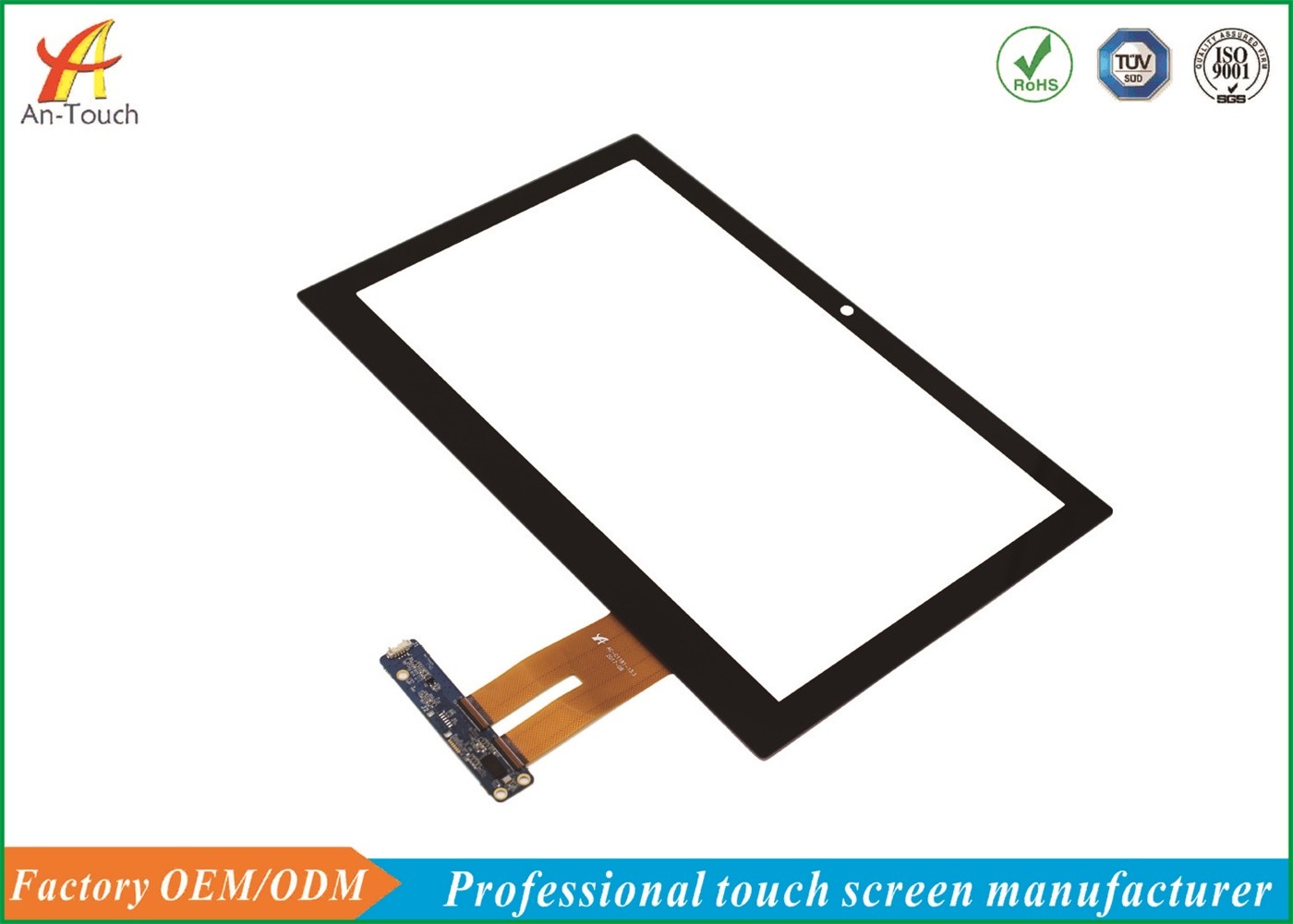

High Resolution Medical 13.3 Touchscreen Overlay Kit With AR / AF / AG Glass

Product Description



HD Resolution Screen 13.3" Capacitive Multi Touch Panel With AR / AF / AG Glass For Medical



Basic Specification:



Screen size	13.3 inch
Structures	Cover Glass+ITO Glass
Ratio	16:9
Surface Hardness	>6H
Outline Dimension	324.57*202.97mm
Module View Area	291.76*163.24mm
Active Area	307.41*181.04mm
Cover Lens	1.1mm
Surface Treatment	AG/AF/AR
Operating temperature	-20℃~70℃
Storage temperature	-30℃~80℃
Supply Voltage	3.3V~5V
Transmittance	86% Min
Interface Mode	USB/IIC/RS232
Operating System	XP win7,8 Android Linux
System Driver	No need(USB plug and play)
Touch Points	1-10



Structure & Operating Principle:



Capacitive touch screen is a piece of 2 layer of compound glass with double side transparent conductive coating that conducts a continuous electrical current across the sensor.



There is electrode pattern printed along the edges distributes a low voltage filed over the conductive layer.



The human body is also an electrical device which has stored electrons and therefore also exhibits capacitance.



When a finger touches the screen and draws a minute amount of current to the point of contact ,creating a voltage drop.



The current flow from each corner is proportional to the distance to the touch point. During a touch ,capacitance forms between the finger and the sensor grid. The touch location is calculated from the changing electrical characteristics of the sensor grid.



Technical Drawings:



Application:



¤ Point-of-information kiosks.



¤ Vending and ticket sales.



¤ Electronic catalogs.



¤ Gaming, lottery, and amusement.



¤ Public pay phones.



¤ Multimedia marketing.



¤ Banking/financial transactions.



¤ Industrial control rooms.



¤ Computer-based training.



Why choose us?



 Our factory is a legal,responsible,capable,experienced factory.



 We have the largest laminting mechine which can up to 65inch.



 In stock for fast delivery provide the best after-sales service.



 We can provide the best design solutions according customer requirements.



 All of our products have been inspected strictly before delivery.



FAQ:

• How about Sample lead time ?



-------Custom samples 12-18work-days,standard samples 5~10work-days



•  How about mass production lead time ?



------ 15 days after sample confirmed



• Shipping?



------Usually we deliver our goods by DHL,UPS, FedEx etc.

• Payment term?



------ T/T or Western Union 30% deposit, 70% balance should be paid before shipment.

• How about the warranty?



------ Warranty 1year



Shipment service:



FedEx, DHL, UPS, TNT, Aramex etc.



Delivery Time:



 1.Samples in stock: 1~3 working days



 2.Customized project: 10~15days for samples



 3.Mass production: 10~18days
