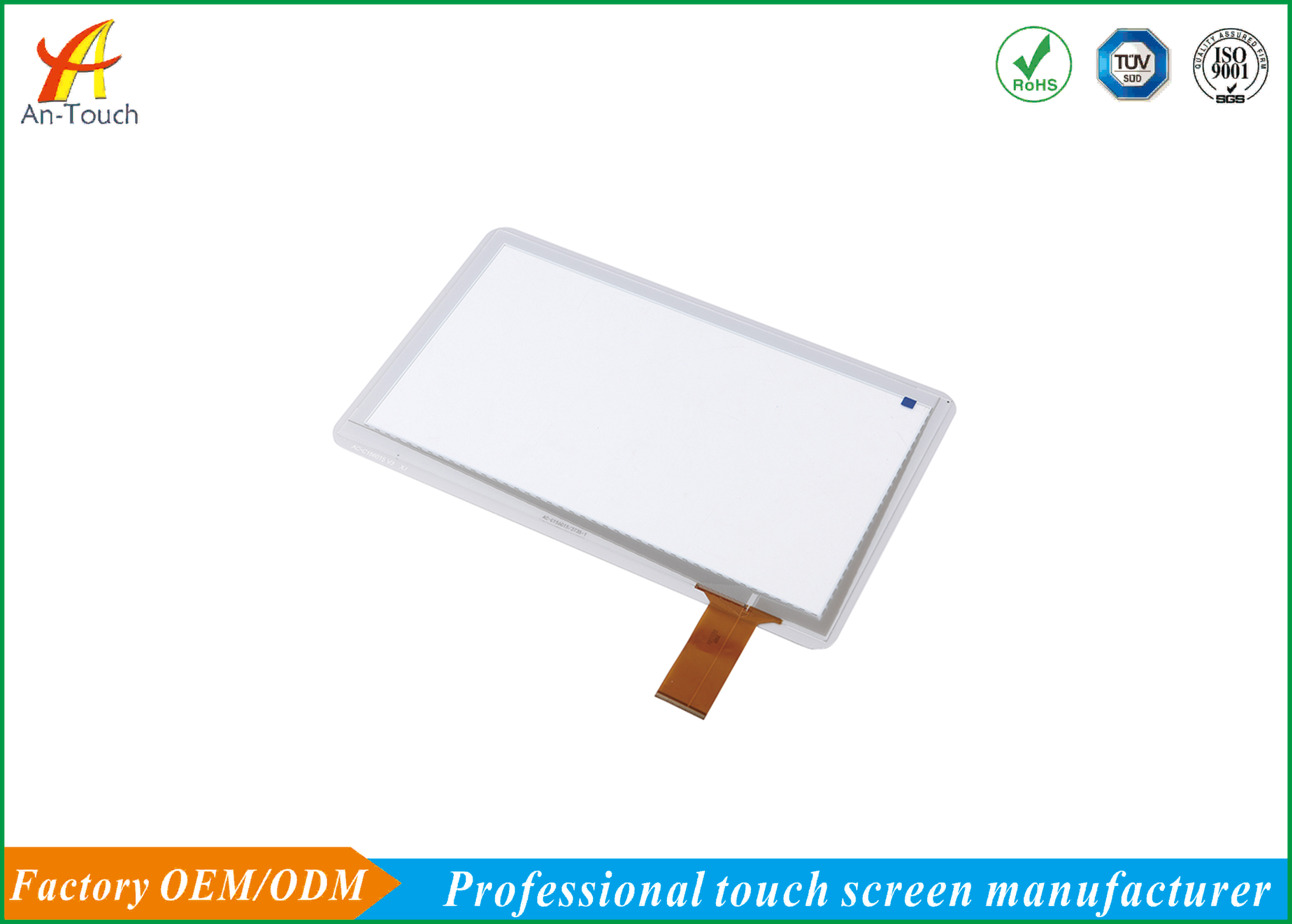

Capacitive USB Touch Screen For Medical Inquiry Equipment ILITEK 2511

Minimum Order Quantity : Negotiation Price : Negotiation
Packaging Details : Standard export package Delivery Time : 8-10 Work Days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 10000/pcs/Month
Place of Origin: China Brand Name: antouch
Certification: ISO9001 Model Number: AC-C156051

Detail Information

Name: USB Touch Screen Application: Medical Inquiry Equipment
Size: 15.6 Inch Interface:: Cover Glass+ITO Glass
Surface Hardness: >6H Outline Size: 386.8*236.07mm
View Area: 344.23*193.54mm IC Controller: ILITEK 2511
High Light:

usb powered monitor touch screen

,

usb touchscreen display

Product Description

Capacitive USB Touch Screen For Medical Inquiry Equipment ILITEK 2511



USB Touch Screen Basic Specification



Item Specification
Part Number AC-C156051
Structures Cover Glass+ITO Glass
Surface Hardness >6H
Outline size 386.8*236.07mm
View Area 344.23*193.54mm
IC Controller ILITEK 2511
Operating temperature -20℃~70℃
Storage temperature -30℃~80℃
Total Thickness 1.85±0.15mm
Transmittance 86% Min
Interface Mode USB/IIC/RS232
Operating System XP win7,8 Android Linux
Touch Points 1-10



USB Touch Screen Features



  1. Completely dead 10-point touch really, any point can withstand more than 50 million times touch.
  2. Strong compatibility, support WindowsXP / 7/8 / 8.1 / 10 / Mac, Android / Linux and other operating
  3. systems.
  4. Anti-interference ability, without the interference of light and radiation, surface water / oil / dust can touch any place accurate and correct.
  5. Free drive, plug and play.
  6. Intelligent automatic calibration, simple and easy to adapt to internal / external use a variety of environments.
  7. Wear resistance, long life, low maintenance costs.
  8. Glass to glass structure.
  9. 1.1mm to 6mm temperted glass. Support cover/size customized.
  10. 4096×4096 Resolution with linearity error ≤2mm.
  11. Size available from 7inch to 65inch.
  12. Multi-touch 1 to 10 touch points.



USB Touch Screen Advantage :


► Response speed fast, smooth touch


► Flat panel, more high-end atmosphere, eliminating infrared touch screen surface with a groove edges are not allowed to shortcomings


► Can support real 10points touch, Compatible with multiple system


► Operating systems strong compatibility


► Intelligent automatic calibration, use forinternal / external variety of environments


► Controllor with USB interface type





Delivery Time



1.Samples in stock: 1~3 working days



2.Customized project: 10~15days for samples



3.Mass production: 10~18days





USB Touch Screen Application:



¤ Medical Inquiry Equipment



¤ Point-of-information kiosks.



¤ Vending and ticket sales.



¤ Electronic catalogs.



¤ Gaming, lottery, and amusement.



¤ Car GPS Navigation.



¤ Multimedia marketing.



¤ Banking/financial transactions.



¤ Industrial control rooms.



¤ Computer-based training.



USB Touch Screen Details



Capacitive USB Touch Screen For Medical Inquiry Equipment ILITEK 2511 0
