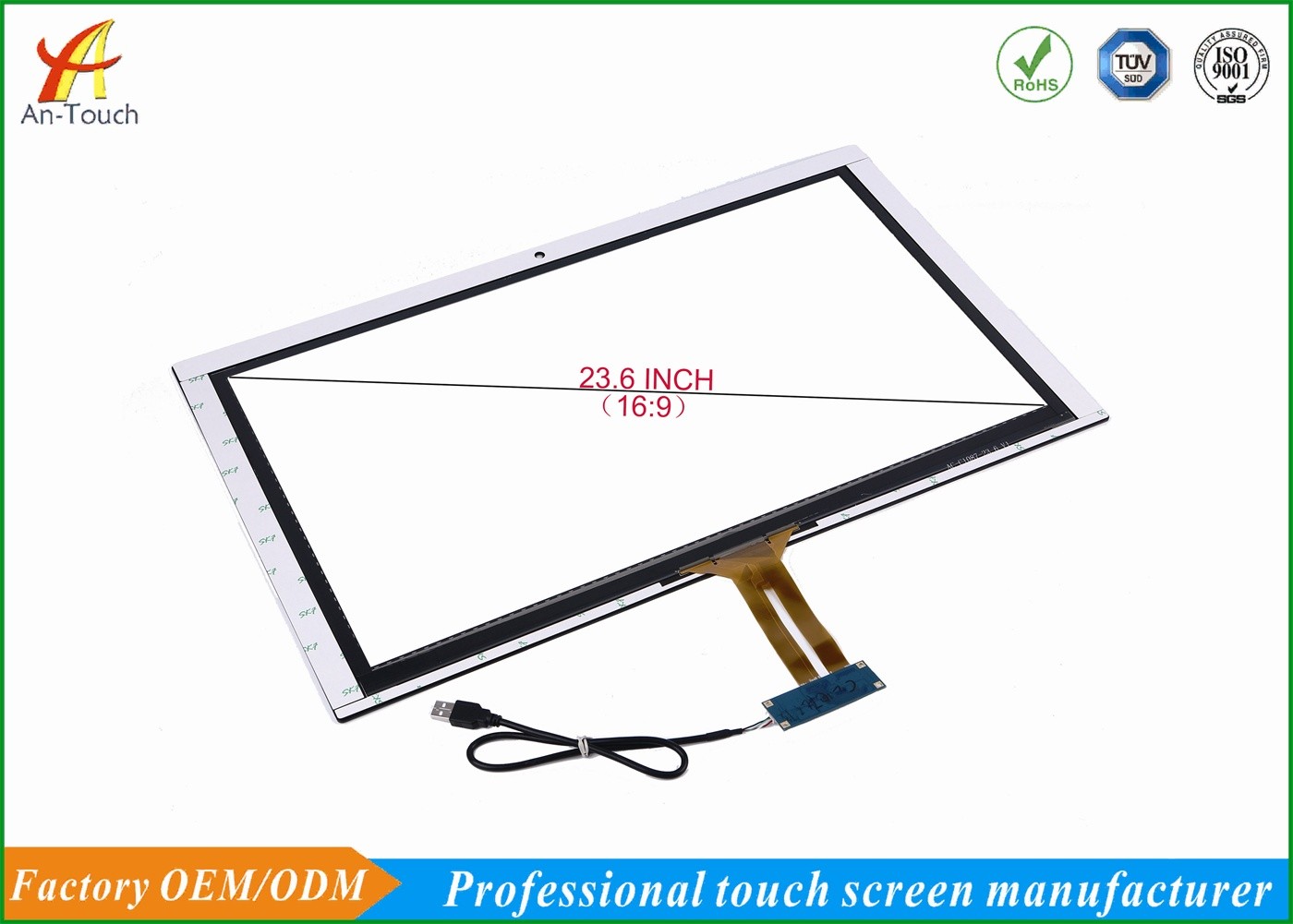

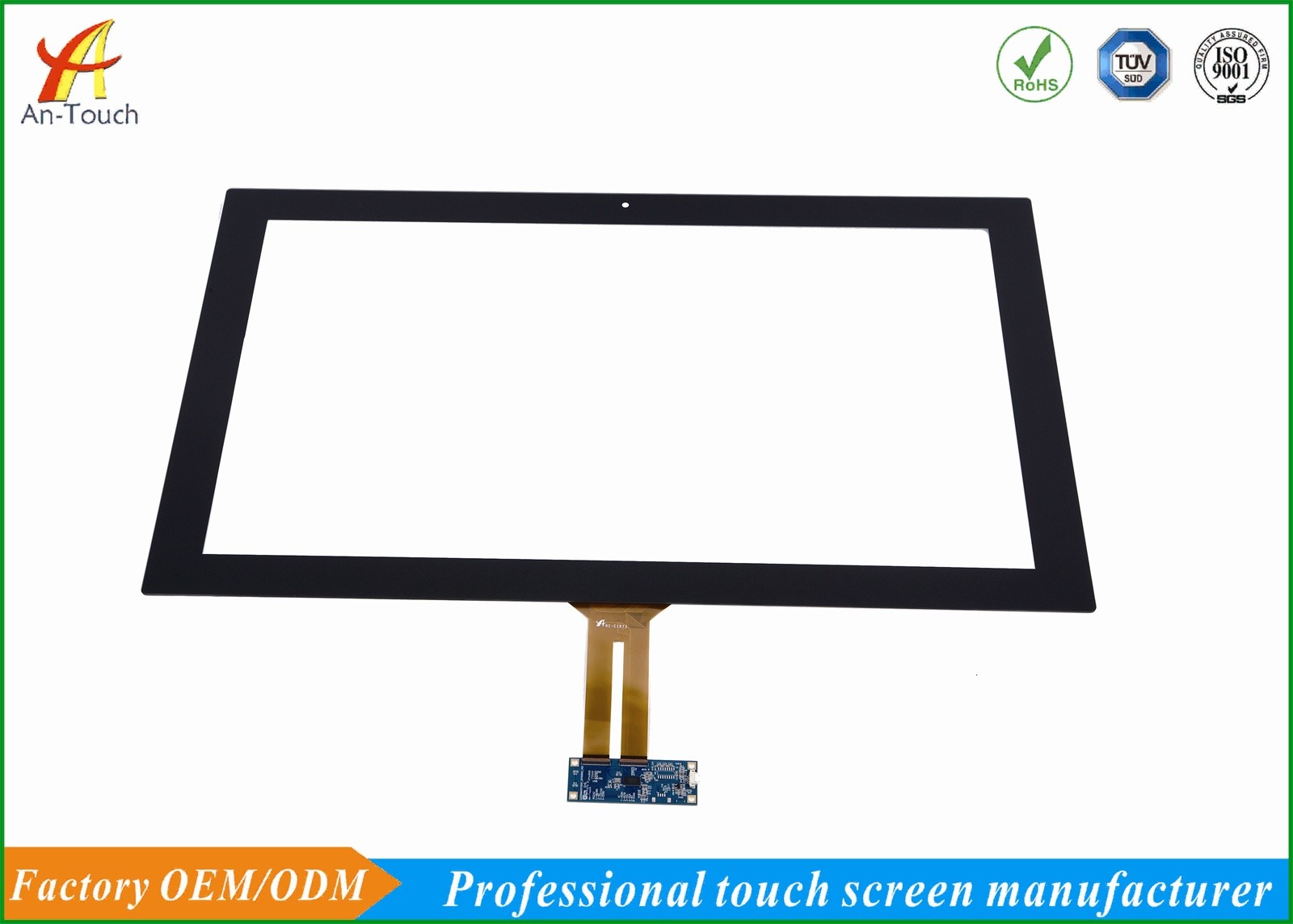

LCD Games Java Touch Screen , Water Resistant Capacitive Touch Screen Panel
Contact Person : Devin Jiang
Phone Number : +86 13528582261
| Minimum Order Quantity : | 1/PCS | Price : | 10-100$/pcs / Negotiable |
|---|---|---|---|
| Packaging Details : | Standard Packing With Carton | Delivery Time : | 5-8 Work Day |
| Payment Terms : | T/T, Western Union, Paypal | Supply Ability : | 50000/PCS/Month |
| Place of Origin: | China | Brand Name: | antouch |
|---|---|---|---|
| Certification: | ROHS SGS ISO9001 | Model Number: | AC-C1073-23.6 |
|
Detail Information |
|||
| Screen Diagonal: | 23.6 | Operating System: | XP Win7 8 Android Linux |
|---|---|---|---|
| Active Area: | 524.72*296.4mm | Interface Mode: | USB/IIC/RS232 |
| Cover Lens: | 2.0mm | Resolution: | 4096*4096 |
| High Light: | kiosk touch screen,ten point touch screen |
||
Product Description
| Item | Specification |
| Screen size | 23.6 inch |
| Structures | Cover Glass+ITO Glass |
| Surface Hardness | >6H |
| Surface Treatment | AG/AF/AR |
| IC Controller | ILITEK 2302 |
| Operating temperature | -20℃~70℃ |
| Storage temperature | -30℃~80℃ |
| Supply Voltage | 3.3V~5V |
| Transmittance | 86% Min |
| Interface Mode | USB/IIC/RS232 |
| Operating System | XP win7,8 Android Linux |
| System Driver | No need(USB plug and play) |
| Touch Points | 1-10 |
Apacitive touch panel works through body's current induction .Unlike resistive touch screens, you don't need an external force to achieve touching. When finger is on or close to touch panel surface,due to body electric field, the user and touch panel surface forms one coupling capacitance. If there is no broken,it will be used infinitely.
Structure & Operating Principle:
Capacitive touch screen is a piece of 2 layer of compound glass with double side transparent conductive coating that conducts a continuous electrical current across the sensor.
There is electrode pattern printed along the edges distributes a low voltage filed over the conductive layer.
The human body is also an electrical device which has stored electrons and therefore also exhibits capacitance.
When a finger touches the screen and draws a minute amount of current to the point of contact ,creating a voltage drop.
The current flow from each corner is proportional to the distance to the touch point. During a touch ,capacitance forms between the finger and the sensor grid. The touch location is calculated from the changing electrical characteristics of the sensor grid.
Application:
Touch Screen All in one Computers.
Touch Screen laptop.
POS Machine.
Industrial Control industry.
Touch Monitor.
Information Kiosks.
Gaming, Lottery ect.
Multimedia marketing.
Banking / Fanancial System.
Touch Table.
Samples in stock: 1~3 working days.
Customized project: 10~15days for samples.
Mass production: 10~18days.
Why choose us?
1.Our factory is a legal,responsible,capable,experienced factory.
2.We have the largest laminting mechine which can up to 65inch.
3.In stock for fast delivery provide the best after-sales service.
4.We can provide the best design solutions according customer requirements.
5.All of our products have been inspected strictly before delivery.
Customer question
1. How about Sample lead time ?
-------Custom samples 12-18work-days,standard samples 5~10work-days.
2. How about mass production lead time ?
------ 15 days after sample confirmed.
3.Shipping?
------Usually we deliver our goods by DHL,UPS, FedEx etc.
4: Payment term?
------ T/T or Western Union 30% deposit, 70% balance should be paid before shipment.
5: How about the warranty?
------ Warranty 1year.
