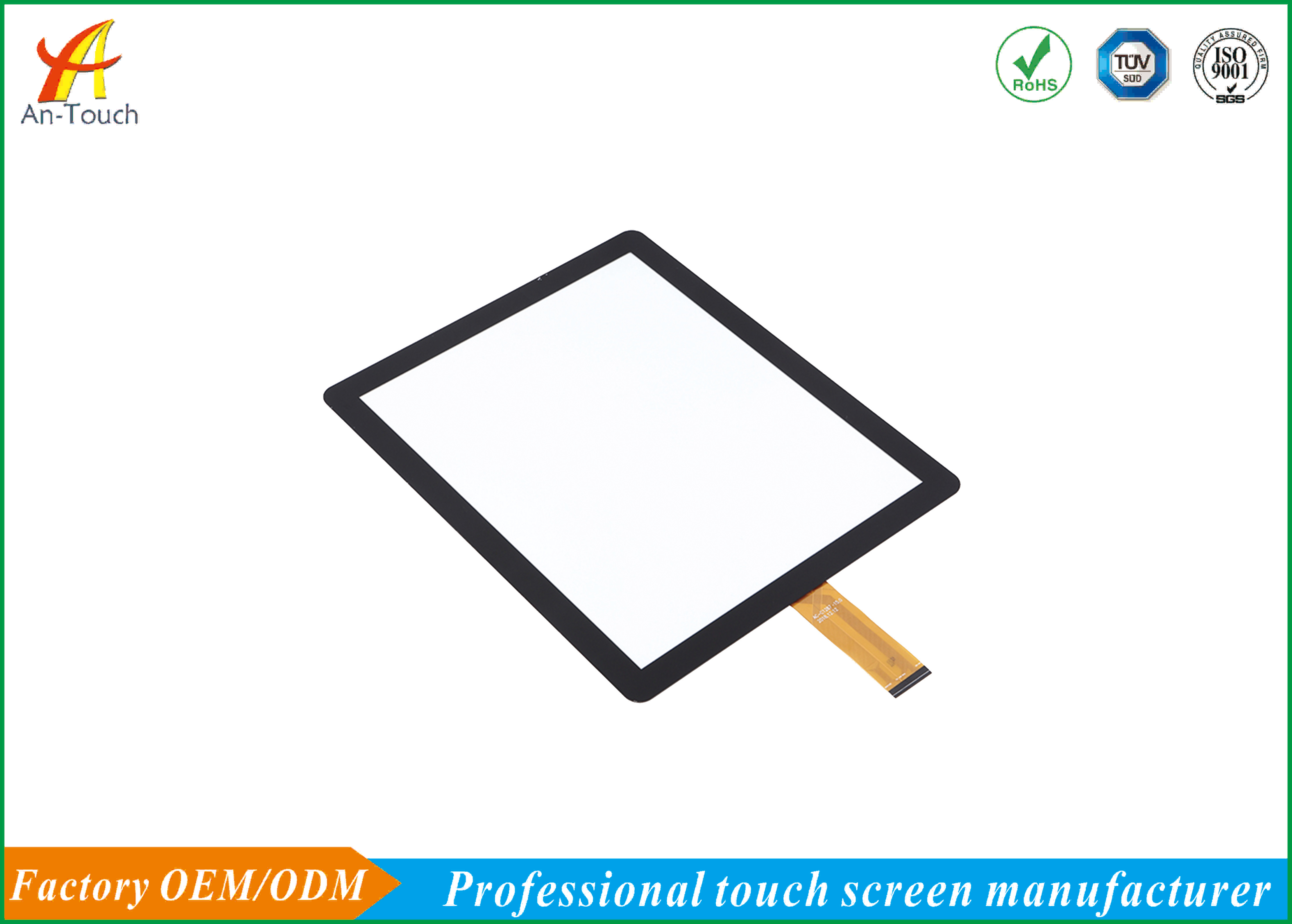

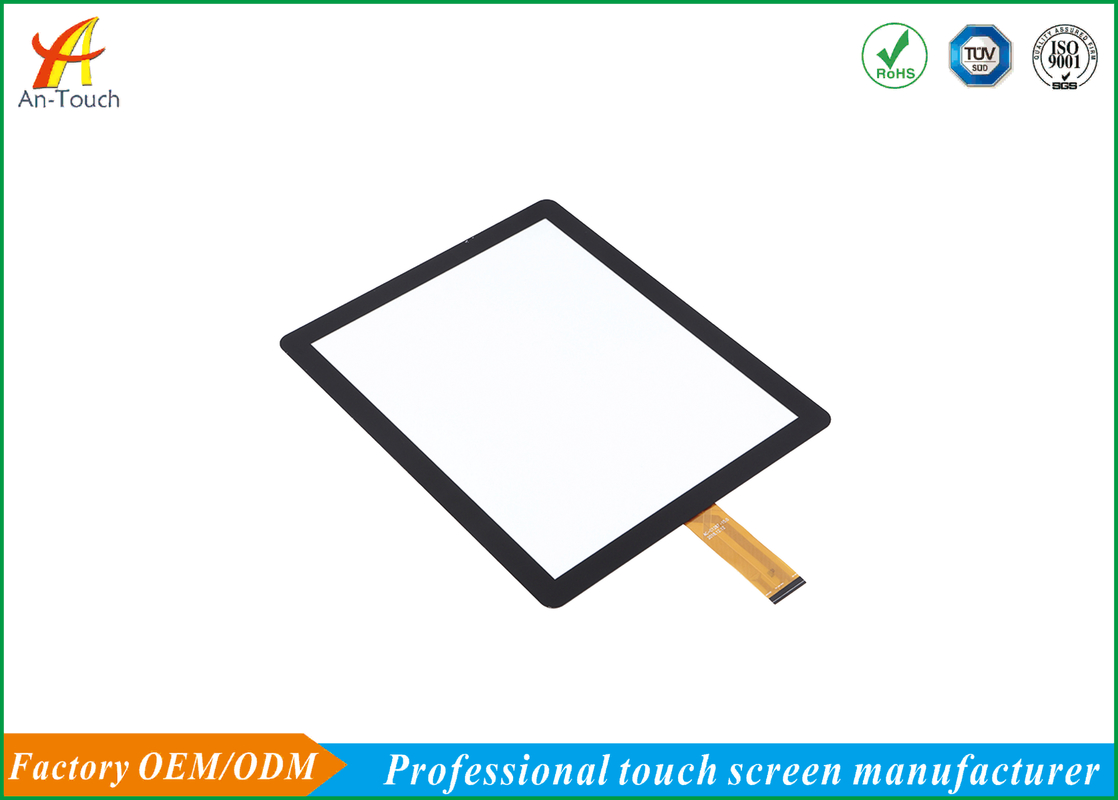

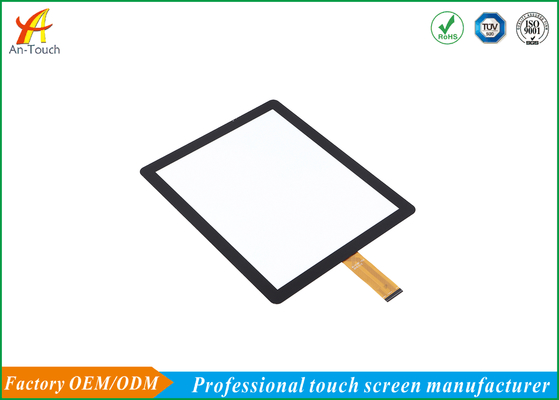

Flexible 17.3 Touch Screen Display / Transparent USB Powered Touch Screen

Product Description

Flexible 17.3 Touch Screen Display / Transparent USB Powered Touch Screen

17.3 Touch Screen Display Features:
Strong compatibility, support WindowsXP / 7/8 / 8.1 / 10 / CE, Mac, Android / Linux and other operating systems.
Anti-interference ability, without the interference of light and radiation, surface water / oil / dust can touch any place accurate and correct.
Free drive, plug and play.
Intelligent automatic calibration, simple and easy to adapt to internal / external use a variety of environments.
Wear resistance, long life, low maintenance costs.

17.3 Touch Screen Display Application:

►Electronic catalogs.

►Gaming, lottery, and amusement.

►Public pay phones.

►Multimedia marketing.

►Banking/financial transactions.

►Industrial control rooms.

►Computer-based training.

17.3 Touch Screen Display details


Structure & Operating Principle:

Capacitive touch screen is a piece of 2 layer of compound glass with double side transparent conductive coating that conducts a continuous electrical current across the sensor.

There is electrode pattern printed along the edges distributes a low voltage filed over the conductive layer.

The human body is also an electrical device which has stored electrons and therefore also exhibits capacitance.

When a finger touches the screen and draws a minute amount of current to the point of contact ,creating a voltage drop.

The current flow from each corner is proportional to the distance to the touch point. During a touch ,capacitance forms between the finger and the sensor grid. The touch location is calculated from the changing electrical characteristics of the sensor grid.
