OEM Monitor Industrial Touch Screen , Replacement 11.6 Inch Touch Screen
Contact Person : Devin Jiang
Phone Number : +86 13528582261
| Minimum Order Quantity : | negotiation | Price : | Negotiable |
|---|---|---|---|
| Packaging Details : | Standard packing with carton | Delivery Time : | 5-8 Work Day |
| Payment Terms : | T/T, Western Union, D/P, Paypal | Supply Ability : | 50000/PCS/Month |
| Place of Origin: | China | Brand Name: | antouch |
|---|---|---|---|
| Certification: | ROHS SGS ISO9001 | Model Number: | AC-C1253-11.6 |
|
Detail Information |
|||
| Name: | Industrial Touch Screen Display | Screen Diagonal: | 11.6 |
|---|---|---|---|
| Type: | Electric | Surface Hardness: | >6H |
| Outline Size: | 301.7*189.7mm | View Area: | 257.0*145.0mm |
| IC Controller/IC: | ILITEK 2511 | Application: | Tablet Touch Panel |
| High Light: | monitor industrial touch screen,pcap touch screen |
||
Product Description

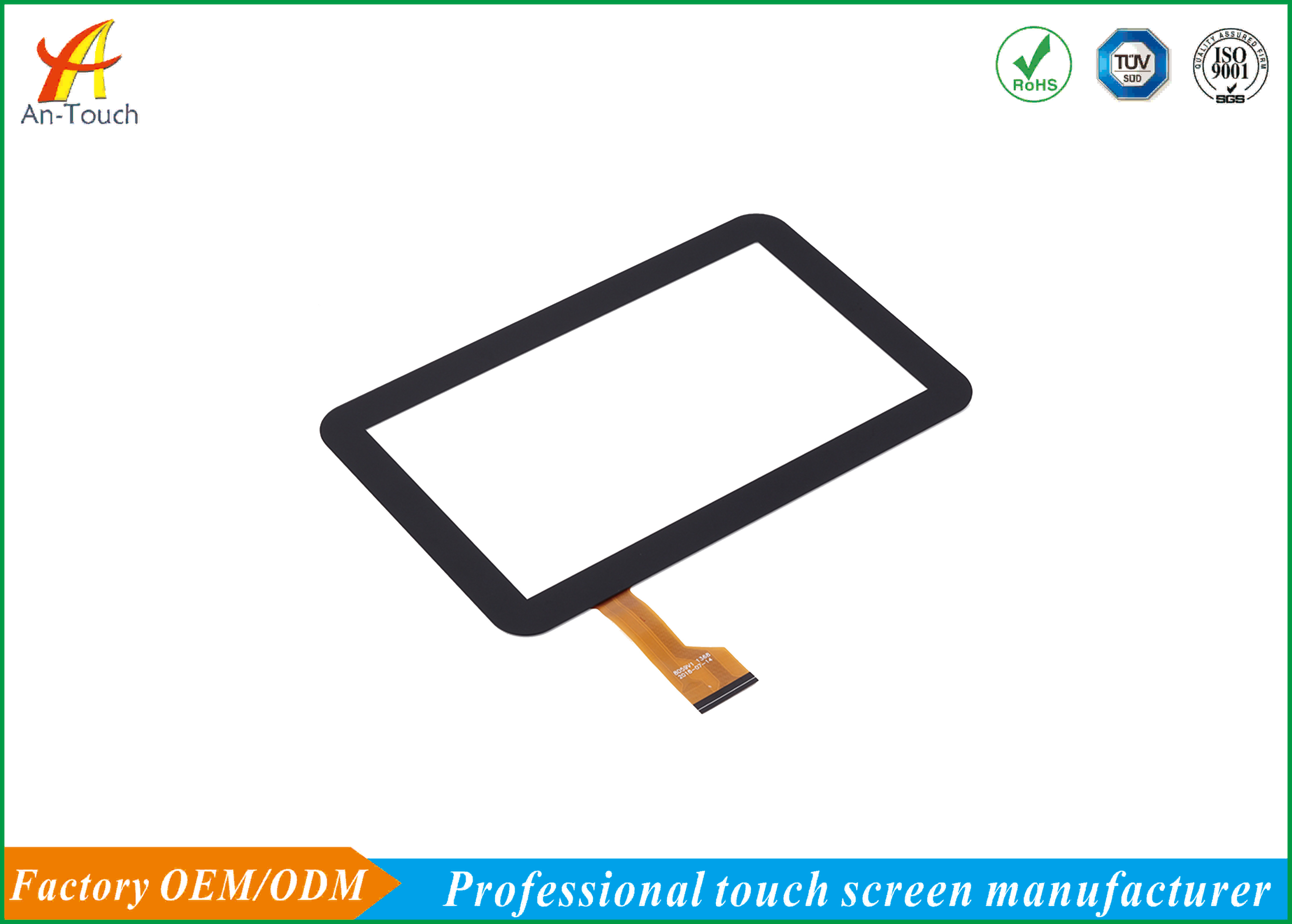

11.6 Industrial Touch Screen Display / Electric Tablet Touch Panel
What is "Multitouch"?
Multitouch is a method of input on a touchscreen that allows two or more fingers to be used on the screen at one time.Our Touch Frame is famous for introducing multi-touch to the game machine,KIOSK interactive display,Advertising Display in the world by using it to allow pinching and stretching gestures on the screen to control zooming. Multi-touch is something typically associated with the newest Infrared touchscreen technology.
Industrial Touch Screen Display Advantage
* Waterproof, dust-proof, smooth surface
* High accuracy, no offset phenomenon, contacts exactly
* Sensitivity point into the system
* Long life, to meet the harsh operating environment tens of thousands of hits panel no abnormalities
* Plug-and-play,no need to change the machine casing, lead or add any auxiliary
Industrial Touch Screen Display Application:
Industrial Touch Screen Display Parameters
| Item | Specification |
| Part Number | AC-C1253-11.6 Industrial Touch Screen Display |
| Structures | Cover Glass+ITO Glass |
| Surface Hardness | >6H |
| Outline size | 301.7*189.7mm |
| View Area | 257.0*145.0mm |
| IC Controller/IC | ILITEK 2511 |
| Operating temperature | -20℃~70℃ |
| Storage temperature | -30℃~80℃ |
| Total Thickness | 2.0±0.15mm |
| Transmittance | 86% Min |
| Interface Mode | USB/IIC/RS232 |
| Operating System | XP win7,8 Android Linux |
| Touch Points | 1-10 |
Delivery Time:
1.Samples in stock: 1~3 working days.
2.Customized project: 10~15days for samples.
3.Mass production: 10~18days.
