OEM Monitor Industrial Touch Screen , Replacement 11.6 Inch Touch Screen
Contact Person : Devin Jiang
Phone Number : +86 13528582261
| Minimum Order Quantity : | negotiation | Price : | Negotiable |
|---|---|---|---|
| Packaging Details : | Standard packing with carton | Delivery Time : | 5-8 Work Day |
| Payment Terms : | T/T, Western Union, D/P, Paypal | Supply Ability : | 50000/PCS/Month |
| Place of Origin: | China | Brand Name: | antouch |
|---|---|---|---|
| Certification: | ROHS SGS ISO9001 | Model Number: | AC-C1336-10.1 |
|
Detail Information |
|||
| Name: | Touch Panel Display 4 | Screen Diagonal: | 10.1 Capacitive Touch Screen |
|---|---|---|---|
| Resolution: | 4096×4096 | Surface Hardness: | >6H |
| Outline Size: | 256.37*174.37mm | View Area: | 218.5*136.5mm |
| IC Controller/IC: | ILITEK 2511 | Transmittance: | 86% Min |
| High Light: | monitor industrial touch screen,pcap touch screen |
||
Product Description

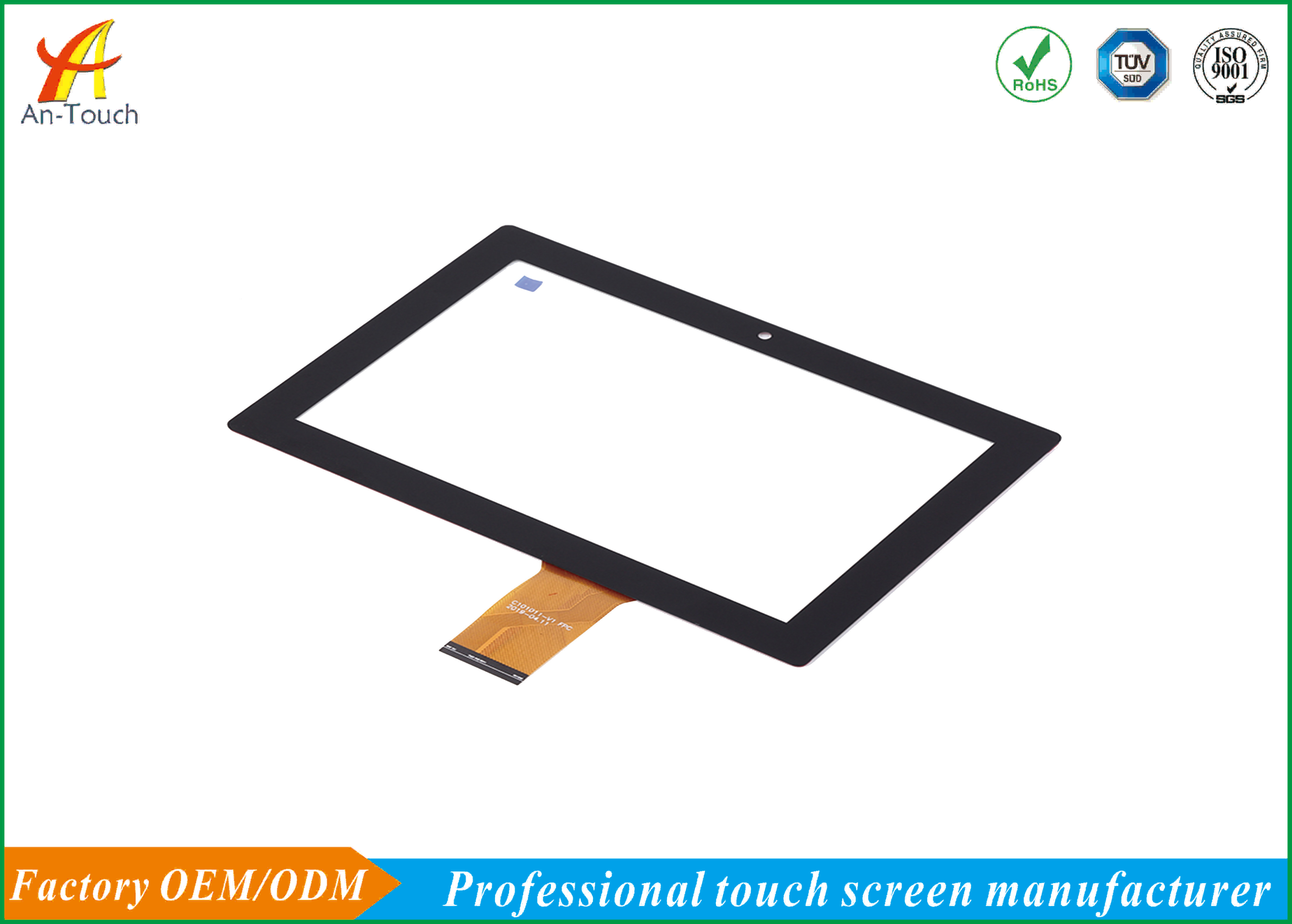

Clear 10.1 Capacitive Touch Screen , Touch Panel Display 4096×4096 Resolution
10.1 Capacitive Touch Screen Features
1. Front bezel aluminum alloy brushed metal craft, seamless design, front IP65 waterproof and dustproof .
2. Industrial LCD panel, wide viewing angle, high nits, true color.
3. Adopt multi-points touch panel , high sensitive and fast-response.
4. High performance mainboard, 7x24 continuous operation.
5. Support wall mounting,embedded mounting,desk stand mouting etc.
10.1 Capacitive Touch Screen Application:
10.1 Capacitive Touch Screen Parameters
| Item | Specification |
| Part Number | AC-C1336-10.1 10.1 Capacitive Touch Screen |
| Structures | Cover Glass+ITO Glass |
| Surface Hardness | >6H |
| Outline size | 256.37*174.37mm |
| View Area | 218.5*136.5mm |
| IC Controller/IC | ILITEK 2511 |
| Operating temperature | -20℃~70℃ |
| Storage temperature | -30℃~80℃ |
| Total Thickness | 2.0±0.15mm |
| Transmittance | 86% Min |
| Interface Mode | USB/IIC/RS232 |
| Operating System | XP win7,8 Android Linux |
| Touch Points | 1-10 |
Warranty & Service
1. The warranty time is 12 months.
2. We guarantee that each unit is tested carefully and works very well before shipment. We strive for 100% customer satisfaction on every sale we complete.
3. During the warranty period, we can repair or replace the defective unit for free, after the warranty time, we repair the defective unit and charge part cost.
4.When you receive the package, please open and check it before signing, if it's damaged, ask a "Damage proof" from the delivery company.
5.Any query,please contact us by email or Trade Manager, emails will be responsed within 12 working hours.
