Multi Touch Smart Home Touch Panel With High Response Speed 18.5 Inch

Minimum Order Quantity : Negotiation Price : Negotiation
Packaging Details : Standard export package Delivery Time : 8-10 Work Days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 10000/pcs/Month
Place of Origin: China Brand Name: antouch
Model Number: AC-C1115-18.5

Detail Information

Name: Smart Home Touch Panel Part Number: AC-C1115-18.5
Touch: Multi Touch Surface Hardness: >6H
Outline Size: 456.75*277.25mm View Area: 408.7*229.0mm
IC Controller: ILITEK 2510/WD8752 Advantage: High Response Speed
High Light:

home automation touch screen panel

,

smart home touch screen

Product Description

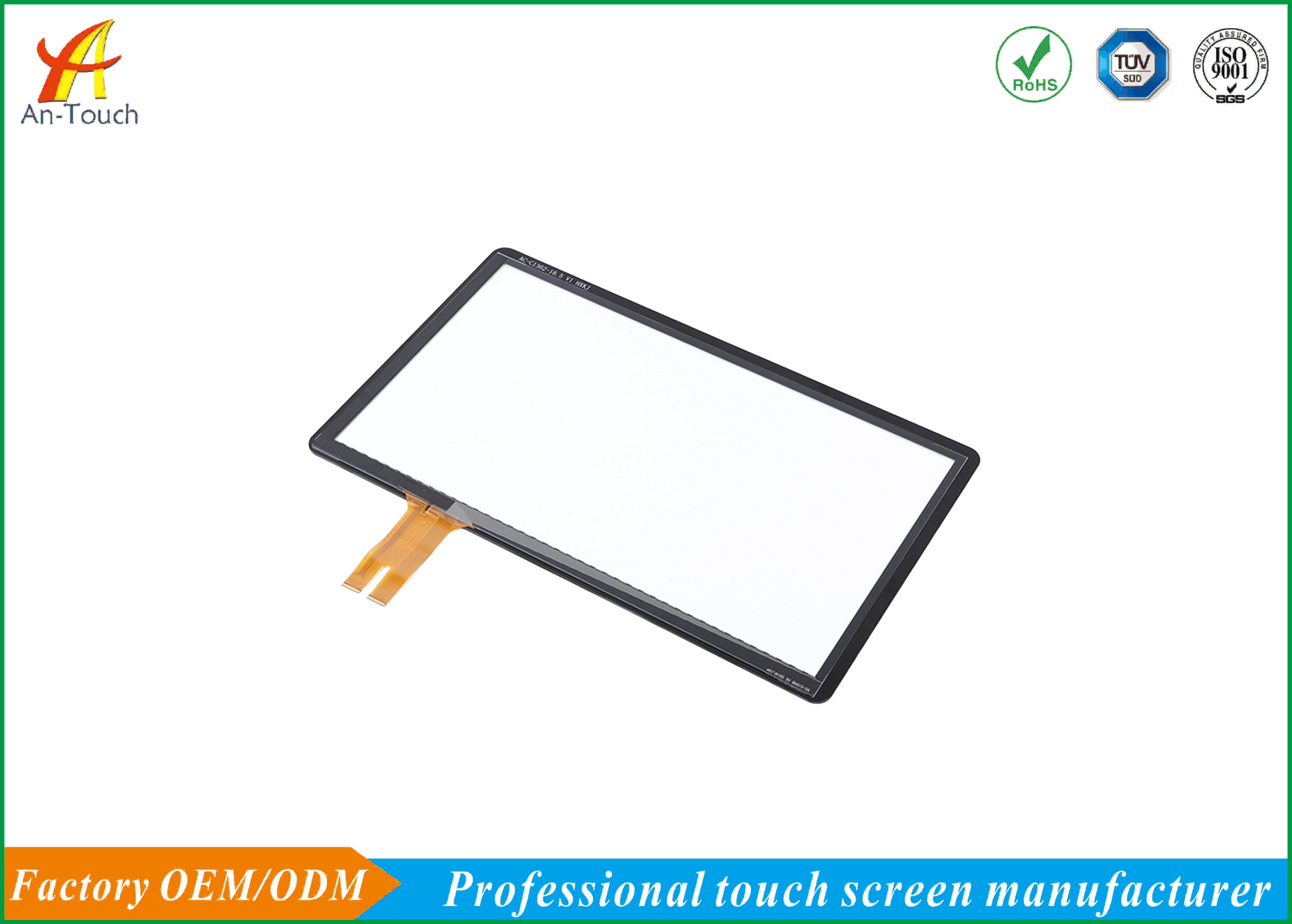

Multi Touch Smart Home Touch Panel With High Response Speed 18.5 Inch



Smart Home Touch Panel Special function



support different gloves(Nylon,Latex,Cotton,Wool,Snow gloves),max 5mm thickness

Support touch with water,oil,water-oil mixture,salt water

Support thick cover lens,max 6mm tempered glass



Smart Home Touch Panel Basic Specification



Item Specification
Part Number AC-C1115-18.5 Smart Home Touch Panel
Structures Cover Glass+ITO Glass
Surface Hardness >6H
Outline size 456.75*277.25mm
View Area 408.7*229.0mm
IC Controller ILITEK 2510/WD8752
Operating temperature -20℃~70℃
Storage temperature -30℃~80℃
Total Thickness 3.9±0.15mm
Transmittance 86% Min
Interface Mode USB/IIC/RS232
Operating System XP win7,8 Android Linux
Touch Points 1-10



Smart Home Touch Panel Features:


► Response speed fast, smooth touch


► Flat panel, more high-end atmosphere, eliminating infrared touch screen surface with a groove edges are not allowed to shortcomings


► Can support real 10points touch, Compatible with multiple system


► Operating systems strong compatibility





Delivery Time



1.Samples in stock: 1~3 working days



2.Customized project: 10~15days for samples



3.Mass production: 10~18days





Our service



1.We have the largest laminting mechine which can up to 65 inch.



2.In stock for fast delivery provide the best after-sales service.



3.We can provide the best design solutions according customer requirements.



4.All of our products have been inspected strictly before delivery.



5.You can send the drawing to us directly,including the dimension of cover glass and sensor,if you want your own logo on it,just send us the design.
