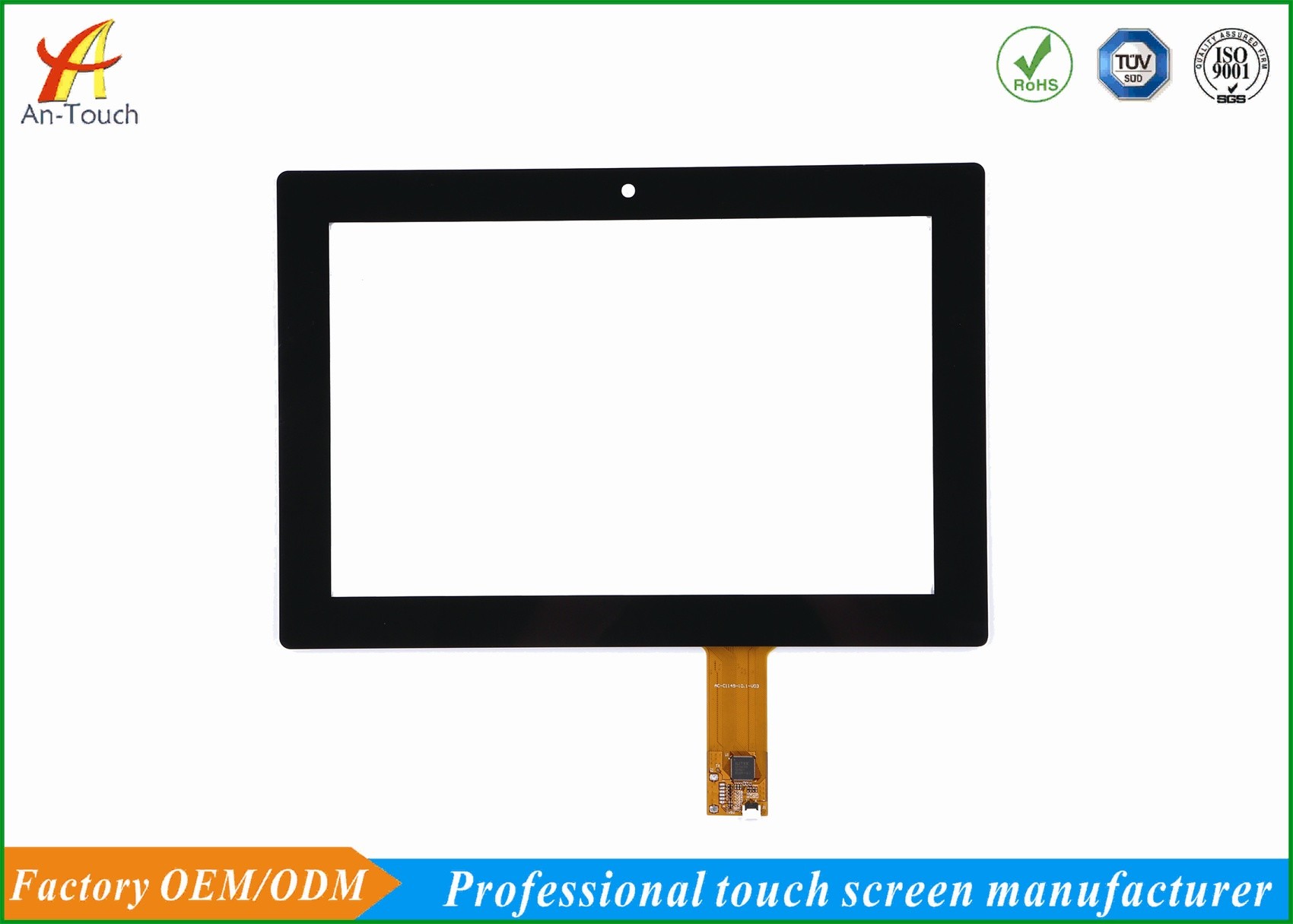

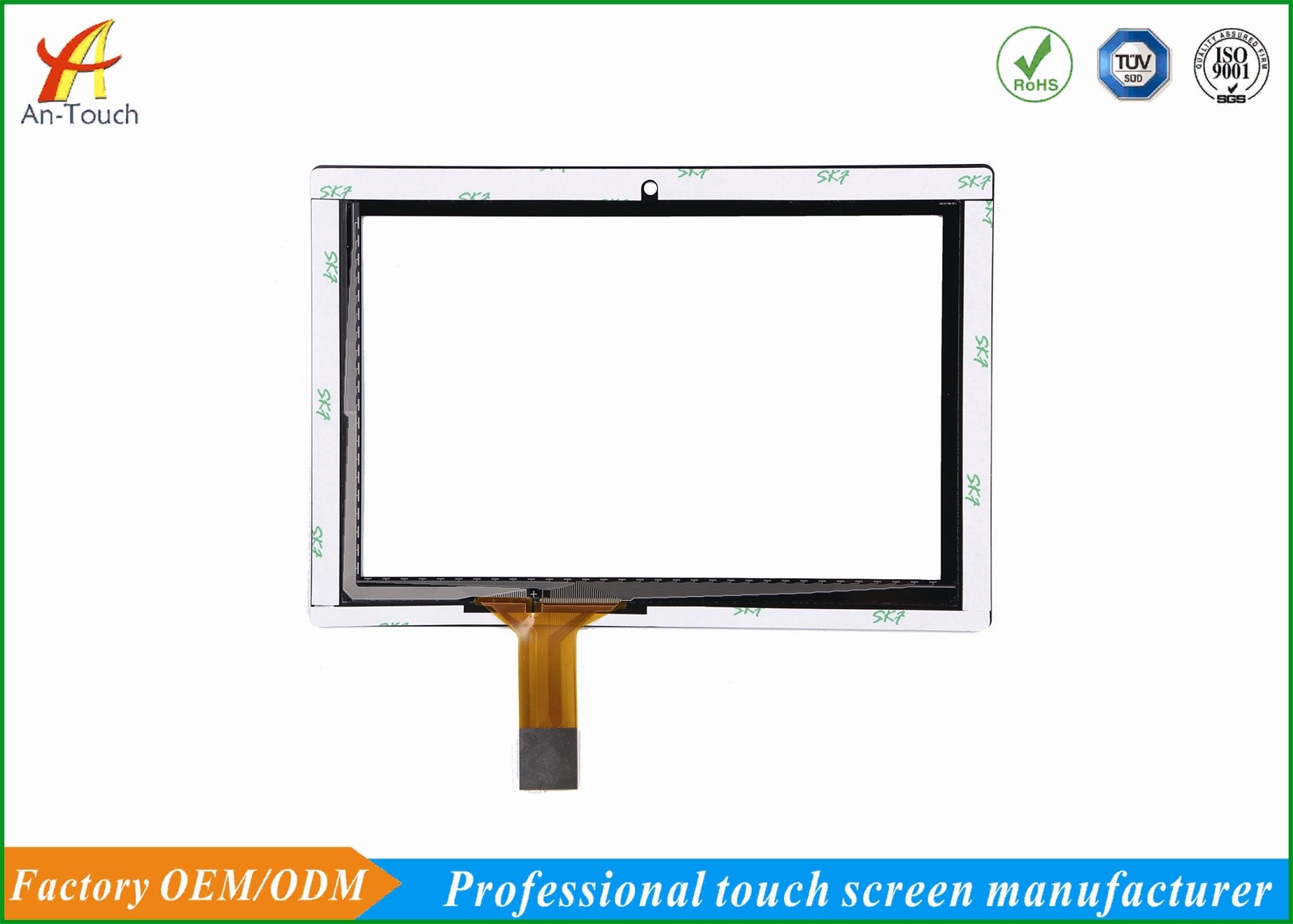

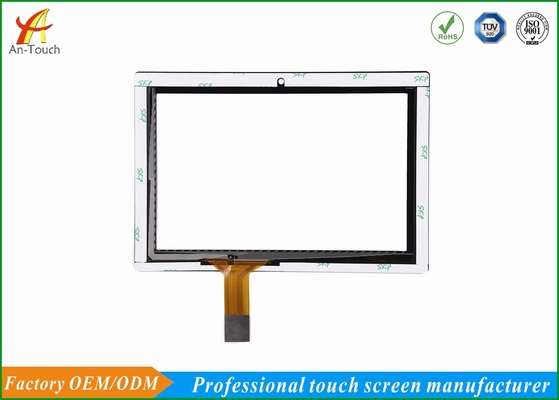

LCD Games Java Touch Screen , Water Resistant Capacitive Touch Screen Panel
Contact Person : Devin Jiang
Phone Number : +86 13528582261
| Minimum Order Quantity : | 1/PCS | Price : | 10-100$/pcs / Negotiable |
|---|---|---|---|
| Packaging Details : | Standard packing with carton | Delivery Time : | 5-8 Work Day |
| Payment Terms : | T/T, Western Union, Paypal | Supply Ability : | 50000/PCS/Month |
| Place of Origin: | China | Brand Name: | an-touch |
|---|---|---|---|
| Model Number: | AC-C1149-10.1 |
|
Detail Information |
|||
| Screen Diagonal: | 10.1 | Ratio: | 16:10 |
|---|---|---|---|
| Structures: | G+G | Active Area: | 220.2*138.6mm |
| Interface Mode: | IIC | Operating System: | XP Win7 8 Android Linux |
| High Light: | kiosk touch screen,ten point touch screen |
||
Product Description
| Screen Diagonal | 10.1 |
| Ratio | 16:10 |
| Structures | G+G |
| Outline Dimensio | 256.49*174.49mm |
| Module View Area | 218.5*136.5mm |
| Active Area | 220.2*138.6mm |
| Cover Lens | 1.1mm |
| Interface Mode | IIC |
| Operating System | XP win7 8 Android Linux |
| Touch Points | 1-10 |
Capacitive Touch Screen:
Capacitive touch screen are built with two parallel layers of ITO but, but unlike the old and cheap resistive touch panels, the ITO layers in a projected capacitive touch panel are sealed between two sheets of glass by an optically clear adhesive.
Projected Capacitive Touch Screen Features:
Glass to glass structure
3mm to 6mm temperted glass
Support cover/size customized
4096×4096 Resolution with linearity error ≤2mm
Size available from 7inch to 65inch
Multi-touch 1 to 10 touch points
100 Million touches durability
Tempered scratch proof cover glass with high impact resistance
Projected Capacitive touch screen Features:
1) Response speed fast, smooth touch.
2) Flat panel, more high-end atmosphere, eliminating infrared touch screen surface with a groove edges are not allowed to shortcomings.
3) Precision-touch capacitive screen is using the body's current-sensing.
4) Accuracy up to 99% proficient in writing, no break no drift.
5) Any point can withstand more than 50 million times touch.
6) Explosion-proof and durable, scratch-resistant, anti-collision, anti-radiation within the core capacitive touch ensure stable, anti-interference ability.
7) Operating systems strong compatibility.
8) Intelligent automatic calibration, use forinternal / external variety of environments.
9) Long life, low maintenance costs.
Why choose us?
1.Our factory is a legal,responsible,capable,experienced factory
2.We have the largest laminting mechine which can up to 65inch
3.In stock for fast delivery provide the best after-sales service
4.We can provide the best design solutions according customer requirements
5.All of our products have been inspected strictly before delivery
ironments
Samples in stock: 1~3 working days
Customized project: 10~15days for samples
Mass production: 10~18days
Customer question
1. How about Sample lead time ?
-------Custom samples 12-18work-days,standard samples 5~10work-days
2. How about mass production lead time ?
------ 15 days after sample confirmed
3. shipping?
------,Usually we deliver our goods by DHL,UPS, FedEx etc.
4: Payment term?
------ T/T or Western Union 30% deposit, 70% balance should be paid before shipment.
5: How about the warranty?
------ Warranty 1year
