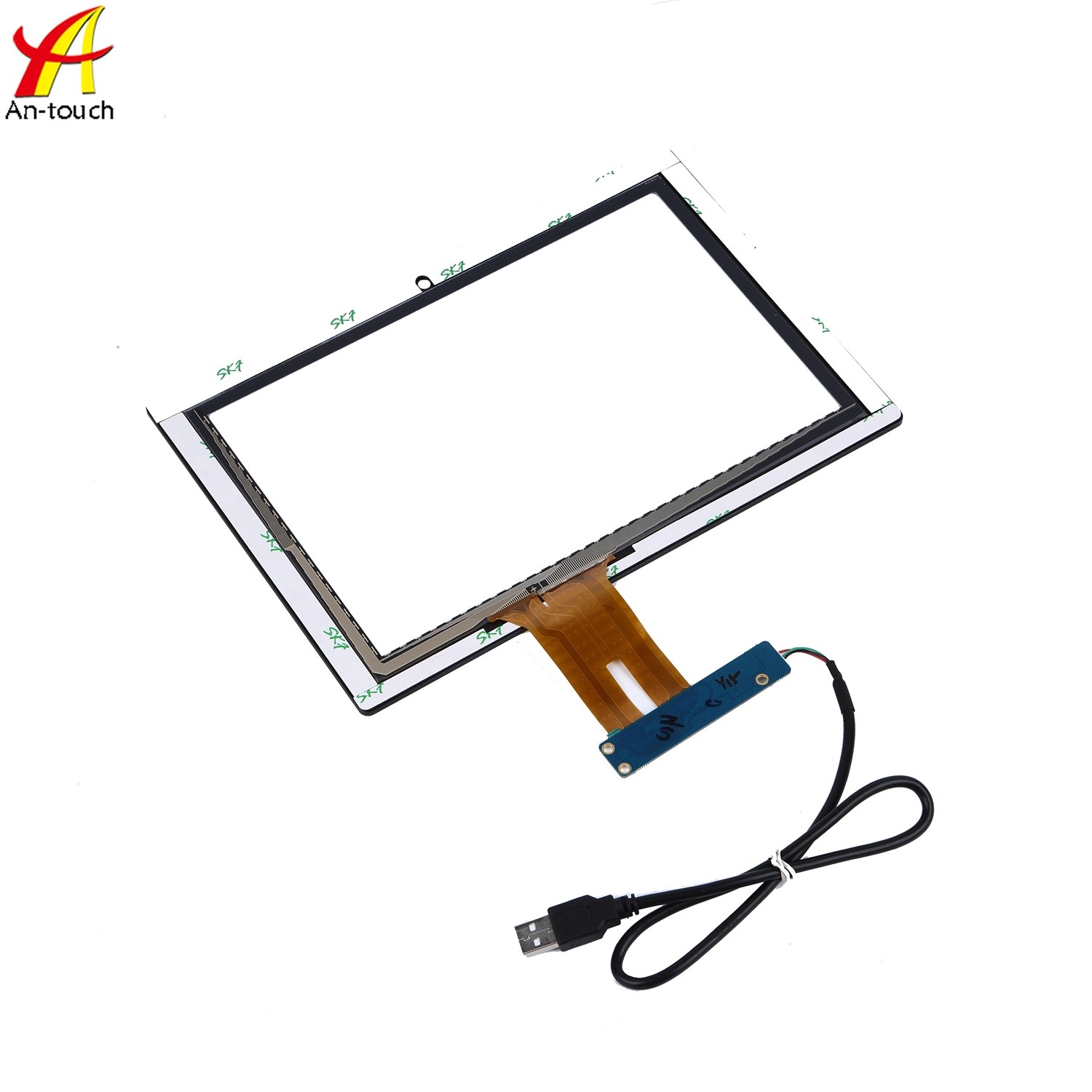

OEM Monitor Industrial Touch Screen , Replacement 11.6 Inch Touch Screen
Contact Person : Devin Jiang
Phone Number : +86 13528582261
| Minimum Order Quantity : | 1/PCS | Price : | 10-100$/pcs / Negotiable |
|---|---|---|---|
| Packaging Details : | Standard Packing With Carton | Delivery Time : | 5-8 Work Day |
| Payment Terms : | T/T, Western Union, Paypal | Supply Ability : | 50000/PCS/Month |
| Place of Origin: | China | Brand Name: | antouch |
|---|---|---|---|
| Certification: | ROHS SGS ISO9001 | Model Number: | AC-C1141-10.1 |
|
Detail Information |
|||
| Screen Diagonal: | 10.1 | Module View Area: | 344.23*193.54mm |
|---|---|---|---|
| Structures: | G+G | Operating System: | XP Win7 8 Android Linux |
| Active Area: | 232.5*151.95mm | Warranty: | 12 Months |
| High Light: | monitor industrial touch screen,pcap touch screen |
||
Product Description
| Item | Specification |
| Screen size | 10.1 inch |
| Structures | Cover Glass+ITO Glass |
| Surface Hardness | >6H |
| Surface Treatment | AG/AF/AR |
| IC Controller | ILITEK 2302 |
| Operating temperature | -20℃~70℃ |
| Storage temperature | -30℃~80℃ |
| Supply Voltage | 3.3V~5V |
| Transmittance | 86% Min |
| Interface Mode | USB/IIC/RS232 |
| Operating System | XP win7,8 Android Linux |
| System Driver | No need(USB plug and play) |
| Touch Points | 1-10 |
Operation Principle:
Capacitive touch panel works through body's current induction .When finger is on or close to touch panel surface,due to body electric field, the user and touch panel surface forms one coupling capacitance. For high frequency current, capacitance is direct conductor, then fingers suck a small current from the contact point, through amplifying and accurately calculating this current signal, the controller works out the touch point position
Projected Capacitive Touch Screen Features:
Glass to glass structure
3mm to 6mm temperted glass
Support cover/size customized
4096×4096 Resolution with linearity error ≤2mm
Size available from 7inch to 65inch.
Multi-touch 1 to 10 touch points.
Advantages of G+G structure:
(1)High transmittance,>83%.
(2)Hard and anti-wear surface.The hardness is 6H.
(3)Excellent corrosion resistance.
(4)Sensitive touch and stable performance.
G+G means the structure of touch panel using Cover Glass + Sensor Glass. The Sensor Glass have
ITO coating so that it can be sensitive.
Delivery Time:
Samples in stock: 1~3 working days.
Customized project: 10~15days for samples.
Mass production: 10~18days.
Why choose us?
1.Our factory is a legal,responsible,capable,experienced factory.
2.We have the largest laminting mechine which can up to 65inch.
3.In stock for fast delivery provide the best after-sales service.
4.We can provide the best design solutions according customer requirements.
5.All of our products have been inspected strictly before delivery.
Customer question
1. How about Sample lead time ?
-------Custom samples 12-18work-days,standard samples 5~10work-days.
2. How about mass production lead time ?
------ 15 days after sample confirmed.
3.Shipping?
------Usually we deliver our goods by DHL,UPS, FedEx etc.
4: Payment term?
------ T/T or Western Union 30% deposit, 70% balance should be paid before shipment.
5: How about the warranty?
------ Warranty 1year.
