Integrated LCD CTP Touch Screen , 7 Lcd Touch Screen Panel 12 Month Warranty
Contact Person : Devin Jiang
Phone Number : +86 13528582261
| Minimum Order Quantity : | 1/PCS | Price : | 10-100$/pcs / Negotiable |
|---|---|---|---|
| Packaging Details : | Standard Packing With Carton | Delivery Time : | 5-8 Work Day |
| Payment Terms : | T/T, Western Union, Paypal | Supply Ability : | 50000/PCS/Month |
| Place of Origin: | China | Brand Name: | antouch |
|---|---|---|---|
| Certification: | ROHS SGS ISO9001 | Model Number: | AC-C1134-7.0 |
|
Detail Information |
|||
| Screen Size: | 7.0 Inch | Type: | TFT |
|---|---|---|---|
| LCD Ratio: | 16:10 | Signal Type: | LVDS (1 Ch, 6/8-bit) , Connector , 20 Pins |
| Voltage Supply: | 3.3V (Typ.) | Warranty: | 12 Months |
| High Light: | lcd capacitive touchscreen,ctp touch panel |
||
Product Description

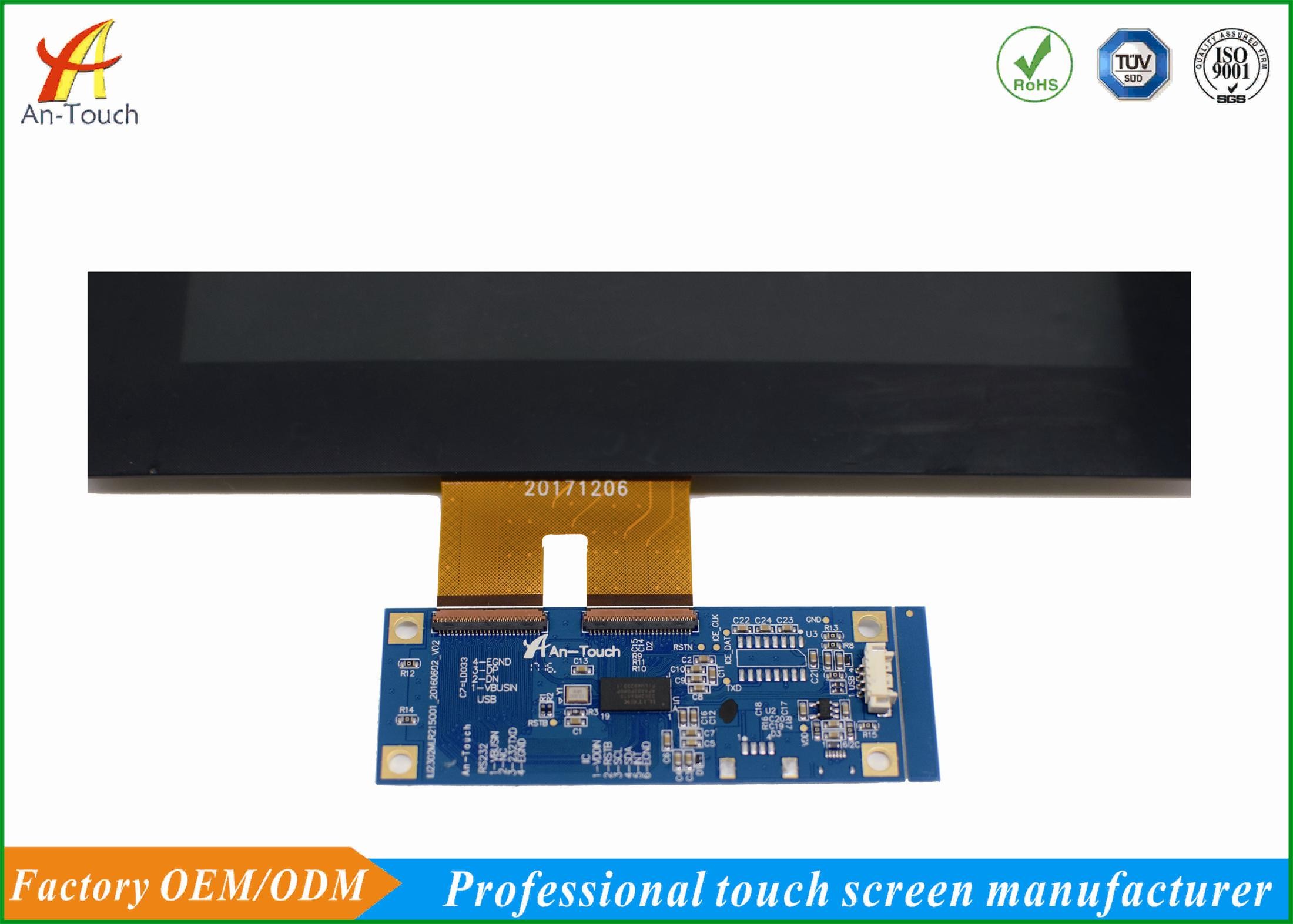

Capacitive Touch Panel Specifications:
| Item | Specification |
| Screen size | 7.0 inch |
| Structures | Cover Glass+ITO Glass |
| Surface Hardness | >6H |
| Surface Treatment | AG/AF/AR |
| IC Controller | ILITEK 2302 |
| Operating temperature | -20℃~70℃ |
| Storage temperature | -30℃~80℃ |
| Supply Voltage | 3.3V~5V |
| Transmittance | 86% Min |
| Interface Mode | USB/IIC/RS232 |
| Operating System | XP win7,8 Android Linux |
| System Driver | No need(USB plug and play) |
| Touch Points | 1-10 |
Capacitive Touch Screen:
Capacitive touch screen are built with two parallel layers of ITO but, but unlike the old and cheap resistive touch panels, the ITO layers in a projected capacitive touch panel are sealed between two sheets of glass by an optically clear adhesive.

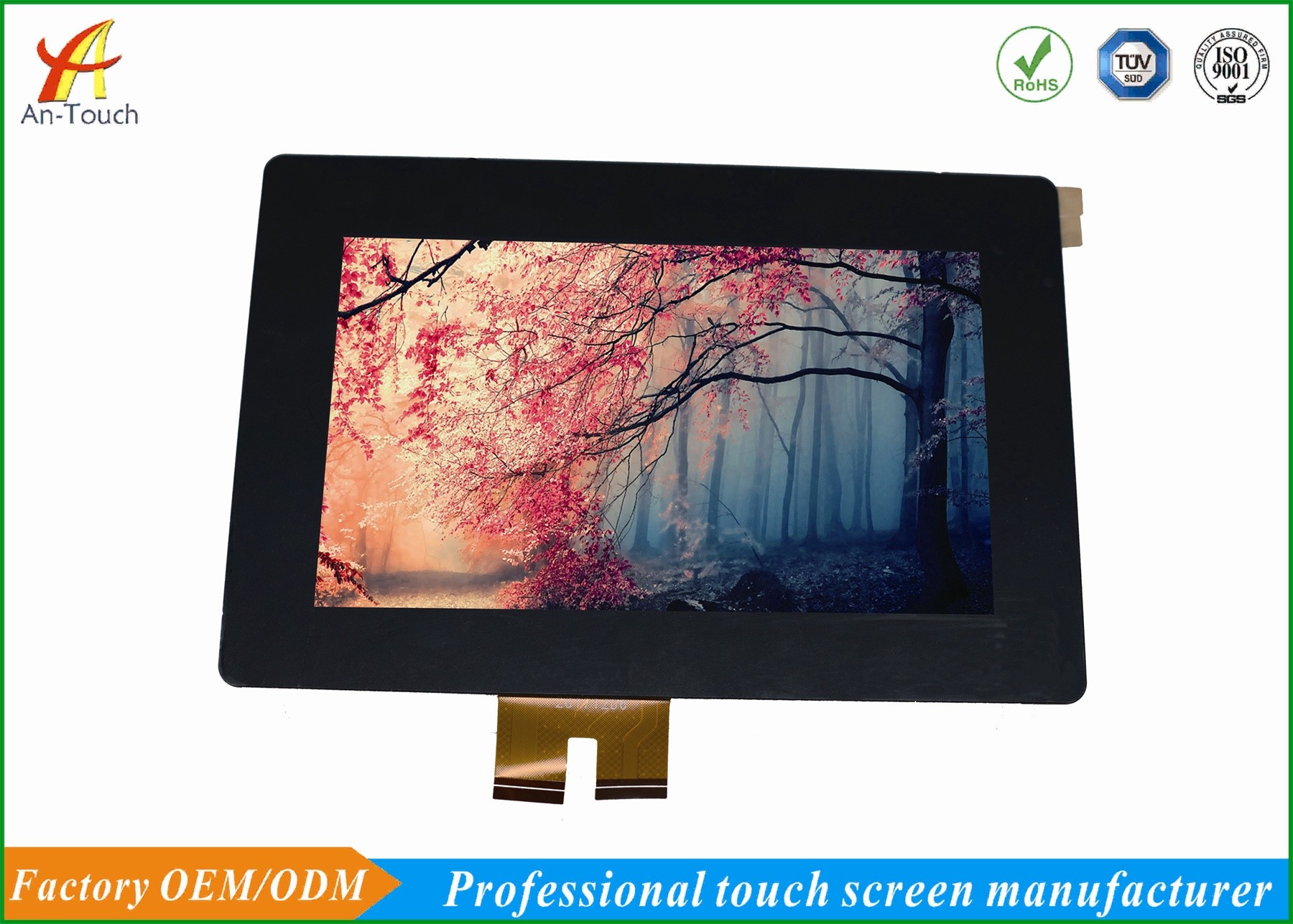

LCD Specifications:
| Manufacturer | INNOLUX |
| Model Name | G070Y2-L01 |
| Screen Type | LCM, a-Si TFT-LCD |
| Pixel Number | 800(RGB)×480 (WVGA) |
| Arrangement | RGB Vertical Stripe |
| Active | 152.4 × 91.44 (H×V) |
| Outline(mm) | 165 × 104 × 9.83 (H×V×D) |
|
Bezel Area(mm) |
154.6 × 93.64 (H×V) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 500 cd/m² (Typ.) |
| Contrast Ratio | 600 : 1 (Typ.) (TM) |
| Response | 5/11 (Typ.)(Tr/Td) ms |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K/16.2M 72% (CIE1931) |
| Backlight | WLED , 50K hours , With LED Driver |
| Mass | 147/162g (Typ./Max.) |
| Refresh Rate | 60Hz |
| Max. Ratings | Storage Temp.: -40 ~ 95 °C Operating Temp.: -30 ~ 85 °C ; Vibration Level: 3.0G (29.4 m/s²) |
Introduce:
The G070Y2-L01 is a 7.0 inch diagonal a-Si TFT-LCD display panel product from Innolux Corporation (hereafter called INNOLUX), with an integral WLED backlight system, With LED Driver . It features an operating temperature range of -30 ~ 85°C , a storage temperature range of -40 ~ 95°C , and the maximal vibration level of 3.0G (29.4 m/s²). It's general features are summarized by Panelook in the following: High Color Gamut, Antiglare Surface, 6/8 bit Selectable, Landscape type, Wide Temperature, White LED Backlight, Lamp life ≥ 50K hours, Wide Aspect Ratio, U/D,L/R Reverse . Based on its features, We recommend that this model be applied to Automotive Display, Industrial Application etc.
Projected Capacitive touch screen Features:
►Response speed fast, smooth touch.
► Flat panel, more high-end atmosphere, eliminating infrared touch screen surface with a groove edges are not allowed to shortcomings.
►Any point can withstand more than 50 million times touch.
► Operating systems strong compatibility.
► Intelligent automatic calibration, use forinternal / external variety of environments.
► Long life, low maintenance costs.
Application:
►Vending and ticket sales.
►Electronic catalogs.
►Gaming, lottery, and amusement.
►Public pay phones.
►Banking/financial transactions.
►Industrial control rooms.
►Computer-based training.
Why choose us?
1.Our factory is a legal,responsible,capable,experienced factory.
2.We have the largest laminting mechine which can up to 65inch.
3.In stock for fast delivery provide the best after-sales service.
4.We can provide the best design solutions according customer requirements.
5.All of our products have been inspected strictly before delivery.
Customer question
1. How about Sample lead time ?
-------Custom samples 12-18work-days,standard samples 5~10work-days.
2. How about mass production lead time ?
------ 15 days after sample confirmed.
3.Shipping?
------Usually we deliver our goods by DHL,UPS, FedEx etc.
4: Payment term?
------ T/T or Western Union 30% deposit, 70% balance should be paid before shipment.
5: How about the warranty?
------ Warranty 1year.
