Unique CTP Lcd Capacitive Touchscreen 10.1 Inch For Self - Help Ordering Machine

Product Description

Unique 10.1 Inch 10 Point Capacitive LCD CTP Touch Screen for Self-help Ordering Machine



Basic Specification:



Screen size	10.1 inch
Structures	Cover Glass+ITO Glass
Ratio	16:10
Surface Hardness	>6H
Outline Dimension	260.0*183.0mm
Module View Area	216.36*136.0mm
Active Area	277.03*163.9mm
Cover Lens	2.0mm
Surface Treatment	AG/AF/AR
Operating temperature	-20℃~70℃
Storage temperature	-30℃~80℃
Supply Voltage	3.3V~5V
Transmittance	86% Min
Interface Mode	USB/IIC/RS232
Operating System	XP win7,8 Android Linux
System Driver	No need(USB plug and play)
Touch Points	1-10



Structure & Operating Principle:



    Capacitive touch screen is a piece of 2 layer of compound glass with double side transparent conductive

   coating that conducts a continuous electrical current across the sensor.



   There is electrode pattern printed along the edges distributes a low voltage filed over the conductive layer.



  The human body is also an electrical device which has stored electrons and therefore also exhibits



   capacitance.



  When a finger touches the screen and draws a minute amount of current to the point of contact ,creating a



  voltage drop.



 The current flow from each corner is proportional to the distance to the touch point. During a touch



 ,capacitance forms between the finger and the sensor grid. The touch location is calculated from the



 changing electrical characteristics of the sensor grid.





Application:





  Touch Screen All in one Computers



   Touch Screen laptop



   POS Machine



  Industrial Control industry



  Touch Monitor



  Information Kiosks



  Gaming, Lottery ect



  Multimedia marketing



  Banking / Fanancial System



  Touch Table





Why choose us?





► Our factory is a legal,responsible,capable,experienced factory.



► We have the largest laminting mechine which can up to 65inch.



► In stock for fast delivery provide the best after-sales service.



► We can provide the best design solutions according customer requirements.



► All of our products have been inspected strictly before delivery.





FAQ:

• How about Sample lead time ?



-------Custom samples 12-18work-days,standard samples 5~10work-days



•  How about mass production lead time ?



------ 15 days after sample confirmed



• Shipping?



------Usually we deliver our goods by DHL,UPS, FedEx etc.

• Payment term?



------ T/T or Western Union 30% deposit, 70% balance should be paid before shipment.

• How about the warranty?



------ Warranty 1year





Shipment service:



FedEx, DHL, UPS, TNT, Aramex etc.





Delivery Time:



 1.Samples in stock: 1~3 working days



 2.Customized project: 10~15days for samples



 3.Mass production: 10~18days

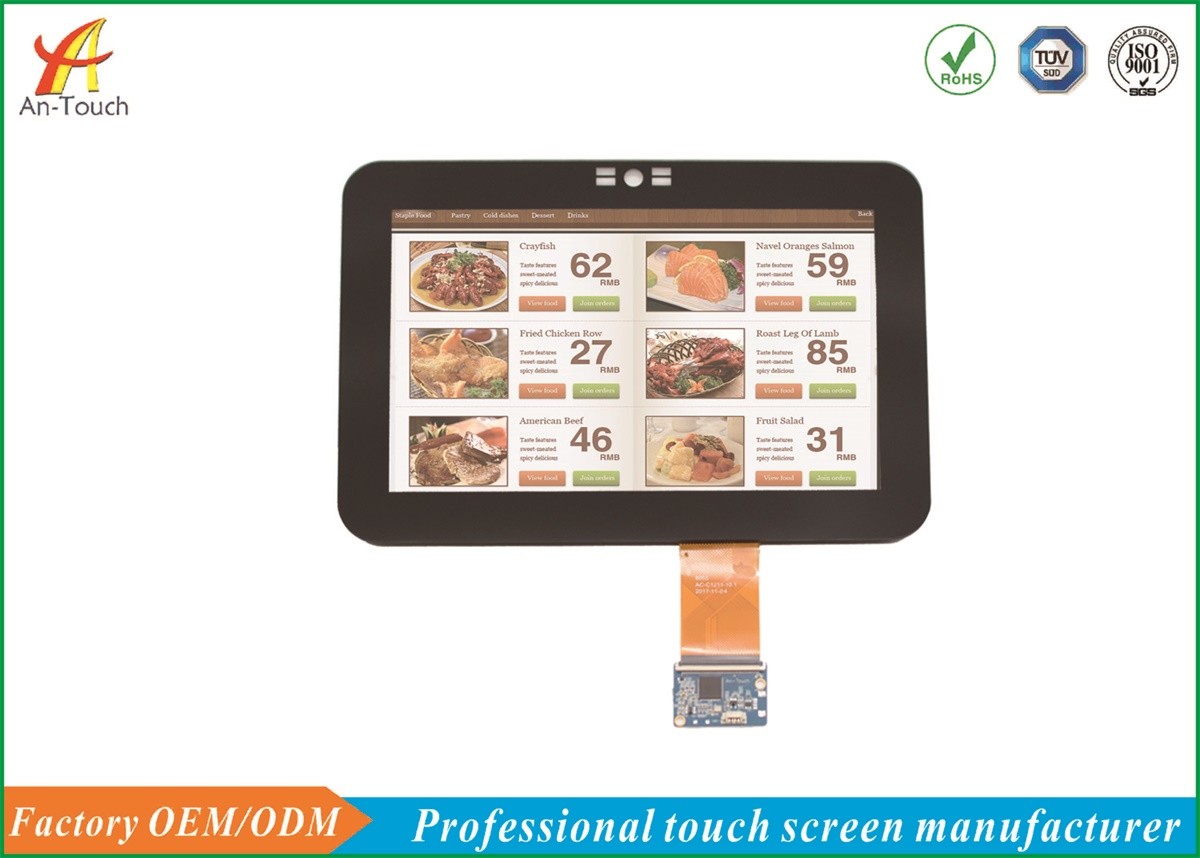

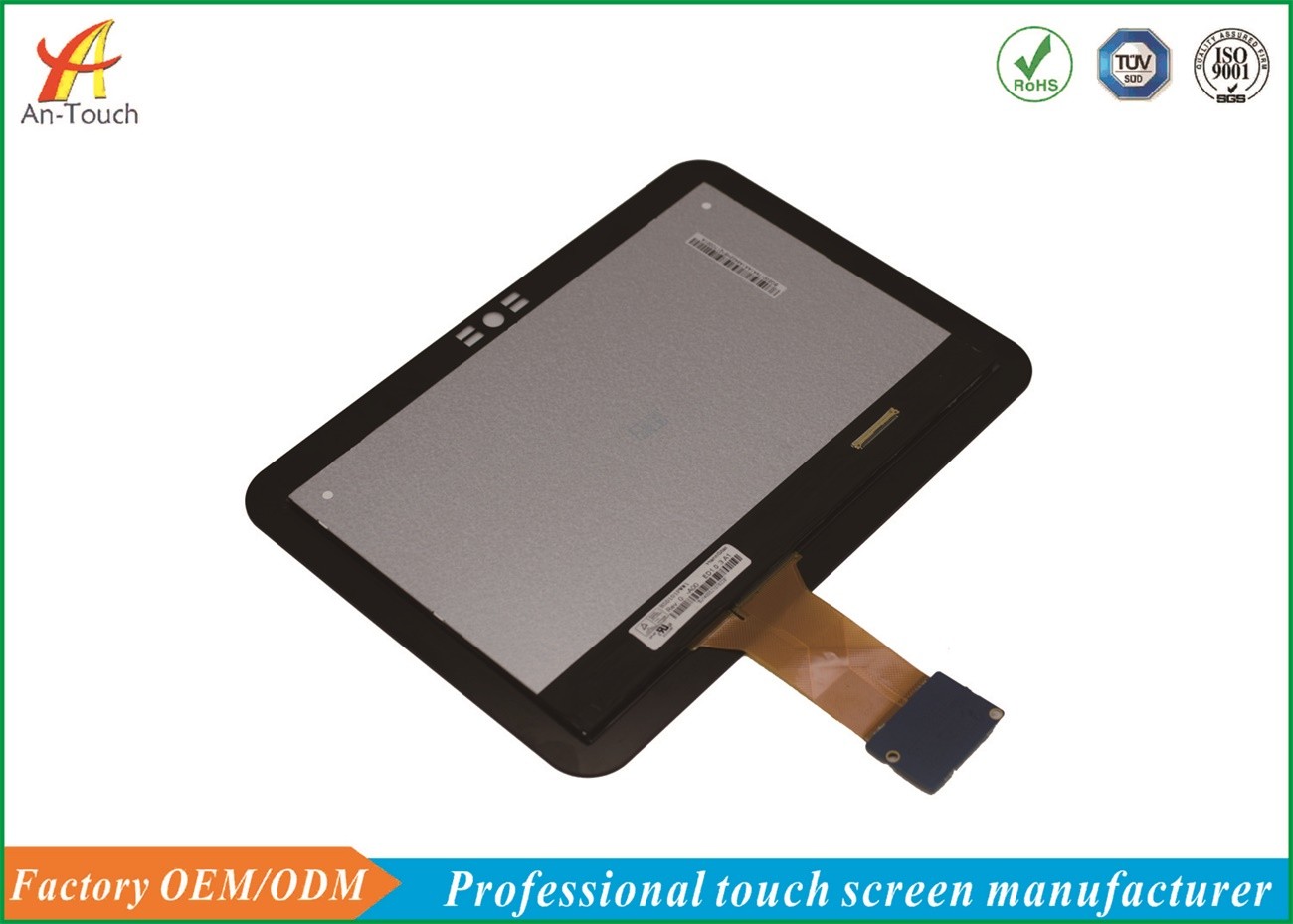

High Dedinition Product Map









Technical Drawings:
