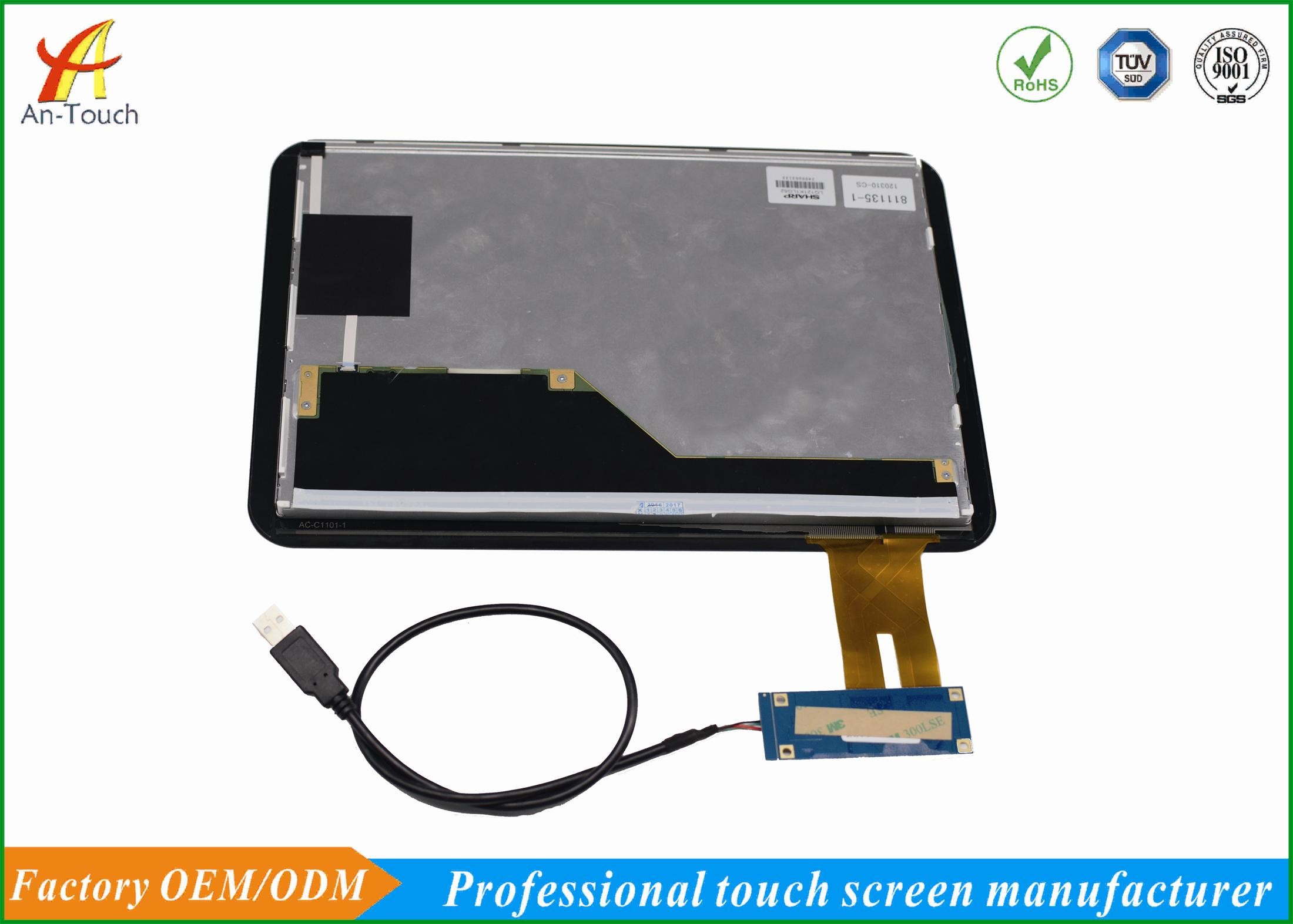

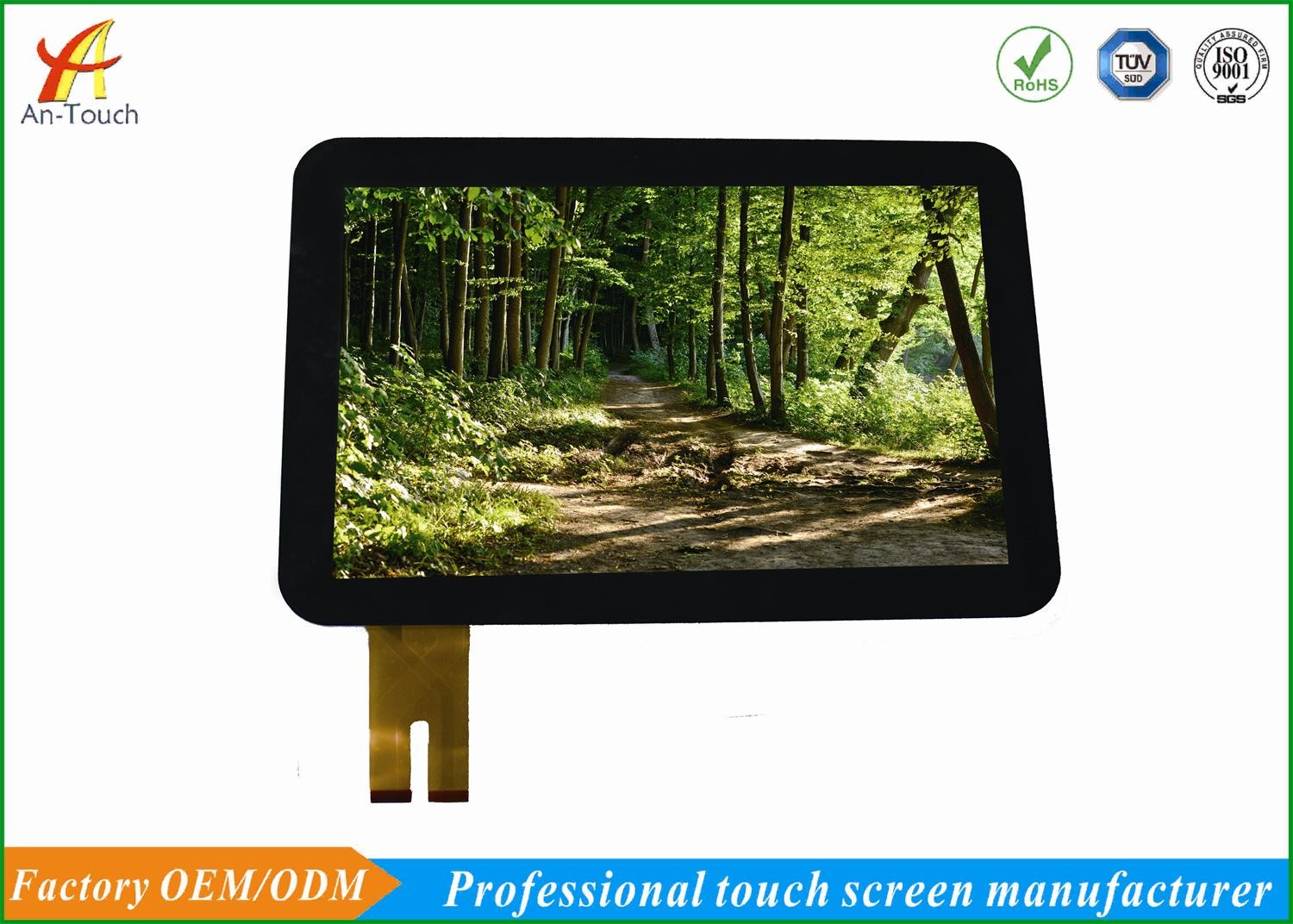

Transparent Glass LCD CTP Touch Screen Panel 12.1 Inch For Industrial Equipment

Product Description

CTP 10 Points 12.1 Inch Multi Touch Panel TFT LCD With Transparent Touch Screen For Ticket Dispenser

Capacitive Touch Panel Specifications:

Capacitive Touch Screen:

Capacitive Touch Panel is to use the working current of induction of human body.The operational principle of the projected capacitive touch panel: There are two layers of the ITO layer under the surface of glass. This ITO layer respectively forms the electric field of X axis and Y axis, which can keep balance by crossing the surface of the class. Once the fingers approach the glass surface, the fingers and the electrode X axis or Y axis will form a new electric field, which can make the local capacitance change. Then the controller will determine the location based on capacitance changes.

LCD Specifications:

Introduce:

The LQ121K1LG52 is a 12.1 inch diagonal a-Si TFT-LCD display panel product from Sharp Corporation (hereafter called SHARP), with an integral WLED backlight system, With LED Driver. It features an operating temperature range of -30 ~ 80°C , a storage temperature range of -30 ~ 80°C , and the maximal vibration level of 1.0G (9.8 m/s²). It's general features are summarized by Panelook in the following: Antiglare Surface, Wide Viewing Angle, Landscape type, Wide Temperature, White LED Backlight, Lamp life ≥ 50K hours, Wide Aspect Ratio, 180 Reverse , Mass production from Dec. 2010. Based on its features, Panelook recommend that this model be applied to Gaming, Industrial Application etc.

Projected Capacitive touch screen Features:

►Response speed fast, smooth touch.

► Flat panel, more high-end atmosphere, eliminating infrared touch screen surface with a groove edges are not allowed to shortcomings.

►Any point can withstand more than 50 million times touch.

► Operating systems strong compatibility.

► Intelligent automatic calibration, use forinternal / external variety of environments.

► Long life, low maintenance costs.

G+G means the structure of touch panel using Cover Glass + Sensor Glass. The Sensor Glass have

ITO coating so that it can be sensitive.

 Advantages of G+G structure:

(1)High transmittance,>83%.

(2)Hard and anti-wear surface.The hardness is 6H.

(3)Excellent corrosion resistance.

(4)Sensitive touch and stable performance.

Why choose us?

1.Our factory is a legal,responsible,capable,experienced factory.

2.We have the largest laminting mechine which can up to 65inch.

3.In stock for fast delivery provide the best after-sales service.

4.We can provide the best design solutions according customer requirements.

5.All of our products have been inspected strictly before delivery.

Customer question

1. How about Sample lead time ?

-------Custom samples 12-18work-days,standard samples 5~10work-days.

2. How about mass production lead time ?

------ 15 days after sample confirmed.

3.Shipping?

------Usually we deliver our goods by DHL,UPS, FedEx etc.

4: Payment term?

------ T/T or Western Union 30% deposit, 70% balance should be paid before shipment.

5: How about the warranty?

------ Warranty 1year.
