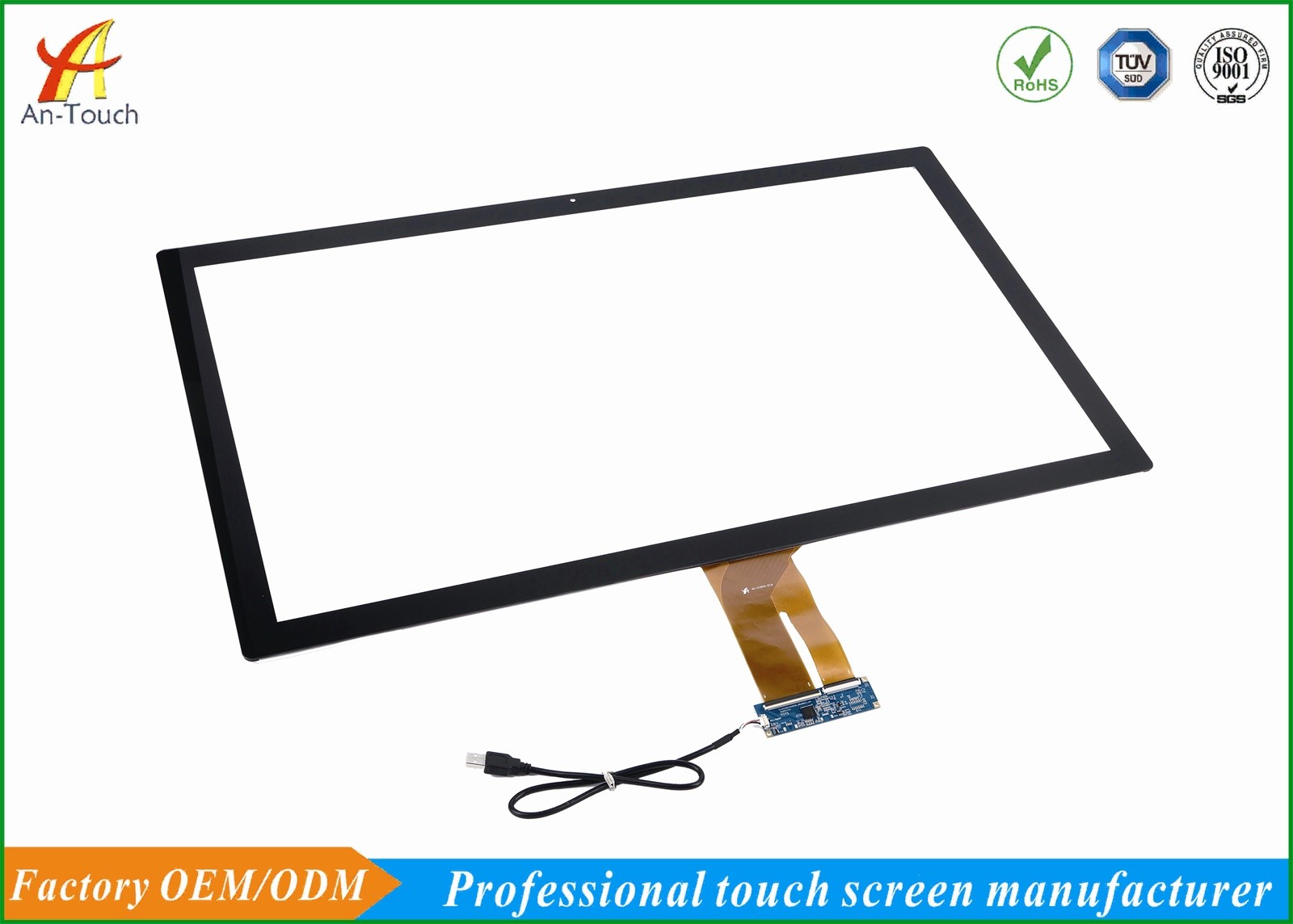

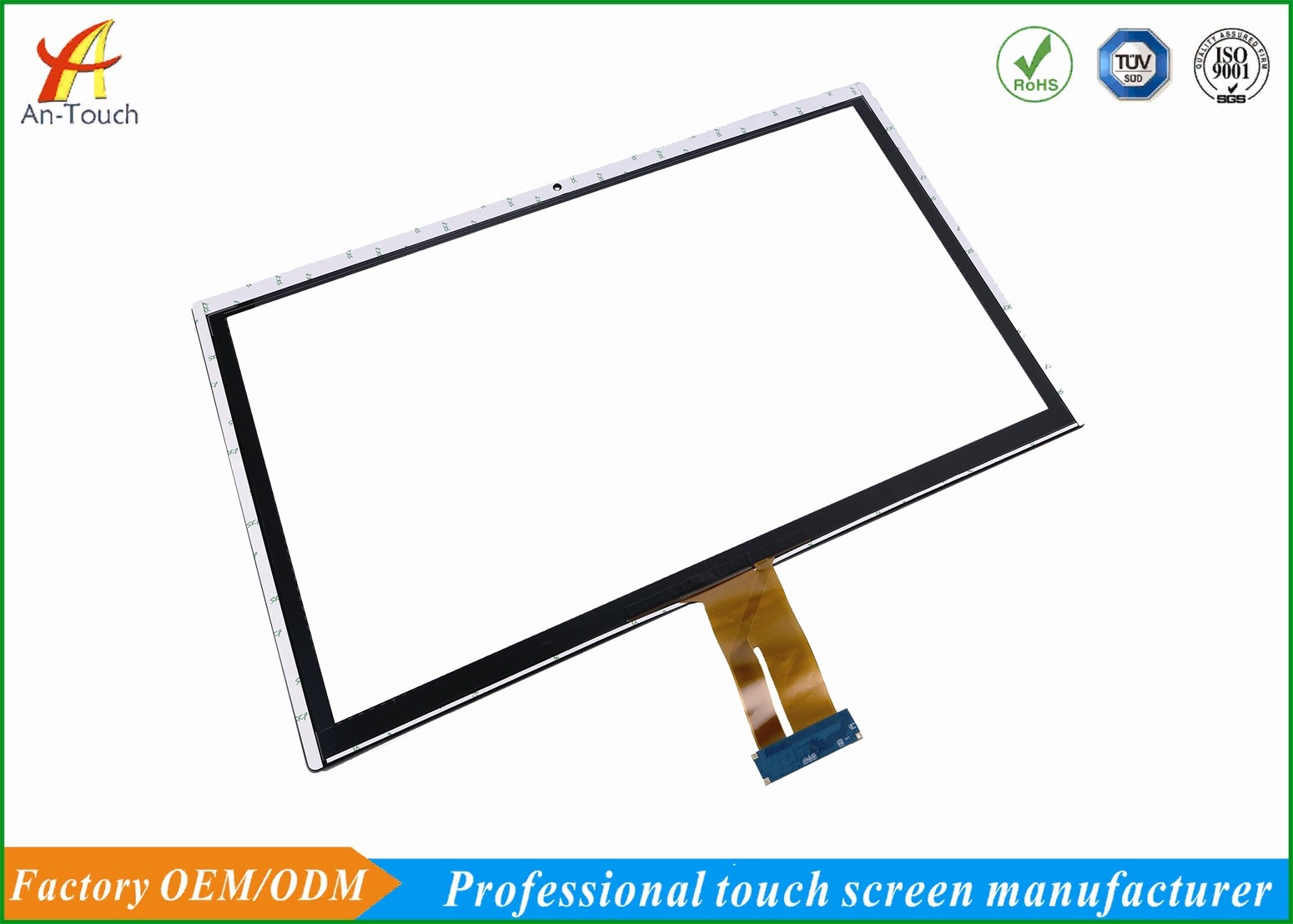

ILITEK Chip Usb Lcd Touch Screen Panel 18.5 Inch Anti - Collision For Game Table
Contact Person : Devin Jiang
Phone Number : +86 13528582261
| Minimum Order Quantity : | 1/PCS | Price : | 10-100$/pcs / Negotiable |
|---|---|---|---|
| Packaging Details : | Standard Packing With Carton | Delivery Time : | 5-8 Work Day |
| Payment Terms : | T/T, Western Union, Paypal | Supply Ability : | 50000/PCS/Month |
| Place of Origin: | China | Brand Name: | antouch |
|---|---|---|---|
| Certification: | ROHS SGS ISO9001 | Model Number: | AC-C1085-32.0 |
|
Detail Information |
|||
| Screen Diagonal: | 32 | Ratio: | 16:9 |
|---|---|---|---|
| Active Area: | 701.4*395.84mm | Outline Dimensio: | 759.4*453.84mm |
| Module View Area: | 699.4*393.84mm | Touch Points: | 1-10 |
| High Light: | game android touchscreen,large multi touch screen |
||
Product Description
| Item | Specification |
| Screen size | 32.0 inch |
| Structures | Cover Glass+ITO Glass |
| Surface Hardness | >6H |
| Surface Treatment | AG/AF/AR |
| IC Controller | ILITEK 2312 |
| Operating temperature | -20℃~70℃ |
| Storage temperature | -30℃~80℃ |
| Supply Voltage | 3.3V~5V |
| Transmittance | 86% Min |
| Interface Mode | USB/IIC/RS232 |
| Operating System | XP win7,8 Android Linux |
| System Driver | No need(USB plug and play) |
| Touch Points | 1-10 |
Capacitive Touch Screen:
Capacitive touch screen are built with two parallel layers of ITO but, but unlike the old and cheap resistive touch panels, the ITO layers in a projected capacitive touch panel are sealed between two sheets of glass by an optically clear adhesive.
Projected Capacitive touch screen Features:
1) Response speed fast, smooth touch.
2) Flat panel, more high-end atmosphere, eliminating infrared touch screen surface with a groove edges are not allowed to shortcomings.
3) Precision-touch capacitive screen is using the body's current-sensing.
4) Accuracy up to 99% proficient in writing, no break no drift.
5) Any point can withstand more than 50 million times touch.
6) Explosion-proof and durable, scratch-resistant, anti-collision, anti-radiation within the core capacitive touch ensure stable, anti-interference ability.
7) Operating systems strong compatibility.
8) Intelligent automatic calibration, use forinternal / external variety of environments.
9) Long life, low maintenance costs.
Structure & Operating Principle:
Capacitive touch screen is a piece of 2 layer of compound glass with double side transparent conductive coating that conducts a continuous electrical current across the sensor.
There is electrode pattern printed along the edges distributes a low voltage filed over the conductive layer.
The human body is also an electrical device which has stored electrons and therefore also exhibits capacitance.
When a finger touches the screen and draws a minute amount of current to the point of contact ,creating a voltage drop.
The current flow from each corner is proportional to the distance to the touch point. During a touch ,capacitance forms between the finger and the sensor grid. The touch location is calculated from the changing electrical characteristics of the sensor grid.
Application:
►Point-of-information kiosks.
►Vending and ticket sales.
►Electronic catalogs.
►Gaming, lottery, and amusement.
►Public pay phones.
►Multimedia marketing.
►Banking/financial transactions.
►Industrial control rooms.
►Computer-based training.
Customer question
1. How about Sample lead time ?
-------Custom samples 12-18work-days,standard samples 5~10work-days.
2. How about mass production lead time ?
------ 15 days after sample confirmed.
3.Shipping?
------Usually we deliver our goods by DHL,UPS, FedEx etc.
4: Payment term?
------ T/T or Western Union 30% deposit, 70% balance should be paid before shipment.
5: How about the warranty?
------ Warranty 1year.
