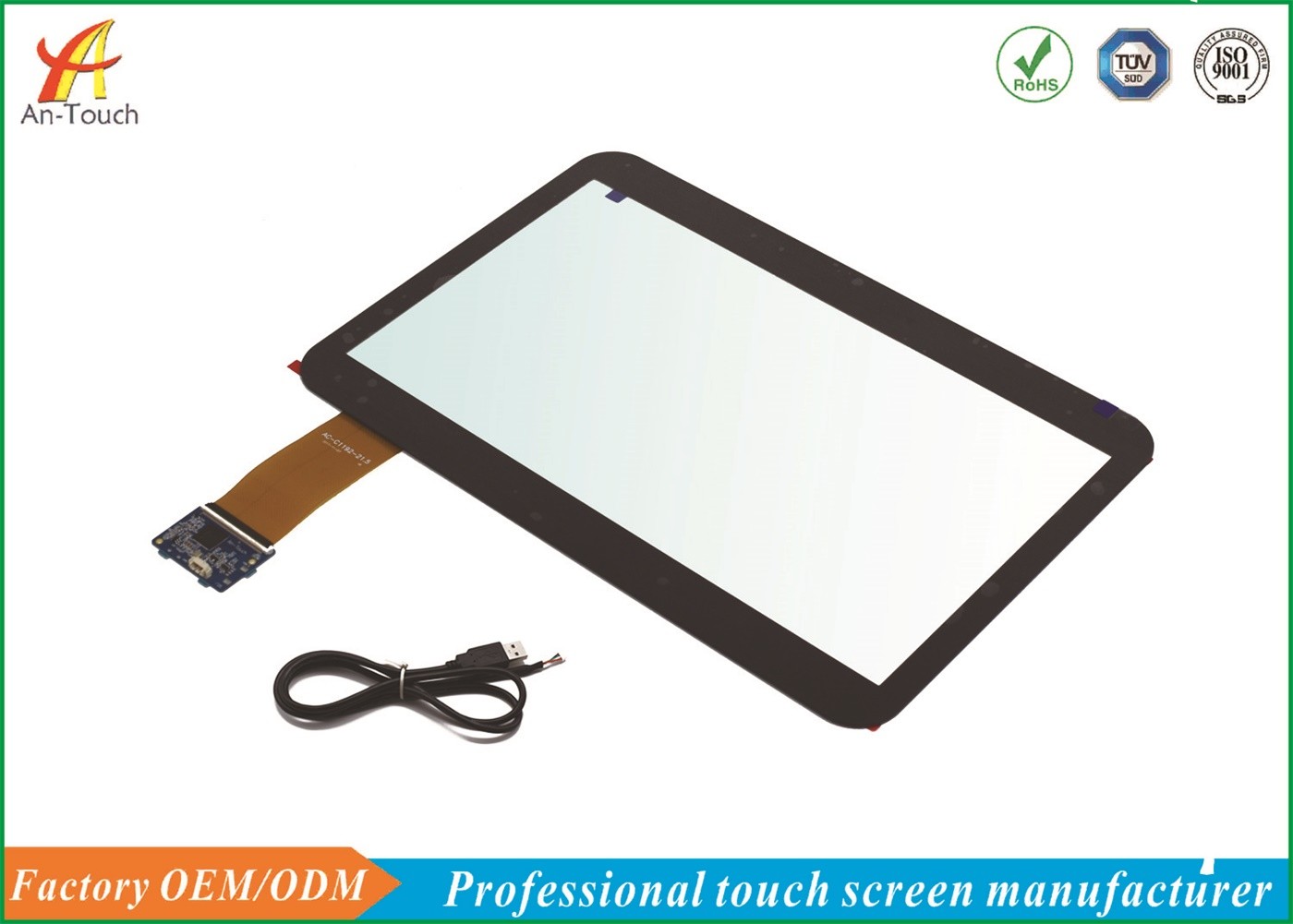

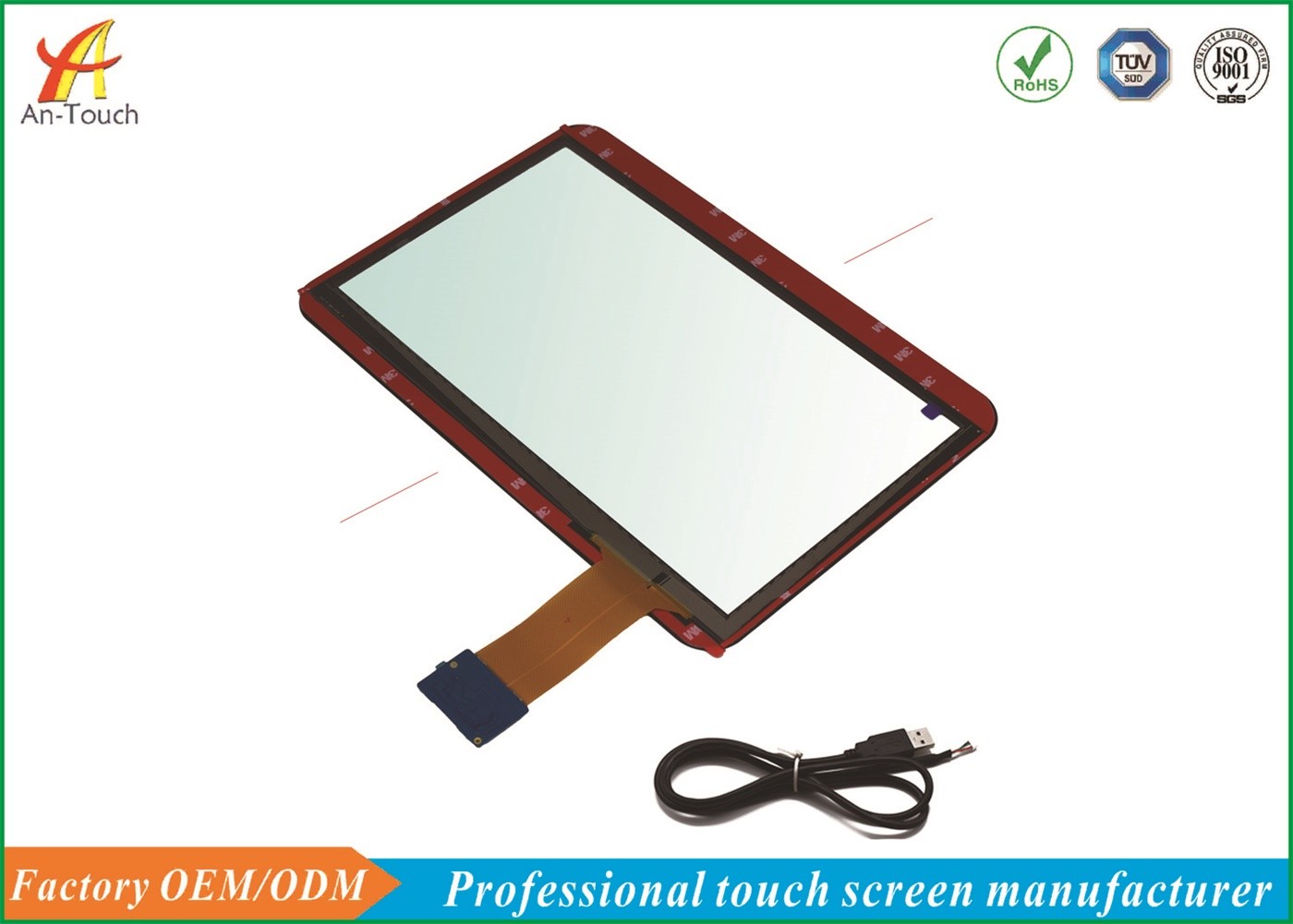

12.5 Inch Game Android Touchscreen , Large Multi Touch Screen Panel 4096*4096 Resolution

Product Description

High sensitivity 12.5'' Multi Game Touch Screen for Game Conference Restaurant Interactive tab

Product details

Structure & Operating Principle:

Capacitive touch screen is a piece of 2 layer of compound glass with double side transparent conductive coating that conducts a continuous electrical current across the sensor.

There is electrode pattern printed along the edges distributes a low voltage filed over the conductive layer.

The human body is also an electrical device which has stored electrons and therefore also exhibits capacitance.

When a finger touches the screen and draws a minute amount of current to the point of contact ,creating a voltage drop.

The current flow from each corner is proportional to the distance to the touch point. During a touch ,capacitance forms between the finger and the sensor grid. The touch location is calculated from the changing electrical characteristics of the sensor grid.

Touch Controller

The controller measures the values of the current flow from the four corners and calculates the X, and Y coordinates of the touch location. The raw coordination data is further analyzed and compensated to give the optimized linearity accuracy. The controller utilizes its multi-point linearity compensation function to compensate non-uniformity of the panel. Each panel is calibrated in factory. Its compensation data is stored in EEPROM of the controller in pair with the panel and is used for linearity compensation. The compensated coordinates is then transmitted to the host computer through RS232 or USB interfaces.

Projected Capacitive touch screen Features:

► Response speed fast, smooth touch
► Flat panel, more high-end atmosphere, eliminating infrared touch screen surface with a groove edges are not allowed to shortcomings
► Can support real 10points touch, Compatible with multiple system
► Operating systems strong compatibility
► Intelligent automatic calibration, use forinternal / external variety of environments
► Controller with USB interface type

Why choose us?

►Our factory is a legal,responsible,capable,experienced factory
►We have the largest laminting mechine which can up to 65inch
►In stock for fast delivery provide the best after-sales service
►We can provide the best design solutions according customer requirements
►All of our products have been inspected strictly before delivery

Application:

► Mirror Touch Screen

► Touch Panel Vending Machine

► Touch Screen laptop

► POS Machine

► Touch Shopping Terminal

► Gaming, Lottery ect

► Industrial Control industry

► Touch Monitor

► Information Kiosks

► Multimedia marketing

► Banking / Fanancial System

Customer question

►How about Sample lead time ?

-------Custom samples 12-18 work-days,standard samples 5~10 work-days

► How about mass production lead time ?

------ 15 days after sample confirmed

► shipping?

------,Usually we deliver our goods by DHL,UPS, FedEx etc.

► Payment term?

------ T/T or Western Union 30% deposit, 70% balance should be paid before shipment.

► How about the warranty?

------ Warranty 1year

Engineering drawing:
