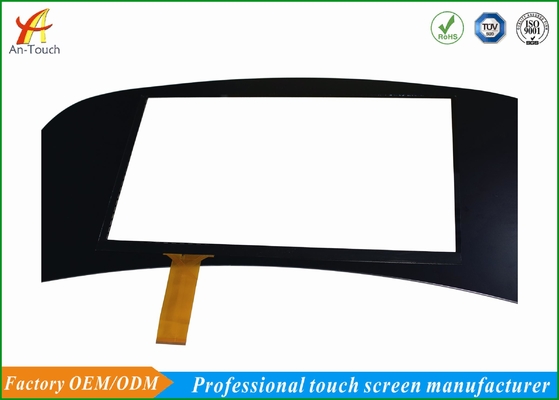

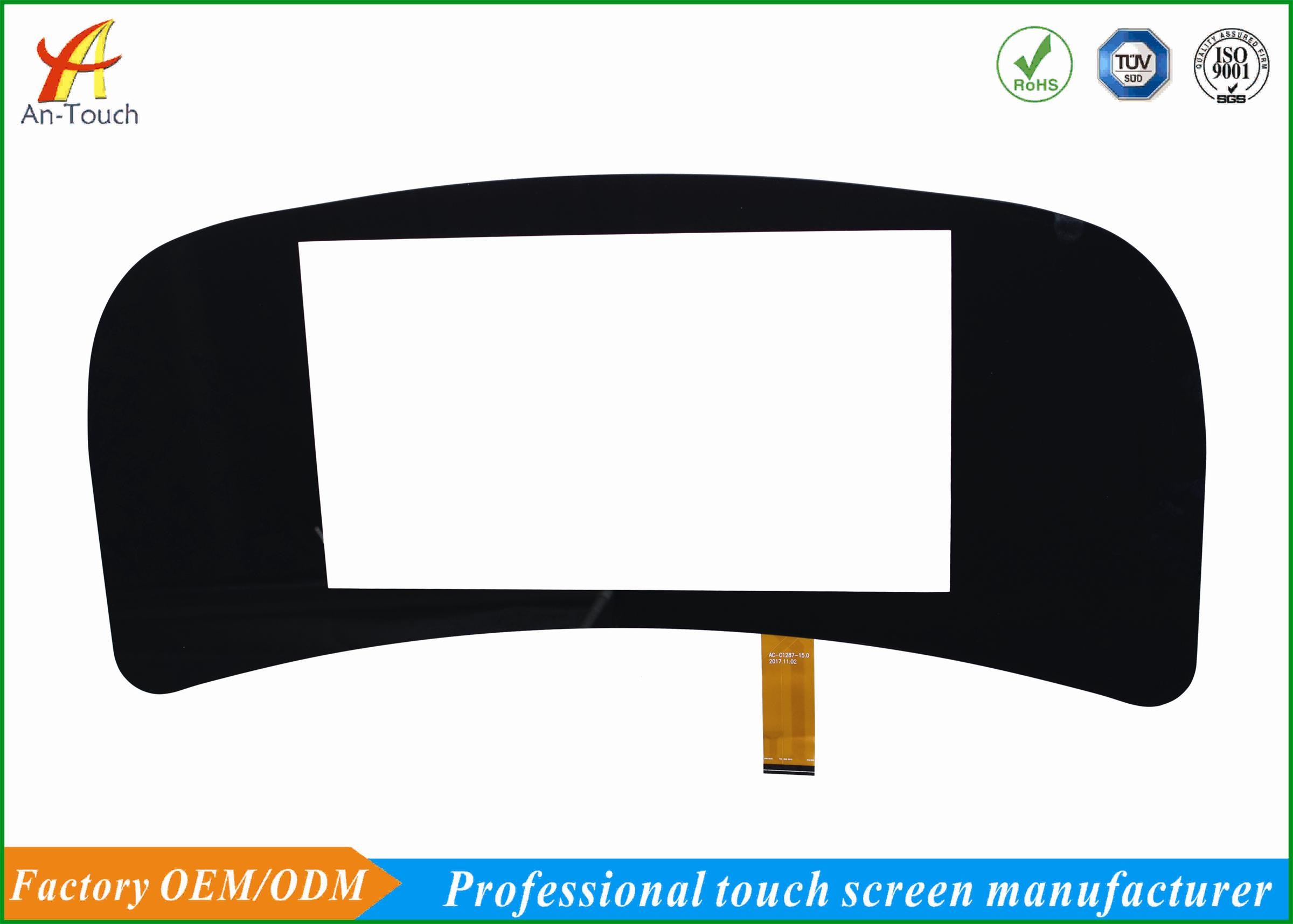

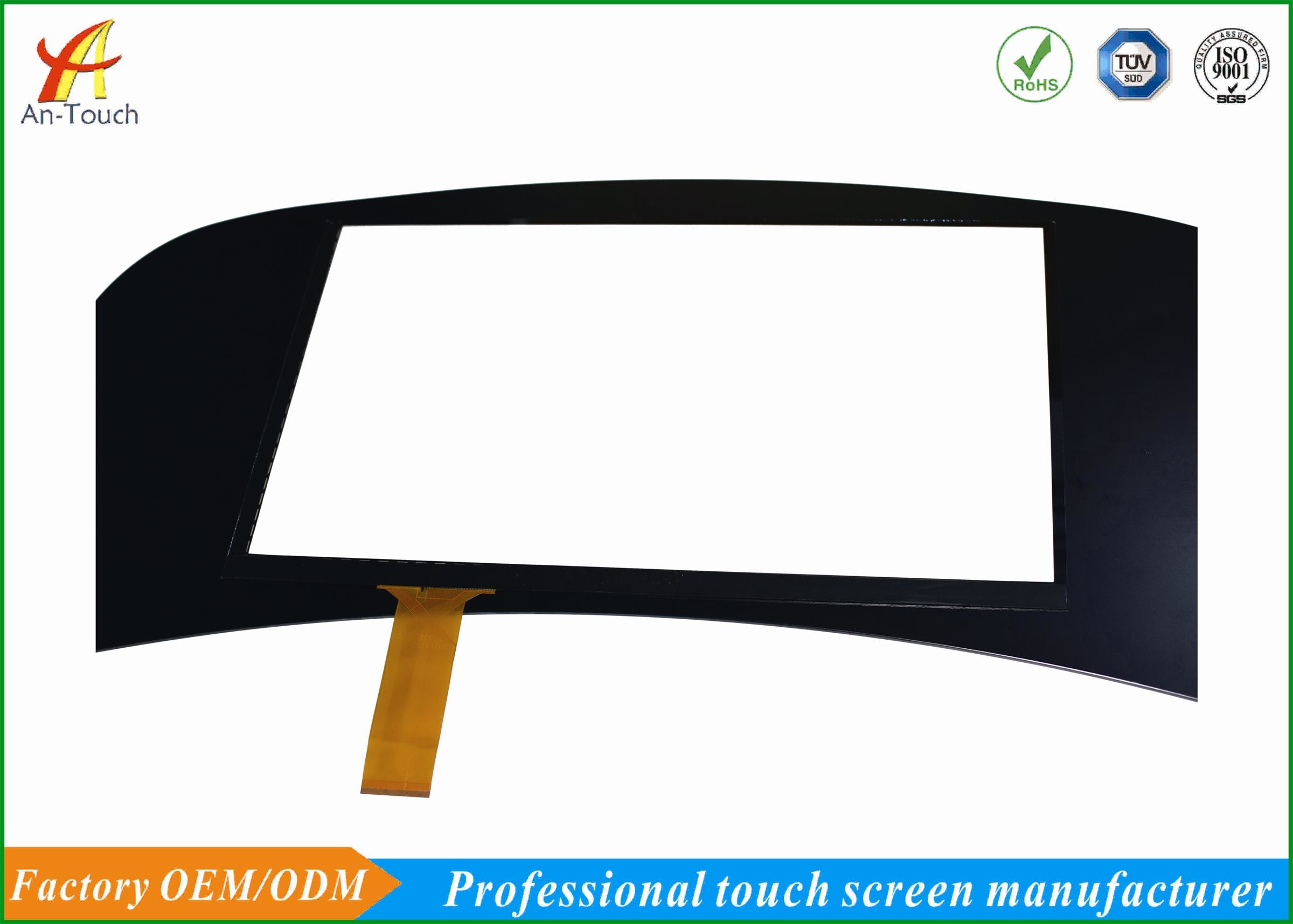

Transparent Capacitive Game Touch Screen Panel 21.5 Inch 3.0mm Cover Lens
Contact Person : Devin Jiang
Phone Number : +86 13528582261
| Minimum Order Quantity : | 1/PCS | Price : | 10-100$/pcs / Negotiable |
|---|---|---|---|
| Packaging Details : | Standard Packing With Carton | Delivery Time : | 5-8 Work Day |
| Payment Terms : | T/T, Western Union, Paypal | Supply Ability : | 50000/PCS/Month |
| Place of Origin: | China | Brand Name: | antouch |
|---|---|---|---|
| Certification: | ROHS SGS ISO9001 | Model Number: | AC-C1888-18.5 |
|
Detail Information |
|||
| Screen Diagonal: | 18.5 | Interface Type: | USB |
|---|---|---|---|
| Outline Dimensio: | 730.2*325.4mm | Cover Lens: | 3.0mm |
| Input Method: | Finger Or Capacitive Pen | Warranty: | 12 Months |
| High Light: | game android touchscreen,large interactive touch screen |
||
Product Description
| Item | Specification |
| Screen size | 18.5 inch |
| Structures | Cover Glass+ITO Glass |
| Surface Hardness | >6H |
| Surface Treatment | AG/AF/AR |
| IC Controller | ILITEK 2511 |
| Operating temperature | -20℃~70℃ |
| Storage temperature | -30℃~80℃ |
| Supply Voltage | 3.3V~5V |
| Transmittance | 86% Min |
| Interface Mode | USB/IIC/RS232 |
| Operating System | XP win7,8 Android Linux |
| System Driver | No need(USB plug and play) |
| Touch Points | 1-10 |
Capacitive Touch Screen:
Capacitive touch panel works through body's current induction .When finger is on or close to touch panel surface,due to body electric field, the user and touch panel surface forms one coupling capacitance. For high frequency current, capacitance is direct conductor, then fingers suck a small current from the contact point, through amplifying and accurately calculating this current signal, the controller works out the touch point position
Projected Capacitive touch screen Features:
1) Response speed fast, smooth touch.
2) Flat panel, more high-end atmosphere, eliminating infrared touch screen surface with a groove edges are not allowed to shortcomings.
3) Any point can withstand more than 50 million times touch.
4) Explosion-proof and durable, scratch-resistant, anti-collision, anti-radiation within the core capacitive touch ensure stable, anti-interference ability.
5) Operating systems strong compatibility.
6) Intelligent automatic calibration, use forinternal / external variety of environments.
Development process:
1. Receive customer's technical files, including PCAP drawing, LCD specification.
2. Recommend standard products or customize products based on customer's requirements.
3. Offer engineering drawing for confirmation and fill in project kick-off form.
4. Make samples according to the confirmed drawing.
5. Debug the samples based on the information on kick-off form, keep the FW.
6. Send the samples to customers for confirmation. Offer all the technical supports with which customer will let the touch panels work well.
7. Pilot production.
8. Mass production.
Why choose us?
1. Our factory is a legal,responsible,capable,experienced factory.
2. We have the largest laminting mechine which can up to 65inch.
3. In stock for fast delivery provide the best after-sales service.
4. We can provide the best design solutions according customer requirements.
5. All of our products have been inspected strictly before delivery.
Customer question
1. How about Sample lead time ?
-------Custom samples 12-18work-days,standard samples 5~10work-days.
2. How about mass production lead time ?
------ 15 days after sample confirmed.
3.Shipping?
------Usually we deliver our goods by DHL,UPS, FedEx etc.
4. Payment term?
------ T/T or Western Union 30% deposit, 70% balance should be paid before shipment.
5. How about the warranty?
------ Warranty 1year.
