Custom Size Kiosk Touch Panel , 19 Inch Touch Screen Light Touch Activation

Product Description

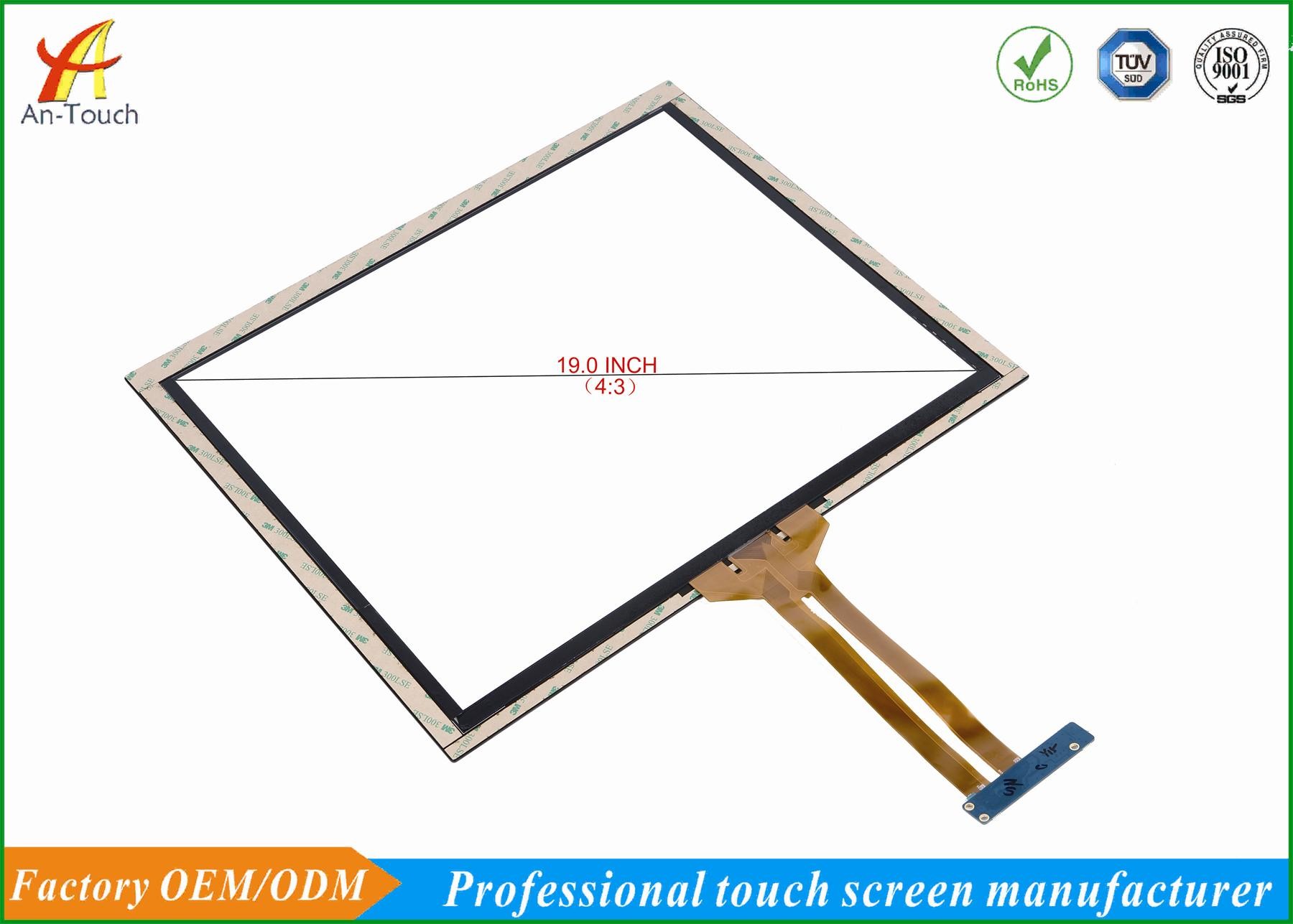

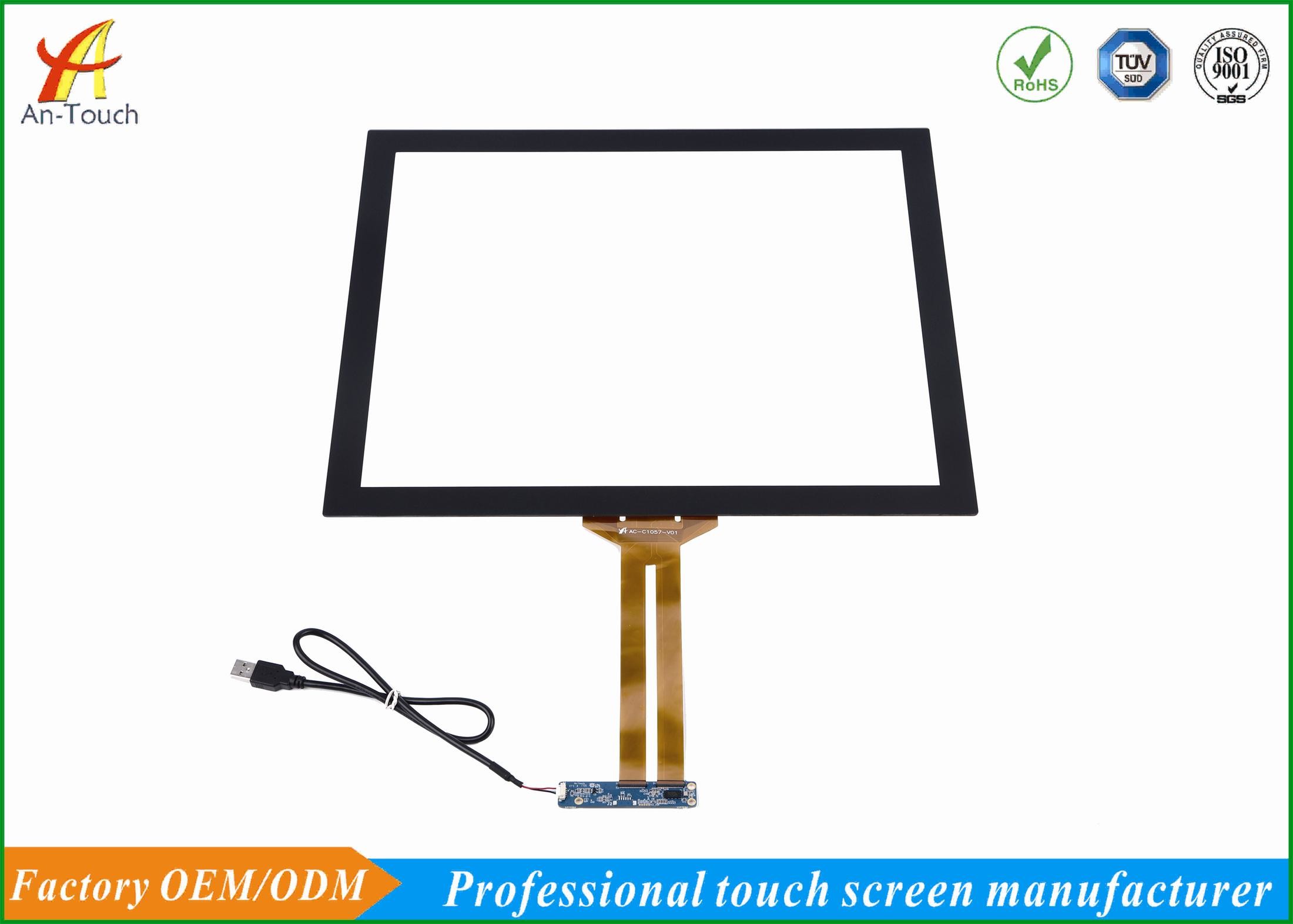

Customized Dimension 19 Inch Projected Capacitive Touch Screen Panel For Kiosk machine



Product details



Structure & Operating Principle:



Capacitive touch screen is a piece of 2 layer of compound glass with double side transparent conductive coating that conducts a continuous electrical current across the sensor.



There is electrode pattern printed along the edges distributes a low voltage filed over the conductive layer.



The human body is also an electrical device which has stored electrons and therefore also exhibits capacitance.



When a finger touches the screen and draws a minute amount of current to the point of contact ,creating a voltage drop.



The current flow from each corner is proportional to the distance to the touch point. During a touch ,capacitance forms between the finger and the sensor grid. The touch location is calculated from the changing electrical characteristics of the sensor grid.



Projected Capacitive Touch Screen Features:



■Glass to glass structure.



■1.1mm to 6mm temperted glass.



■Support cover/size customized.



■4096×4096 Resolution with linearity error ≤2mm.



■Size available from 7inch to 65inch.



■Multi-touch 1 to 10 touch points.



■Tempered scratch proof cover glass with high impact resistance.





Development process:

■Receive customer's technical files, including PCAP drawing, LCD specification.

■Recommend standard products or customize products based on customer's requirements.

■Offer engineering drawing for confirmation and fill in project kick-off form.

■Make samples according to the confirmed drawing.

■Debug the samples based on the information on kick-off form, keep the FW.

■Send the samples to customers for confirmation. Offer all the technical supports with which customer will let the touch panels work well.

■Pilot production.

■Mass production.



Application:



■Point-of-information kiosks.



■Vending and ticket sales.



■Electronic catalogs.



■Gaming, lottery, and amusement.



■Public pay phones.



■Multimedia marketing.



■Banking/financial transactions.



■Industrial control rooms.



■Computer-based training.



Delivery Time:



■Samples in stock: 1~3 working days.



■Customized project: 10~15days for samples.



■Mass production: 10~18days.



Customer question:

■ How about Sample lead time ?



-------Custom samples 12-18work-days,standard samples 5~10work-days

■ How about mass production lead time ?



------ 15 days after sample confirmed

■Shipping?



------Usually we deliver our goods by DHL,UPS, FedEx etc.

■ Payment term?



------ T/T or Western Union 30% deposit, 70% balance should be paid before shipment.

■How about the warranty?



------ Warranty 1year
