USB 19 Touch Screen Panel 4096*4096 Resolution For Industrial Devices

Product Description

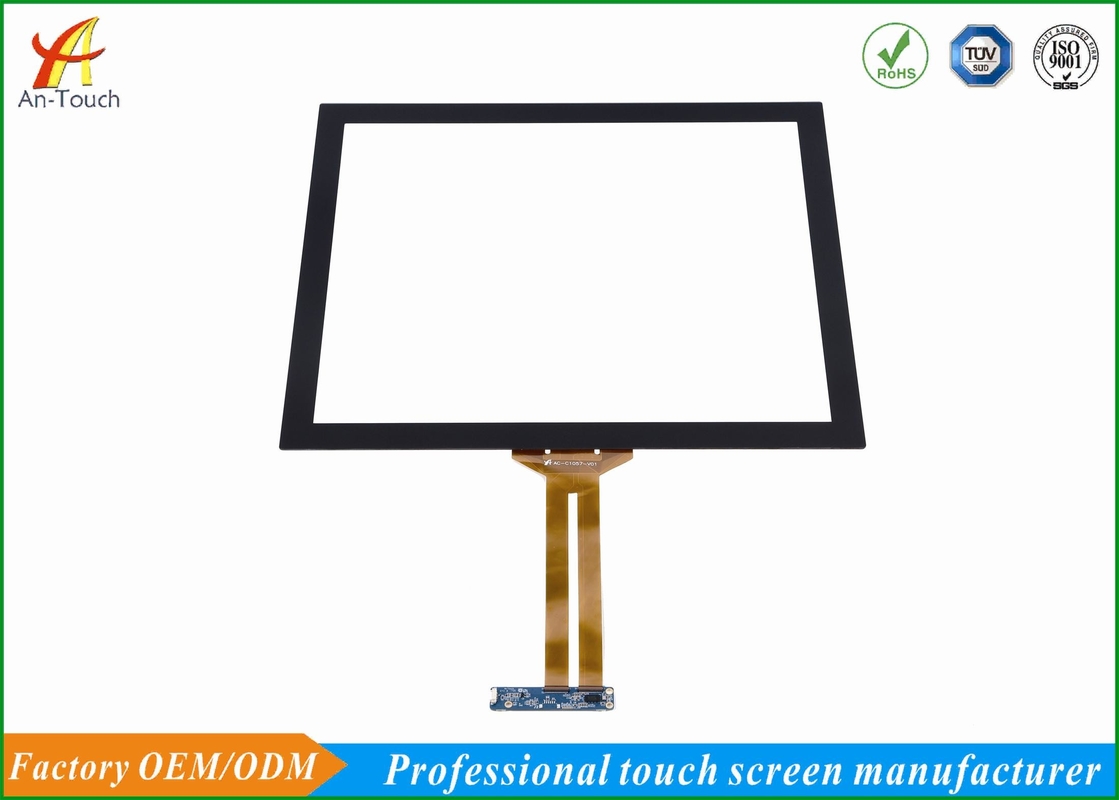

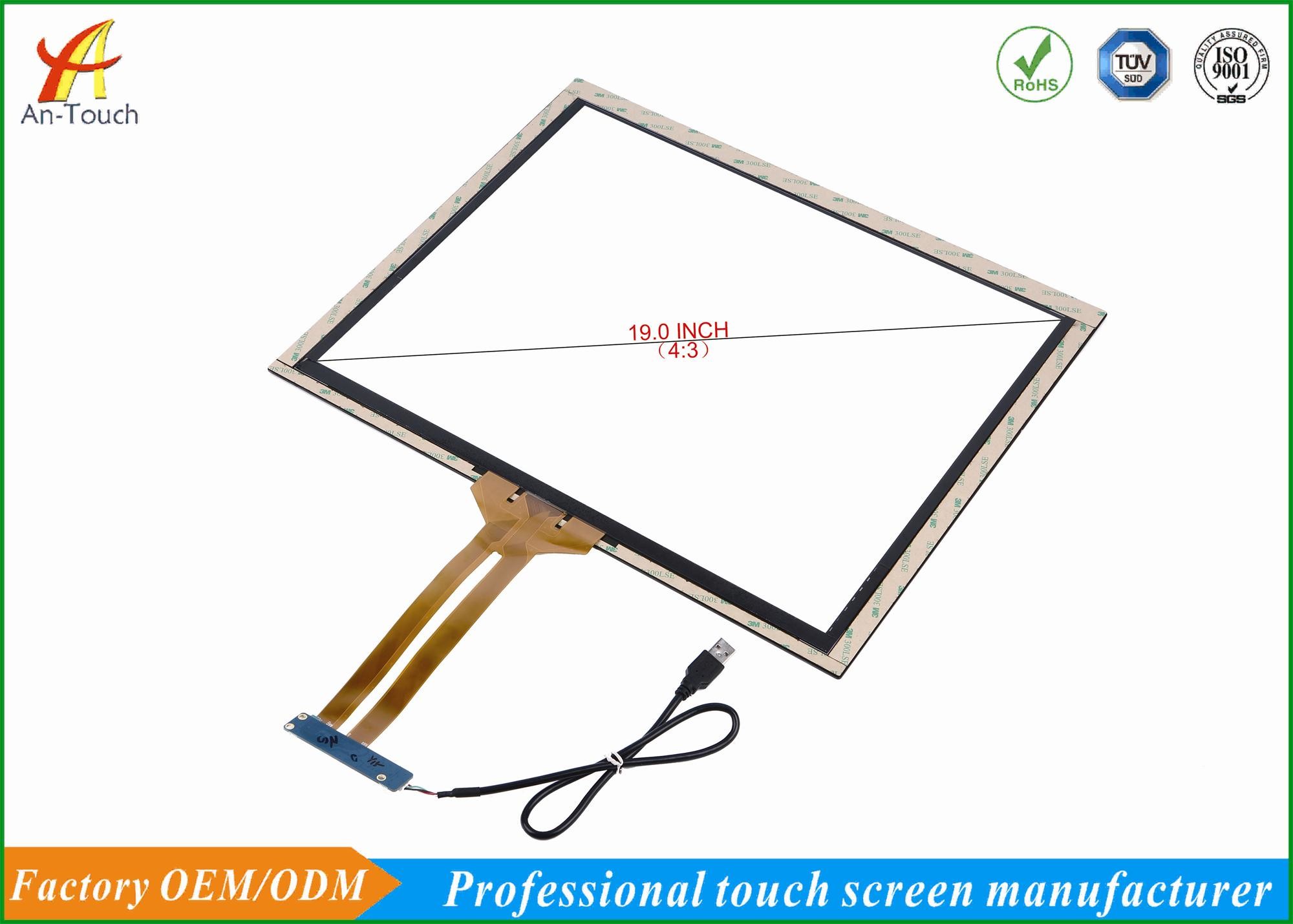

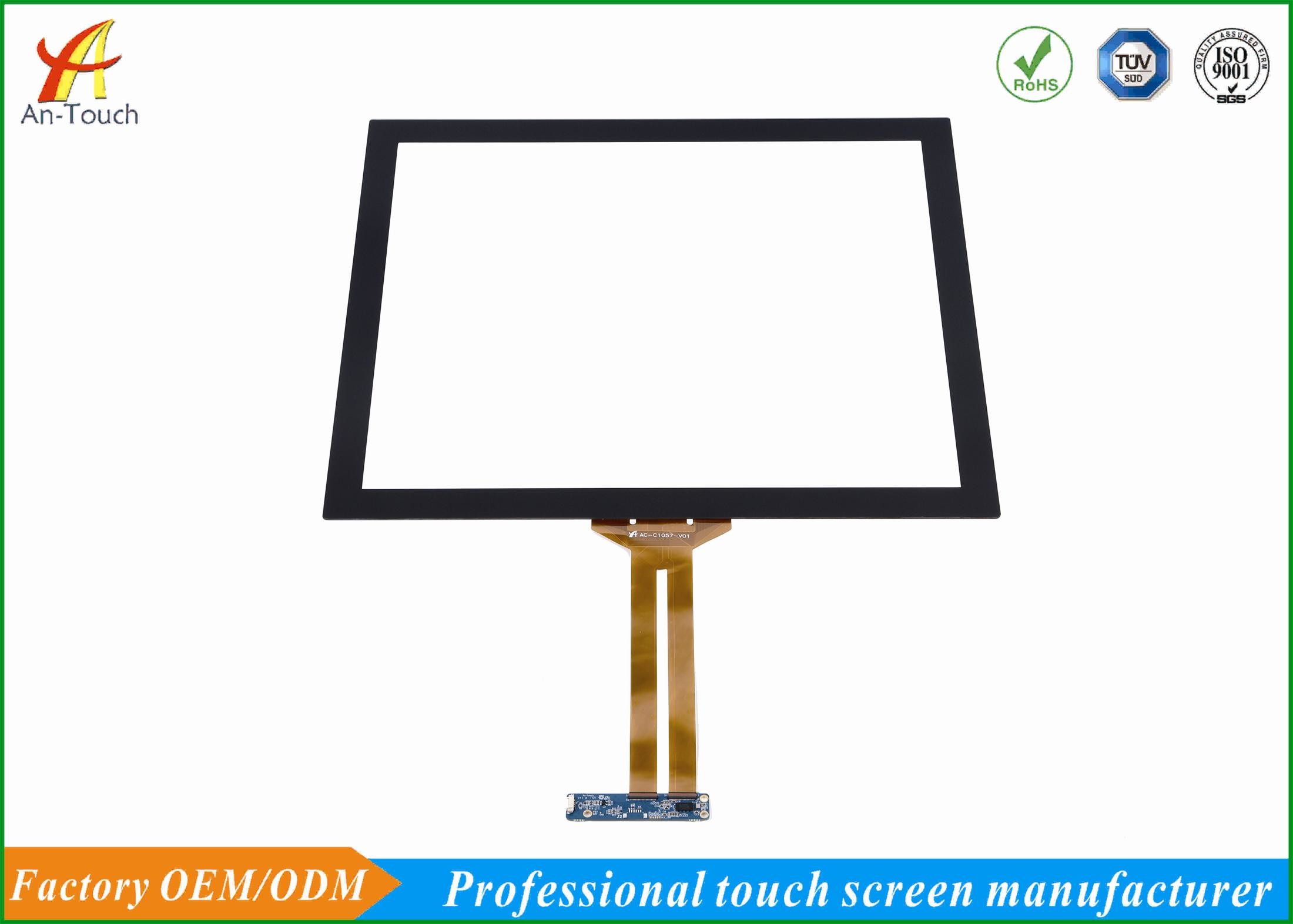

4096*4096 Resolution 19‘’ Touch Screen Panel With USB Interface For Industrial Devices



Product details



Operation Principle:



Capacitive touch panel works through body's current induction .When finger is on or close to touch panel surface,due to body electric field, the user and touch panel surface forms one coupling capacitance. For high frequency current, capacitance is direct conductor, then fingers suck a small current from the contact point, through amplifying and accurately calculating this current signal, the controller works out the touch point position



Projected Capacitive Touch Screen Features:



1.Glass to glass structure.



2.1.1mm to 6mm temperted glass.



3.Support cover/size customized.



4.4096×4096 Resolution with linearity error ≤2mm.



5.Size available from 7inch to 65inch.



6.Multi-touch 1 to 10 touch points.



7.Tempered scratch proof cover glass with high impact resistance.





Development process:

1.Receive customer's technical files, including PCAP drawing, LCD specification.

2.Recommend standard products or customize products based on customer's requirements.

3.Offer engineering drawing for confirmation and fill in project kick-off form.

4.Make samples according to the confirmed drawing.

5.Debug the samples based on the information on kick-off form, keep the FW.

6.Send the samples to customers for confirmation. Offer all the technical supports with which customer will let the touch panels work well.

7.Pilot production.

8.Mass production.



Application:



Touch Screen All in one Computers



Touch Screen laptop



POS Machine



Industrial Control industry



Touch Monitor



Information Kiosks



Gaming, Lottery ect



Multimedia marketing



Banking / Fanancial System



Touch Table



Delivery Time:



1.Samples in stock: 1~3 working days.



2.Customized project: 10~15days for samples.



3.Mass production: 10~18days.



Customer question:

1.How about Sample lead time ?



-------Custom samples 12-18work-days,standard samples 5~10work-days

2. How about mass production lead time ?



------ 15 days after sample confirmed

3.Shipping?



------Usually we deliver our goods by DHL,UPS, FedEx etc.

4. Payment term?



------ T/T or Western Union 30% deposit, 70% balance should be paid before shipment.

5.How about the warranty?



------ Warranty 1year
