Digital Capacitive Touch Screen Oem , Large Usb Capacitive Touch Panel
Contact Person : Devin Jiang
Phone Number : +86 13528582261
| Minimum Order Quantity : | Negotiation | Price : | Negotiation |
|---|---|---|---|
| Packaging Details : | Standard Packing With Carton | Delivery Time : | 5-8 Work Day |
| Payment Terms : | T/T, Western Union, Paypal | Supply Ability : | 50000/PCS/Month |
| Place of Origin: | China | Brand Name: | antouch |
|---|---|---|---|
| Certification: | ROHS SGS ISO9001 | Model Number: | AC-C1336-10.1 |
|
Detail Information |
|||
| Name: | Capacitive Multi Touch Screen | Structures: | Glass |
|---|---|---|---|
| Surface Hardness: | >6H | Outline Size: | 256.37*174.37mm |
| View Area: | 218.5*136.5mm | Point: | 10 Point Touch Screen |
| High Light: | glass touch panel,large touch screen overlay |
||
Product Description

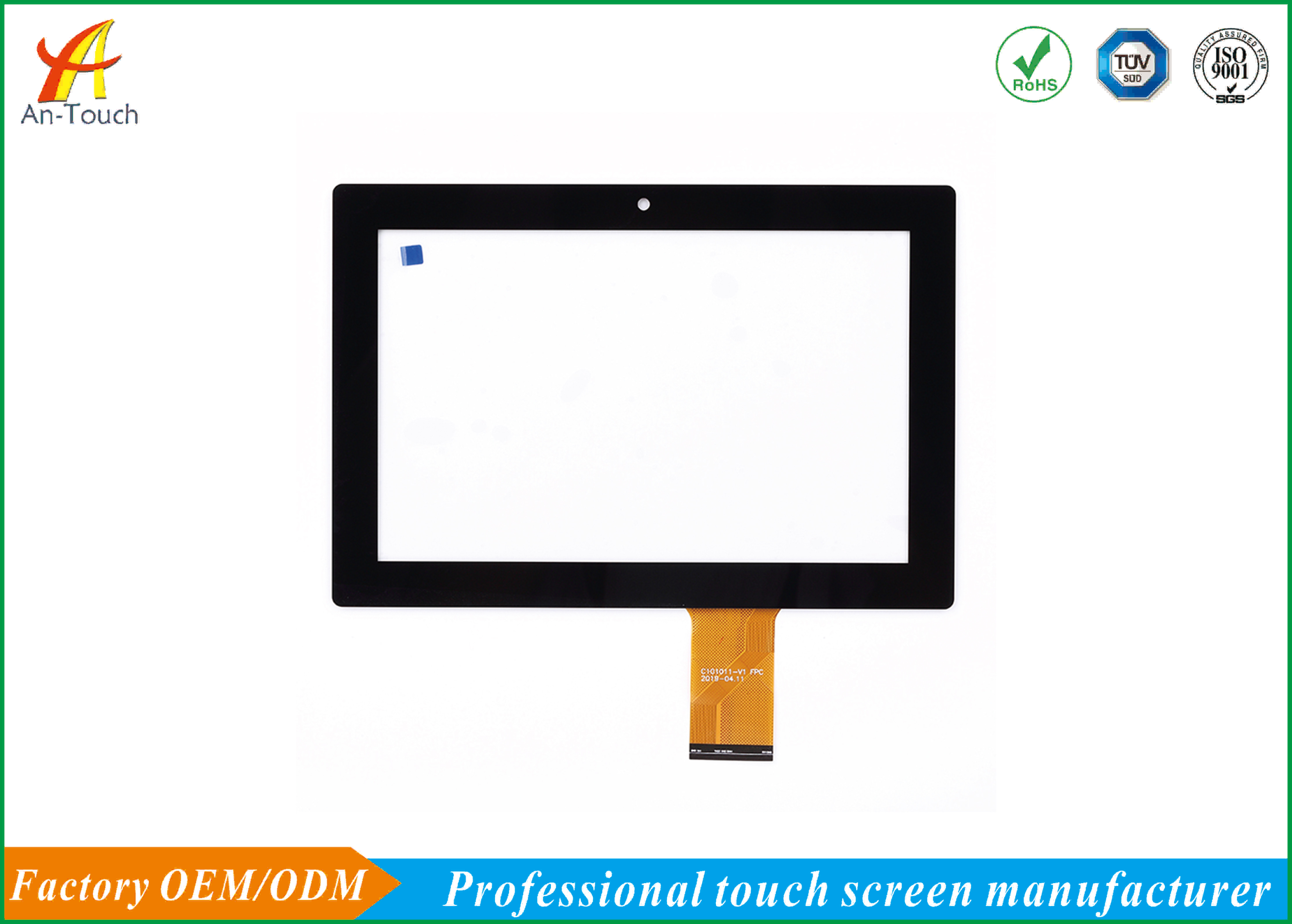

Glass Capacitive Multi Touch Screen / External 10 Point Touch Screen
Capacitive Multi Touch Screen Development process:
1.Receive customer's technical files, including PCAP drawing, LCD specification.
2.Recommend standard products or customize products based on customer's requirements.
3.Offer engineering drawing for confirmation and fill in project kick-off form.
4.Make samples according to the confirmed drawing.
5.Debug the samples based on the information on kick-off form, keep the FW.
6.Send the samples to customers for confirmation. Offer all the technical supports with which customer will let the touch panels work well.
Capacitive Multi Touch Screen Parameters
| 10.1 | |
| Item | Specification |
| Part Number | AC-C1336-10.1 Capacitive Multi Touch Screen |
| Structures | Cover Glass+ITO Glass |
| Surface Hardness | >6H |
| Outline size | 256.37*174.37mm |
| View Area | 218.5*136.5mm |
| IC Controller | ILITEK 2511 |
| Operating temperature | -20℃~70℃ |
| Storage temperature | -30℃~80℃ |
| Interface Mode | USB/IIC/RS232 |
| Operating System | XP win7,8 Android Linux |
| Touch Points | 1-10 |
Capacitive Multi Touch Screen Features:
Glass to glass structure.
1.1mm to 6mm temperted glass.
Support cover/size customized.
4096×4096 Resolution with linearity error ≤2mm.
Why choose us?
1.Our factory is a legal,responsible,capable,experienced factory.
2.We have the largest laminting mechine which can up to 65inch.
3.In stock for fast delivery provide the best after-sales service.
4.We can provide the best design solutions according customer requirements.
5.All of our products have been inspected strictly before delivery.
| MOQ | 1 piece |
| Lead time | Samples in stocks,2~4 weeks for mass production |
| Trade Terms | EXW or FOB |
| Payment | 100% T/T or Western union in advanc for samples ,50% T/T in advance and 50% before delivery for mass production |
| Warranty | 12 months |
| Package | Plastic Tray+Anti-Static Foam+Paper Card+Vacuum Bag+Carton |
