Digital Capacitive Touch Screen Oem , Large Usb Capacitive Touch Panel
Contact Person : Devin Jiang
Phone Number : +86 13528582261
| Minimum Order Quantity : | Negotiation | Price : | Negotiation |
|---|---|---|---|
| Packaging Details : | Standard Packing With Carton | Delivery Time : | 5-8 Work Day |
| Payment Terms : | T/T, Western Union, Paypal | Supply Ability : | 50000/PCS/Month |
| Place of Origin: | China | Brand Name: | antouch |
|---|---|---|---|
| Certification: | ROHS SGS ISO9001 | Model Number: | AC-C1336-10.1 |
|
Detail Information |
|||
| Name: | Multi Touch Screen | Structures: | Cover Glass+ITO Glass |
|---|---|---|---|
| Advantage: | High Impact Resistance | Outline Size: | 256.37*174.37mm |
| View Area: | 218.5*136.5mm | Application: | Digital Kiosk |
| High Light: | glass touch panel,large touch screen overlay |
||
Product Description

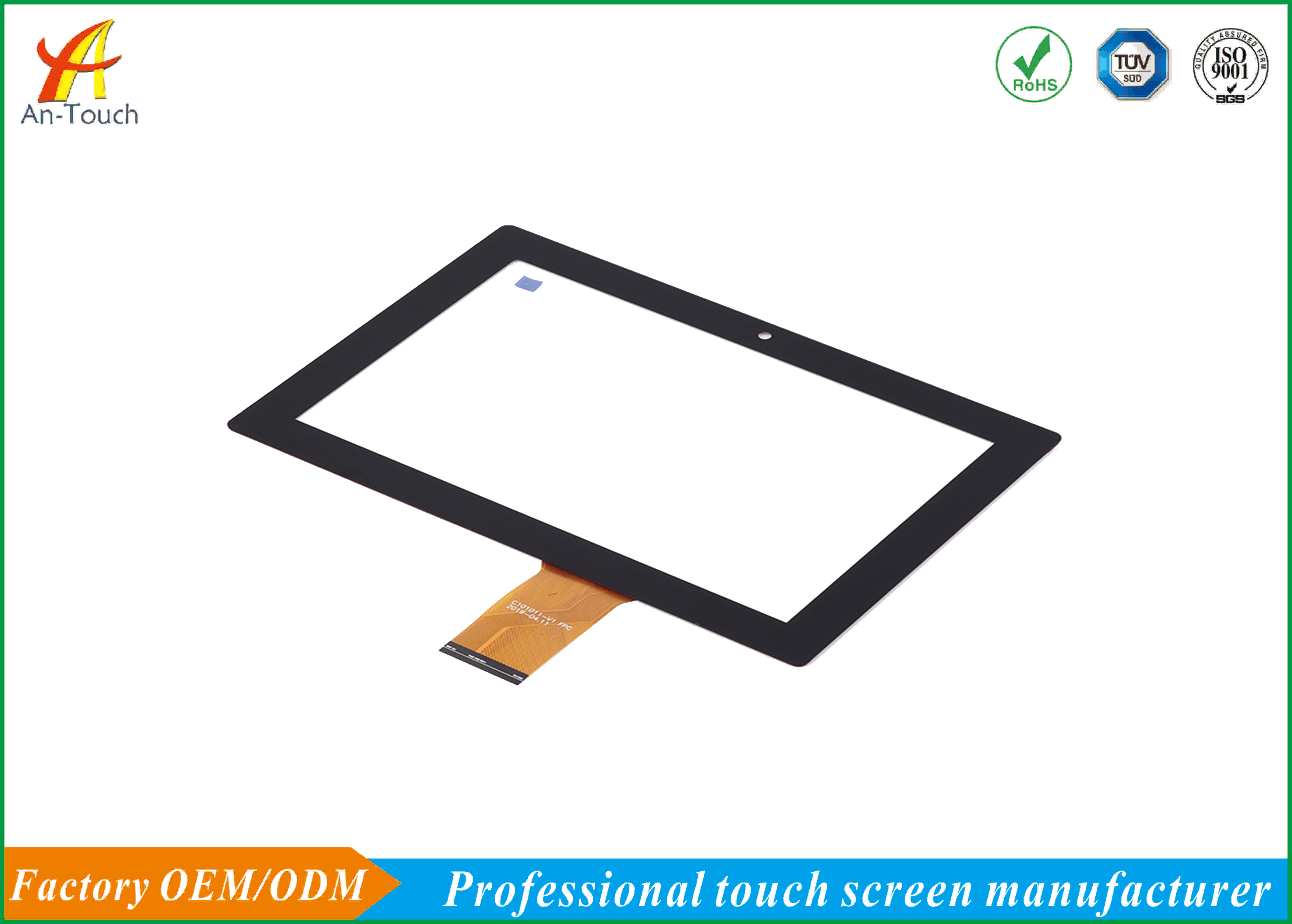

Multi Touch Advertising Touch Screen For Digital Kiosk High Impact Resistance
Advertising Touch Screen Introduction
GLOVE FUNCTION
Support gloves made of various materials such as nylon,latex,
cotton,plush and leather and of different thickness,6mm the thickest
WATER FUNCTION
Support touch with water,oil,
oil-water mixture and brine
THICKNESS
Support normal touch with thick cover like tempered glass,8mm the thickest
Advertising Touch Screen Parameters
| 10.1 | |
| Item | Specification |
| Part Number | AC-C1336-10.1 Advertising Touch Screen |
| Structures | Cover Glass+ITO Glass |
| Surface Hardness | >6H |
| Outline size | 256.37*174.37mm |
| View Area | 218.5*136.5mm |
| IC Controller | ILITEK 2511 |
| Operating temperature | -20℃~70℃ |
| Storage temperature | -30℃~80℃ |
| Total Thickness | 2.0±0.15mm |
| Transmittance | 86% Min |
| Interface Mode | USB/IIC/RS232 |
| Operating System | XP win7,8 Android Linux |
| Touch Points | 1-10 |
Advertising Touch Screen Features:
Glass to glass structure.
1.1mm to 6mm temperted glass.
Support cover/size customized.
4096×4096 Resolution with linearity error ≤2mm.
Tempered scratch proof cover glass with high impact resistance.
FAQ
1. Sample Policy
-------Free sample can be offered if there are products in stock
2. Sample leading time ?
------ 3-5 days if you need to print your logo
----- 1-2days for our exsiting samples for reference
3. Production time ?
------10-15 days after sample confirmed
4.shipping?
------Usually we deliver our goods by DHL,UPS, FedEx etc. for the small orders, but large
quantity you can also by sea and air
5: Payment term?
------ T/T or Western Union Or Paypal ,30% deposit, 70% balance should be paid before shipment.
