Digital Capacitive Touch Screen Oem , Large Usb Capacitive Touch Panel
Contact Person : Devin Jiang
Phone Number : +86 13528582261
| Minimum Order Quantity : | Negotiation | Price : | Negotiation |
|---|---|---|---|
| Packaging Details : | Standard Packing With Carton | Delivery Time : | 5-8 Work Day |
| Payment Terms : | T/T, Western Union, Paypal | Supply Ability : | 50000/PCS/Month |
| Place of Origin: | China | Brand Name: | antouch |
|---|---|---|---|
| Certification: | ROHS SGS ISO9001 | Model Number: | AC-C1356-15.0 |
|
Detail Information |
|||
| Name: | Advertising Touch Screen | Power: | USB Powered |
|---|---|---|---|
| Surface Hardness: | >6H | Outline Size: | 352.2*277.0mm |
| View Area: | 304.2*228.2mm | Interface Mode: | RS232 Interface |
| High Light: | glass touch panel,large touch screen overlay |
||
Product Description

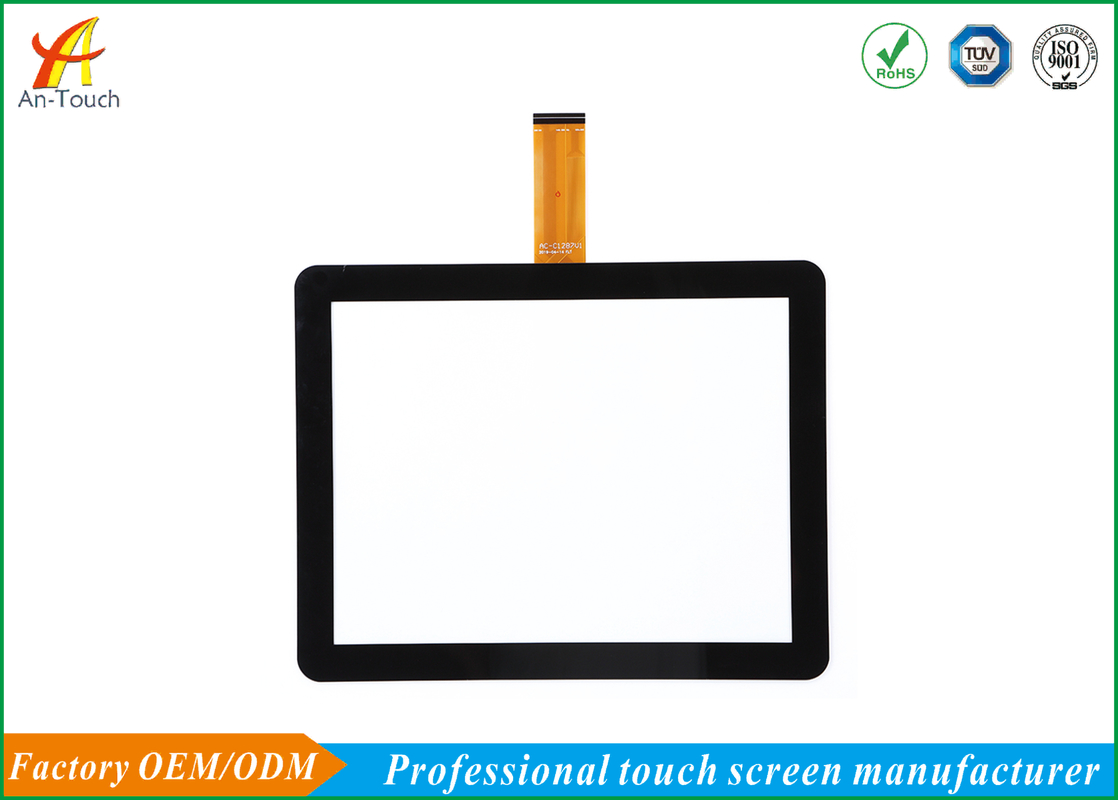

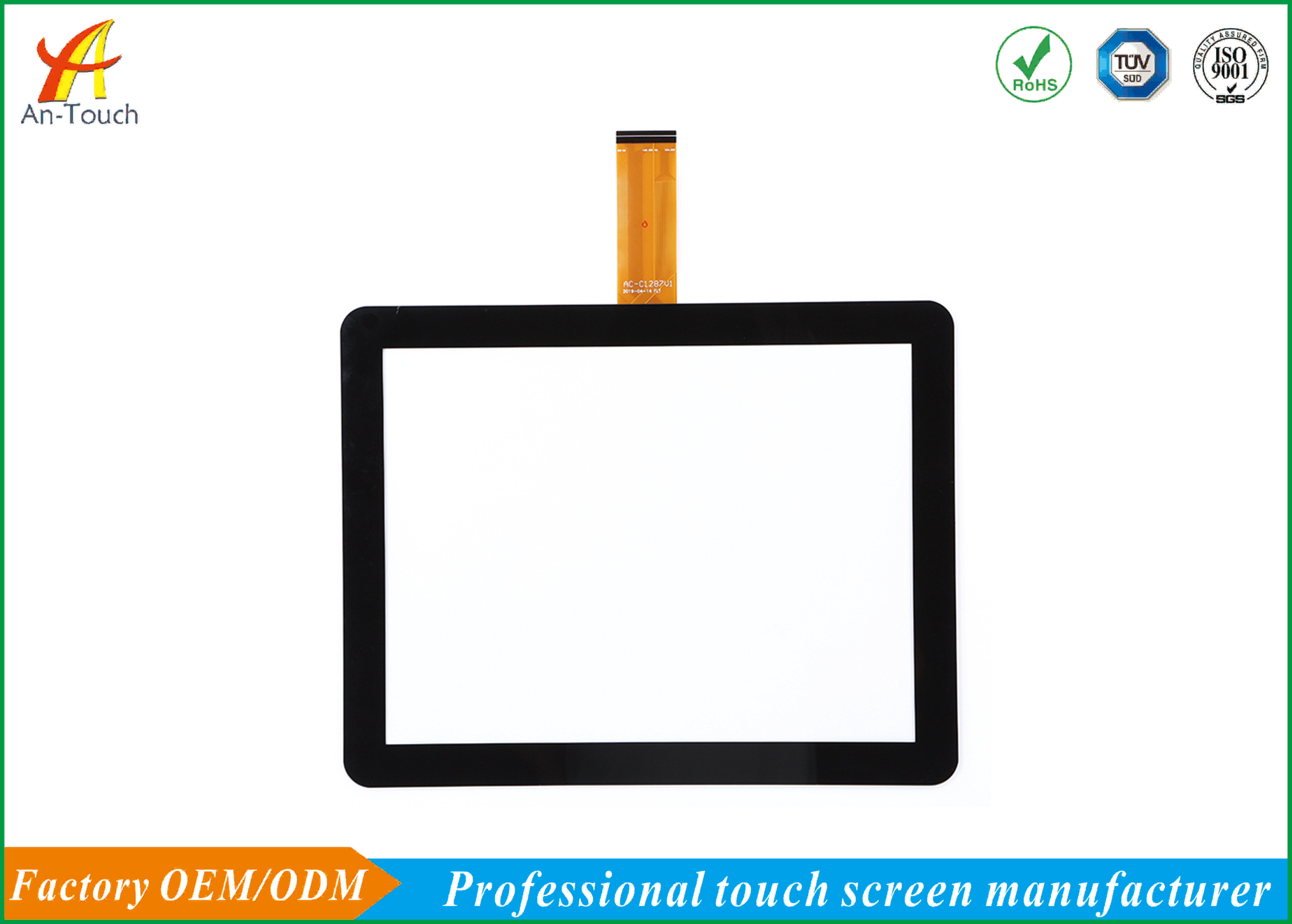

USB Powered Advertising Touch Screen RS232 Interface Sensitive Response
Advertising Touch Screen Introduction
Projected capacitive touch technology offers a fast and sensitive response and professional-grade reliability combined with a stylish, sleek no-bezel design (bezel available). Wintouch's projected capacitive touchscreens are designed for the rigors of commercial applications.
Advertising Touch Screen Parameters
| Item | Specification |
| Part Number | AC-C1356-15.0 Advertising Touch Screen |
| Structures | Cover Glass+ITO Glass |
| Surface Hardness | >6H |
| Outline size | 352.2*277.0mm |
| View Area | 304.2*228.2mm |
| IC Controller | ILITEK 2511 |
| Operating temperature | -20℃~70℃ |
| Storage temperature | -30℃~80℃ |
| Total Thickness | 2.9±0.15mm |
| Transmittance | 86% Min |
| Interface Mode | USB/IIC/RS232 |
| Operating System | XP win7,8 Android Linux |
| Touch Points | 1-10 |
Projected Capacitive Touch Screen Features:
Glass to glass structure.
1.1mm to 6mm temperted glass.
Support cover/size customized.
4096×4096 Resolution with linearity error ≤2mm.
Size available from 7inch to 65inch.
Multi-touch 1 to 10 touch points.
Development process:
1.Receive customer's technical files, including PCAP drawing, LCD specification.
2.Recommend standard products or customize products based on customer's requirements.
3.Offer engineering drawing for confirmation and fill in project kick-off form.
4.Make samples according to the confirmed drawing.
5.Debug the samples based on the information on kick-off form, keep the FW.
Why choose us?
1.Our factory is a legal,responsible,capable,experienced factory.
2.We have the largest laminting mechine which can up to 65inch.
3.In stock for fast delivery provide the best after-sales service.
4.We can provide the best design solutions according customer requirements.
5.All of our products have been inspected strictly before delivery.
Our products are widely used in industrial equipment, POS machine, self-service terminals, ATM, smart home, medical equipment and so on, We are located in Shenzhen with convenient transportation access. Dedicated to strictly quality control and thoughtful customer service, our experienced staff members are always professional to discuss your requirements and make satisfaction. In recent years, our company has bring series of advanced equipments including bonding machine Etching MachineESD test equipmentBall drop test equipment etc. Selling well in domestic and forgin market especially in China, regions as Canada ,Korea, USA. Welcome OEM and ODM orders. We have already been widely recognized and trusted by users and match continuously changing economic and social demands. !
