High Accuracy Capacitive Touch Panel With USB/IIC/RS232 Interface

Product Description

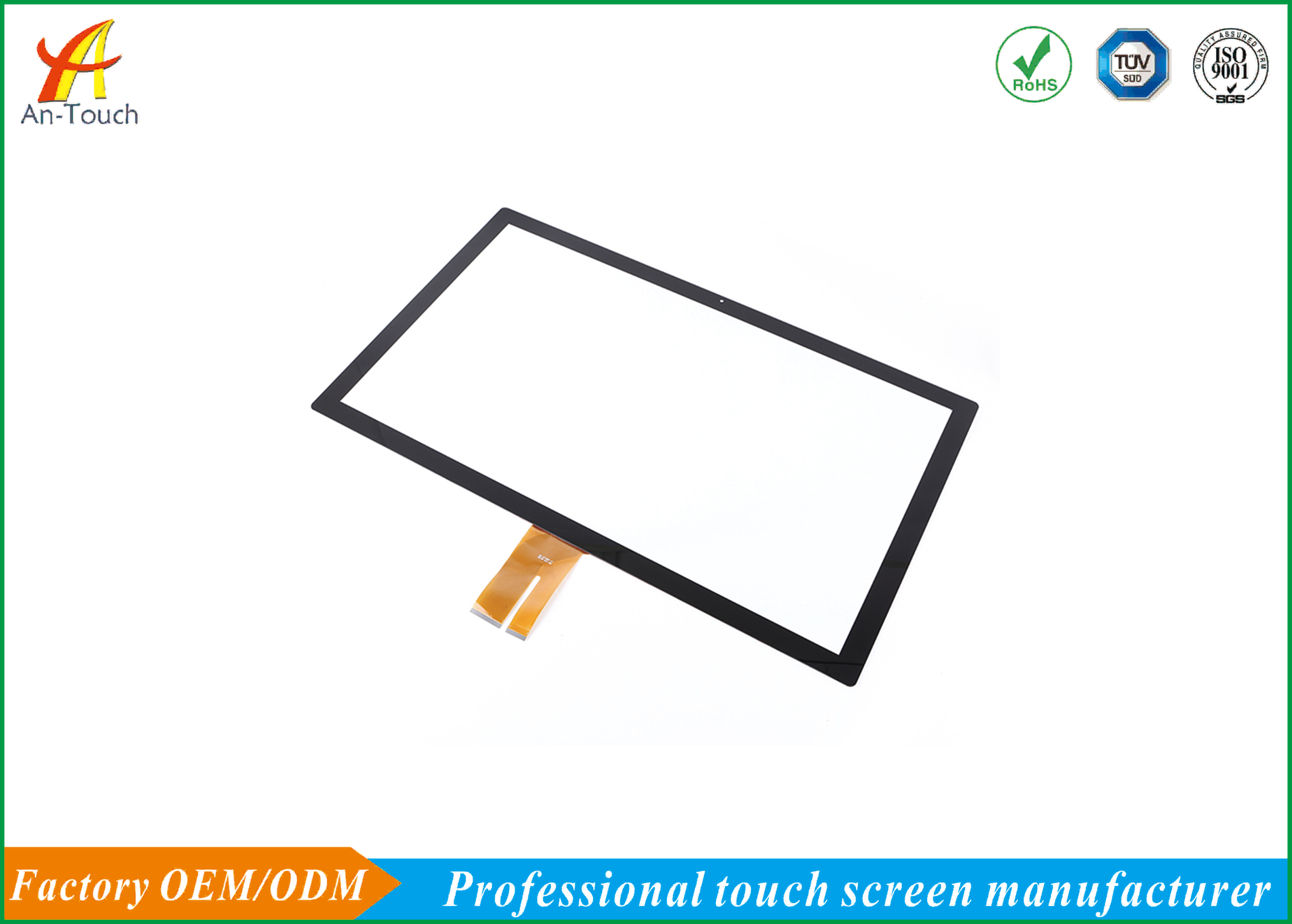

High Accuracy Capacitive Touch Panel With USB/IIC/RS232 Interface

Capacitive Touch Panel Advantages

1. Active pen type is complete can cover 7-65 inch.Authoritative certifcation.Precision and linearity,supporting anti-palm mistouch.suspension positioning and pen tip pressure sensing function.
2. There are a lot of water droplets on the surface of touch screen,which can still be scribed normally.Freshwater,brine and oil droplets can be normally.
3. capacitive touch screen + Protective Glass for Normal Use in protective glass shell.The theoretical limit thickness is 20mm,the conventinal thickness is 6 mm,8mm,10mm and 12mm

Capacitive Touch Panel details

Item	Specification
Part Number	AC-C1085-32.0 Capacitive Touch Panel
Structures	Cover Glass+ITO Glass
Surface Hardness	>6Hour
Outline size	757.12*450.6mm
View Area	699.4*393.84mm
IC Controller	ILITEK 2312
Operating temperature	-20℃~70℃
Storage temperature	-30℃~80℃
Total Thickness	3.1±0.15mm
Transmittance	86% Min
Interface Mode	USB/IIC/RS232





Capacitive Touch Panel Details

> 4096x4096 Resolution
> USB Interface
> High accuracy and sensitivity
> Glass + Glass or PET + Glass

> Finger, gloved hand and touch pen activation
> Sensitive and fast response



Capacitive Touch Panel Application

1. Self-service terminals
2. ATM& Financial terminals
3. Medical equipment

Development process:

1. Receive customer's technical files, including PCAP drawing, LCD specification.

2. Recommend standard products or customize products based on customer's requirements.

3. Offer engineering drawing for confirmation and fill in project kick-off form.

4. Make samples according to the confirmed drawing.

5. Debug the samples based on the information on kick-off form, keep the FW.

6. Send the samples to customers for confirmation. Offer all the technical supports with which customer will let the touch panels work well.

7. Pilot production.

8. Mass production.
