Long Life Projected Capacitive Touch Screen / OEM Multi Touch Display
Contact Person : Devin Jiang
Phone Number : +86 13528582261
| Minimum Order Quantity : | negotiation | Price : | Negotiation |
|---|---|---|---|
| Packaging Details : | Standard Packing With Carton | Delivery Time : | 5-8 Work Day |
| Payment Terms : | T/T, Western Union, Paypal | Supply Ability : | 50000/PCS/Month |
| Place of Origin: | China | Brand Name: | antouch |
|---|---|---|---|
| Certification: | ISO9001 | Model Number: | AC-C150068 |
|
Detail Information |
|||
| Name: | Projective Capacitive Touch Panel | Usage: | POS Machine |
|---|---|---|---|
| Point: | Multi Point | Outline Dimensio: | 348.0*275.5mm |
| Module View Area: | 304.2*226.9mm | IC Controller: | ILITEK 2312 |
| Operating System: | XP Win7、8 Android Linux | Touch Points: | 10 |
| High Light: | capacitive touchscreen display,usb capacitive touch screen |
||
Product Description

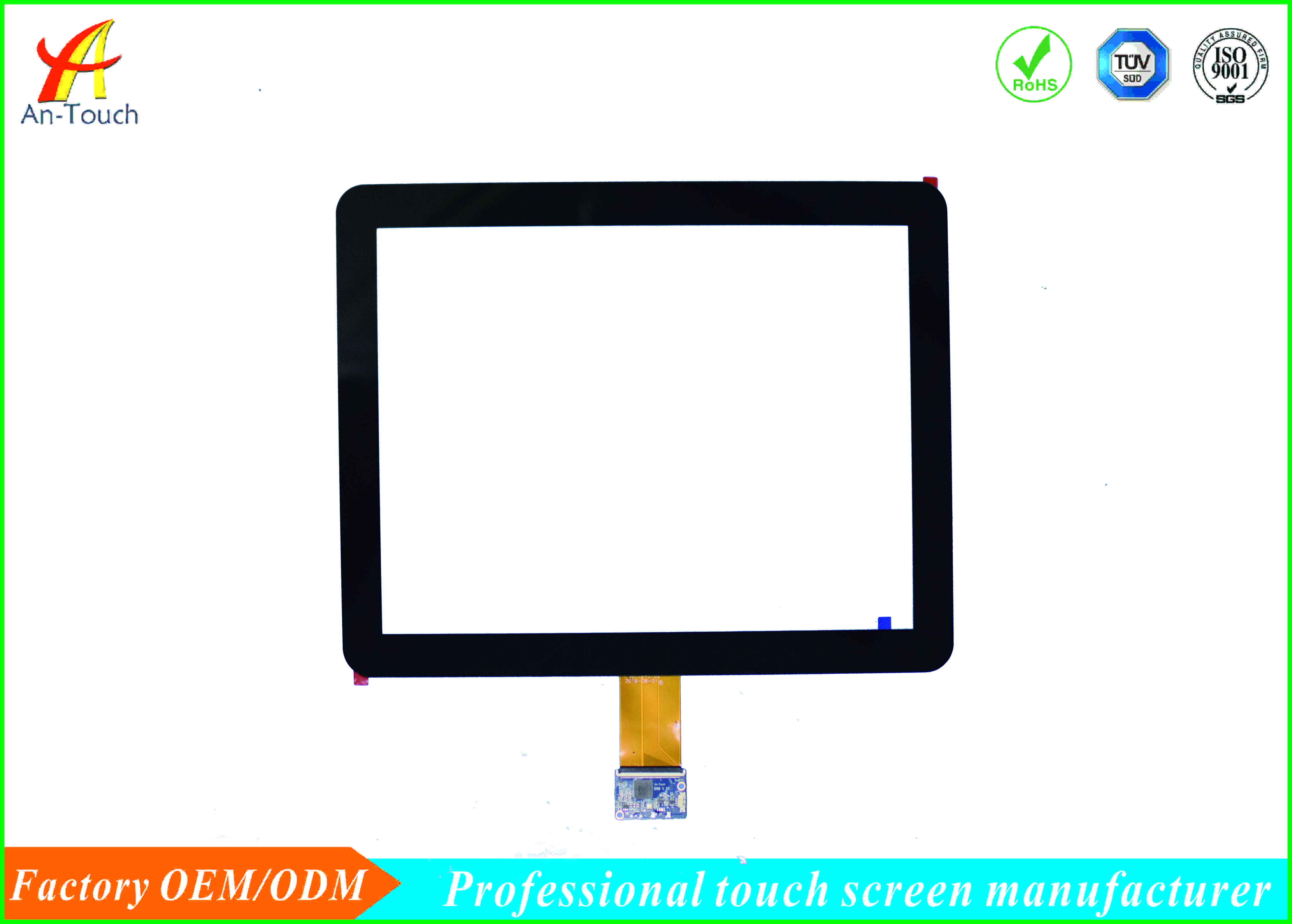

Custom Projective Capacitive Touch Panel Multi Point For POS Machine
Projective Capacitive Touch Panel Introduction
Projective Capacitive Touch Panel is a world popular trend for its highest positioning and fast response, the response time is shorter than resistive touch screen, antistatic ability,save space,display is the user interface and interface mode diversity,low power,water-proof,fog-proof,design more beautiful,specially on industrial equipment and POS machine(ATM,self-service terminals,smart home and medical equipment ), the touch panel is made of glass and glass, also, it has good transparent and has multi-points touching.
Projective Capacitive Touch Panel Application:
1. Point-of-information kiosks.
2. Vending and ticket sales.
3. Electronic catalogs.
4. Gaming, lottery, and amusement.
Projective Capacitive Touch Panel details
| AC-C150068 | |
| Item | Specification |
| Part Number | AC-C150068 |
| Structures | Cover Glass+ITO Glass |
| Surface Hardness | >6H |
| Outline size | 348.0*275.5mm |
| View Area | 304.2*226.9mm |
| IC Controller | ILITEK 2511 |
| Operating temperature | -20℃~70℃ |
| Storage temperature | -30℃~80℃ |
| Total Thickness | 2.0±0.15mm |
| Transmittance | 86% Min |
| Interface Mode | USB/IIC |
| Operating System | XP win7,8 Android Linux |
| Touch Points | 1-10 |
Why choose us?
1. Our factory is a legal,responsible,capable,experienced factory.
2. We have the largest laminting mechine which can up to 65inch.
3. In stock for fast delivery provide the best after-sales service.
4. We can provide the best design solutions according customer requirements.
5. All of our products have been inspected strictly before delivery.
