Long Life Projected Capacitive Touch Screen / OEM Multi Touch Display
Contact Person : Devin Jiang
Phone Number : +86 13528582261
| Minimum Order Quantity : | negotiation | Price : | Negotiation |
|---|---|---|---|
| Packaging Details : | Standard Packing With Carton | Delivery Time : | 5-8 Work Day |
| Payment Terms : | T/T, Western Union, Paypal | Supply Ability : | 50000/PCS/Month |
| Place of Origin: | China | Brand Name: | antouch |
|---|---|---|---|
| Certification: | ISO9001 | Model Number: | AC-C133032 |
|
Detail Information |
|||
| Name: | Capacitive Touchscreen Display | Material: | Glass |
|---|---|---|---|
| Surface Hardness: | >6 Hour | Outline Dimensio: | 310.3*201.43mm |
| Module View Area: | 294.76*165.6mm | IC Controller: | ILITEK 2312 |
| Operating System: | XP Win7、8 And Android Linux | Interface Mode: | USB/IIC |
| High Light: | capacitive touchscreen display,usb capacitive touch screen |
||
Product Description

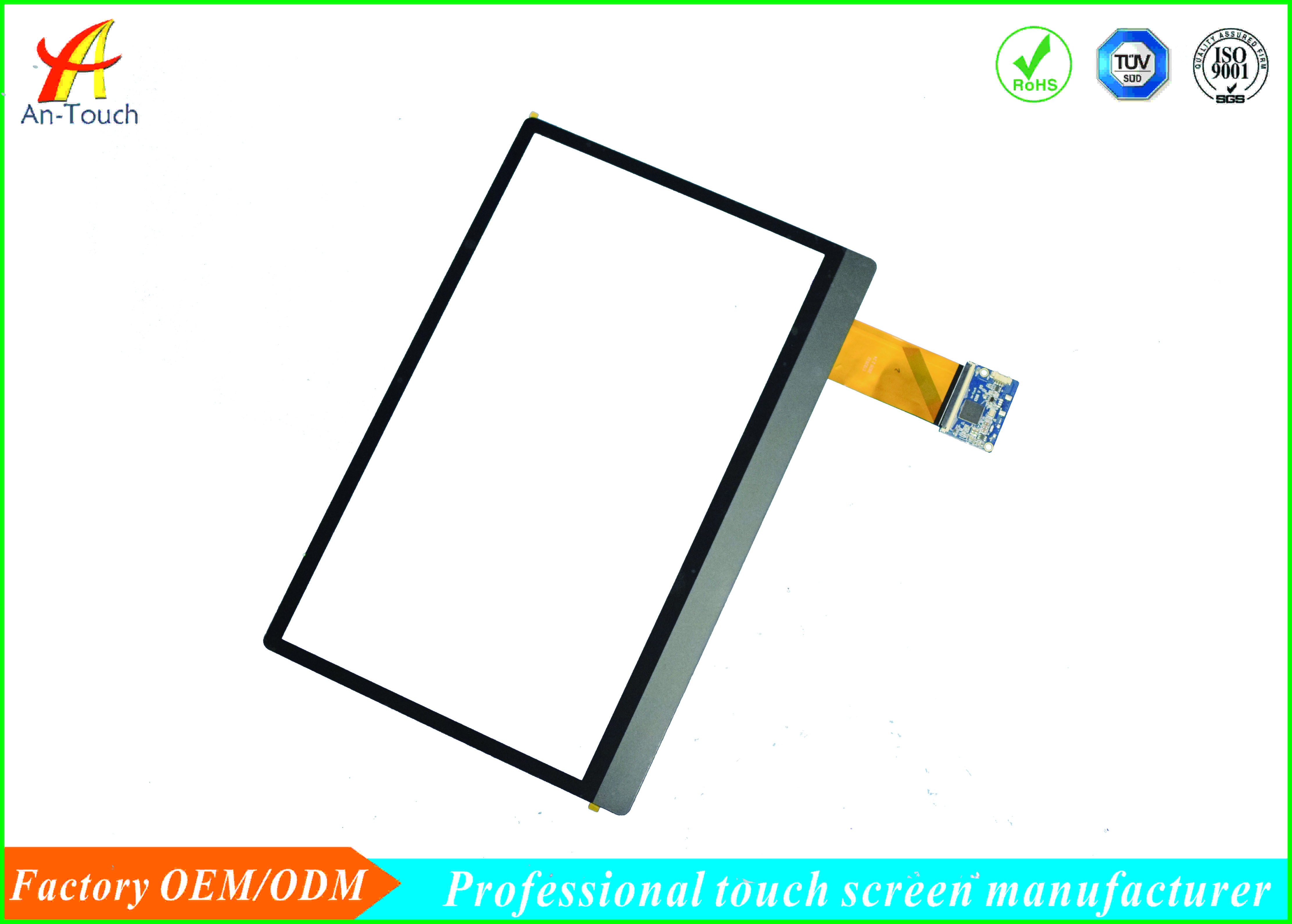

Glass Capacitive Touchscreen Display / Durable Industrial Hmi Touch Panel
Capacitive Touchscreen Display Introduction :
Capacitive Touchscreen Display are built with two parallel layers of ITO but, but unlike the old and cheap resistive touch panels, the ITO layers in a projected capacitive touch panel are sealed between two sheets of glass by an optically clear adhesive.
Capacitive Touchscreen Display Features
♦accuracy up to 99% proficient in writing, no break no drift
♦any point can withstand more than 50 million times touch
♦long life, low maintenance costs
♦ intelligent automatic calibration, use forinternal / external variety of environments
Capacitive Touchscreen Display details
| AC-C133032 | |
| Item | Specification |
| Part Number | AC-C133032 |
| Structures | Cover Glass+ITO Glass |
| Surface Hardness | >6H |
| Outline size | 310.3*201.43mm |
| View Area | 294.76*165.6mm |
| IC Controller | ILITEK 2511 |
| Operating temperature | -20℃~70℃ |
| Storage temperature | -30℃~80℃ |
| Total Thickness | 2.0±0.15mm |
| Transmittance | 86% Min |
| Interface Mode | USB/IIC |
| Operating System | XP win7,8 Android Linux |
| Touch Points | 1-10 |
Development process:
1. Receive customer's technical files, including PCAP drawing, LCD specification.
2. Recommend standard products or customize products based on customer's requirements.
3. Offer engineering drawing for confirmation and fill in project kick-off form.
4. Make samples according to the confirmed drawing.
5. Debug the samples based on the information on kick-off form, keep the FW.
6. Send the samples to customers for confirmation. Offer all the technical supports with which customer will let the touch panels work well.
7. Pilot production.
