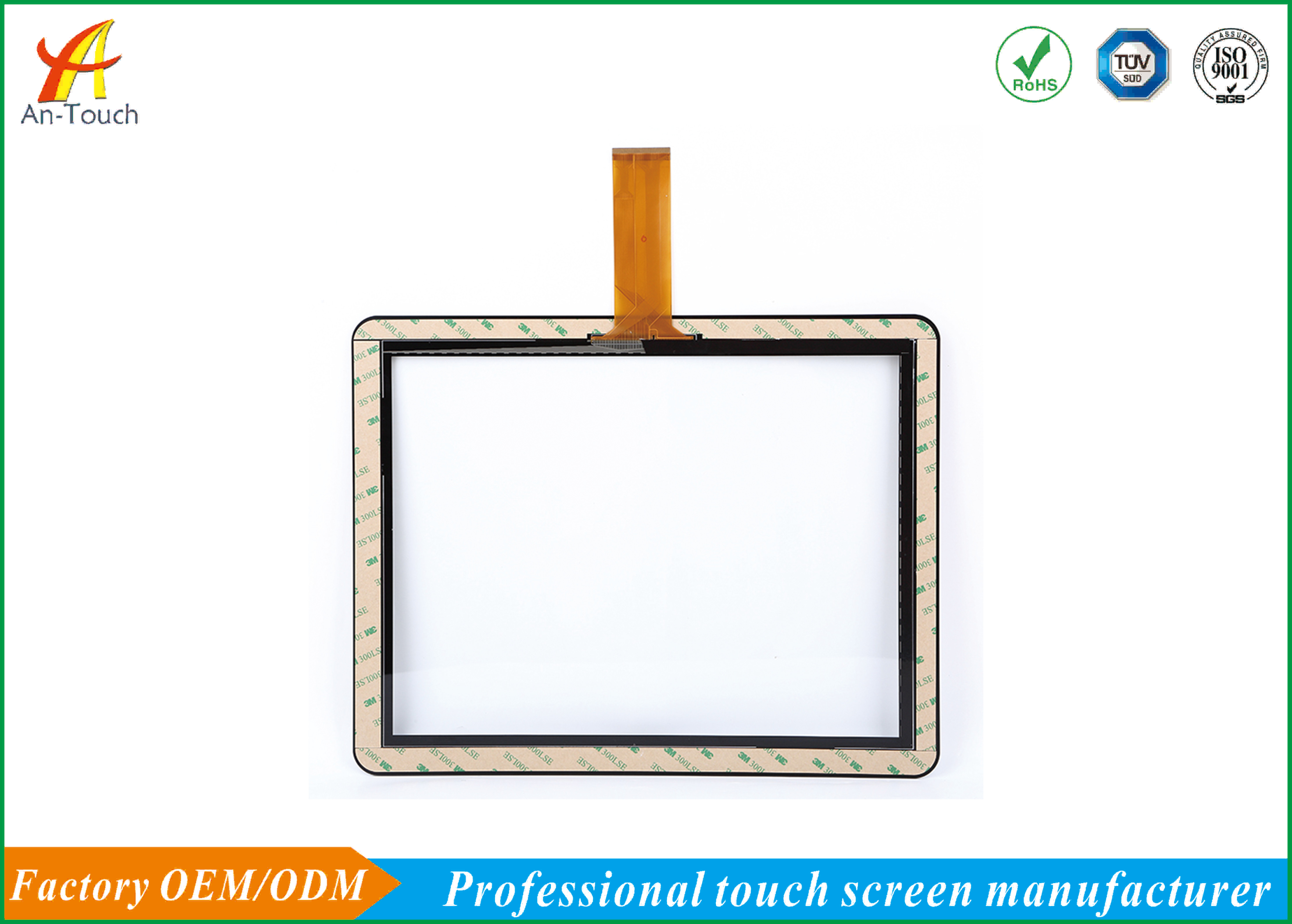

Projected Capacitive Advertising Touch Screen 10.1 12.1 13.3 14.1 15 15.1 17 19 22 Inch


Advertising Touch Screen Operation Principle:

Capacitive touch panel works through body's current induction .Unlike resistive touch screens, you don't need an external force to achieve touching. When finger is on or close to touch panel surface,due to body electric field, the user and touch panel surface forms one coupling capacitance. If there is no broken,it will be used infinitely.

Advertising Touch Screen Features:

Glass to glass structure.

1.1mm to 6mm temperted glass.

Support cover/size customized.

4096×4096 Resolution with linearity error ≤2mm.

Size available from 7inch to 65inch.

Multi-touch 1 to 10 touch points.

100 Million touches durability.

Tempered scratch proof cover glass with high impact resistance.


Development process:

1.Receive customer's technical files, including PCAP drawing, LCD specification.

2.Recommend standard products or customize products based on customer's requirements.

3.Offer engineering drawing for confirmation and fill in project kick-off form.

4.Make samples according to the confirmed drawing.

5.Debug the samples based on the information on kick-off form, keep the FW.

6.Send the samples to customers for confirmation. Offer all the technical supports with which customer will let the touch panels work well.

7.Pilot production.

8.Mass production.

Why choose us?

1.Our factory is a legal,responsible,capable,experienced factory.
