Waterproof Usb Capacitive Touch Panel 23.6 Inch For Industry Monitor

Minimum Order Quantity : 1/PCS Price : 10-100$/pcs / Negotiable
Packaging Details : Standard Packing With Carton Delivery Time : 5-8 Work Day
Payment Terms : T/T, Western Union, Paypal Supply Ability : 50000/PCS/Month
Place of Origin: China Brand Name: antouch
Certification: ROHS SGS ISO9001 Model Number: AC-C1073-23.6

Detail Information

Screen Diagonal: 23.6 Interface Type: USB
Module View Area: 522.1*294.4mm Outline Dimensio: 593.0*365.5mm
Cover Lens: 2.0mm Touch Points: 1-10
High Light:

capacitive touchscreen display

,

usb capacitive touch screen

Product Description

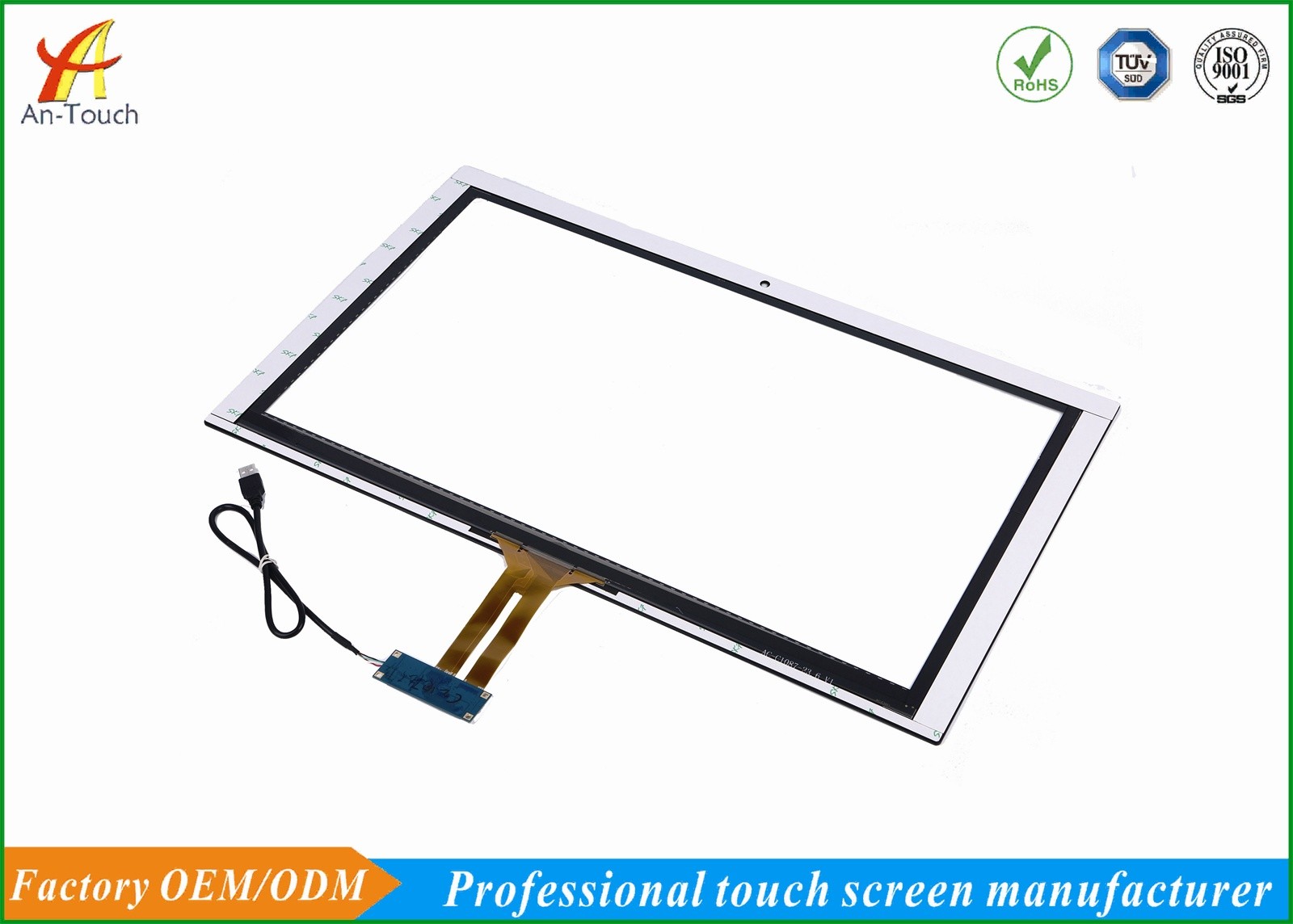

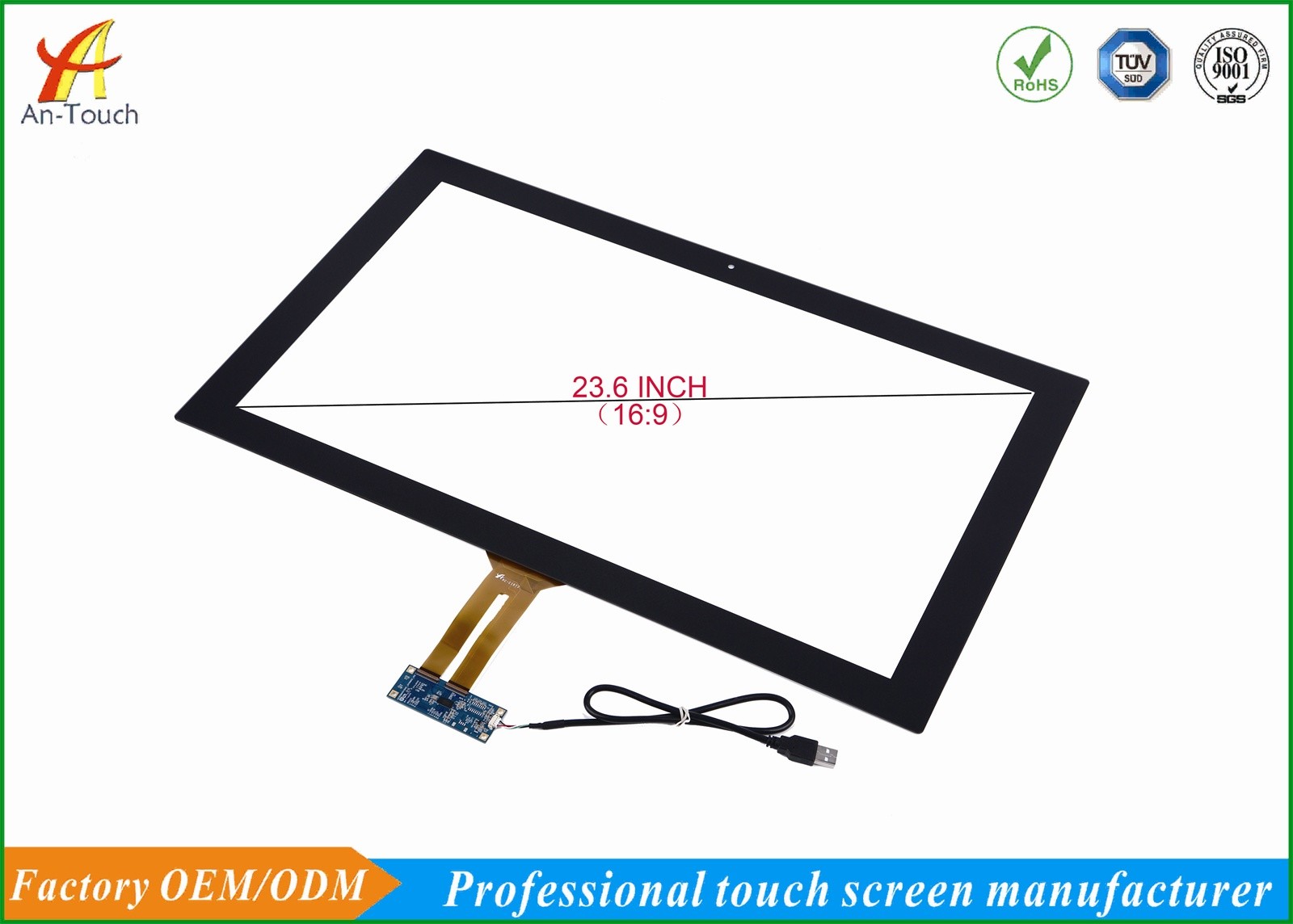

Waterproof G+G 23.6 Inch Capacitive Touch Panel With USB Interface For Industry Monitor



Product details

Item                                                       Specification
Screen size 23.6 inch
Structures Cover Glass+ITO Glass
Surface Hardness >6H
Surface Treatment AG/AF/AR
IC Controller ILITEK 2302
Operating temperature -20℃~70℃
Storage temperature -30℃~80℃
Supply Voltage 3.3V~5V
Transmittance 86% Min
Interface Mode USB/IIC/RS232
Operating System XP win7,8 Android Linux
System Driver No need(USB plug and play)
Touch Points 1-10





Capacitive Touch Screen:



Capacitive touch screen are built with two parallel layers of ITO but, but unlike the old and cheap resistive touch panels, the ITO layers in a projected capacitive touch panel are sealed between two sheets of glass by an optically clear adhesive.



Features:


Completely dead 10-point touch really, any point can withstand more than 50 million times touch.


Explosion-proof and durable, complete physical steel explosion-proof glass, scratch-resistant, anti-collision, anti-radiation within the core capacitive touch ensure stable, durable.


Strong compatibility, support WindowsXP / 7/8 / 8.1 / 10 / CE, Mac, Android / Linux and other operating systems.


Anti-interference ability, without the interference of light and radiation, surface water / oil / dust can touch any place accurate and correct.


Free drive, plug and play.


Intelligent automatic calibration, simple and easy to adapt to internal / external use a variety of environments.


Wear resistance, long life, low maintenance costs.



Waterproof Usb Capacitive Touch Panel 23.6 Inch For Industry Monitor 0



Application:



Touch Screen All in one Computers.



Touch Screen laptop.



POS Machine.



Industrial Control industry.



Touch Monitor.



Information Kiosks.



Gaming, Lottery ect.



Multimedia marketing.



Banking / Fanancial System.



Touch Table.



Delivery Time:



Samples in stock: 1~3 working days.



Customized project: 10~15days for samples.



Mass production: 10~18days.



Why choose us?

1.Our factory is a legal,responsible,capable,experienced factory.


2.We have the largest laminting mechine which can up to 65inch.


3.In stock for fast delivery provide the best after-sales service.


4.We can provide the best design solutions according customer requirements.


5.All of our products have been inspected strictly before delivery.

Customer question

1. How about Sample lead time ?

-------Custom samples 12-18work-days,standard samples 5~10work-days.


2. How about mass production lead time ?

------ 15 days after sample confirmed.


3.Shipping?

------Usually we deliver our goods by DHL,UPS, FedEx etc.


4: Payment term?


------ T/T or Western Union 30% deposit, 70% balance should be paid before shipment.


5: How about the warranty?

------ Warranty 1year.
