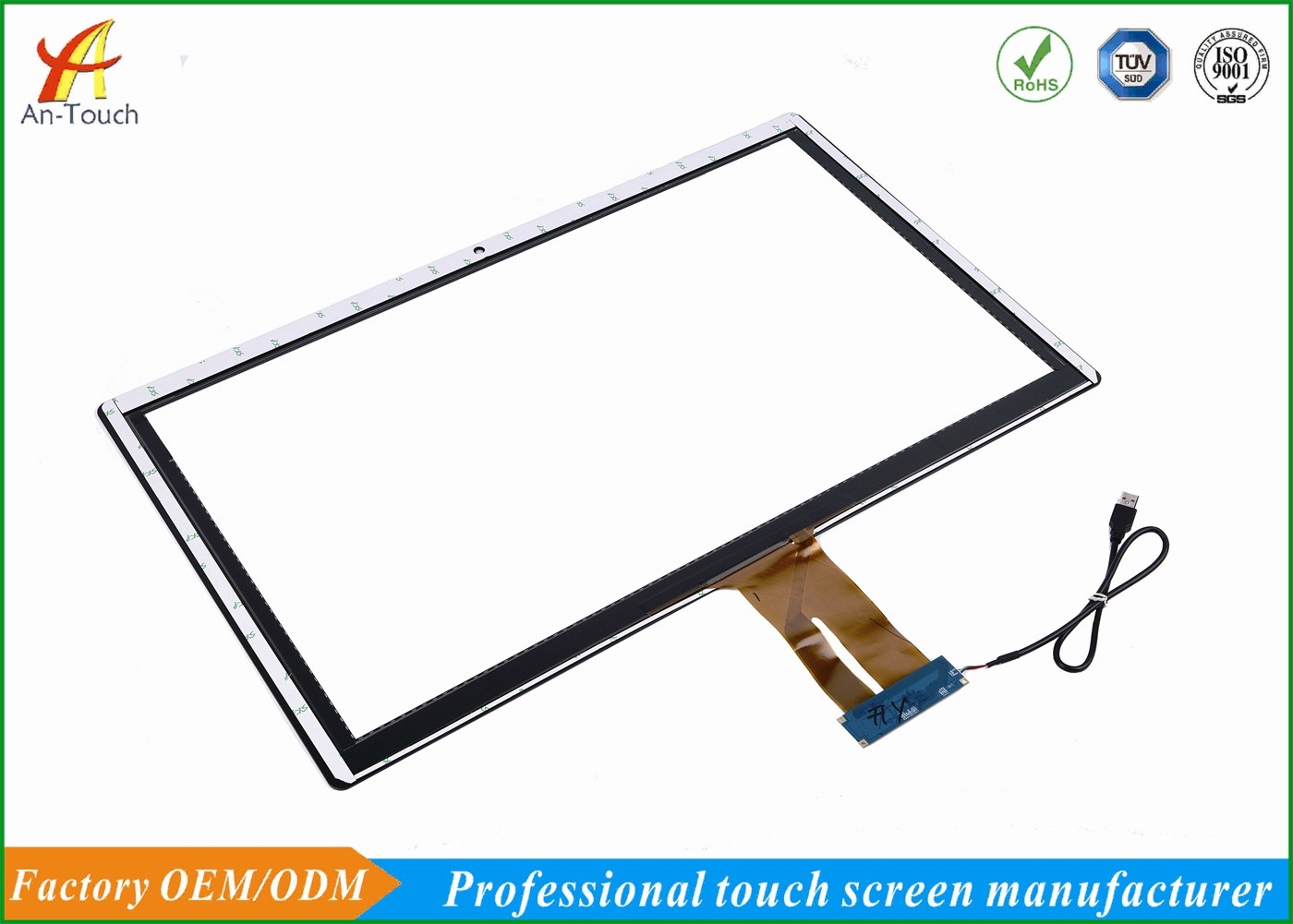

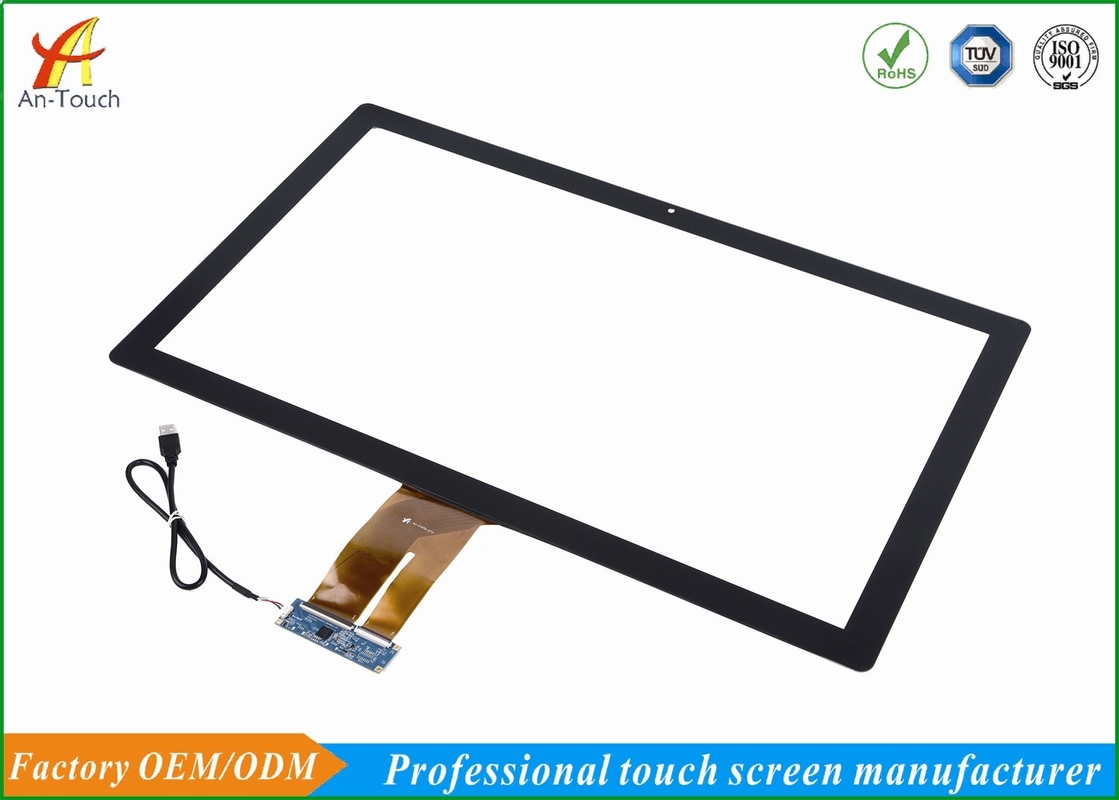

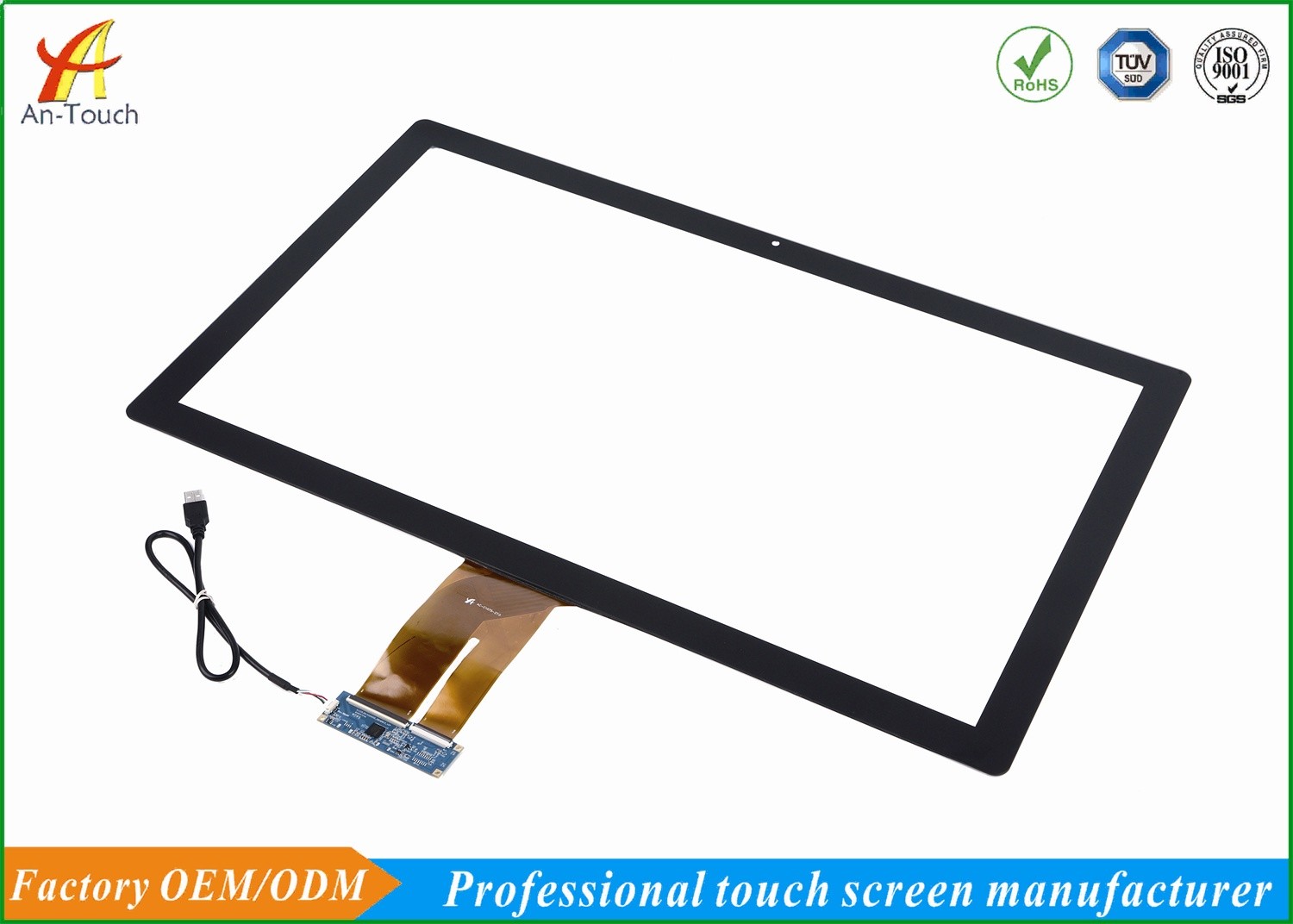

Fast Response Projected Capacitive Touch Panel For POS Machine 588.95*356.55mm
Contact Person : Devin Jiang
Phone Number : +86 13528582261
| Minimum Order Quantity : | 1/PCS | Price : | 10-100$/pcs / Negotiable |
|---|---|---|---|
| Packaging Details : | Standard Packing With Carton | Delivery Time : | 5-8 Work Day |
| Payment Terms : | T/T, Western Union, Paypal | Supply Ability : | 50000/PCS/Month |
| Place of Origin: | China | Brand Name: | antouch |
|---|---|---|---|
| Certification: | ROHS SGS ISO9001 | Model Number: | AC-C1075-27.0 |
|
Detail Information |
|||
| Screen Diagonal: | 27 | Ratio: | 16:9 |
|---|---|---|---|
| Module View Area: | 598.6*377.14mm | Outline Dimensio: | 656.02*394.02mm |
| Cover Lens: | 2.0mm | Operating System: | XP Win7 8 Android Linux |
| High Light: | projected capacitive touch screen,capacitive touch screen panel |
||
Product Description
| Item | Specification |
| Screen size | 27.0inch |
| Structures | Cover Glass+ITO Glass |
| Surface Hardness | >6H |
| Surface Treatment | AG/AF/AR |
| IC Controller | ILITEK 2312 |
| Operating temperature | -20℃~70℃ |
| Storage temperature | -30℃~80℃ |
| Supply Voltage | 3.3V~5V |
| Transmittance | 86% Min |
| Interface Mode | USB/IIC/RS232 |
| Operating System | XP win7,8 Android Linux |
| System Driver | No need(USB plug and play) |
| Touch Points | 1-10 |
Capacitive Touch Screen:
Capacitive touch screen are built with two parallel layers of ITO but, but unlike the old and cheap resistive touch panels, the ITO layers in a projected capacitive touch panel are sealed between two sheets of glass by an optically clear adhesive.
Projected Capacitive touch screen Features:
►Response speed fast, smooth touch.
► Flat panel, more high-end atmosphere, eliminating infrared touch screen surface with a groove edges are not allowed to shortcomings.
►Any point can withstand more than 50 million times touch.
► Operating systems strong compatibility.
► Intelligent automatic calibration, use forinternal / external variety of environments.
► Long life, low maintenance costs.
G+G means the structure of touch panel using Cover Glass + Sensor Glass. The Sensor Glass have
ITO coating so that it can be sensitive. There are many advantages of G+G structure:
(1)High transmittance,>83%.
(2)Hard and anti-wear surface.The hardness is 6H.
(3)Excellent corrosion resistance.
(4)Sensitive touch and stable performance.
Application:
-Point-of-information kiosks.
-Vending and ticket sales.
-Electronic catalogs.
-Gaming, lottery, and amusement.
-Public pay phones.
-Multimedia marketing.
-Banking/financial transactions.
-Industrial control rooms.
-Computer-based training.
Samples in stock: 1~3 working days.
Customized project: 10~15days for samples.
Mass production: 10~18days.
Why choose us?
1.Our factory is a legal,responsible,capable,experienced factory.
2.We have the largest laminting mechine which can up to 65inch.
3.In stock for fast delivery provide the best after-sales service.
4.We can provide the best design solutions according customer requirements.
5.All of our products have been inspected strictly before delivery.
Customer question
1. How about Sample lead time ?
-------Custom samples 12-18work-days,standard samples 5~10work-days.
2. How about mass production lead time ?
------ 15 days after sample confirmed.
3.Shipping?
------Usually we deliver our goods by DHL,UPS, FedEx etc.
4: Payment term?
------ T/T or Western Union 30% deposit, 70% balance should be paid before shipment.
5: How about the warranty?
------ Warranty 1year.
