Fast Response Projected Capacitive Touch Panel For POS Machine 588.95*356.55mm
Contact Person : Devin Jiang
Phone Number : +86 13528582261
| Minimum Order Quantity : | negotiation | Price : | Negotiation |
|---|---|---|---|
| Packaging Details : | Standard Packing With Carton | Delivery Time : | 5-8 Work Day |
| Payment Terms : | T/T, Western Union, Paypal | Supply Ability : | 50000/PCS/Month |
| Place of Origin: | China | Brand Name: | antouch |
|---|---|---|---|
| Certification: | ISO9001 | Model Number: | AC-C1087-23.6 |
|
Detail Information |
|||
| Name: | Projected Capacitive Touch Panel | Application: | Industrial |
|---|---|---|---|
| Surface Hardness: | >6H | Outline Dimensio: | 588.95*356.55mm |
| Module View Area: | 522.1*294.4mm | Interface Mode: | USB/IIC/RS232 |
| High Light: | usb capacitive touch panel,projected capacitive touch screen |
||
Product Description

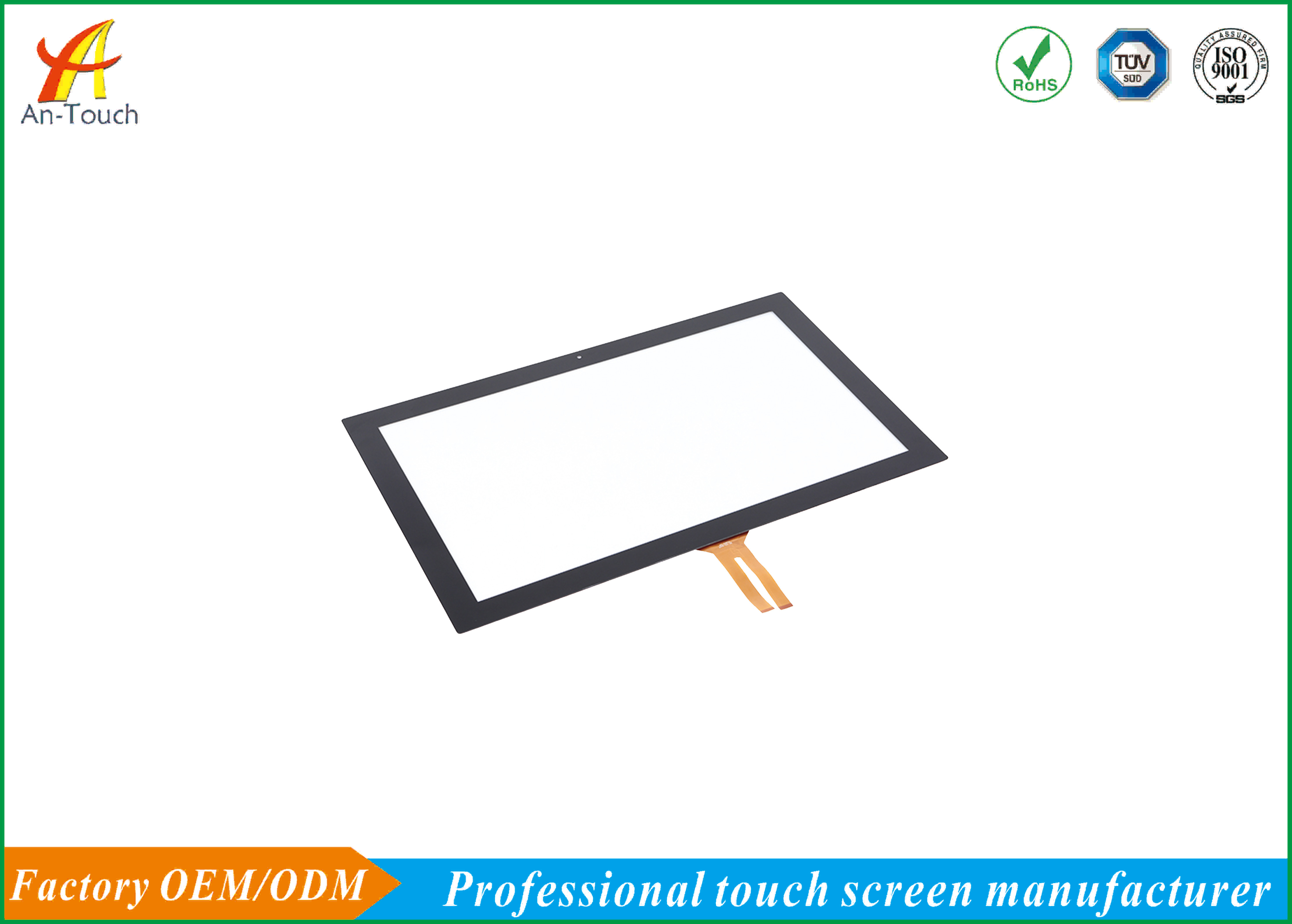

Industrial Projected Capacitive Touch Panel Display USB/IIC/RS232 Interface
Projected Capacitive Touch Panel Introduction :
Capacitive touch screen are built with two parallel layers of ITO but, but unlike the old and cheap resistive touch panels, the ITO layers in a projected capacitive touch panel are sealed between two sheets of glass by an optically clear adhesive.
Projected Capacitive Touch Panel Feature
♦accuracy up to 99% proficient in writing, no break no drift
♦any point can withstand more than 50 million times touch
♦long life, low maintenance costs
♦ intelligent automatic calibration, use forinternal / external variety of environments
♦Explosion-proof and durable, scratch-resistant, anti-collision, anti-radiation within the core capacitive touch ensure stable, anti-interference ability
Projected Capacitive Touch Panel details
|
Item |
Specification |
|
Part Number |
AC-C1087-23.6 |
|
Structures |
Cover Glass+ITO Glass |
|
Surface Hardness |
>6H |
|
Outline size |
588.95*356.55mm |
|
View Area |
522.1*294.4mm |
|
IC Controller |
ILITEK 2510/WD8752 |
|
Operating temperature |
-20℃~70℃ |
|
Storage temperature |
-30℃~80℃ |
|
Total Thickness |
2.90±0.15mm |
|
Transmittance |
86% Min |
|
Interface Mode |
USB/IIC/RS232 |
|
Operating System |
XP win7,8 Android Linux |
|
Touch Points |
1-10 |
Projected Capacitive Touch Panel
> Can withstand more than 50000000 point
> 4096x4096 Resolution
> USB Interface
> High accuracy and sensitivity
> Glass + Glass or PET + Glass
> Finger, gloved hand and touch pen activation
> Sensitive and fast response
> Our products have passed CE, FCC, ROHS certification!
Projected Capacitive Touch Panel Application
POS machine
Self-service terminals
ATM& Financial terminals
Medical equipment
FAQ
1.Q: Are you a factory?
A:Yes, we are a factory, we have our own production line.
2.Q: what's your products' quality control?
A:Our tenet is "Quality first, Prestige first". We are pay more attention to the beginning till the very end of the production. Our products have passed the CE & ROHS & ISO & FCC etc. Certification.
3.Q: What's your after-sale service?
A:We can offer 100% guarantee on our product. If any problems, you will get our reply within 24 hours.
4.Q: What's your MOQ?
A: Generally, our MOQ is 1 pcs. But the greater the quantities , the bigger the discount .
5.Q: Could you offer the OEM service?
A: Yes, we can provide the OEM service if our customer requested.
6.Q: How about the delivery?
A: The delivery would be with in 3-15 days according to the order quantity and size of the items.
