Fast Response Projected Capacitive Touch Panel For POS Machine 588.95*356.55mm
Contact Person : Devin Jiang
Phone Number : +86 13528582261
| Minimum Order Quantity : | negotiation | Price : | Negotiation |
|---|---|---|---|
| Packaging Details : | Standard Packing With Carton | Delivery Time : | 5-8 Work Day |
| Payment Terms : | T/T, Western Union, Paypal | Supply Ability : | 50000/PCS/Month |
| Place of Origin: | China | Brand Name: | antouch |
|---|---|---|---|
| Certification: | ISO9001 | Model Number: | AC-C1075-27.0 |
|
Detail Information |
|||
| Name: | Flexible Capacitive Touch Screen | Type: | Transparent |
|---|---|---|---|
| Size: | 27 Touch Screen Display | Outline Dimensio: | 656.02*394.02mm |
| Module View Area: | 598.6*337.14mm | IC Controller: | ILITEK 2312 |
| Operating System: | XP Win7、8 Android Linux | Interface Mode: | USB/IIC/RS232 |
| High Light: | usb capacitive touch panel,projected capacitive touch screen |
||
Product Description

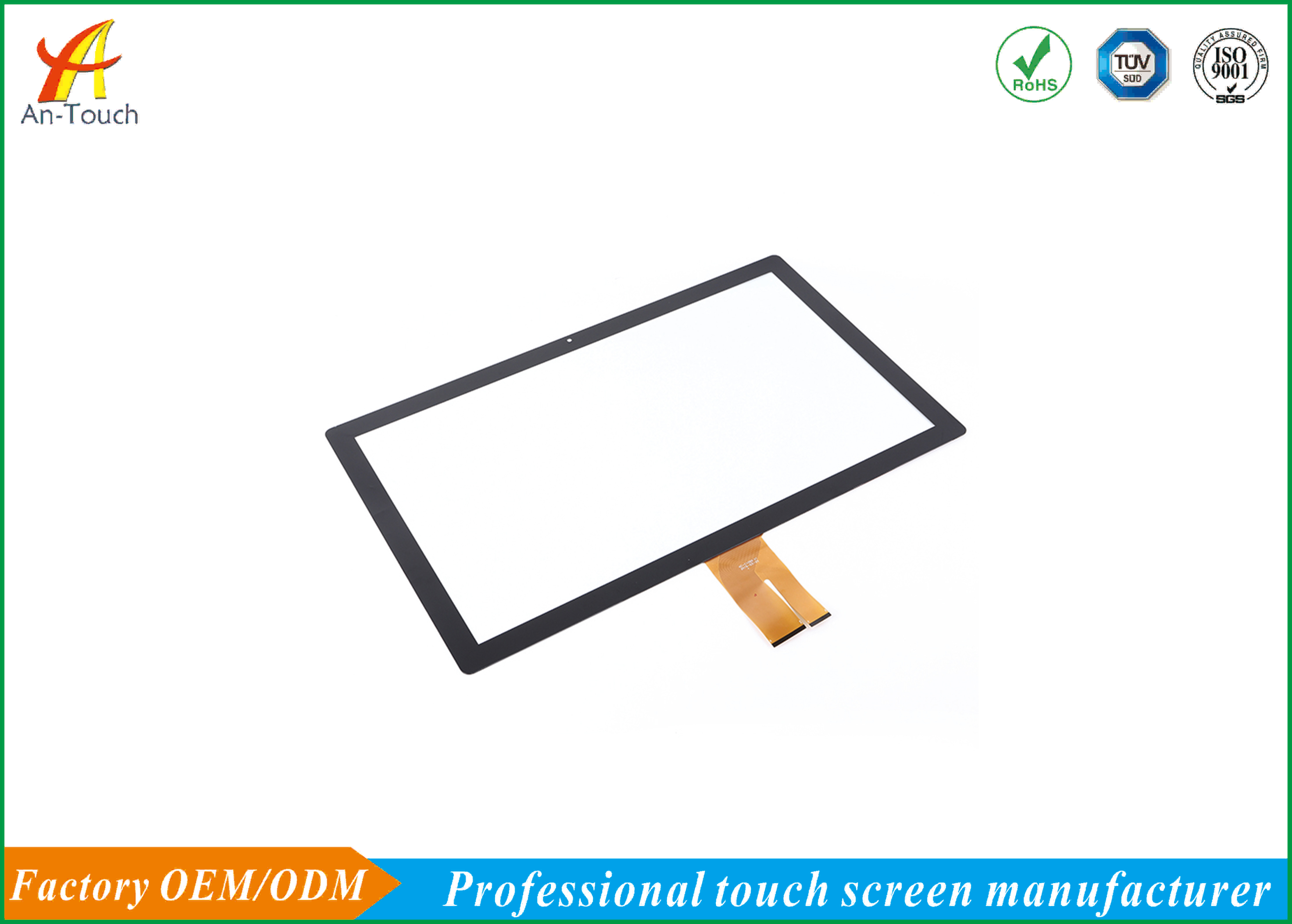

Transparent Flexible Capacitive Touch Screen / OEM 27 Touch Screen Display
Flexible Capacitive Touch Screen Features:
1. Completely dead 10-point touch really, any point can withstand more than 50 million times touch.
Explosion-proof and durable, complete physical steel explosion-proof glass, scratch-resistant, anti-collision,anti-radiation within the core capacitive touch ensure stable, durable.
2. Strong compatibility, support WindowsXP / 7/8 / 8.1 / 10 / CE, Mac, Android / Linux and other operating systems.
3. Anti-interference ability, without the interference of light and radiation, surface water / oil / dust can touch any place accurate and correct.
4. Free drive, plug and play.
5. Intelligent automatic calibration, simple and easy to adapt to internal / external use a variety of environments.
Flexible Capacitive Touch Screen details
| Item | Specification |
| Part Number | AC-C1075-27.0 Flexible Capacitive Touch Screen |
| Structures | Cover Glass+ITO Glass |
| Surface Hardness | >6H |
| Outline size | 656.02*394.02mm |
| View Area | 598.6*337.14mm |
| IC Controller | ILITEK 2312 |
| Operating temperature | -20℃~70℃ |
| Storage temperature | -30℃~80℃ |
| Total Thickness | 3.1±0.15mm |
| Transmittance | 86% Min |
| Interface Mode | USB/IIC/RS232 |
| Operating System | XP win7,8 Android Linux |
| Touch Points | 1-10 |
Flexible Capacitive Touch Screen Features
1, Can support real 10 points touch, Compatible with multiple system
2, High accuracy, good sensitivity, strong anti interference ability.
Flexible Capacitive Touch Screen
Capacitive touch screen are built with two parallel layers of ITO but, but unlike the old and cheap resistive touch panels, the ITO layers in a projected capacitive touch panel are sealed between two sheets of glass by an optically clear adhesive.
Our service
1.We have the largest laminting mechine which can up to 65 inch.
2.In stock for fast delivery provide the best after-sales service.
3.We can provide the best design solutions according customer requirements.
4.All of our products have been inspected strictly before delivery.
5.You can send the drawing to us directly,including the dimension of cover glass and sensor,if you want your own logo on it,just send us the design.
