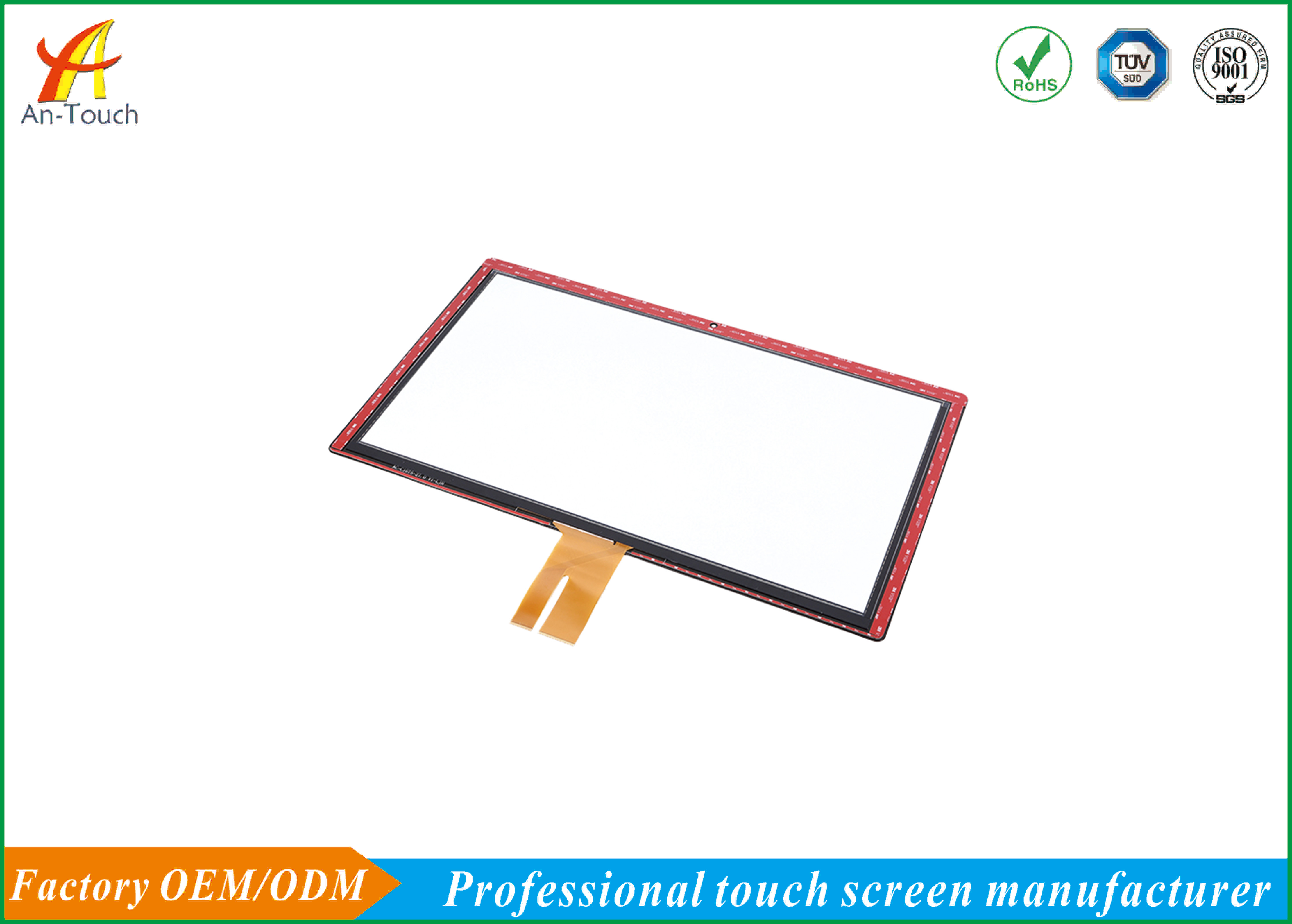

Fast Response Projected Capacitive Touch Panel For POS Machine 588.95*356.55mm
Contact Person : Devin Jiang
Phone Number : +86 13528582261
| Minimum Order Quantity : | negotiation | Price : | Negotiation |
|---|---|---|---|
| Packaging Details : | Standard Packing With Carton | Delivery Time : | 5-8 Work Day |
| Payment Terms : | T/T, Western Union, Paypal | Supply Ability : | 50000/PCS/Month |
| Place of Origin: | China | Brand Name: | antouch |
|---|---|---|---|
| Certification: | ISO9001 | Model Number: | AC-C1075-27.0 |
|
Detail Information |
|||
| Name: | Projected Capacitive Touch Panel | Feature: | High Positioning |
|---|---|---|---|
| Surface Hardness: | >6H | Outline Dimensio: | 656.02*394.02mm |
| Module View Area: | 598.6*337.14mm | IC Controller: | ILITEK 2312 |
| Operating System: | XP Win7、8 Android Linux | Application: | Public Pay Phones |
| High Light: | usb capacitive touch panel,projected capacitive touch screen |
||
Product Description
High Positioning Projected Capacitive Touch Panel For Public Pay Phones
Projected Capacitive Touch Panel Introduction
Projected Capacitive Touch Panel is a world popular trend for its highest positioning and fast response, the response time is shorter than resistive touch screen, antistatic ability,save space,display is the user interface and interface mode diversity,low power,water-proof,fog-proof,design more beautiful,specially on industrial equipment and POS machine(ATM,self-service terminals,smart home and medical equipment ), the touch panel is made of glass and glass, also, it has good transparent and has multi-points touching.
Projected Capacitive Touch Panel Application
Projected Capacitive Touch Panel Parameters
| Item | Specification |
| Part Number | AC-C1075-27.0 Projected Capacitive Touch Panel |
| Structures | Cover Glass+ITO Glass |
| Surface Hardness | >6H |
| Outline size | 656.02*394.02mm |
| Storage temperature | -30℃~80℃ |
| Total Thickness | 3.1±0.15mm |
| Transmittance | 86% Min |
| Interface Mode | USB/IIC/RS232 |
| Operating System | XP win7,8 Android Linux |
| Touch Points | 1-10 |
Projected Capacitive Touch Panel Advantages
1.Gloves can be drawn directly and normally without jumping points.Support glove work of various types and thicknesses.
2.Active pen type is complete can cover 7-65 inch.Authoritative certifcation.Precision and linearity,supporting anti-palm mistouch.suspension positioning and pen tip pressure sensing function.
3.There are a lot of water droplets on the surface of touch screen,which can still be scribed normally.Freshwater,brine and oil droplets can be normally.
Customer question
1. How about Sample lead time ?
-------Custom samples 12-18work-days,standard samples 5~10work-days
2. How about mass production lead time ?
------ 15 days after sample confirmed
3. shipping?
------,Usually we deliver our goods by DHL,UPS, FedEx etc.
4: Payment term?
------ T/T or Western Union 30% deposit, 70% balance should be paid before shipment.
5: How about the warranty?
------ Warranty 1year
