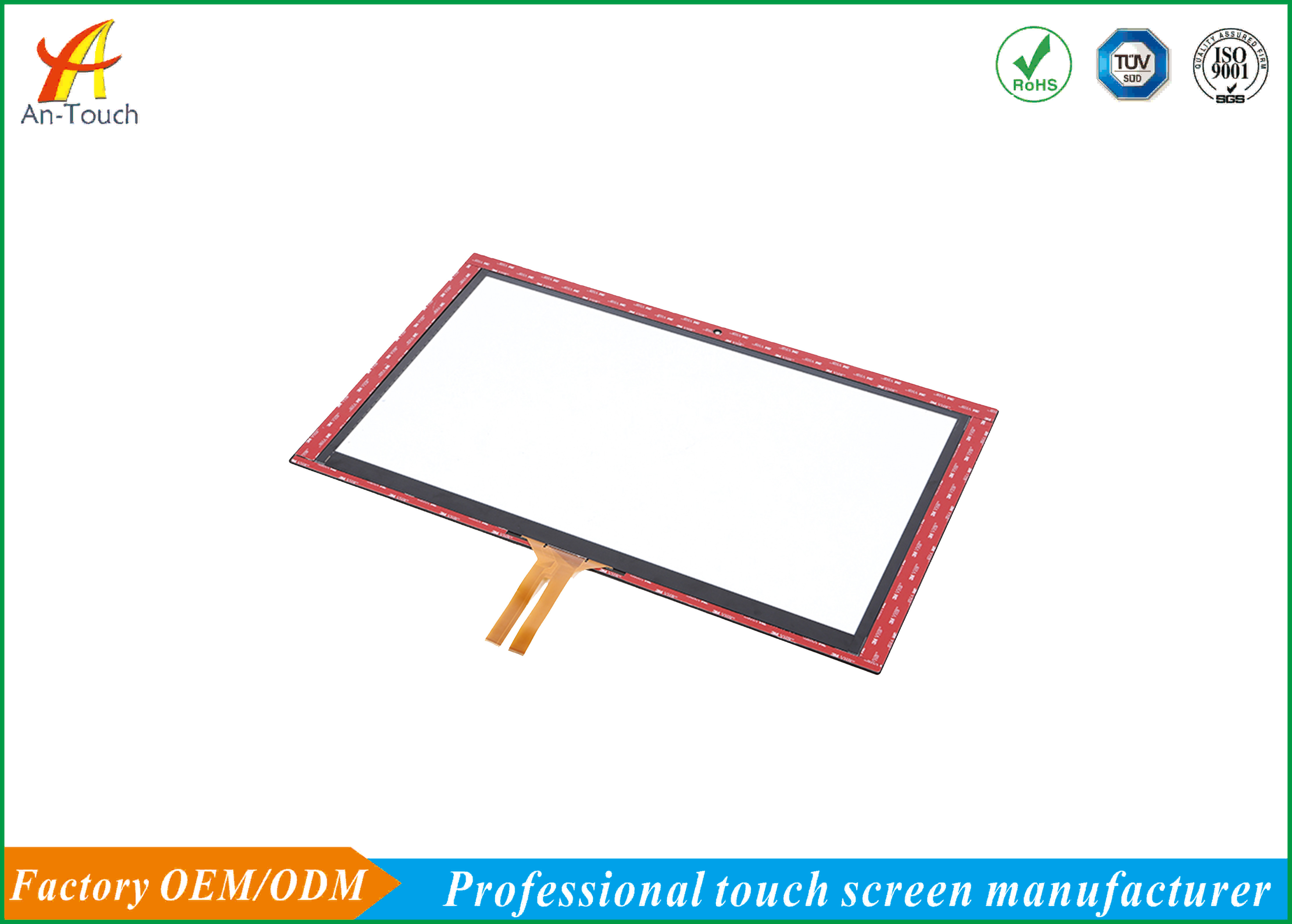

Fast Response Projected Capacitive Touch Panel For POS Machine 588.95*356.55mm
Contact Person : Devin Jiang
Phone Number : +86 13528582261
| Minimum Order Quantity : | negotiation | Price : | Negotiation |
|---|---|---|---|
| Packaging Details : | Standard Packing With Carton | Delivery Time : | 5-8 Work Day |
| Payment Terms : | T/T, Western Union, Paypal | Supply Ability : | 50000/PCS/Month |
| Place of Origin: | China | Brand Name: | antouch |
|---|---|---|---|
| Certification: | ISO9001 | Model Number: | AC-C1087-23.6 |
|
Detail Information |
|||
| Name: | Tft Capacitive Touchscreen | Feature: | Dustproof |
|---|---|---|---|
| Surface Hardness: | >6H | Outline Dimensio: | 588.95*356.55mm |
| Module View Area: | 522.1*294.4mm | IC Controller: | ILITEK 2510/WD8752 |
| Operating System: | XP Win7、8 Android Linux | Advantage: | Wear Resistance |
| High Light: | usb capacitive touch panel,projected capacitive touch screen |
||
Product Description
Dustproof Tft Capacitive Touchscreen / Wear Resistance Multi Touch Screen Panel
Tft Capacitive Touchscreen Typical application:
Industrial numerical control,
Hotel order system,
Supermarket cashier system,
Medical registration system,
Home entertainment device,
Work and study device.
Tft Capacitive Touchscreen Feature
High Touch accuracy
High brightness
Wide applications
Wide viewing angle
Resistive touch screen
Energy-efficient
CE FCC professional certification
Tft Capacitive Touchscreen Parameters
| Item | Specification |
| Part Number | AC-C1087-23.6 Tft Capacitive Touchscreen |
| Structures | Cover Glass+ITO Glass |
| Surface Hardness | >6H |
| Outline size | 588.95*356.55mm |
| View Area | 522.1*294.4mm |
| IC Controller | ILITEK 2510/WD8752 |
| Operating temperature | -20℃~70℃ |
| Storage temperature | -30℃~80℃ |
| Total Thickness | 2.90±0.15mm |
| Transmittance | 86% Min |
| Interface Mode | USB/IIC/RS232 |
| Operating System | XP win7,8 Android Linux |
| Touch Points | 1-10 |
Tft Capacitive Touchscreen Details
> USB Interface
> High accuracy and sensitivity
> Glass + Glass or PET + Glass
Delivery Time:
Samples in stock: 1~3 working days
Customized project: 10~15days for samples
Mass production: 10~18days
Customer question
1. How about Sample lead time ?
-------Custom samples 12-18work-days,standard samples 5~10work-days
2. How about mass production lead time ?
------ 15 days after sample confirmed
3. shipping?
------,Usually we deliver our goods by DHL,UPS, FedEx etc.
4: Payment term?
------ T/T or Western Union 30% deposit, 70% balance should be paid before shipment.
5: How about the warranty?
------ Warranty 1year
