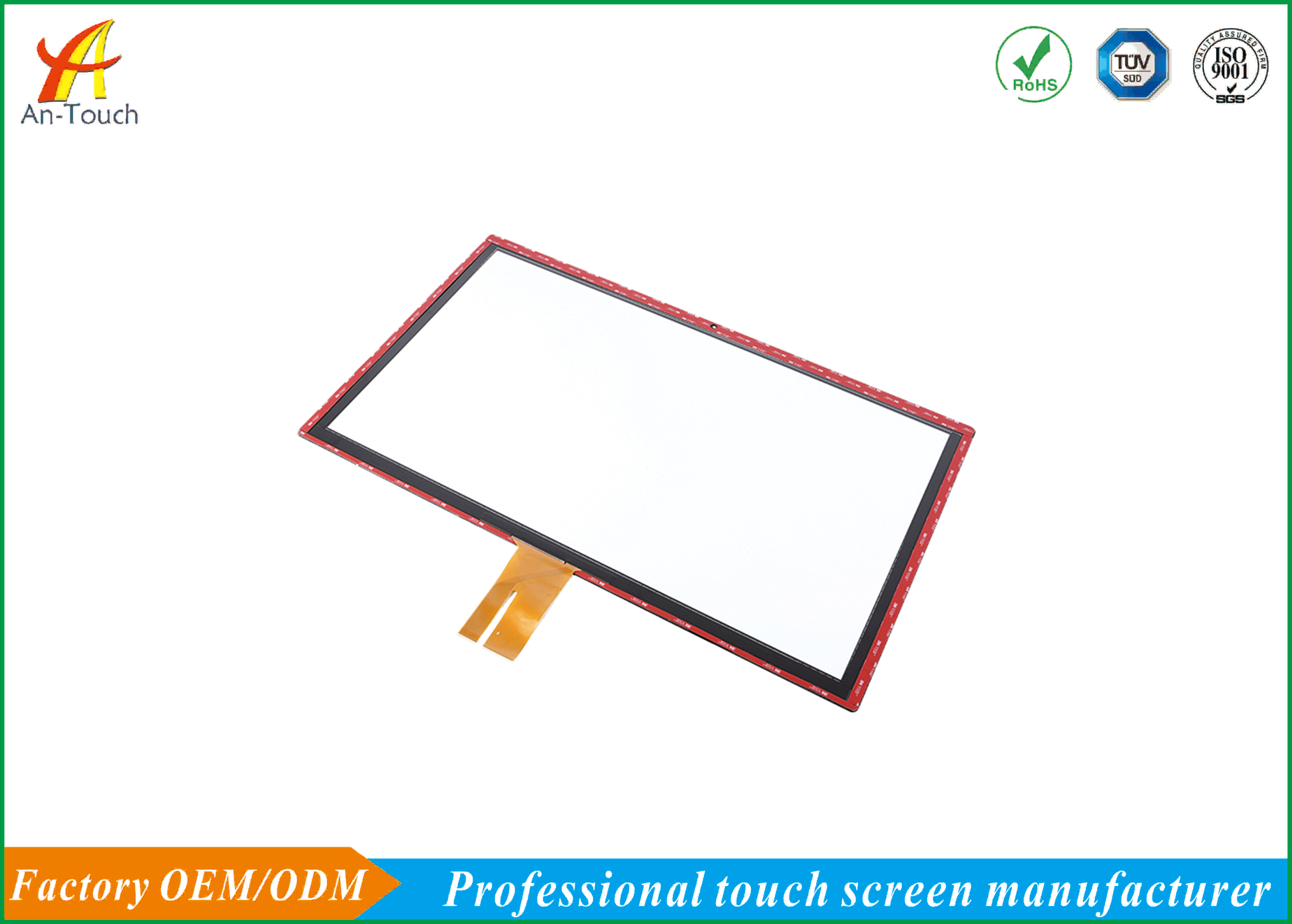

Fast Response Projected Capacitive Touch Panel For POS Machine 588.95*356.55mm
Contact Person : Devin Jiang
Phone Number : +86 13528582261
| Minimum Order Quantity : | negotiation | Price : | Negotiation |
|---|---|---|---|
| Packaging Details : | Standard Packing With Carton | Delivery Time : | 5-8 Work Day |
| Payment Terms : | T/T, Western Union, Paypal | Supply Ability : | 50000/PCS/Month |
| Place of Origin: | China | Brand Name: | antouch |
|---|---|---|---|
| Certification: | ISO9001 | Model Number: | AC-C1085-32.0 |
|
Detail Information |
|||
| Name: | Projected Capacitive Touch Screen | Support: | 10 Points Touch |
|---|---|---|---|
| Surface Hardness: | >6H | Outline Dimensio: | 757.12*450.6mm |
| Module View Area: | 699.4*393.84mm | IC Controller: | ILITEK 2312 |
| Operating System: | XP Win7、8 Android Linux | Other Name: | Lcd Capacitive Touchscreen |
| High Light: | usb capacitive touch panel,projected capacitive touch screen |
||
Product Description
10 Points Touch Projected Capacitive Touch Screen , Lcd Capacitive Touchscreen
Projected Capacitive Touch Screen Features:
1. Strong compatibility, support WindowsXP / 7/8 / 8.1 / 10 / CE, Mac, Android / Linux and other operating systems.
2. Anti-interference ability, without the interference of light and radiation, surface water / oil / dust can touch any place accurate and correct.
3. Free drive, plug and play.
4. Intelligent automatic calibration, simple and easy to adapt to internal / external use a variety of environments.
5. Wear resistance, long life, low maintenance costs.
Projected Capacitive Touch Screen Application:
POS Machine
Industrial Control industry
Touch Monitor
Information Kiosks
Gaming, Lottery ect
Multimedia marketing
Banking / Fanancial System
Projected Capacitive Touch Screen details
| Item | Specification |
| Part Number | AC-C1085-32.0 |
| Structures | Cover Glass+ITO Glass |
| Surface Hardness | >6H |
| Outline size | 757.12*450.6mm |
| View Area | 699.4*393.84mm |
| IC Controller | ILITEK 2312 |
| Operating temperature | -20℃~70℃ |
| Storage temperature | -30℃~80℃ |
| Total Thickness | 3.1±0.15mm |
| Transmittance | 86% Min |
| Interface Mode | USB/IIC/RS232 |
| Operating System | XP win7,8 Android Linux |
| Touch Points | 1-10 |
Projected Capacitive Touch Screen
Capacitive touch screen are built with two parallel layers of ITO but, but unlike the old and cheap resistive touch panels, the ITO layers in a projected capacitive touch panel are sealed between two sheets of glass by an optically clear adhesive.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory for more than 10years in this field.
Q: How long is your delivery time?
A: Generally it is 1-3 days for sample if the goods are in stock. or it is 7-10 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for charge, shipping cost depend on the QTY.
Q: What is your terms of payment ?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
Q: After Service for the product ?
A: We can provide the wireless technology support in any time. If the goods broken during the shipping, pls contact us after received the goods, we will refund your payment or Replenishment deliver.
