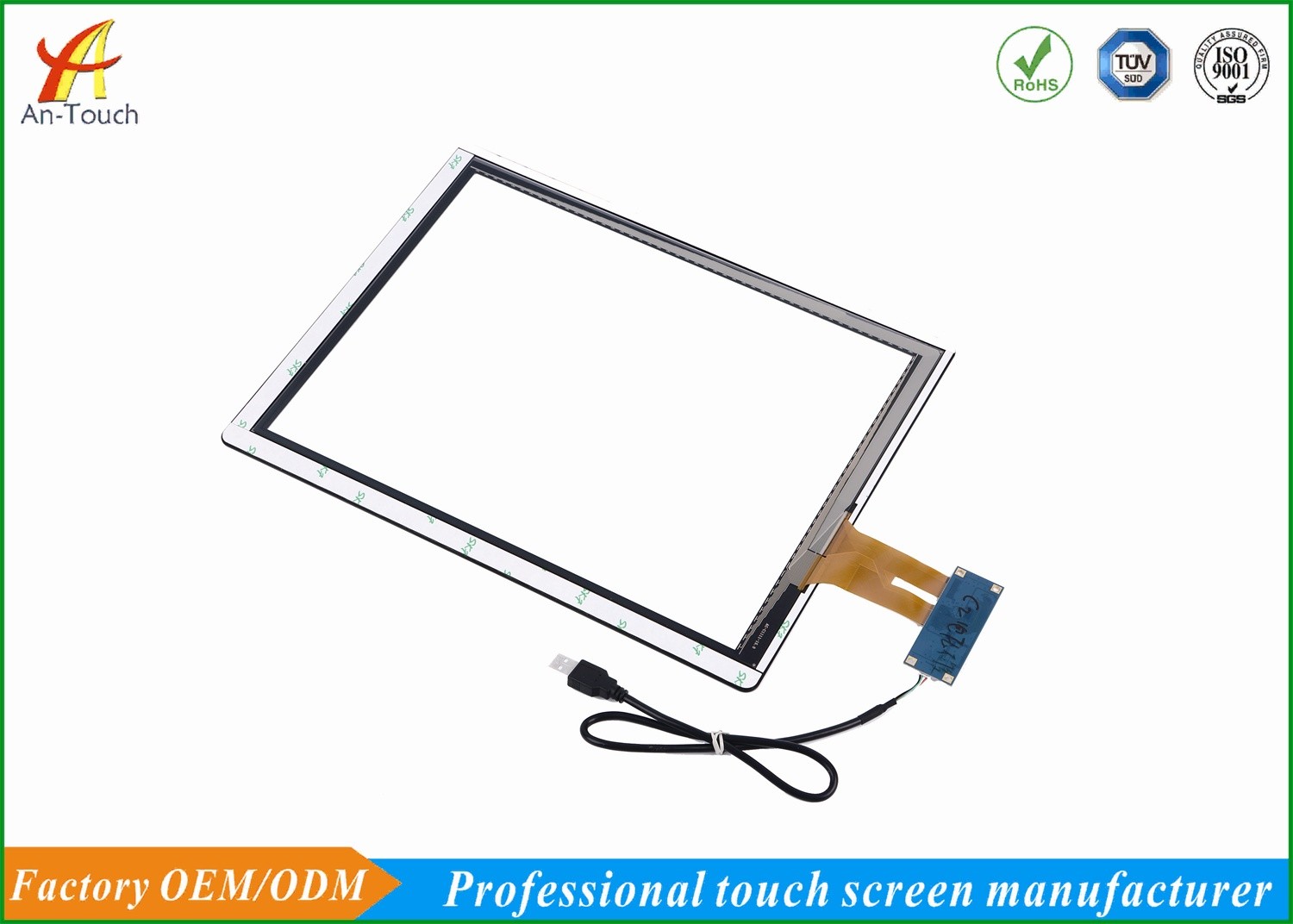

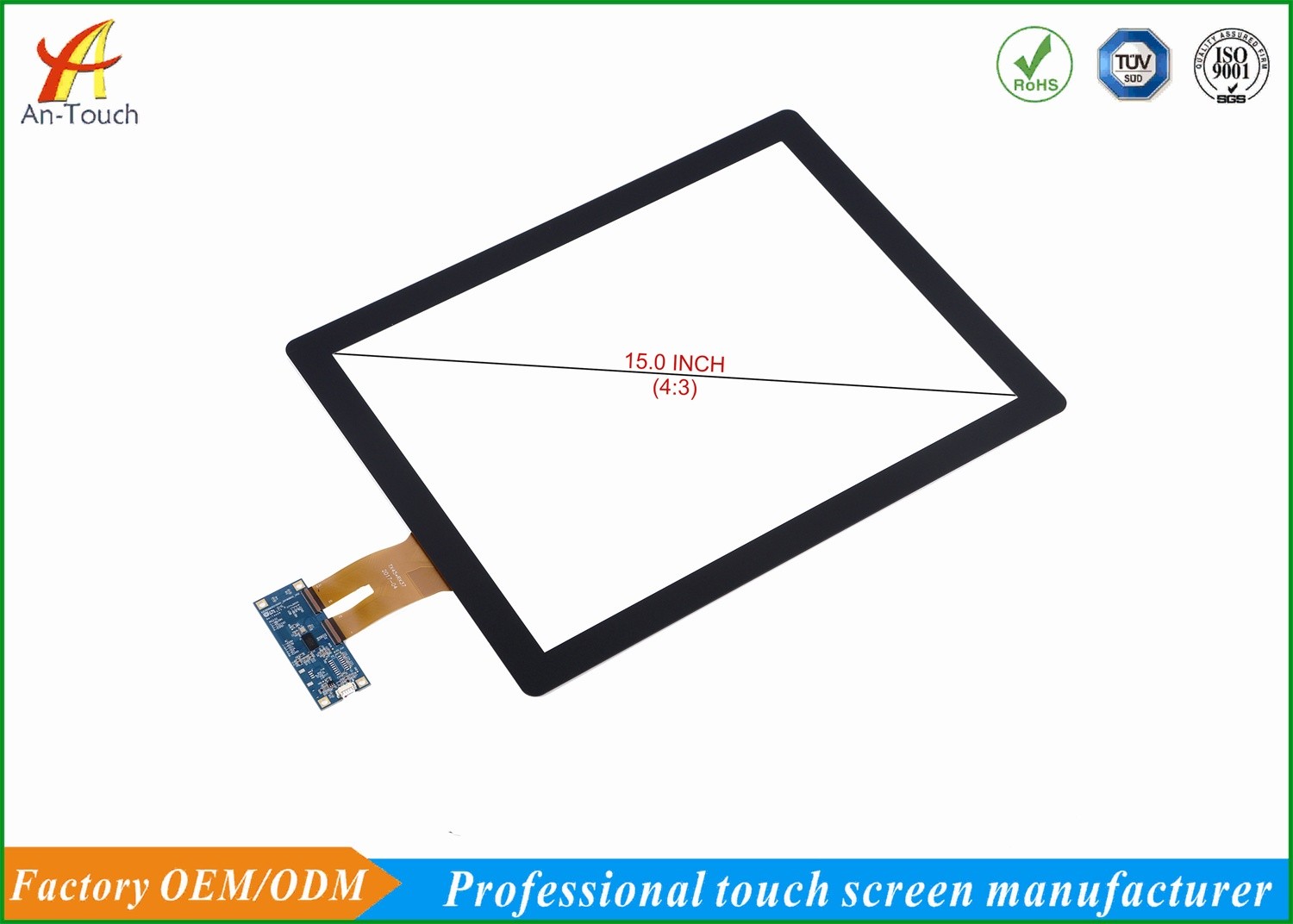

Fast Response Projected Capacitive Touch Panel For POS Machine 588.95*356.55mm
Contact Person : Devin Jiang
Phone Number : +86 13528582261
| Minimum Order Quantity : | 1/PCS | Price : | 10-100$/pcs / Negotiable |
|---|---|---|---|
| Packaging Details : | Standard Packing With Carton | Delivery Time : | 5-8 Work Day |
| Payment Terms : | T/T, Western Union, Paypal | Supply Ability : | 50000/PCS/Month |
| Place of Origin: | China | Brand Name: | antouch |
|---|---|---|---|
| Certification: | ROHS SGS ISO9001 | Model Number: | AC-C1111-15.0 |
|
Detail Information |
|||
| Screen Diagonal: | 15 | Ratio: | 4:3 |
|---|---|---|---|
| Structures: | G+G | Outline Dimensio: | 361.42*287.42mm |
| Module View Area: | 304.5*228.5mm | Active Area: | 306.0*230.0mm |
| High Light: | projected capacitive touch screen,capacitive touch screen panel |
||
Product Description
| Item | Specification |
| Screen size | 15.0 inch |
| Structures | Cover Glass+ITO Glass |
| Surface Hardness | >6H |
| Surface Treatment | AG/AF/AR |
| IC Controller | ILITEK 2302 |
| Operating temperature | -20℃~70℃ |
| Storage temperature | -30℃~80℃ |
| Supply Voltage | 3.3V~5V |
| Transmittance | 86% Min |
| Interface Mode | USB/IIC/RS232 |
| Operating System | XP win7,8 Android Linux |
| System Driver | No need(USB plug and play) |
| Touch Points | 1-10 |
Capacitive Touch Screen:
Capacitive touch screen are built with two parallel layers of ITO but, but unlike the old and cheap resistive touch panels, the ITO layers in a projected capacitive touch panel are sealed between two sheets of glass by an optically clear adhesive.
Projected Capacitive touch screen Features:
1) Response speed fast, smooth touch.
2) Flat panel, more high-end atmosphere, eliminating infrared touch screen surface with a groove edges are not allowed to shortcomings.
3) Precision-touch capacitive screen is using the body's current-sensing.
4) Accuracy up to 99% proficient in writing, no break no drift.
5) Any point can withstand more than 50 million times touch.
6) Explosion-proof and durable, scratch-resistant, anti-collision, anti-radiation within the core capacitive touch ensure stable, anti-interference ability.
7) Operating systems strong compatibility.
8) Intelligent automatic calibration, use forinternal / external variety of environments.
9) Long life, low maintenance costs.
There are many advantages of G+G structure:
(1) High transmittance,>83%.
(2) Hard and anti-wear surface.The hardness is 6H.
(3) Excellent corrosion resistance.
(4) Sensitive touch and stable performance.
Application:
► Point-of-information kiosks.
► Vending and ticket sales.
► Electronic catalogs.
► Gaming, lottery, and amusement.
► Public pay phones.
► Multimedia marketing.
► Banking/financial transactions.
► Industrial control rooms.
► Computer-based training.
Why choose us?
1. Our factory is a legal,responsible,capable,experienced factory.
2. We have the largest laminting mechine which can up to 65inch.
3. In stock for fast delivery provide the best after-sales service.
4. We can provide the best design solutions according customer requirements.
5. All of our products have been inspected strictly before delivery.
Customer question
1. How about Sample lead time ?
-------Custom samples 12-18work-days,standard samples 5~10work-days.
2. How about mass production lead time ?
------ 15 days after sample confirmed.
3.Shipping?
------Usually we deliver our goods by DHL,UPS, FedEx etc.
4: Payment term?
------ T/T or Western Union 30% deposit, 70% balance should be paid before shipment.
5: How about the warranty?
------ Warranty 1year.
