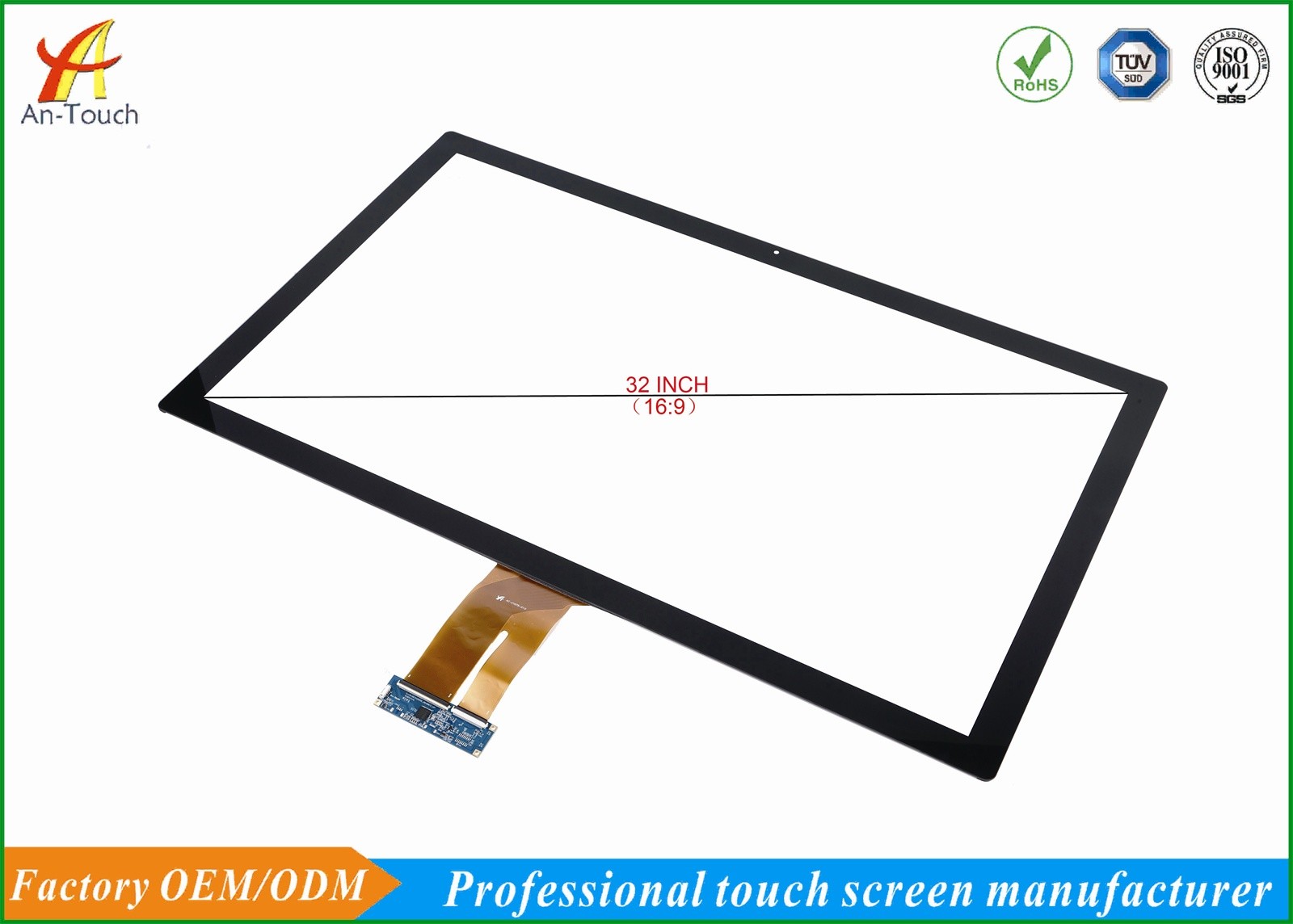

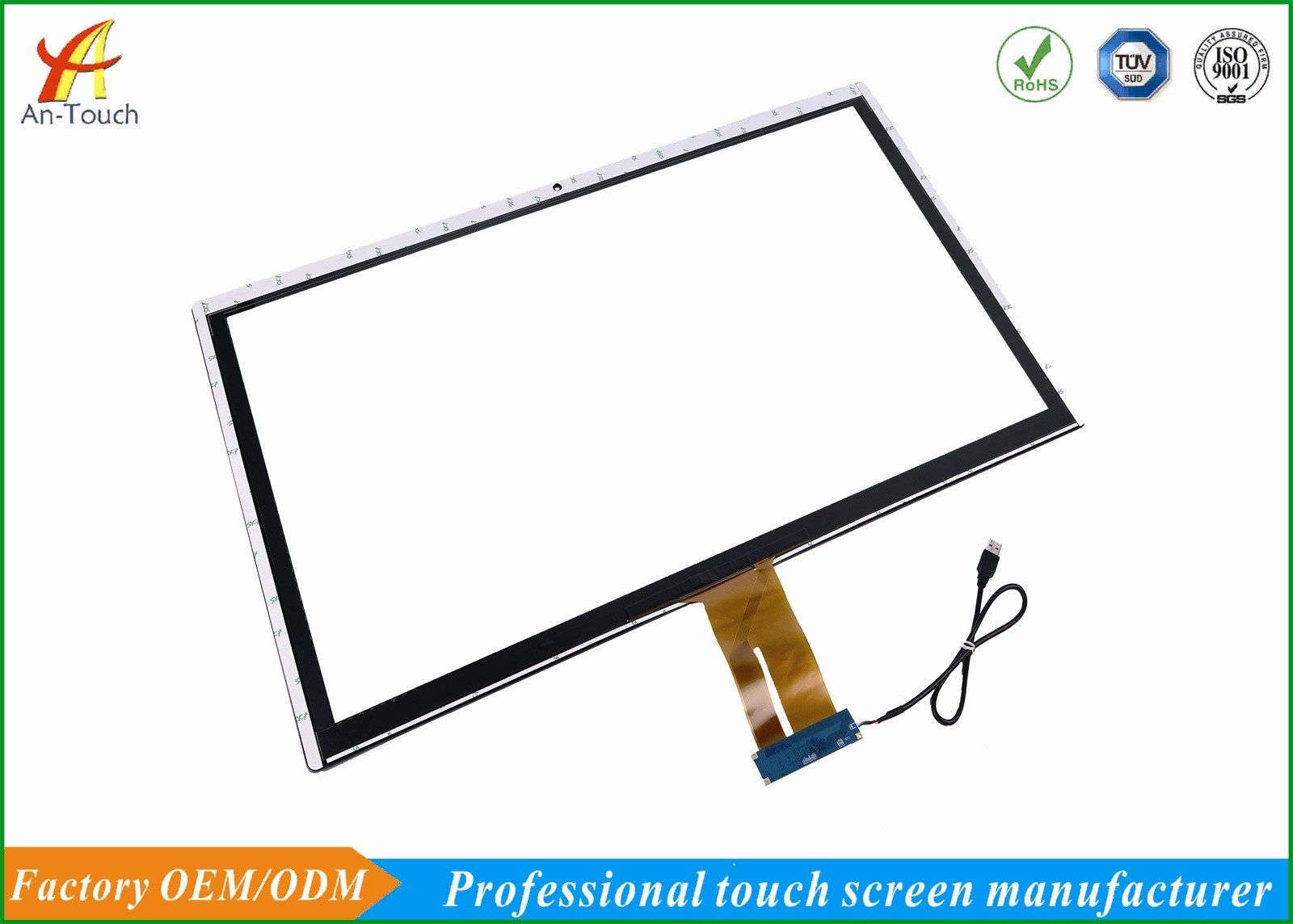

Long Life Projected Capacitive Touch Screen / OEM Multi Touch Display
Contact Person : Devin Jiang
Phone Number : +86 13528582261
| Minimum Order Quantity : | 1/PCS | Price : | 10-100$/pcs / Negotiable |
|---|---|---|---|
| Packaging Details : | Standard Packing With Carton | Delivery Time : | 5-8 Work Day |
| Payment Terms : | T/T, Western Union, Paypal | Supply Ability : | 50000/PCS/Month |
| Place of Origin: | China | Brand Name: | antouch |
|---|---|---|---|
| Certification: | ROHS SGS ISO9001 | Model Number: | AC-C1085-32.0 |
|
Detail Information |
|||
| Screen Diagonal: | 32 | Interface Mode: | USB/IIC/RS232 |
|---|---|---|---|
| Operating System: | XP Win7 8 Android Linux | Outline Dimensio: | 759.4*453.84mm |
| Cover Lens: | 2.0mm | ||
| High Light: | capacitive touchscreen display,usb capacitive touch screen |
||
Product Description
| Item | Specification |
| Screen size | 32.0 inch |
| Structures | Cover Glass+ITO Glass |
| Surface Hardness | >6H |
| Surface Treatment | AG/AF/AR |
| IC Controller | ILITEK 2312 |
| Operating temperature | -20℃~70℃ |
| Storage temperature | -30℃~80℃ |
| Supply Voltage | 3.3V~5V |
| Transmittance | 86% Min |
| Interface Mode | USB/IIC/RS232 |
| Operating System | XP win7,8 Android Linux |
| System Driver | No need(USB plug and play) |
| Touch Points | 1-10 |
Capacitive Touch Screen:
Capacitive touch screen are built with two parallel layers of ITO but, but unlike the old and cheap resistive touch panels, the ITO layers in a projected capacitive touch panel are sealed between two sheets of glass by an optically clear adhesive.
Projected Capacitive touch screen Features:
►Response speed fast, smooth touch.
► Flat panel, more high-end atmosphere, eliminating infrared touch screen surface with a groove edges are not allowed to shortcomings.
►Any point can withstand more than 50 million times touch.
► Operating systems strong compatibility.
► Intelligent automatic calibration, use forinternal / external variety of environments.
► Long life, low maintenance costs.
Advantages of G+G structure:
(1)High transmittance,>83%.
(2)Hard and anti-wear surface.The hardness is 6H.
(3)Excellent corrosion resistance.
(4)Sensitive touch and stable performance.
Application:
►Point-of-information kiosks.
►Vending and ticket sales.
►Electronic catalogs.
►Gaming, lottery, and amusement.
►Public pay phones.
►Multimedia marketing.
►Banking/financial transactions.
►Industrial control rooms.
►Computer-based training.
Customer question
1. How about Sample lead time ?
-------Custom samples 12-18work-days,standard samples 5~10work-days.
2. How about mass production lead time ?
------ 15 days after sample confirmed.
3.Shipping?
------Usually we deliver our goods by DHL,UPS, FedEx etc.
4: Payment term?
------ T/T or Western Union 30% deposit, 70% balance should be paid before shipment.
5: How about the warranty?
------ Warranty 1year.
