Fast Response Projected Capacitive Touch Panel For POS Machine 588.95*356.55mm
Contact Person : Devin Jiang
Phone Number : +86 13528582261
| Minimum Order Quantity : | 1/PCS | Price : | 10-100$/pcs / Negotiable |
|---|---|---|---|
| Packaging Details : | Standard Packing With Carton | Delivery Time : | 5-8 Work Day |
| Payment Terms : | T/T, Western Union, Paypal | Supply Ability : | 50000/PCS/Month |
| Place of Origin: | China | Brand Name: | antouch |
|---|---|---|---|
| Certification: | ROHS SGS ISO9001 | Model Number: | AC-C1474-10.1 |
|
Detail Information |
|||
| Screen Diagonal: | 10.1 | Module View Area: | 223.12mm*125.68mm |
|---|---|---|---|
| Resolution: | 1280 X 1024 | Operating System: | XP Win7 8 Android Linux |
| Outline Dimensio: | 253.6mm*152.6mm | Input Method: | Finger Or Capacitive Pen |
| High Light: | capacitive touch screen panel,usb capacitive touch panel |
||
Product Description
| Item | Specification |

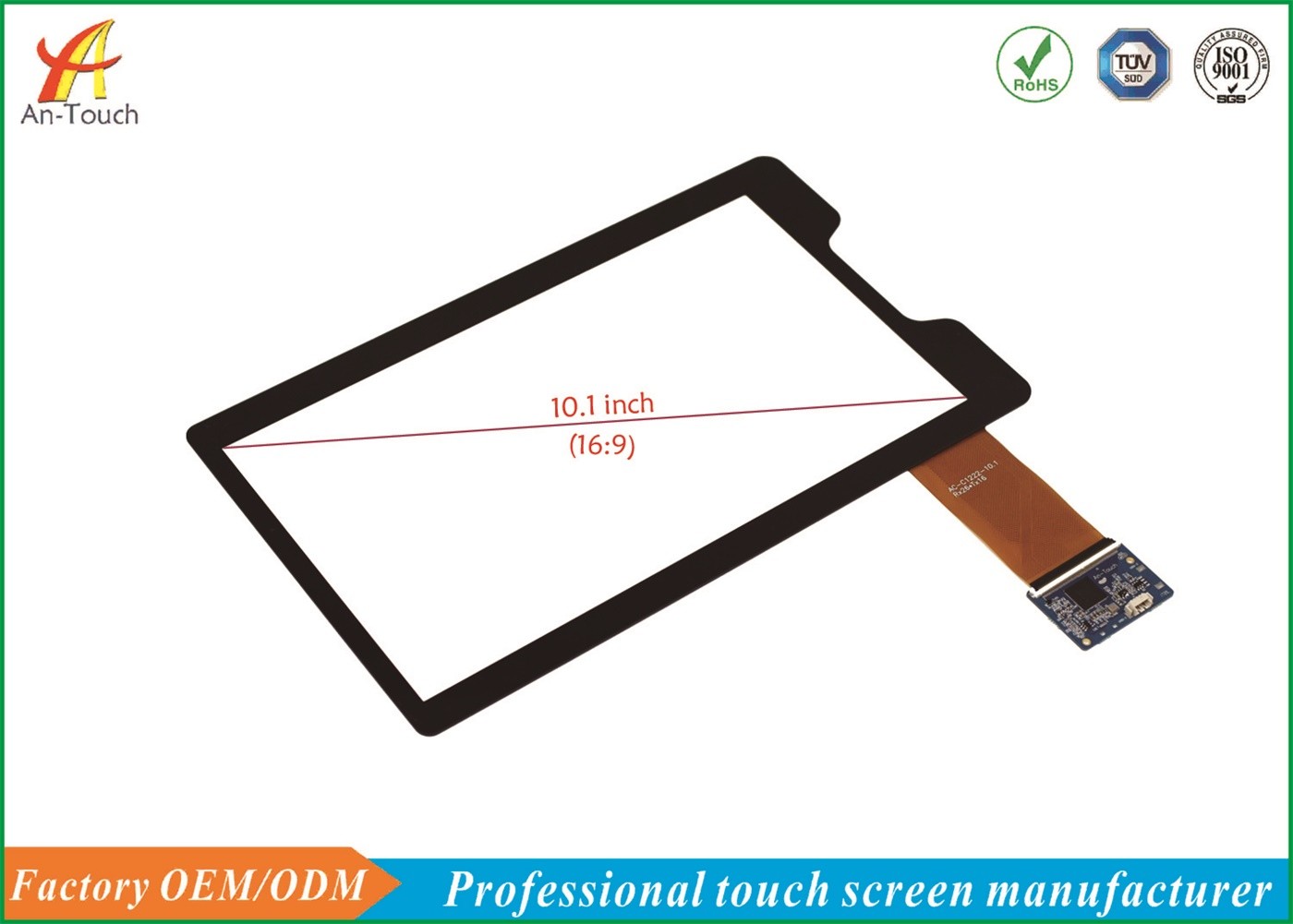

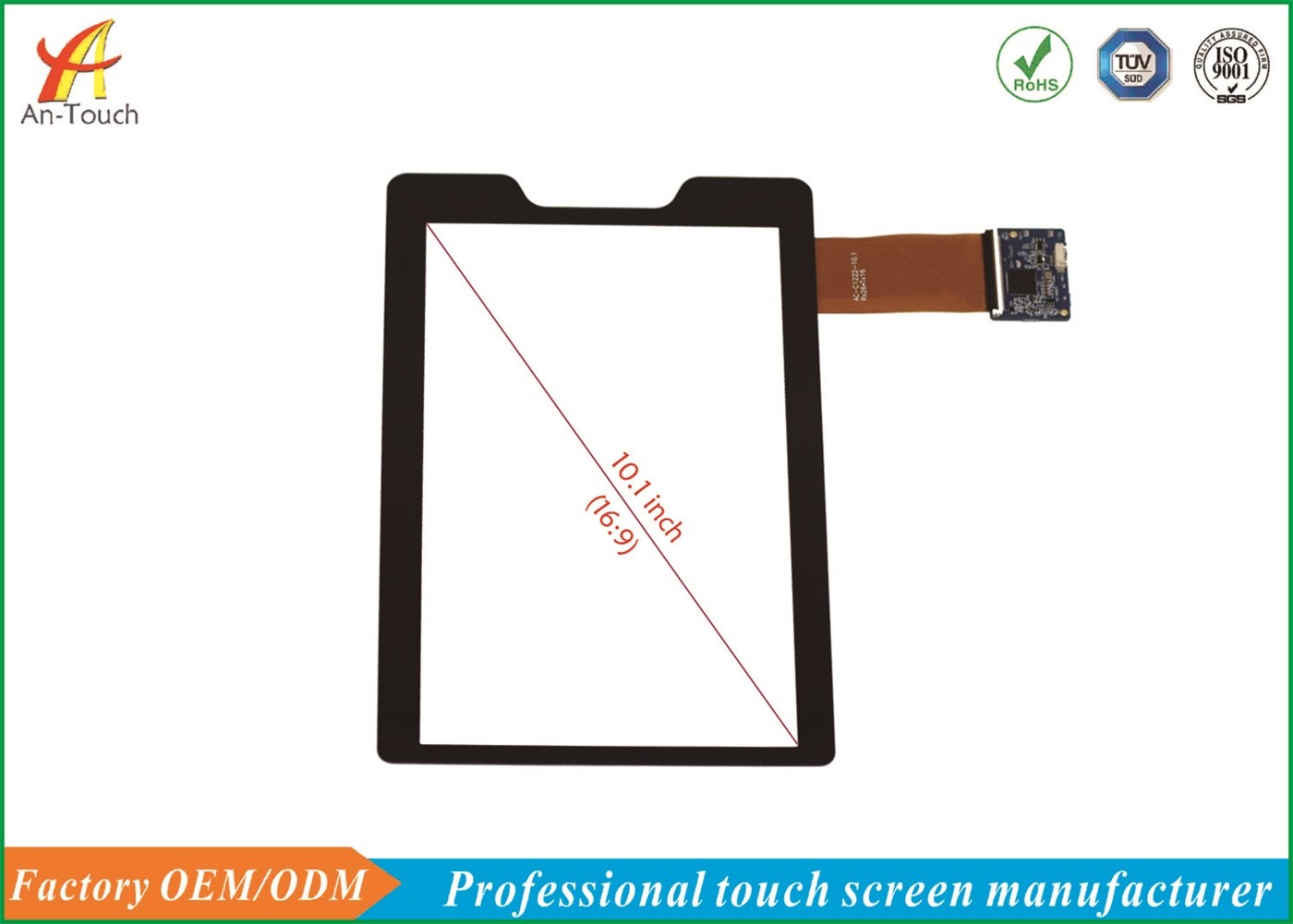

| Screen size | 10.1 inch |
| Structures | Cover Glass+ITO Glass |
| Surface Hardness | >6H |
| Surface Treatment | AG/AF/AR |
| IC Controller | ILITEK 2511 |
| Operating temperature | -20℃~70℃ |
| Storage temperature | -30℃~80℃ |
| Supply Voltage | 3.3V~5V |
| Transmittance | 86% Min |
| Interface Mode | USB/IIC/RS232 |
| Operating System | XP win7,8 Android Linux |
| System Driver | No need(USB plug and play) |
| Touch Points | 1-10 |
Capacitive Touch Screen:
Capacitive Touch Panel is to use the working current of induction of human body.The operational principle of the projected capacitive touch panel: There are two layers of the ITO layer under the surface of glass. This ITO layer respectively forms the electric field of X axis and Y axis, which can keep balance by crossing the surface of the class. Once the fingers approach the glass surface, the fingers and the electrode X axis or Y axis will form a new electric field, which can make the local capacitance change. Then the controller will determine the location based on capacitance changes.
Advantages of G+G structure:
(1)High transmittance,>83%.
(2)Hard and anti-wear surface.The hardness is 6H.
(3)Excellent corrosion resistance.
(4)Sensitive touch and stable performance.
Projected Capacitive touch screen Features:
1) Response speed fast, smooth touch.
2) Flat panel, more high-end atmosphere, eliminating infrared touch screen surface with a groove edges are not allowed to shortcomings.
3) Precision-touch capacitive screen is using the body's current-sensing.
4) Accuracy up to 99% proficient in writing, no break no drift.
5) Any point can withstand more than 50 million times touch.
6) Explosion-proof and durable, scratch-resistant, anti-collision, anti-radiation within the core capacitive touch ensure stable, anti-interference ability.
7) Operating systems strong compatibility.
8) Intelligent automatic calibration, use forinternal / external variety of environments.
9) Long life, low maintenance costs.
Delivery Time:
Samples in stock: 1~3 working days.
Customized project: 10~15days for samples.
Mass production: 10~18days.
Why choose us?
1.Our factory is a legal,responsible,capable,experienced factory.
2.We have the largest laminting mechine which can up to 65inch.
3.In stock for fast delivery provide the best after-sales service.
4.We can provide the best design solutions according customer requirements.
5.All of our products have been inspected strictly before delivery.
Customer question
1. How about Sample lead time ?
-------Custom samples 12-18work-days,standard samples 5~10work-days.
2. How about mass production lead time ?
------ 15 days after sample confirmed.
3.Shipping?
------Usually we deliver our goods by DHL,UPS, FedEx etc.
4: Payment term?
------ T/T or Western Union 30% deposit, 70% balance should be paid before shipment.
5: How about the warranty?
------ Warranty 1year.
