Fast Response Projected Capacitive Touch Panel For POS Machine 588.95*356.55mm
Contact Person : Devin Jiang
Phone Number : +86 13528582261
| Minimum Order Quantity : | 1pcs | Price : | 10-100$/pcs / Negotiable |
|---|---|---|---|
| Packaging Details : | Standard export package | Delivery Time : | 8-10 Work Days |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 10000/pcs/Month |
| Place of Origin: | China | Brand Name: | antouch |
|---|---|---|---|
| Model Number: | AC-C1271-43.0 |
|
Detail Information |
|||
| TP Type:: | Projected Capacitive Touch Panel | Interface:: | USB |
|---|---|---|---|
| Touch Points:: | 10 Points | Colour:: | Black (customizable) |
| IC Controller:: | ILITEK | Transmittance:: | ≥85% |
| Surface Hardness:: | ≧6H | Warrently:: | 1 Year |
| High Light: | capacitive touch screen panel,usb capacitive touch panel |
||
Product Description

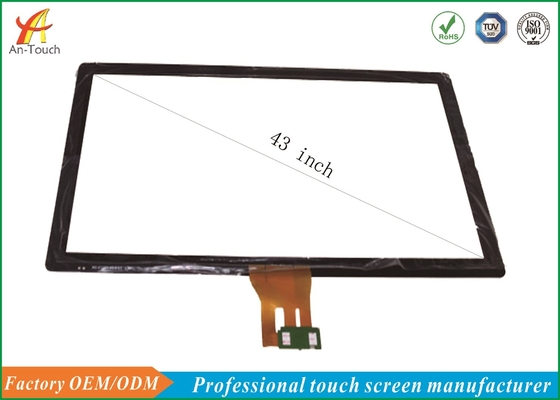

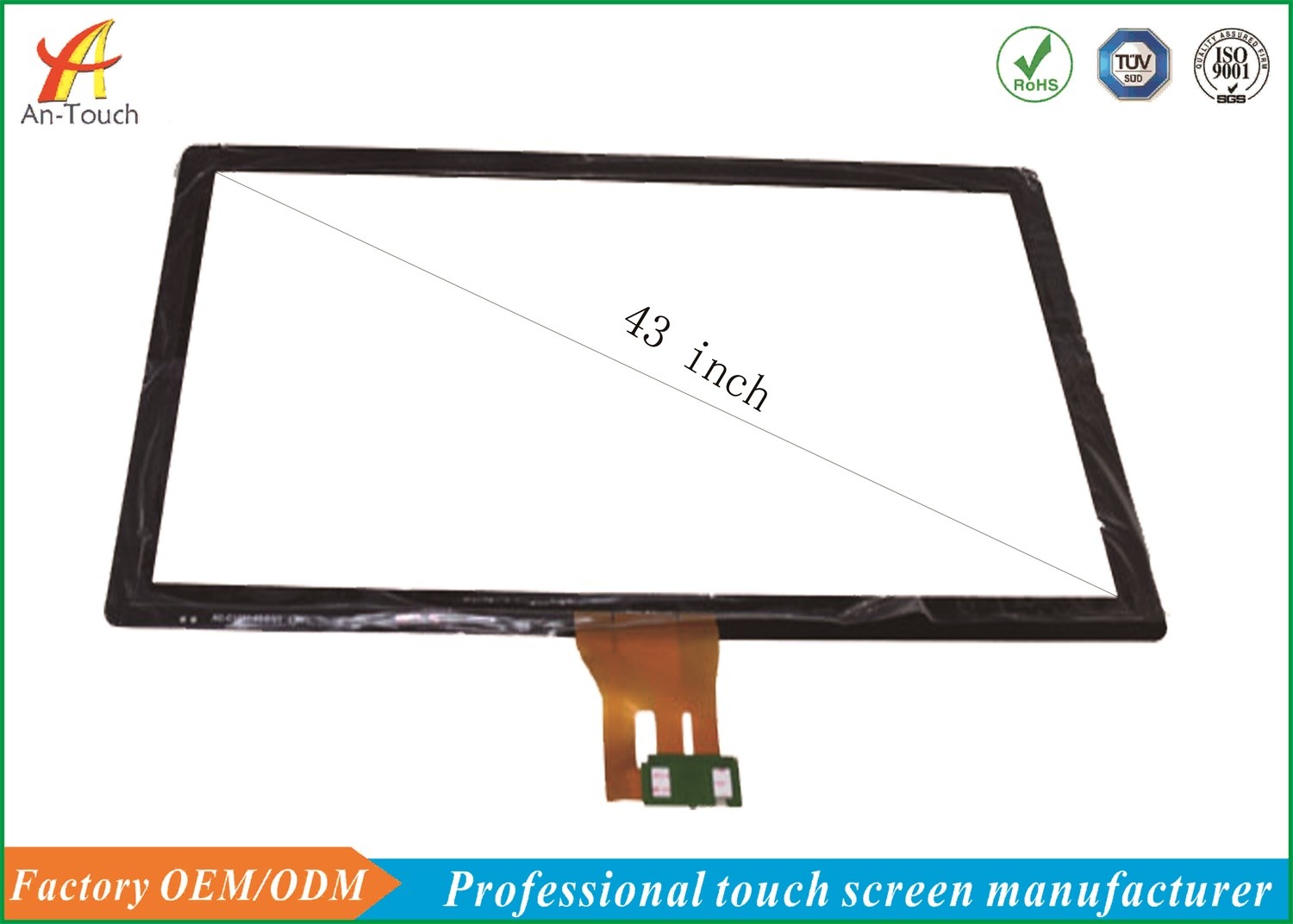

Large Size Customizable Black Border 43 inch Projected Capacitive Touch Panel
Basic Specification:
|
Screen size |
43 inch |
| Structures | Cover Glass+ITO Glass |
| Ratio | 16:9 |
| Surface Hardness | >6H |
| Outline Dimension | 1031*626mm |
| Module View Area | 943.2*532.7mm |
| Active Area | 937*561.5mm |
| Cover Lens | 3.0mm |
| Surface Treatment | AG/AF/AR |
| Operating temperature | -20℃~70℃ |
| Storage temperature | -30℃~80℃ |
| Supply Voltage | 3.3V~5V |
| Transmittance | 86% Min |
| Interface Mode | USB/IIC/RS232 |
| Operating System | XP win7,8 Android Linux |
| System Driver | No need(USB plug and play) |
| Touch Points | 1-10 |
Projected Capacitive touch screen Features:
♦ Response speed fast, smooth touch.
♦ Flat panel, more high-end atmosphere, eliminating infrared touch screen surface with a groove edges are not allowed to shortcomings.
♦ Precision-touch capacitive screen is using the body's current-sensing.
♦ Accuracy up to 99% proficient in writing, no break no drift.
♦ Any point can withstand more than 50 million times touch.
♦ Explosion-proof and durable, scratch-resistant, anti-collision, anti-radiation within the core capacitive touch ensure stable, anti-interference ability.
♦ Operating systems strong compatibility.
Development process:
A .Receive customer's technical files, including PCAP drawing, LCD specification.
B .Recommend standard products or customize products based on customer's requirements.
C .Offer engineering drawing for confirmation and fill in project kick-off form.
D .Make samples according to the confirmed drawing.
E .Debug the samples based on the information on kick-off form, keep the FW.
F .Send the samples to customers for confirmation. Offer all the technical supports with which customer will let the touch panels work well.
G .Pilot production.
H .Mass production
FAQ:
-------Custom samples 12-18work-days,standard samples 5~10work-days
------ 15 days after sample confirmed
------Usually we deliver our goods by DHL,UPS, FedEx etc.
------ T/T or Western Union 30% deposit, 70% balance should be paid before shipment.
------ Warranty 1year
Shipment service:
FedEx, DHL, UPS, TNT, Aramex etc.
Delivery Time:
1.Samples in stock: 1~3 working days
2.Customized project: 10~15days for samples
3.Mass production: 10~18days

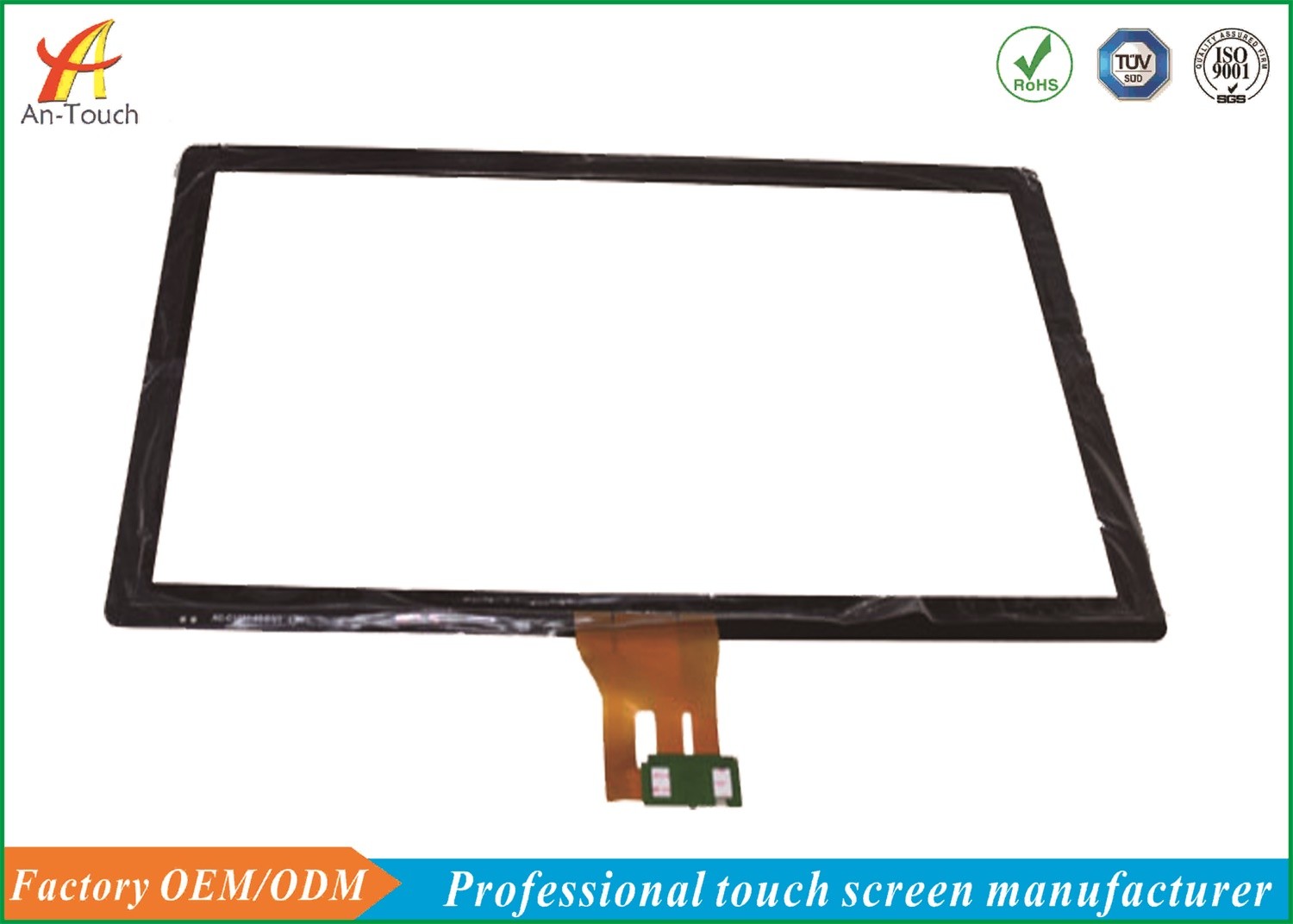

High Dedinition Product Map
Technical Drawings:
