Fast Response Projected Capacitive Touch Panel For POS Machine 588.95*356.55mm
Contact Person : Devin Jiang
Phone Number : +86 13528582261
| Minimum Order Quantity : | negotiation | Price : | Negotiation |
|---|---|---|---|
| Packaging Details : | Standard Packing With Carton | Delivery Time : | 5-8 Work Day |
| Payment Terms : | T/T, Western Union, Paypal | Supply Ability : | 50000/PCS/Month |
| Place of Origin: | China | Brand Name: | antouch |
|---|---|---|---|
| Certification: | ISO9001 | Model Number: | AC-C1057-19.0 |
|
Detail Information |
|||
| Name: | Capacitive Touch Panel | Structures: | Cover Glass+ITO Glass |
|---|---|---|---|
| Surface Hardness: | >6H | Outline Dimensio: | 421.6*346.6mm |
| Module View Area: | 376.32*301.06mm | IC Controller: | ILITEK 2510/WD8752 |
| Operating System: | XP Win7、8 Android Linux | Interface Mode: | USB/IIC/RS232 |
| High Light: | usb capacitive touch panel,projected capacitive touch screen |
||
Product Description

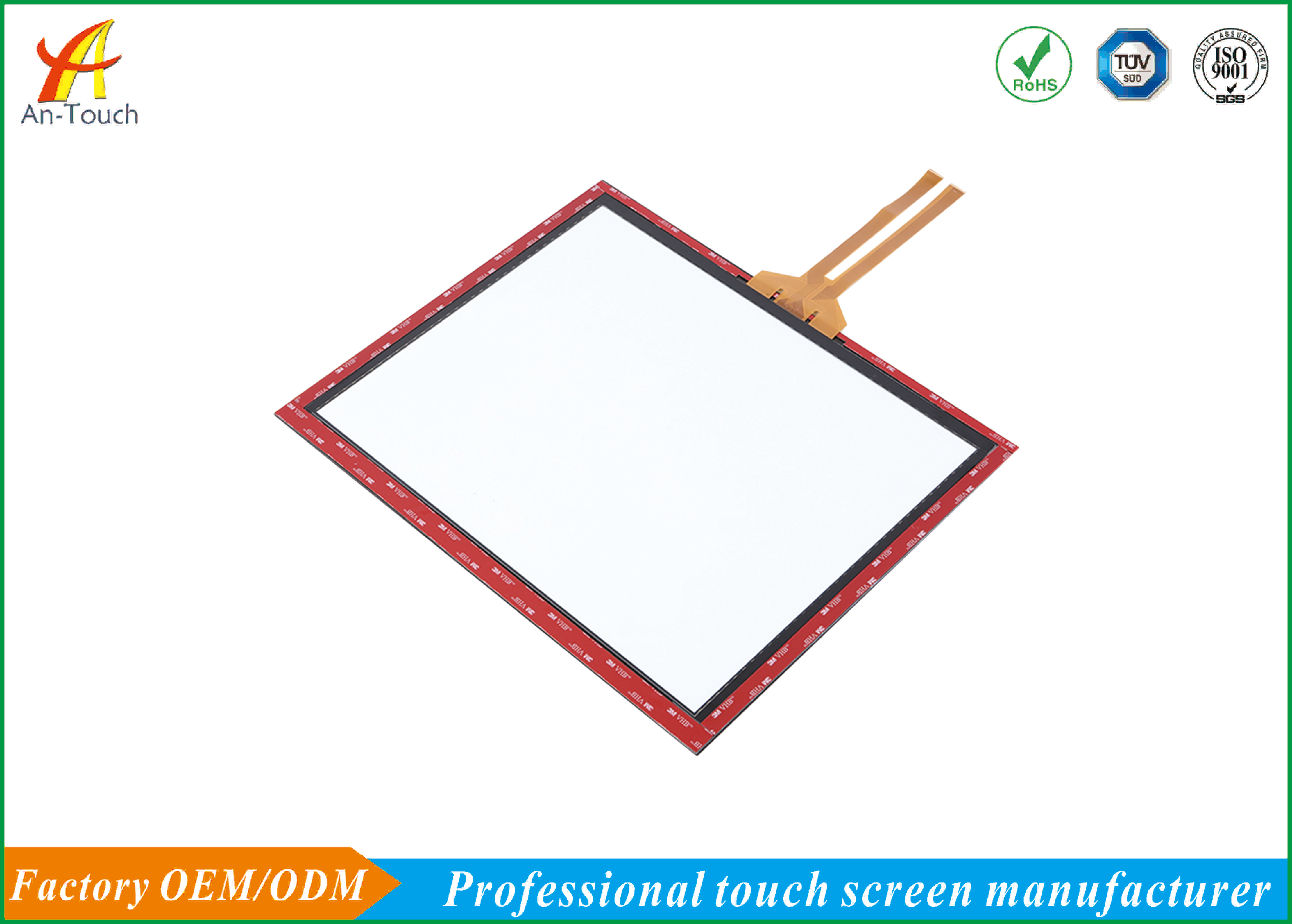

19'' Capacitive Tft Touch Screen , Android Mutual Capacitance Touch Screen
Capacitive Tft Touch Screen Features
(1) High transmittance
(2) Hard and anti-wear surface.The hardness is 6H.
(3) Excellent corrosion resistance.
(4) Sensitive touch and stable performance.
Capacitive Tft Touch Screen Features
(1) High transmittance
(2) Hard and anti-wear surface.The hardness is 6H.
(3) Excellent corrosion resistance.
(4) Sensitive touch and stable performance.
Capacitive Tft Touch Screen details
| Item | Specification |
| Part Number | AC-C1057-19.0 Capacitive Tft Touch Screen |
| Structures | Cover Glass+ITO Glass |
| Surface Hardness | >6H |
| Outline size | 421.6*346.6mm |
| View Area | 376.32*301.06mm |
| IC Controller | ILITEK 2510/WD8752 |
| Operating temperature | -20℃~70℃ |
| Storage temperature | -30℃~80℃ |
| Total Thickness | 2.70±0.15mm |
| Transmittance | 86% Min |
| Interface Mode | USB/IIC/RS232 |
| Operating System | XP win7,8 Android Linux |
| Touch Points | 1-10 |
Features
1,Can support real 10 points touch, Compatible with multiple system
2, High accuracy, good sensitivity, strong anti interference ability.
3,Controllor with USB interface type .
4,Can support 10 mm thickness glass touch
Shenzhen An-Touch Technology Co., Ltd. Is a professional manufacturer of touch screen and a high-tech enterprise.Our products are widely used in industrial equipment,POS machine,self-service terminals,ATM,smart hone,medical equipment and so on.
An-touch is engaged in the research,development,production,sale and service of capacitive touch screen,has automatic production lines and the sealed dust-free workshops .The products are inspected in strict accordance with the quality management system. Quality management becomes an essential part of operation. The objective of An-Touch is to become the most reliable supplier of touch screen, special products, high value-added products and touch solutions in the world!
