Commercial Capacitive Touch Panel Display XP Win7 8 Android Linux Operating System

Product Description

Commercial Capacitive Touch Panel Display XP Win7 8 Android Linux Operating System

Capacitive Touch Panel Display Introduction

Capacitive touch screen are built with two parallel layers of ITO but, but unlike the old and cheap resistive touch panels, the ITO layers in a projected capacitive touch panel are sealed between two sheets of glass by an optically clear adhesive.

Capacitive Touch Panel Display Structure & Operating Principle:

►Capacitive touch screen is a piece of 2 layer of compound glass with double side transparent conductive coating that conducts a continuous electrical current across the sensor.

►There is electrode pattern printed along the edges distributes a low voltage filed over the conductive layer.

►The human body is also an electrical device which has stored electrons and therefore also exhibits capacitance.

►When a finger touches the screen and draws a minute amount of current to the point of contact ,creating a voltage drop.

►The current flow from each corner is proportional to the distance to the touch point. During a touch ,capacitance forms between the finger and the sensor grid. The touch location is calculated from the changing electrical characteristics of the sensor grid.

Capacitive Touch Panel Display Application:

►Touch Monitor.

►Information Kiosks.

►Gaming, Lottery ect.

►Multimedia marketing.

►Banking / Fanancial System.

►Touch Table.

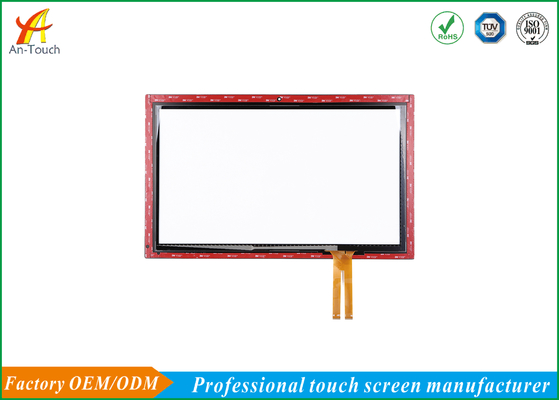

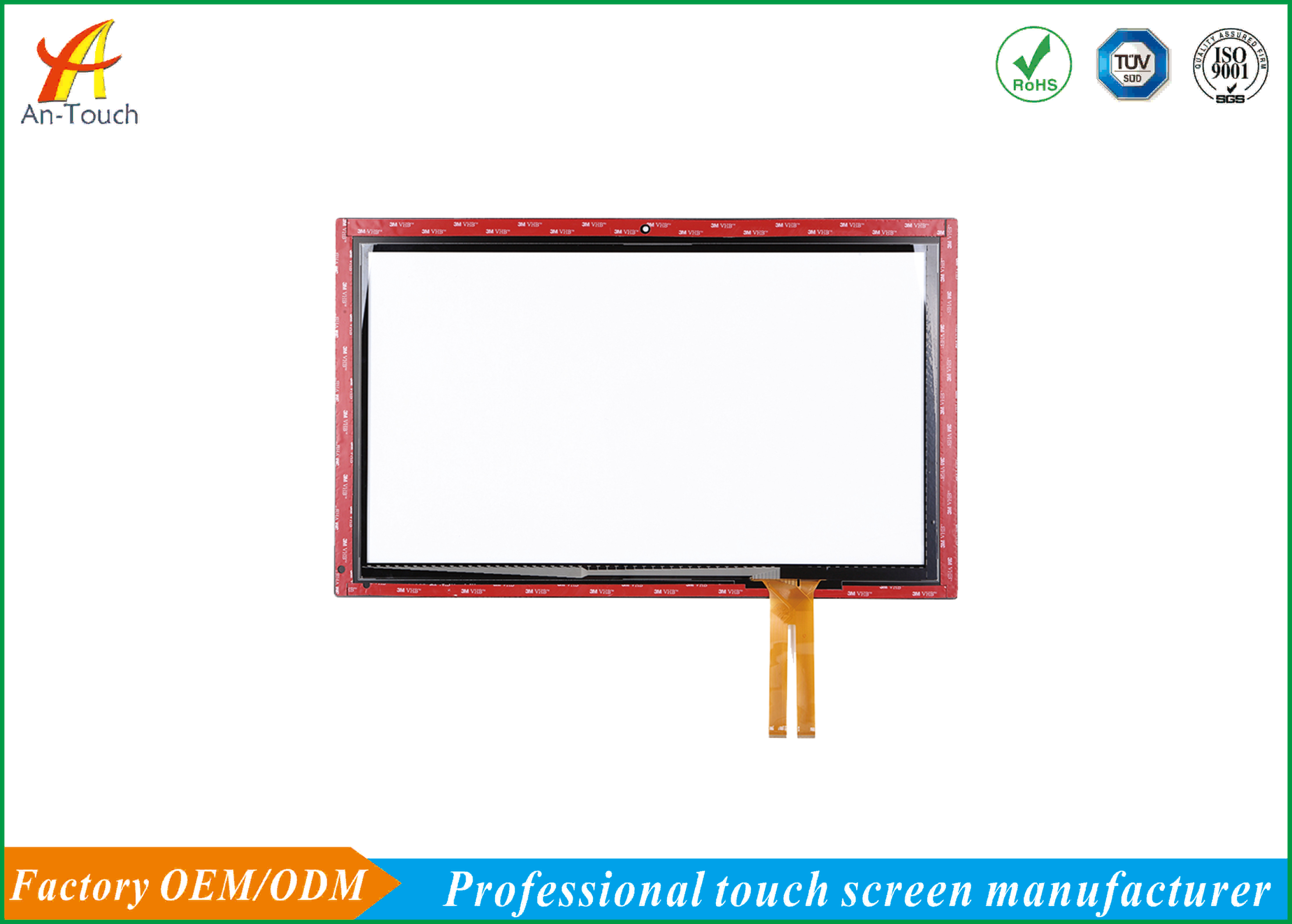

Capacitive Touch Panel Display details
